Cleveland Range 36GM300 Steamers (Countertop & Floor)
Description

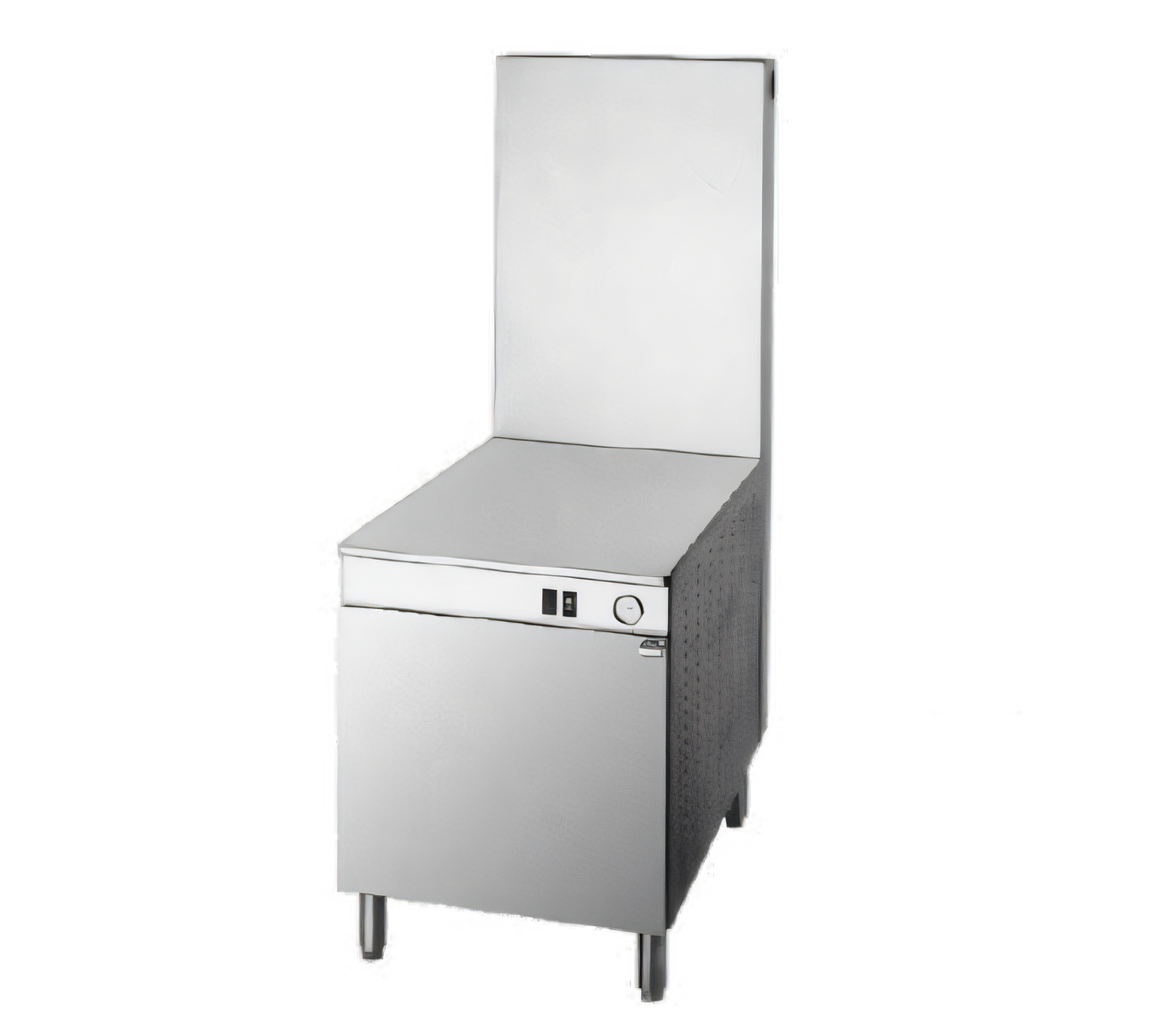

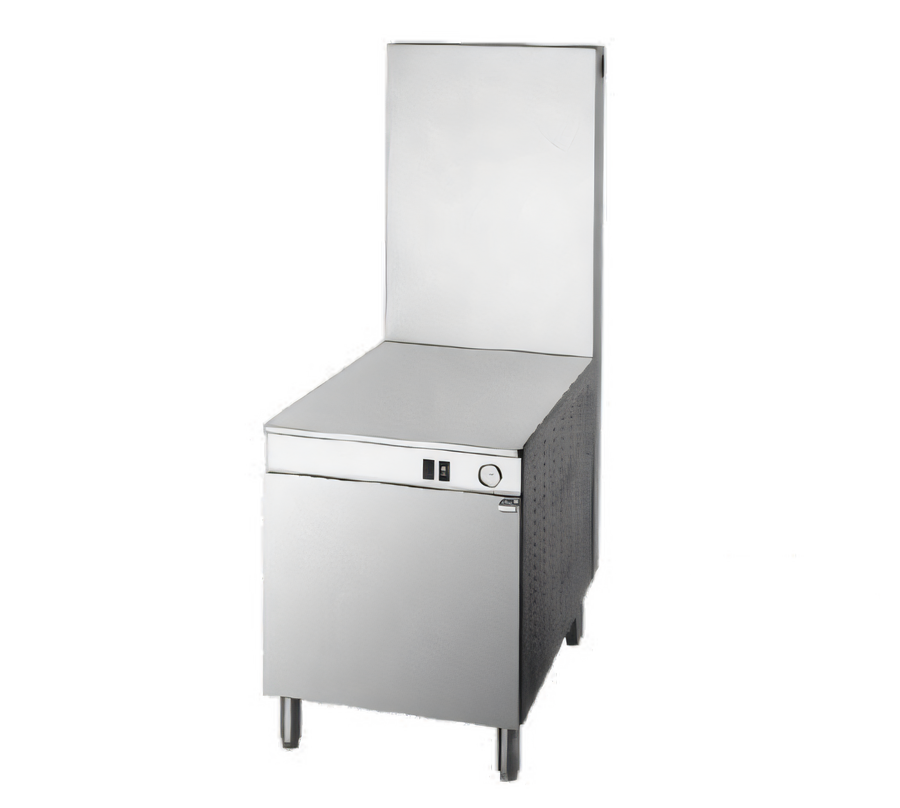

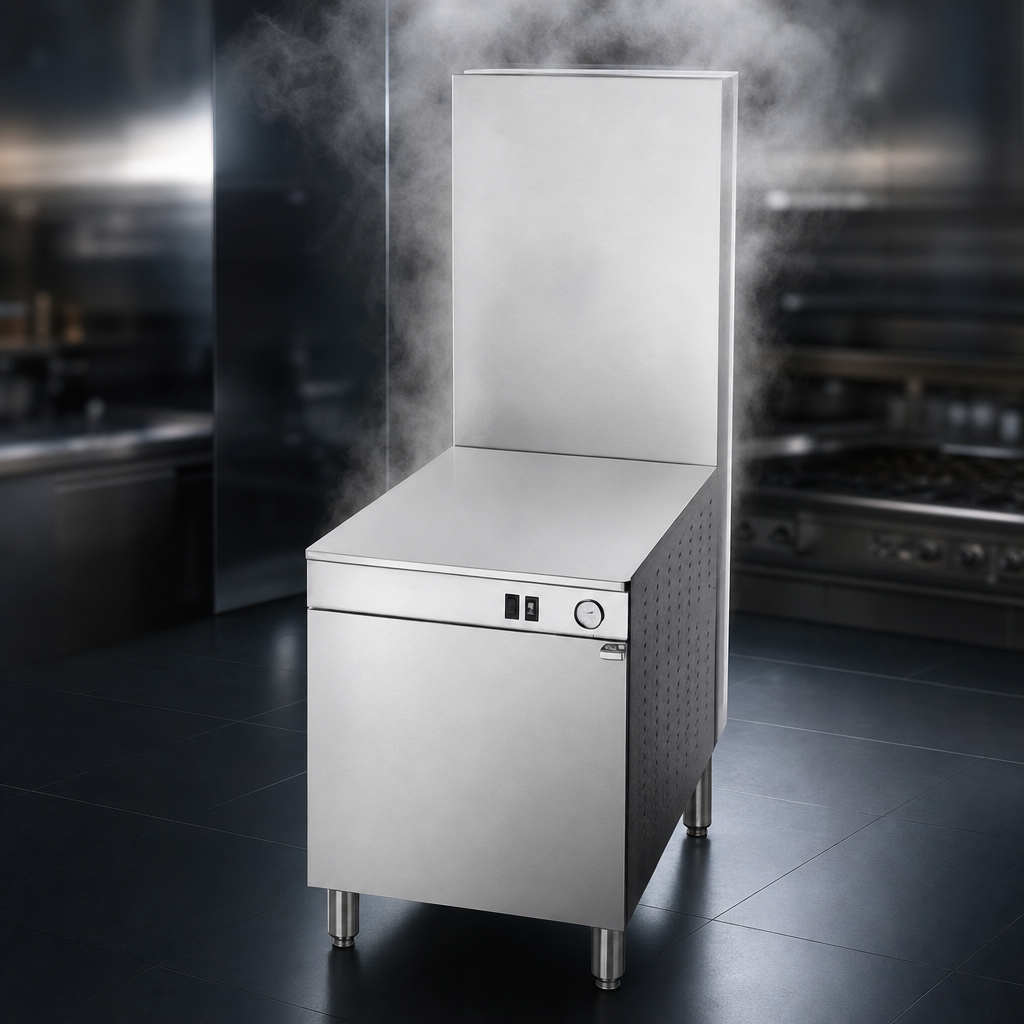

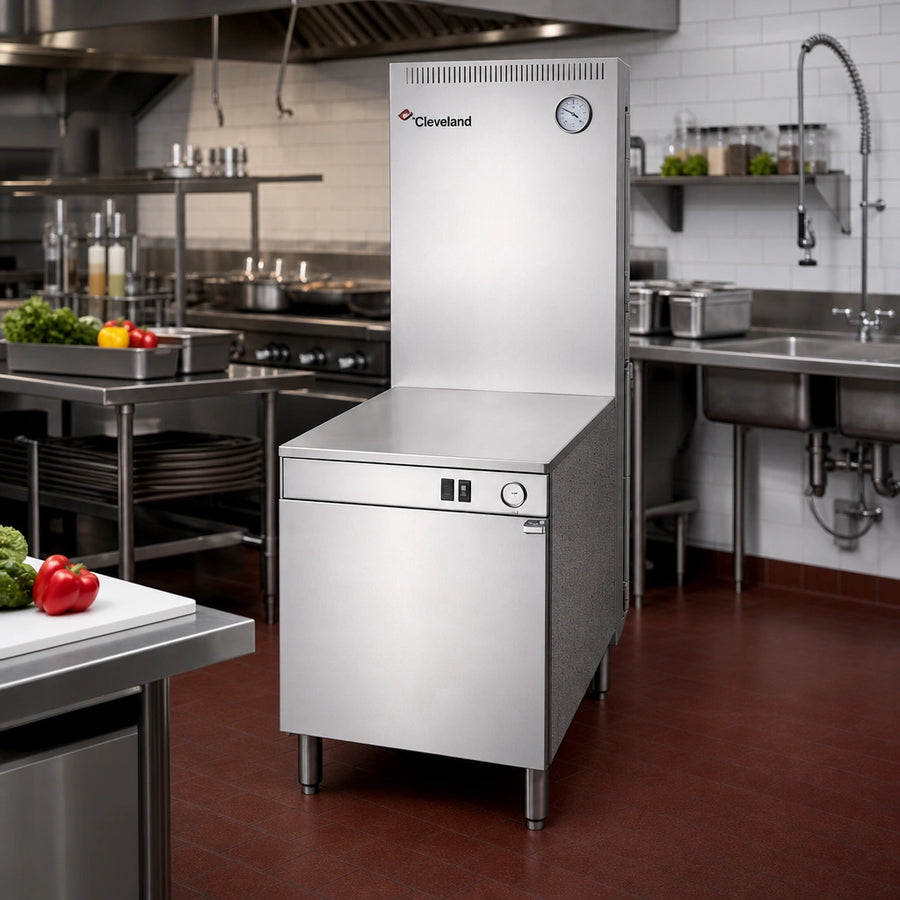

Cleveland Range 36-GM-300 Gas-Fired Modular Steam Generator
36" Stainless Steel Cabinet Base | 300,000 BTU/h | NickelGuard™ | Power Take-Off Kit IncludedEngineered for demanding commercial kitchens, the Cleveland 36-GM-300 delivers a continuous, high-capacity supply of clean, 15 psi steam from a compact 36-inch modular base. Rugged stainless-steel construction, automatic NickelGuard™ blow-down, and front-serviceable components make it the dependable heart of your steamer bank, kettles or remote steam line.
Why Choose the 36-GM-300
- Massive Output: 300,000 BTU/h gas burner handles peak production without sacrificing recovery times.
- Built-In Power Take-Off: Factory-installed kit provides a convenient connection for additional steam-powered equipment.
- NickelGuard™ Automatic Blow-Down: Steam boiler empties under pressure after every shutdown, reducing scale and extending service life.
- Energy-Efficient Ignition: Solid-state electronic spark ignition eliminates standing pilots.
- Operator-Focused Controls: Illuminated Start/Reset switch, easy-read pressure gauge and solid-state water-level controls located right up front.
- Safety First: Low-water cut-off, secondary low-water cut-off (CALG) where required, pressure limit control and 15 psi ASME safety valve all factory fitted.
- Service Made Simple: Major components are accessible from the front; boiler access hole, cover plate & sight-glass gauge standard.
- Durable, Sanitary Finish: Type 430 stainless-steel enclosure, backsplash and tabletop with #4 polish plus 6" adjustable stainless legs with flanged feet.
- Single Cold-Water Connection: No dedicated hot-water line required.
Performance & Maintenance Highlights
- Insulated pressure vessel minimizes radiant heat loss to the work area.
- Steam boiler drain incorporates water cooling and high-velocity “jet rinse” for faster, safer clean-outs.
- Optional factory accessories: LP gas configuration, insulated flue for island installs, boiler descaling pump kit (Part #107142).
Technical Specifications
| Model | 36-GM-300 |
|---|---|
| Steam Generator Type | Gas-fired, pressure boiler (15 psi) |
| Input Capacity | 300,000 BTU/h |
| Standard Gas | Natural (LP/Propane optional) |
| Electrical | 115 V, 60 Hz, 1-ph, 5 A (controls only) |

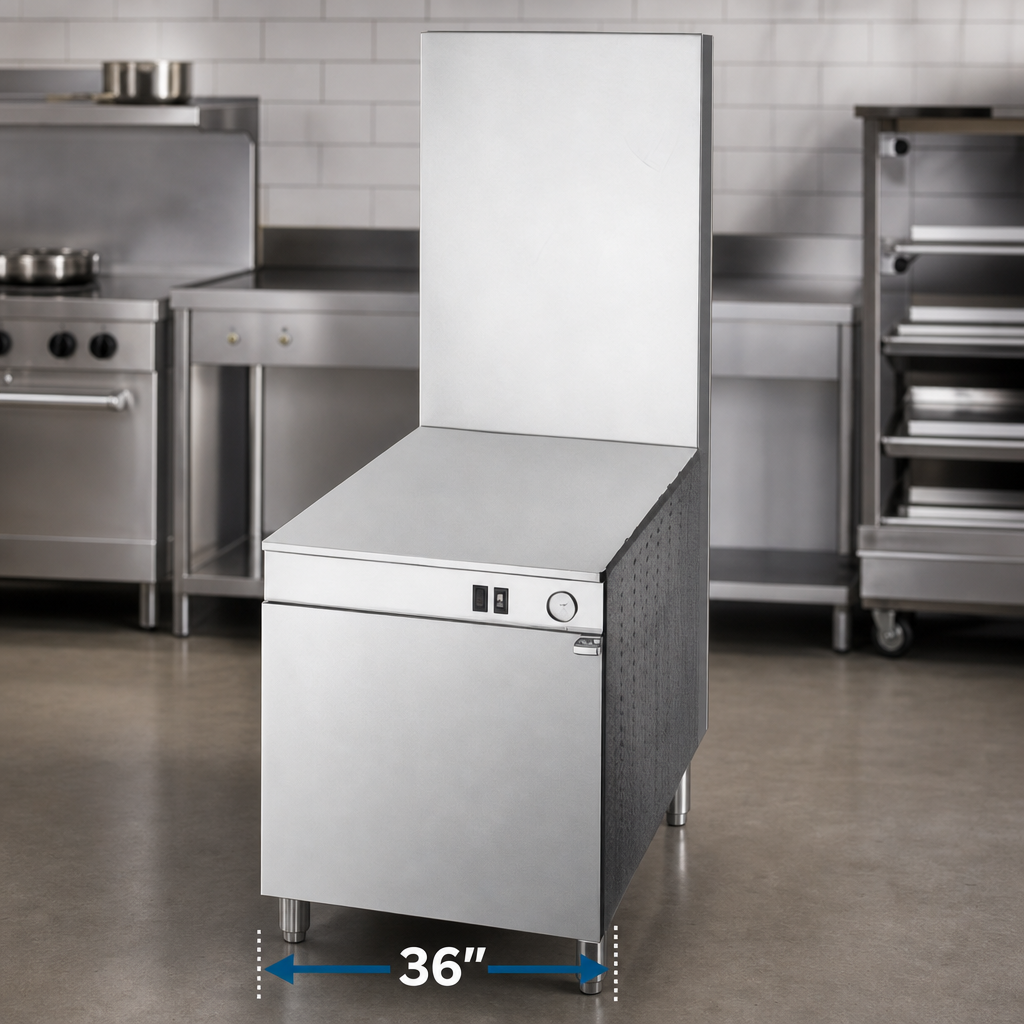

| Cabinet Width | 36 in (914 mm) |
| Depth | 30 in (762 mm) |
| Total Height | 62 in (1575 mm) to flue top |
| Water Inlet | ¾" NPT cold water |
| Drain | 1½" IPS common drain |
| Clearances | 6" sides & rear (12" on control side if adjoining equipment) |
| Legs | 6" stainless, adjustable, flanged feet |
| Construction | Type 430 stainless exterior, backsplash & tabletop |
Feed-Water Quality Requirements
- Total Dissolved Solids (TDS): 50-250 ppm
- Hardness: 50-200 ppm (3-12 gpg)
- pH: 7.0-8.5
- Chloride: ≤ 50 ppm | Free Chlorine: ≤ 0.1 ppm
- Silica: ≤ 13 ppm | Total Alkalinity: 50-100 ppm
Consistent water treatment and routine descaling are required for optimum performance and warranty protection.
Warranty & Support
- 1-year parts & labor warranty (18 months from shipment, whichever occurs first)
- +4-year prorated limited parts warranty on the pressure boiler/steam generator
- Free factory-authorized start-up service and water-quality check upon request
- Extended coverage options available at time of purchase
