Cleveland Range

Cleveland Range 36-Inch Dual 6-Gallon Electric Steam Kettle Cabinet Base with 24 kW Boiler

SKU: 36EMK6624
$39,051.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleveland Range Countertop Food Warming Food Holding & Warming Equipment Food Warmers & Holding Equipment New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Kettles

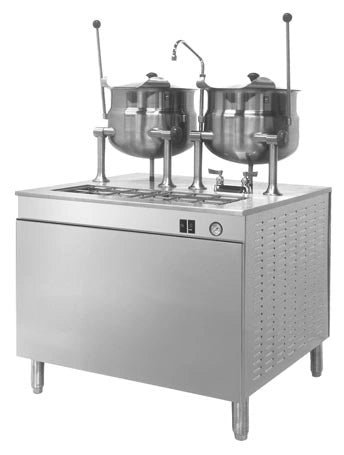

Cleveland Range 36-Inch Dual 6-Gallon Electric Steam Kettle Cabinet Base with 24 kW Boiler

Standard Height Cabinet, Factory-Installed Steam Controls

Built for high-volume soup, sauce, and holding service, this dual-kettle cabinet pairs a 24 kW electric steam boiler with a rugged stainless steel base.

  • 36-inch wide cabinet base supports two 6-gallon kettles for high-volume batch production.
  • 24 kW electric steam boiler delivers consistent steam heat without a gas connection.
  • Lift-off covers, tilting kettles, and front-service access help simplify daily operation and cleaning.
  • Integrated water service package includes faucet, sink, drain, and splash guard for a ready-to-use prep station.
  • Stainless steel construction and factory-installed steam control kits are built for demanding commercial kitchens.
  • Standard 208V, 60 Hz, 3-phase service; other voltages are available in the product line.

Overall Dimensions:

35.43"W x 33.5"D x 45.31"H

Product Weight:

610.0 lb

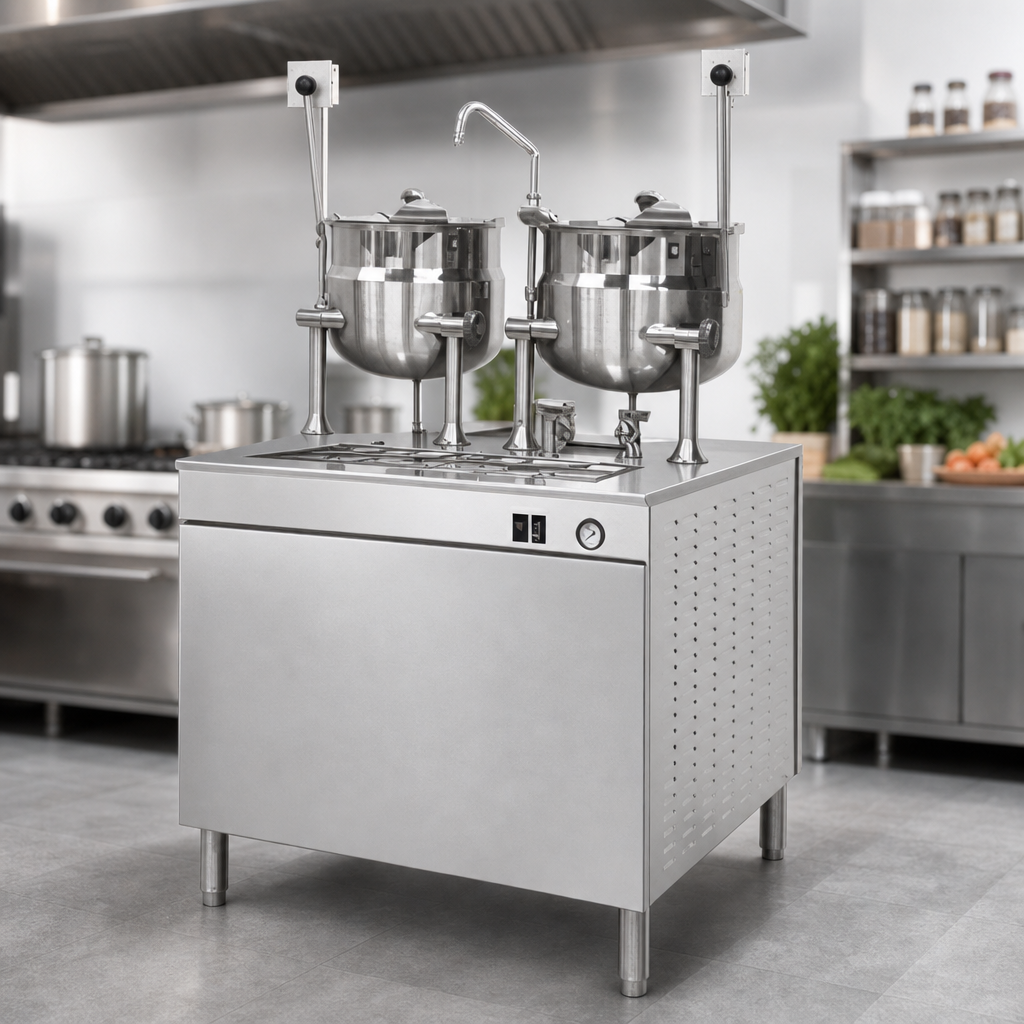

Two 6-Gallon Kettles

Dual kettles provide a combined high-volume holding and cooking station for soups, sauces, and similar menu items.

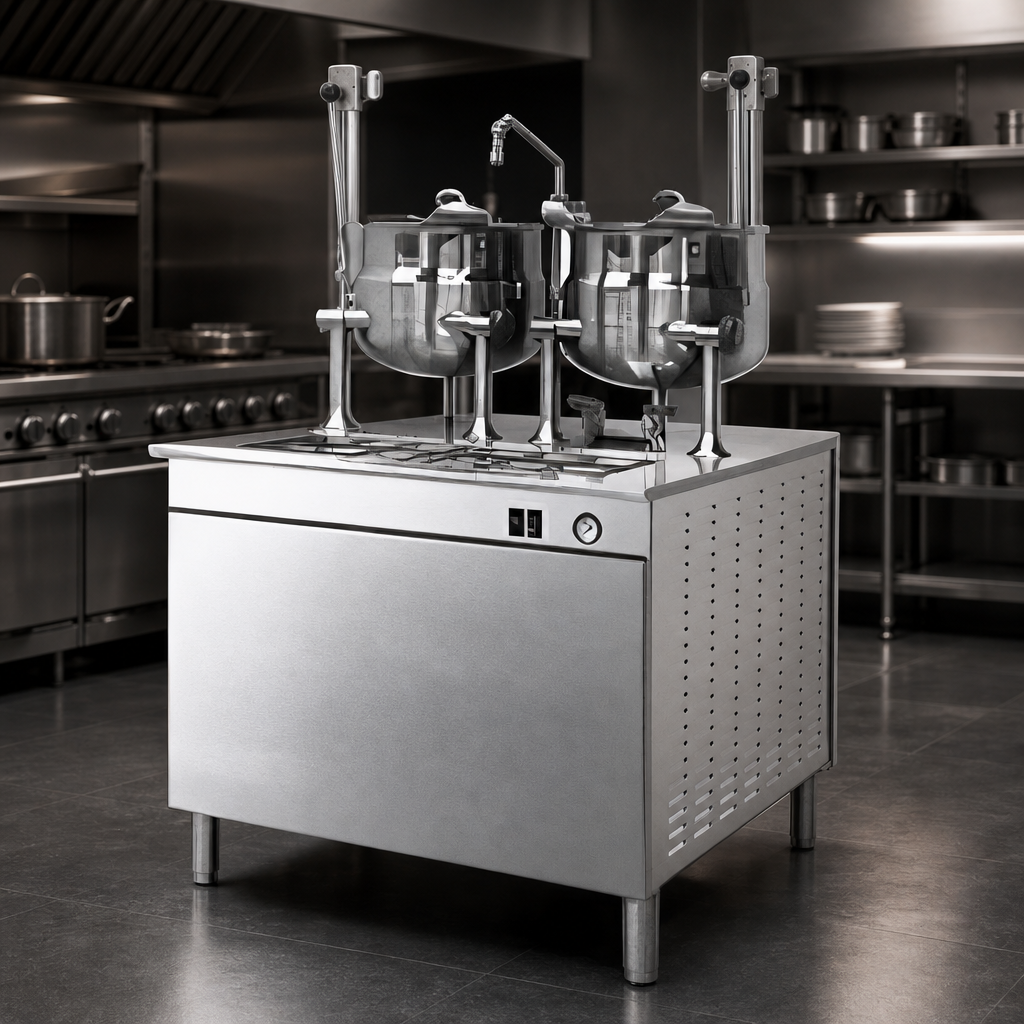

24 kW Electric Steam Boiler

Electric boiler supplies steady steam heat for consistent performance without requiring gas service.

2/3 Steam-Jacketed Design

Steam-jacketed kettles promote even heat distribution and controlled cooking results.

Factory-Installed Steam Controls

Needle-type steam control valves and steam control kit(s) are included for each kettle.

Lift-Off Kettle Covers

Covers remove easily for filling, cleaning, and service.

Integrated Water Service Package

Includes a double pantry faucet, sink, drain, and splash guard for more convenient station setup.

Safety And Control Package

Solid-state boiler water-level controls, low-water safety cut-off, pressure limit controls, and a 15 psi safety valve help protect operation.

316 Stainless Steel Liner

The listing specifies a 316 stainless steel liner for enhanced corrosion resistance in demanding foodservice applications.

Front-Service Access

Major components are serviceable from the front, helping simplify maintenance.

Type Kettle/Cabinet Assembly
Style Standard Height Cabinet
Installation Type Floor Model
Capacity 12 Gallons Total
Material Stainless Steel
Finish #4 Finish
Voltage 208 Volts
Amps 57 Amps
Watts 24 kW
Hertz 60 Hz
Phase 3-Phase
Controls Solid State
Water Connection Required
Drain Connection Required
Water Inlet Size 1/4 Inch NPT
Drain Connection Size 1 1/2 Inches IPS
Shipping Width 36 Inches
Shipping Depth 34 Inches
Shipping Height 46 Inches
Shipping Weight 610 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This assembly includes two 6-gallon kettles.
The standard electrical requirement is 208 Volts, 60 Hz, 3-Phase, 3-Wire, with a 24 kW electric boiler.
The unit uses 1/4 Inch NPT hot and cold water connections for the kettles, 1/4 Inch NPT cold water for the boiler, and a 1 1/2 Inches IPS common drain.
The documentation lists 35 psi minimum and 60 psi maximum water pressure.
The boiler includes solid-state water-level controls, a low-water safety cut-off, pressure limit controls, and a 15 psi safety valve.
Each 6-gallon kettle is rated at about 160 servings in 4 oz. portions.
