Cleveland Range 36DMK66 Steam Kettles
Description

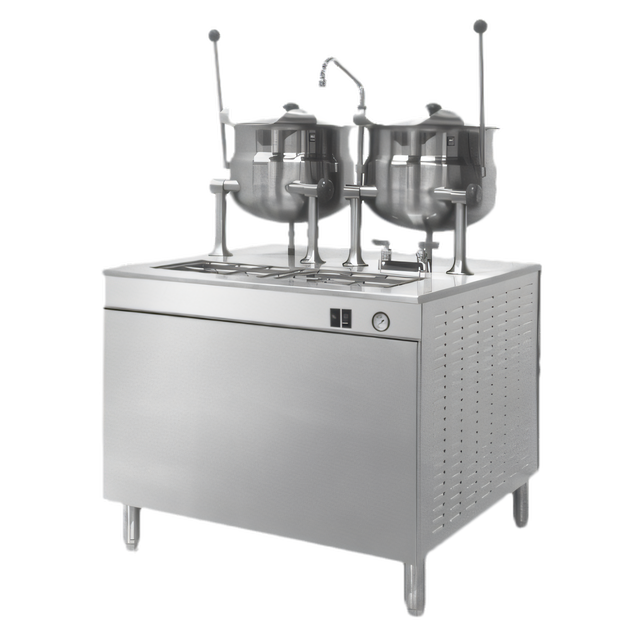

36" Modular Direct-Steam Twin Kettle Station
Cleveland Range – Model 36-DM-K66 • Two 6 gal / 23 L KettlesPut double the throughput in a single 36-inch footprint. The Cleveland 36-DM-K66 arrives factory-assembled with two 6-gallon, 2/3-jacketed kettles perched on a heavy-duty modular base—ready to tap directly into your in-house steam line. With fast, even heat, effortless manual tilting and an acid-resistant 316 stainless liner, you’ll plate up to 320 four-ounce servings per batch while reclaiming valuable line space.
Why This Kettle Station Rocks
- Two independent 6 gal kettles – run simultaneous or staggered batches without cross-flavor transfer.

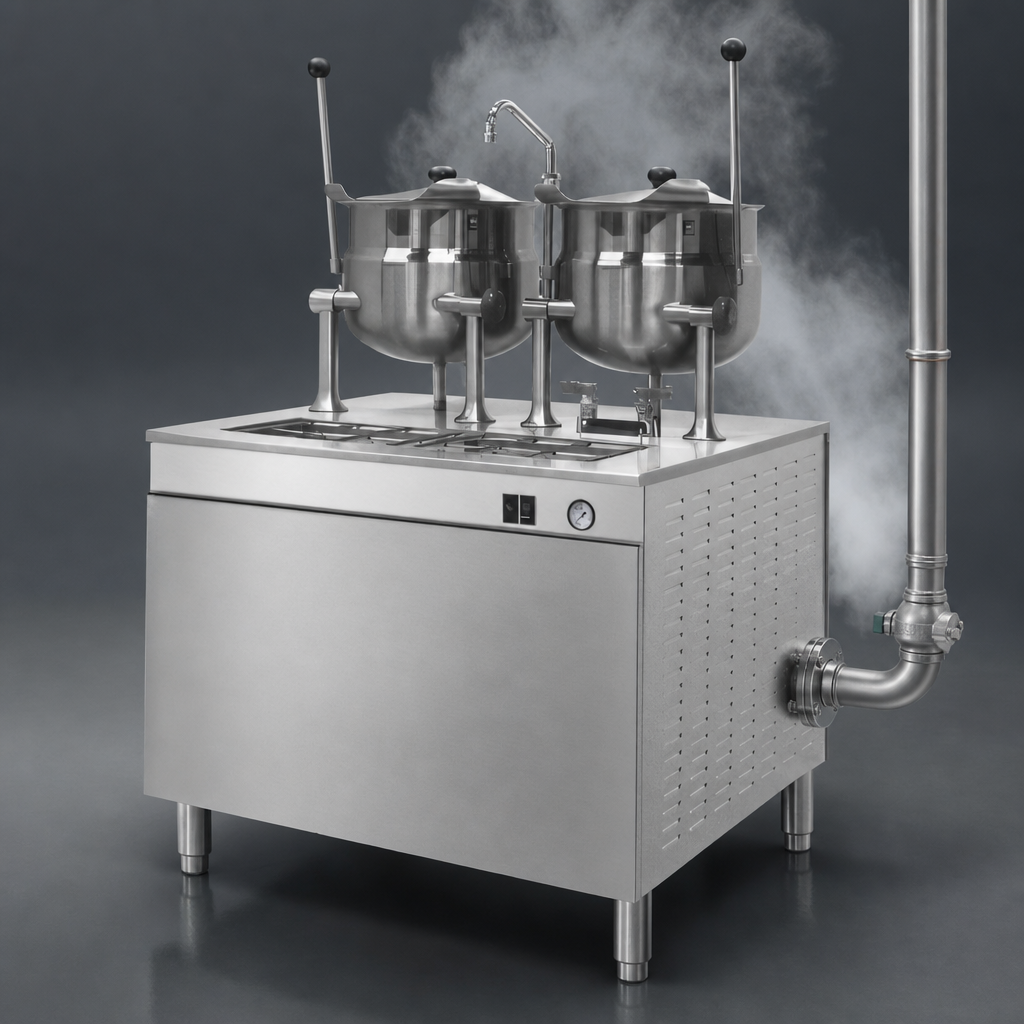

- Direct-steam efficiency – connect to a 5–10 psi steam supply; no generator to maintain.
- Integrated Steam Control Kit – needle valves, steam trap, condensate strainer, check valve, nipples & fittings are factory-mounted for plug-and-play installation.
- Manual tilt, balanced design – smooth 50° pour; handle mounts on either side for ergonomic left- or right-hand operation.
- 316 series stainless kettle liner – resists acid attack from tomato, citrus and vinegar-based recipes.
- Lift-off covers – retain heat and speed up cook times without obstructing the pour path.
- Double pantry faucet – hot & cold water with swing spout right at the work surface for quick fill or rinse.
- 50 psi jacket rating with chrome safety valves for worry-free operation.
- Rugged construction – type 430 stainless exterior, welded stainless base frame and adjustable flanged feet for a rock-solid, sanitary install.
Technical Specifications
| Capacities | 2 × 6 gal / 23 L (12 gal / 46 L total) ≈ 320 servings (4 oz) |
|---|---|
| Jacket Type / Rating | 2/3 steam jacket, 50 psi (345 kPa) |
| Steam Supply | 5–10 psi operating (accepts up to 45 psi inlet) |
| Water Connections | Hot & cold ½" NPT to faucet |
| Common Drain | 1 ½" IPS, 1.5" diameter trough outlet |
| Overall Width | 35.43" / 900 mm |
| Overall Depth | 33.50" / 851 mm |
| Working Height (to rim) | 28.31" / 719 mm |
| Construction | Type 430 SS exterior, 316 SS kettle liner, stainless base frame |
| Tilt Mechanism | Manual, balanced, 50° pour angle |
| Standard Inclusions | Lift-off covers (2), double pantry faucet, steam control kit, adjustable flanged feet |
| Warranty | 1-year parts & labor (extended coverage available) |
Utilities & Clearances
- Locate under a hood with adequate make-up air.
- Maintain 3" (76 mm) clearance on rear & sides for service access.
- Do not use PVC on the drain line; 1 ½" IPS copper or stainless is recommended.
- Feed water: Hardness 50–200 ppm, TDS 50–250 ppm, pH 7.0–8.5 (per Cleveland specs).
Need help with sizing or hook-ups? Ask our food-service experts for a compliant installation plan.
