Cleveland Range 36CGM16300 Classic Convection Steamers (Countertop & Floor)
Cleveland Range 36CGM16300 Classic Convection Steamers (Countertop & Floor) is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Cleveland Range 36CGM16300 Classic Convection Steamers (Countertop ...
Description

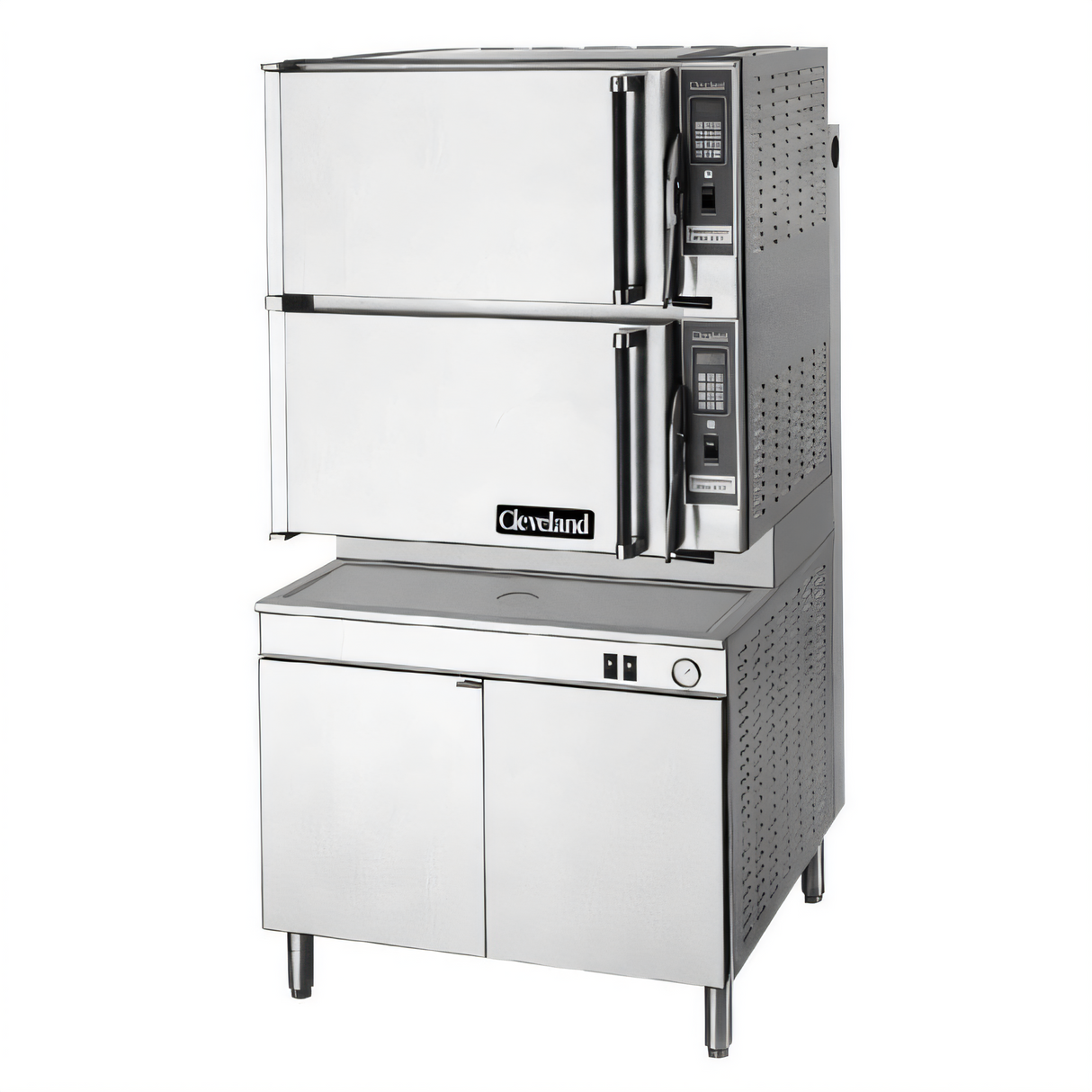

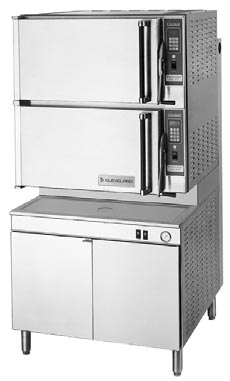

Cleveland Classic Convection – ConvectionPro XVII Steamer

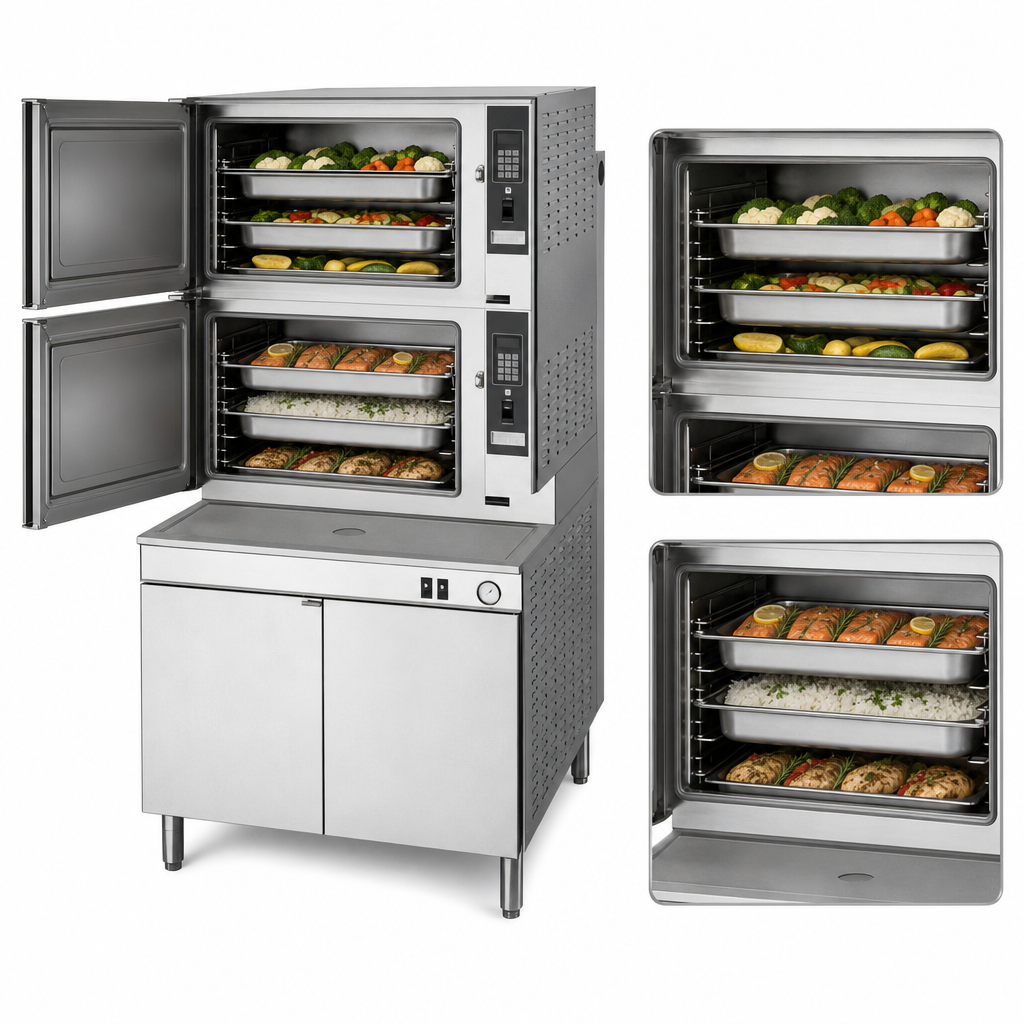

36" Boiler-Base | 2 Pressureless Compartments | 300,000 BTU Gas-FiredBuilt on Cleveland’s time-tested Classic Series platform, the ConvectionPro XVII delivers high-volume, even-heat steam cooking without the wait. Two spacious, pressureless compartments paired with a 300 MBTU NickelGuard™ steam generator let you load, close, and keep cooking—doors can be opened mid-cycle with zero recovery delay. From schools to casinos, this is the workhorse that keeps production lines moving.
Why You’ll Love It
- True convection steam – exclusive high-velocity Convection Jets distribute dry steam uniformly, no fans required.
- Durable 10-gauge 304 SS cavity with coved corners, creased drain floor, and removable racks for fast clean-ups.
- Instant-Steam Standby keeps the boiler at temperature, so the next batch starts the moment you close the door.
- Independent controls per compartment: 60-minute mechanical timer, audible/visual end-of-cycle alert, and a manual bypass switch for continuous steaming.
- Automatic water level, fill & blow-down plus secondary low-water cut-off for worry-free operation.
- Left-hinged doors, right-side controls – a single operator can load pans and set timers in one motion.
- NSF-certified 6" flanged legs provide 1" of leveling adjustment; heavy-duty base frame handles daily abuse.

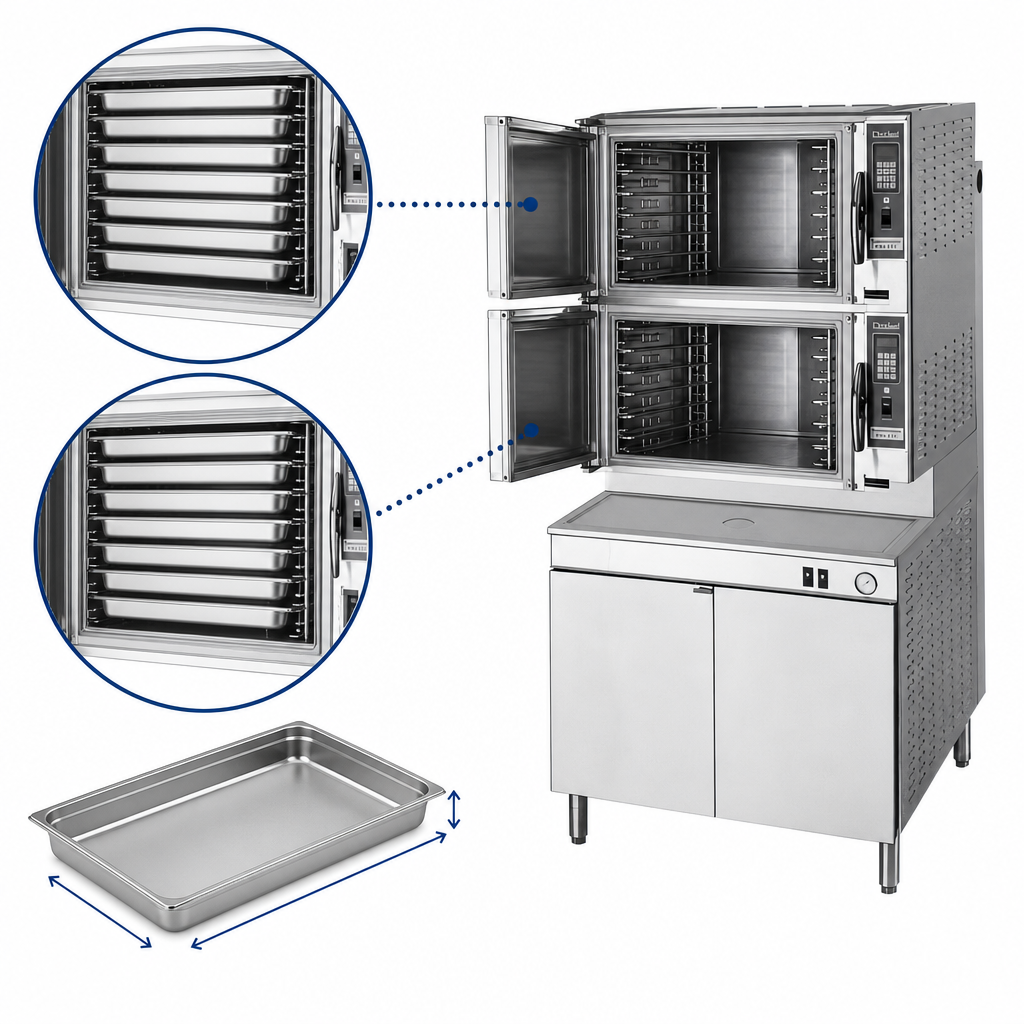

Capacity Per Compartment
- 8 × 12 × 20 × 2 ½" cafeteria pans
- 6 × 12 × 20 × 4" cafeteria pans
- 4 × 12 × 20 × 6" cafeteria pans
- 4 × 18 × 26" bun pans
Technical Specifications
| Compartments | 2 pressureless, convection |
|---|---|
| Pan Capacity (each) | 8 × 12 × 20 × 2 ½" |
| Steam Generator | 300,000 BTU/hr gas-fired, NickelGuard™; electronic spark ignition |
| Operating Pressure | 15 psi (103 kPa) |
| Controls | Solid-state water level & safety; 60-min mechanical timer; manual bypass |
| Electrical (controls only) | 115 V, 60 Hz, 1 ph – hard-wire (do not connect to GFCI) |
| Gas Connection | 1 ¼" NPT, natural or propane (specify) |
| Water / Drain | ¾" NPT cold water | 2" NPT common drain |
| Shipping Dimensions | 44" W × 42" D × 80" H |
| Shipping Weight | ≈ 1,100 lb (499 kg) |
| Minimum Clearances* | 6" sides & rear (12" control side next to tall equipment) |
Popular Options & Accessories
- Electronic Timer with compensating load feature (ETC)
- Stainless steel insulated flue cover
- Quick-disconnect gas hose kit
- Water filtration system – extends boiler warranty
- Correctional-package security fasteners
Warranty
• 1-year parts & labor standard
• 4-year prorated parts on the pressure boiler/steam generator
• Complimentary factory start-up & water quality test included
*Clearance, utility, and water quality requirements are summarized for convenience. Always consult the official Cleveland Range installation manual before ordering or installing the unit. Manuals and spec sheets can be downloaded from the Cleveland Range website.
