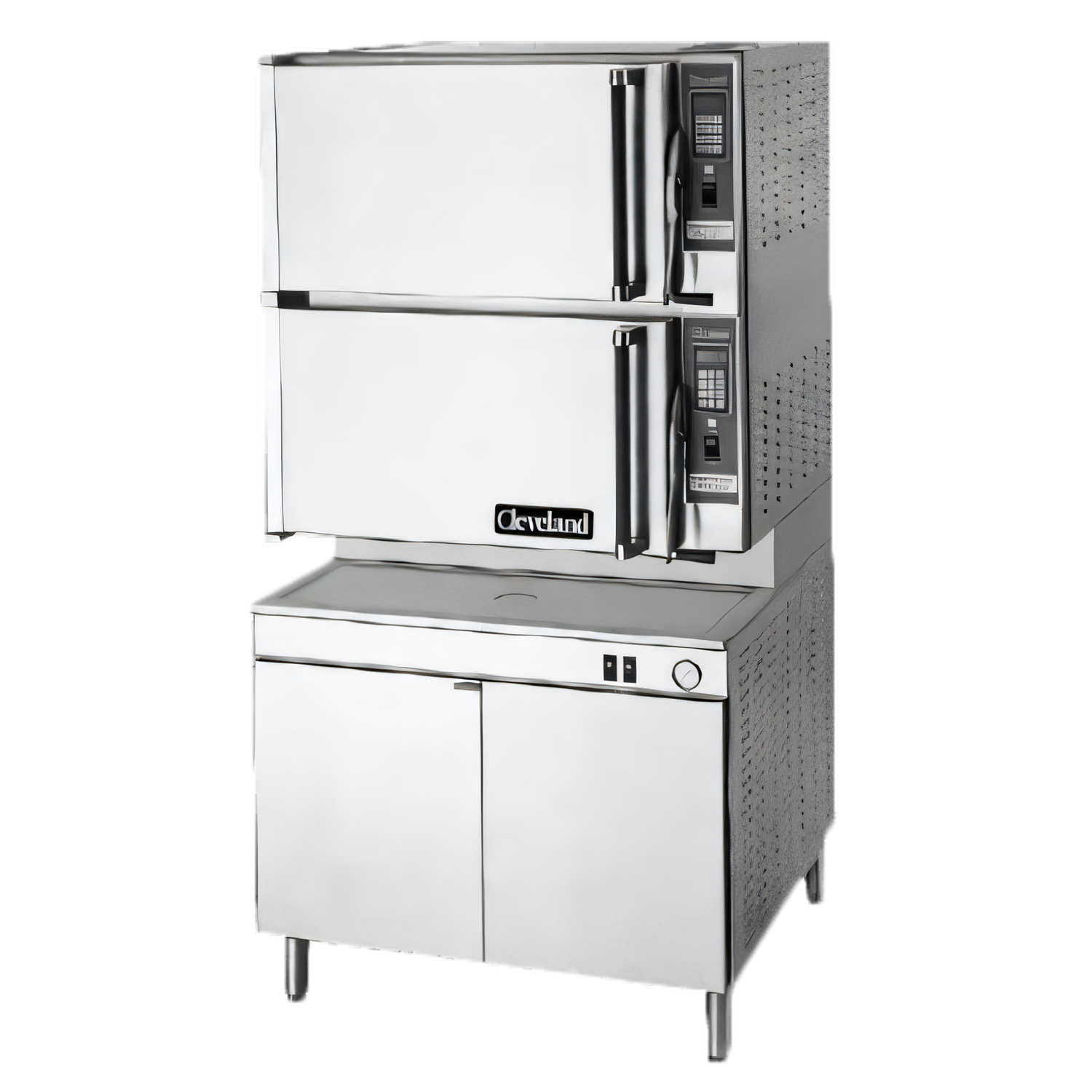

Cleveland ConvectionPro XVI® Classic Series Convection Steamer
Model 36-CEM-16-48 | 48 kW Electric Boiler | Two Compartments | 36" Cabinet BaseBuilt for high-volume kitchens that demand speed, consistency, and durability, the ConvectionPro XVI® delivers forced-convection steam to two full-size compartments while its heavy-duty 48 kW boiler keeps instant steam on tap all day long.
Key Benefits

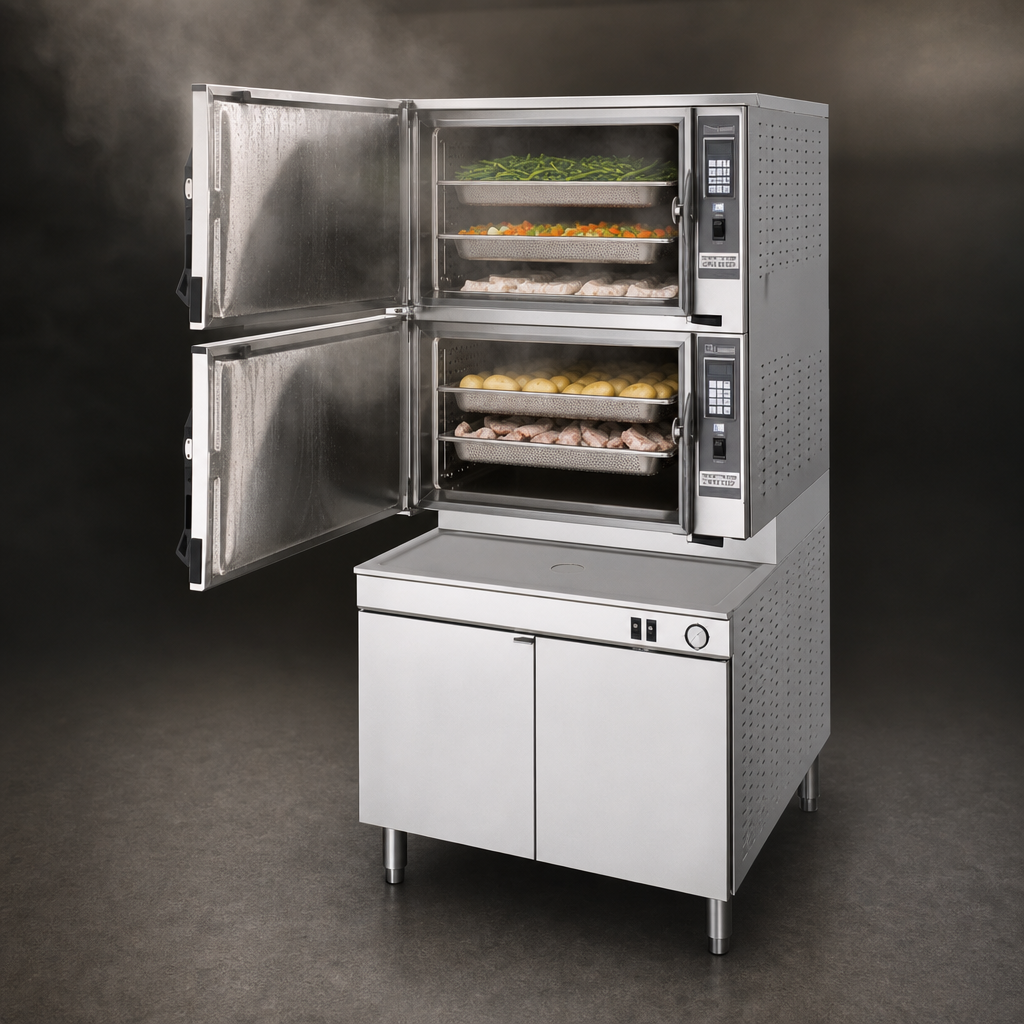

- Pressureless, high-velocity Convection Jets let you open doors mid-cycle without wait time.
- Each compartment fits 8 × 12 × 20 × 2.5" pans -- or 4 full bun pans (18 × 26").
- 10-gauge stainless cavity with coved corners, creased floor, and removable slide racks for easy cleanup.
- Independent 60-min mechanical timer + manual bypass switch for continuous steaming.

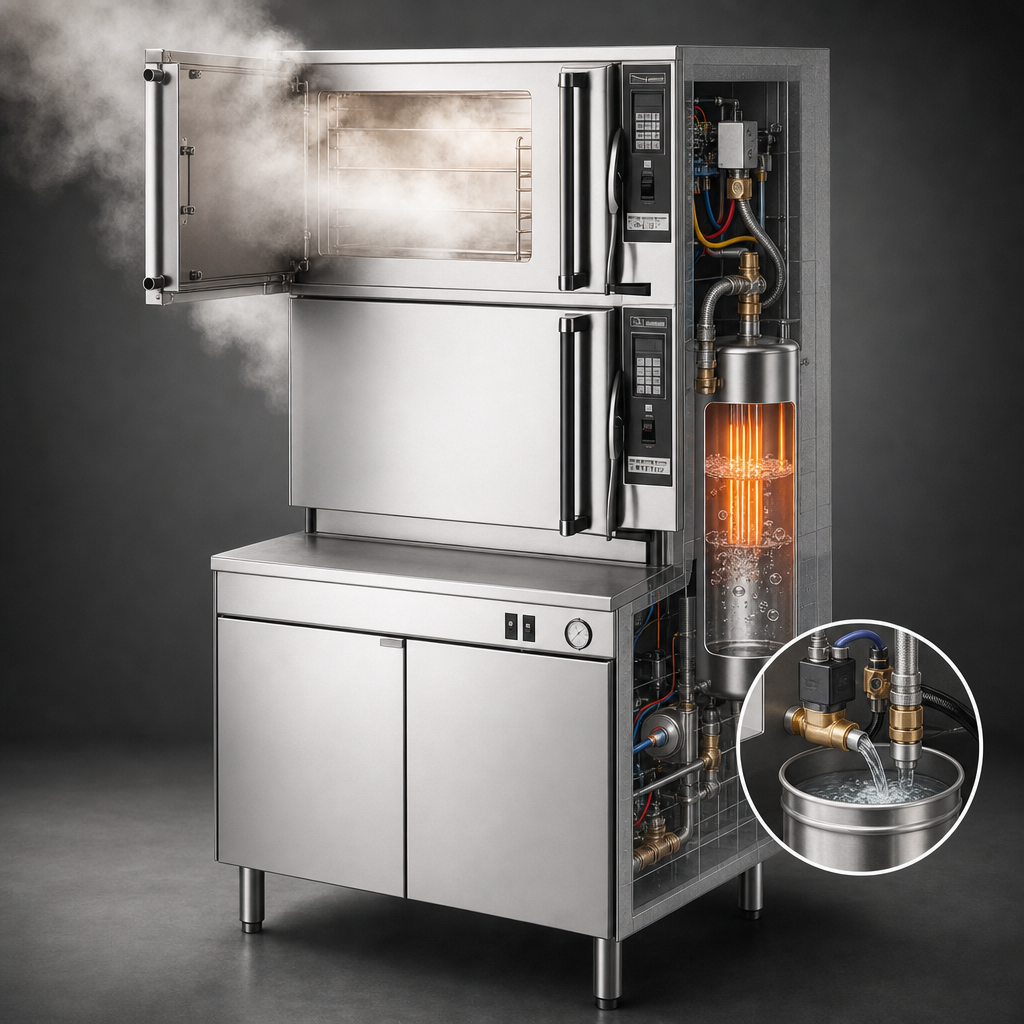

- 48 kW electric boiler with instant-steam standby, automatic water fill, and self-rinsing drain cycle.
- One-piece, left-hinged doors with replaceable gasket and safety steam shut-off switch.
- All-stainless 36" cabinet base on NSF-certified 6" flanged legs (1" height adjustment).
- Front-serviceable solid-state controls manage water level, low-water cutoff, and over-pressure protection.
Boiler Advantage
- 15 psi operating pressure for rapid heat transfer.
- High-limit pressure switch, 15 psi safety valve, and pressure gauge factory installed.
- Secondary low-water cutoff (CALE compliant) for code-mandated redundancy.
- Automatic drain with “water-jet” rinse keeps scale and sediment at bay.
Technical Specifications
| Compartments | 2 independent, pressureless |
|---|---|
| Pan Capacity (per cavity) |
8 × 12 × 20 × 2.5" pans 6 × 4" deep pans 4 × 6" deep pans 4 × 18 × 26" bun pans |
| Boiler Output | 48 kW electric, 15 psi |
| Standard Voltages * |
208 V 3-ph 119 A 240 V 3-ph 116 A (other voltages available) |
| Water Connections |
Cold water ¼″ NPT (35-60 psi) Boiler feed ⅜″ NPT • Condenser feed ¼″ NPT |
| Drain | 1 ½″ I.P.S. common drain — locate outside unit base |
| Exterior Dimensions | 44" W × 42" D × 80" H |
| Shipping Weight | ≈ 990 lb (449 kg) |
| Construction | All stainless exterior & base frame |
| Warranty | 1 yr parts & labor + 4 yr prorated boiler parts |
* Field wiring must conform to local electrical codes.
Water Quality Guidelines
- Total Dissolved Solids: 50-250 ppm
- Hardness: 50-200 ppm (3-12 gpg)
- pH 7.0-8.5 • Chloride: < 50 ppm • Free Chlorine: < 0.1 ppm
Operating outside these parameters may void boiler warranty — ask about Cleveland-approved filtration kits.
Included with Your Steamer
- Factory-Authorized Start-Up & Water Quality Check
- Comprehensive operator manual
- Removable stainless slide racks & adjustable 6" legs
Maximize throughput, minimize downtime — put the Classic Series ConvectionPro XVI® to work in your kitchen today!
