Cleveland Range

Cleveland Range Electric Kettle/Cabinet Assembly with 24-Inch Standard-Height Base, One 6-Gallon Kettle, and 24 kW Steam Boiler

SKU: 24EMK624
$26,377.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleveland Range Countertop Food Warming Food Holding & Warming Equipment Food Warmers & Holding Equipment New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Kettles

Cleveland Range Electric Kettle/Cabinet Assembly with 24-Inch Standard-Height Base, One 6-Gallon Kettle, and 24 kW Steam Boiler

Stainless Steel Construction, 316 Liner, Integrated Faucet and Drain

This factory-assembled kettle cabinet pairs a 24 kW steam boiler with a 6-gallon kettle and integrated water-service features for dependable soup and sauce holding.

  • Factory-assembled electric kettle cabinet built around a 24 kW steam boiler.
  • Single 6-gallon kettle provides batch capacity for cooking and holding.
  • 24-inch wide standard-height cabinet base is designed for floor installation.
  • Stainless steel interior and exterior with a 316 series liner for demanding food applications.
  • Includes a lift-off cover plus faucet, splash guard, sink, and drain for easier operation and cleanup.
  • Solid-state controls and low-water protection help support reliable, safe operation.

Overall Dimensions:

23.63"W x 33.5"D x 45.31"H

24 kW Electric Steam Boiler

Integrated electric steam boiler supplies the heat source for the kettle assembly.

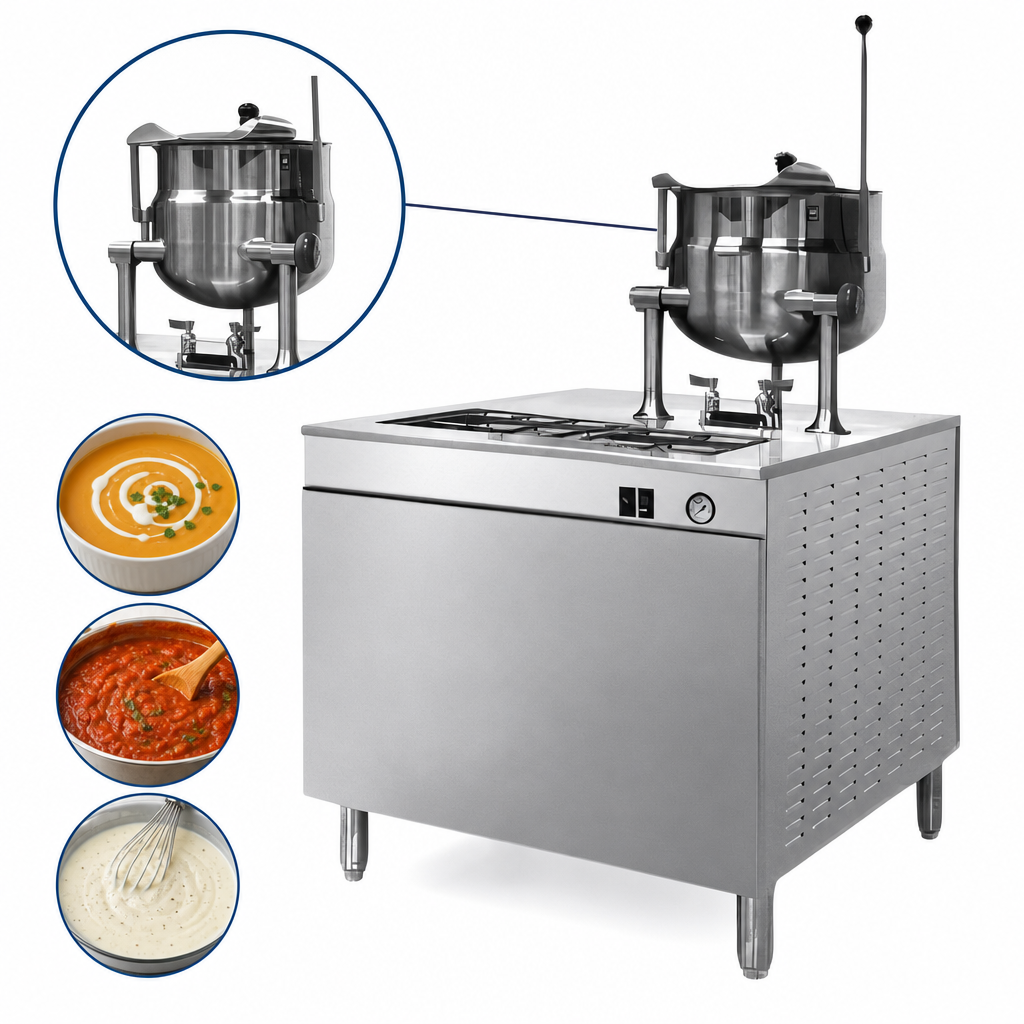

One 6-Gallon Kettle

Single kettle configuration provides batch capacity for soups, sauces, and other hot-hold applications.

316 Stainless Steel Liner

Corrosion-resistant liner is suited for high-acid food products and demanding kitchen use.

24-Inch Standard-Height Cabinet Base

Compact cabinet base provides a floor-standing footprint with a standard-height profile.

Lift-Off Cover

Removable cover supports easier access during cooking and cleanup.

Integrated Water-Service Components

Includes faucet, splash guard, sink, and drain to simplify filling and cleanup.

Solid-State Controls

Boiler control system includes low-water safety protection for dependable operation.

Front-Serviceable Design

Major components are accessible from the front, and the boiler automatically blows down after shut-down and refills on start-up.

Type Kettle/Cabinet Assembly
Style Steam Jacketed
Installation Type Floor Model (With Cabinet Base)
Capacity 6 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Controls Solid State
Voltage 208 Volts
Amps 57 Amps
Watts 24 kW
Hertz 60 Hz
Phase 3-Phase
Water Inlet Size 1/4 Inch NPT
Drain Connection Size 1 1/2 Inch IPS
Shipping Width 24 Inches
Shipping Depth 34 Inches
Shipping Height 46 Inches
Shipping Weight 600 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes one 6-gallon kettle.
The standard electrical service is 208 Volts, 60 Hz, 3-Phase, 3-Wire, with a 24 kW load and 57 amps at 208 Volts. Other voltages are available.
The unit uses 1/4 Inch NPT hot and cold water connections for the kettles, 1/4 Inch NPT cold water, and a 1 1/2 Inch IPS common drain.
Standard safety features include solid-state water level controls, low-water safety cut-off, pressure limit controls with a 15 psi safety valve, and automatic blowdown and refill.
A 6-gallon kettle is rated at about 160 four-ounce servings per kettle.
Clearance requirements are 3 inches on the right, left, and rear, and 12 inches on the control side if adjacent to a wall or equipment over 30 inches high.
