Cleveland Range 24EM24 Steamers (Countertop & Floor)
Description

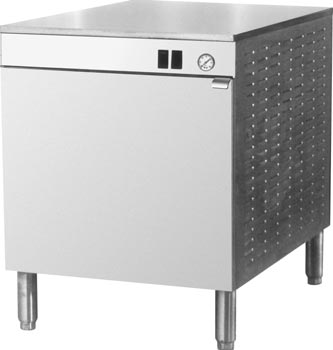

24″ Electric Steam Generator Cabinet Base
Cleveland Range – Model 24-EM-24 (24 kW standard) • also available in 36 kW & 48 kWCompact, powerful and built for round-the-clock reliability, the Cleveland 24-EM-24 steam generator delivers high-volume steam from a sanitary 24″ stainless steel cabinet base that fits neatly beneath kettles, steamers or countertop equipment. Automatic self-maintenance features slash downtime and labor, while solid-state controls keep every batch safe, consistent and on time.
Key advantages
- Type 304 stainless steel exterior with #4 finish – food-safe, durable and easy to clean.
- Solid-state water-level control with dual low-water cut-offs for fail-safe protection.
- Automatic blowdown at shut-down and automatic refill at start-up – no manual draining required.
- 15 psi pressure-limit controls and safety valve to safeguard staff and equipment.
- Front-serviceable components reduce service time and keep you cooking.
- Illuminated START/RESET switch and large pressure gauge for quick, at-a-glance status checks.
- 6″ adjustable stainless steel legs level the unit on uneven floors.
- Single cold-water connection – no hot-water hookup needed.
Steam output
| Heating input | Steam output (lbs/hr) | Boiler H.P. |
|---|---|---|
| 24 kW | 70 | 2.0 |
| 36 kW | 120 | 3.5 |
| 48 kW | 150 | 4.3 |
Specifications
| Cabinet width | 24″ (600 mm) |
|---|---|
| Overall depth | 27.75″ (705 mm) |
| Overall height | 33.5″ (851 mm) to table top |
| Electrical | 208/220 V, 60 Hz, 3-phase, 3-wire |
| Water inlet | ½″ NPT cold water |
| Common drain | 1 ½″ IPS – do not use PVC |
| Construction | Type 304 stainless steel cabinet, hinged door, stainless base frame |
| Accessories | Power Take-Off Kit (EPTO) |
Feed-water quality requirements
- Total Dissolved Solids (TDS): 50 – 250 ppm
- Hardness: 50 – 200 ppm (3 – 12 gpg)
- pH: 7.0 – 8.5
- Chloride: ≤ 50 ppm • Free Chlorine: ≤ 0.1 ppm
- Silica: ≤ 13 ppm • Mono-chloramine: ≤ 0.1 ppm
- Total Alkalinity: 50 – 100 ppm
Using water outside these limits may shorten equipment life and will void the boiler warranty.
Warranty & support
- 1-year parts & labor warranty (18 months from shipment, whichever comes first).
- Additional 4-year prorated limited parts warranty on the pressure vessel/steam generator.
- Factory Authorized Start-Up and water-quality check available at no charge.
