Cleveland Range 24-Inch Direct Steam Kettle on Modular Base with One 6-Gallon Steam-Jacketed Kettle

Manual Tilt, Lift-Off Cover, 316 Stainless Steel Liner

This compact steam kettle base delivers factory-assembled controls and durable stainless steel construction for efficient batch cooking in a small footprint.

  • 24-inch wide modular cabinet base with one 6-gallon 2/3 steam-jacketed kettle.
  • Direct steam design connects to an external steam source for efficient heating.
  • Manual tilt kettle and lift-off cover support easy, controlled pouring and cleanup.
  • Factory-assembled steam control kit simplifies installation and operation.
  • Stainless steel construction with a 316 series kettle liner for added corrosion resistance.
  • Includes a hot and cold double pantry faucet and adjustable flanged feet.

Overall Dimensions:

24.0"W x 33.5"D x 54.5"H

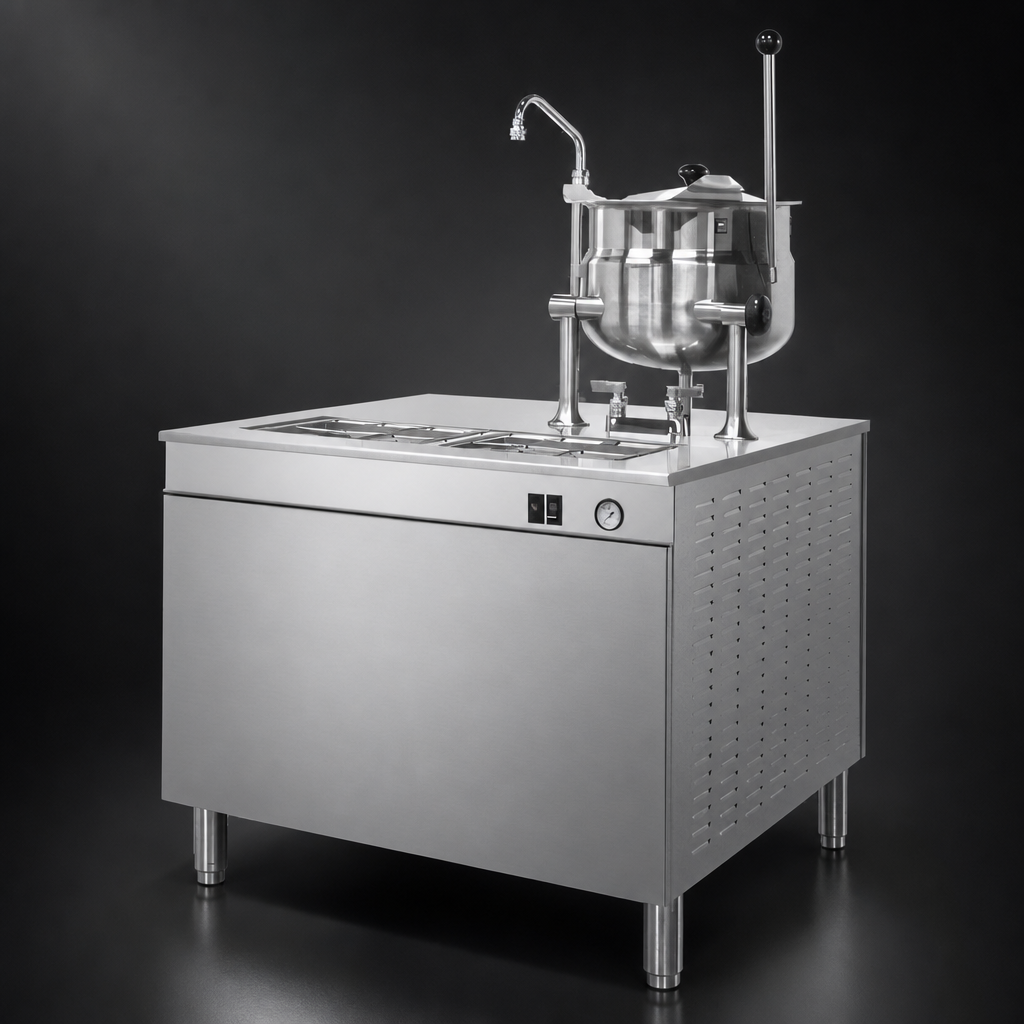

Single 6-Gallon Kettle

Includes one 6-gallon, 2/3 steam-jacketed kettle for batch cooking.

Direct Steam Operation

Connects directly to an external steam source supplying 5 to 10 psi.

Factory-Assembled Steam Control Kit

Includes a needle-type steam control valve, steam trap, condensate strainer, check valve, nipples, and fittings mounted on the kettle.

Manual Tilt Design

Balanced manual tilt helps with safe, controlled product transfer.

Stainless Steel Construction

Features a Type 430 stainless steel exterior enclosure and a 316 series stainless steel kettle liner.

Lift-Off Cover and Faucet

Includes a lift-off kettle cover and a hot and cold double pantry faucet with swing spout.

Adjustable Flanged Feet

Helps level the modular base during installation.

Drain and Utility Provisions

Tabletop drain trough and common drain support installation and cleanup.

Type Kettle on Modular Base
Style Direct Steam
Installation Type Floor Model
Capacity 6 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Controls Manual Valve
Water Connection Required
Drain Connection Required
Steam Connection Size 1/2 Inch IPS Minimum
Shipping Width 24 Inches
Shipping Depth 34 Inches
Shipping Height 55 Inches
Shipping Weight 260 Pounds
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes one 6-gallon 2/3 steam-jacketed kettle.
It is direct steam and connects to an external steam source supplying 5 to 10 psi.
The steam control kit includes a needle-type steam control valve, steam trap, condensate strainer, check valve, nipples, and fittings, factory assembled and mounted on the kettle.
The unit requires hot and cold water connections for the kettle and a 1-1/2 inch IPS common drain.
Yes. A food strainer and a pressure reducing valve are listed as options/accessories.
