Cleveland Range  |  Classic Convection  |  SKU: 24CSM

Cleveland Range 24CSM Classic Convection Steamers (Countertop & Floor)

$41,005.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Manual Cookbook Warranty sheet
Related Searches
Cleveland Range Cooking Equipment Cooking Equipment Countertop Steamer Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor)

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

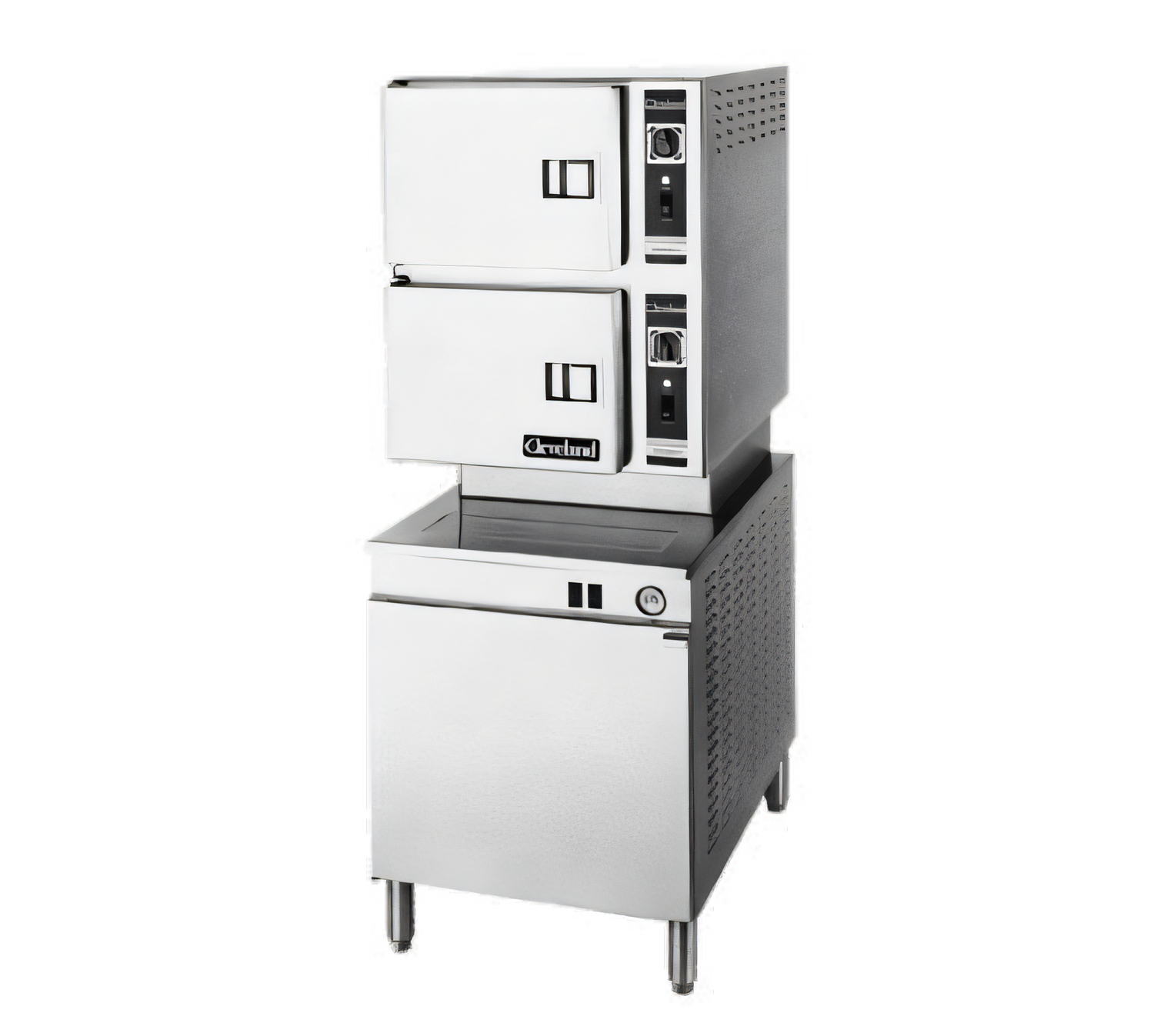

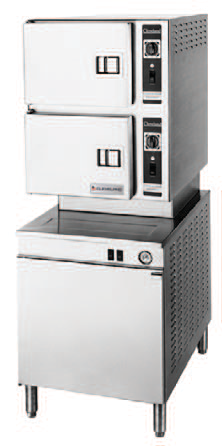

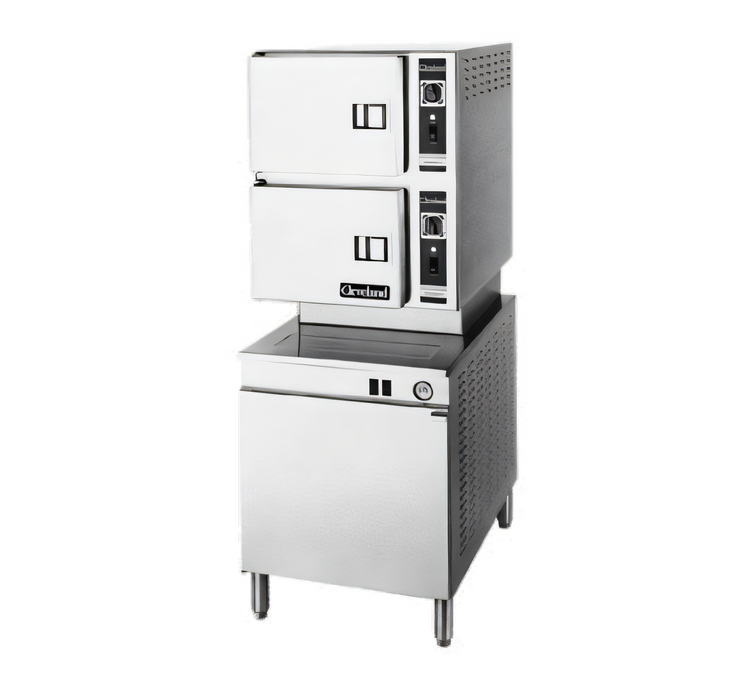

Classic Convection™ 24-CSM Two-Compartment Steamer

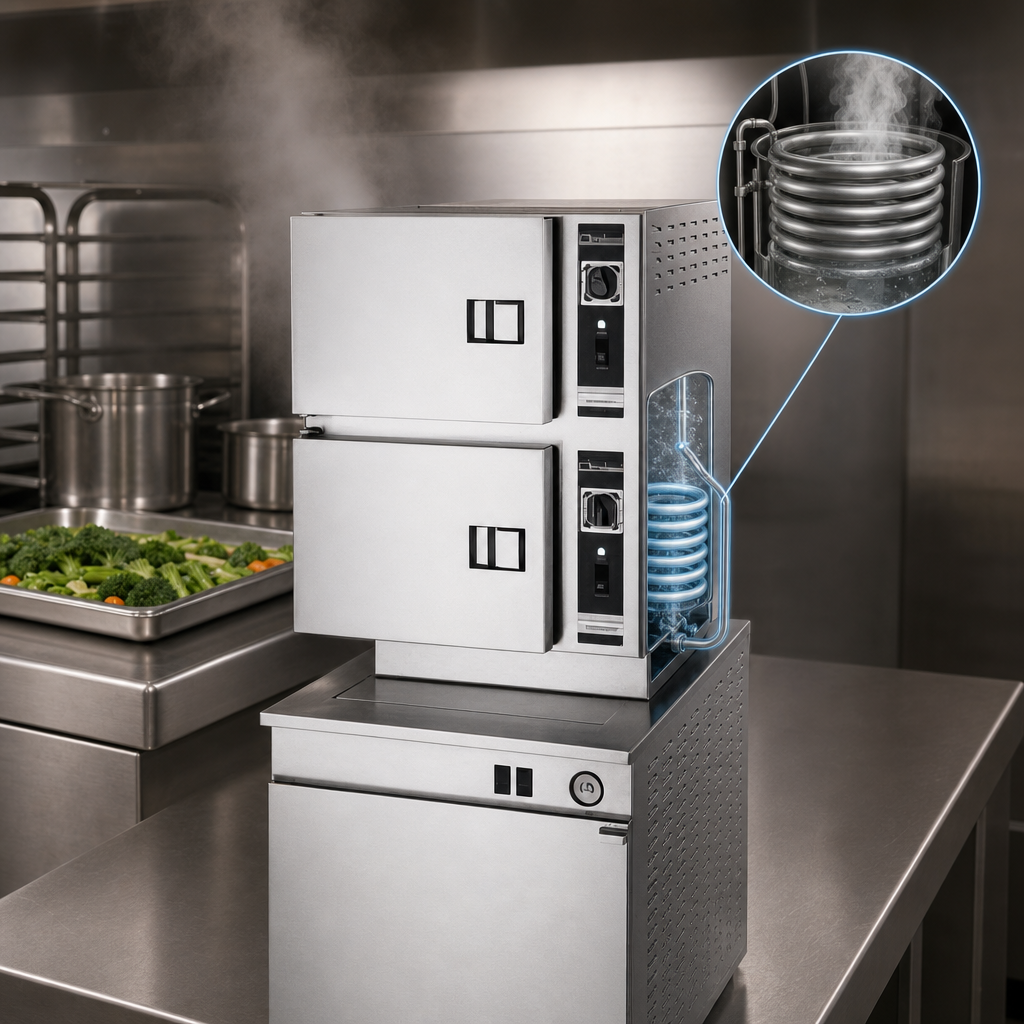

Pressureless steam coil generator • 24" cabinet base

Designed for busy commercial kitchens, the Cleveland Classic Convection 24-CSM delivers rapid, even steam production in a compact 24-inch footprint. Its exclusive fan-free convection jets, rugged stainless-steel construction and instant-steam standby mode keep production high and downtime low.

Top Reasons to Choose the 24-CSM

  • True convection steam – high-velocity jets surround food without the maintenance of fans.
  • Instant-Steam Standby – boiler stays at temperature so the next load starts cooking immediately.
  • Independent manual controls – 60-minute mechanical timer or continuous steaming per cavity.
  • Six full-size pan capacity – three 12" × 20" × 2.5" pans per compartment.
  • “Cool-to-the-Touch” door with free-floating inner panel and reversible gasket for an airtight seal.
  • Automatic water management – fill on start-up, low-water cut-off, and water-jet drain rinse at shutdown.
  • Heavy-duty build – 14-gauge 304 stainless cavity, stainless frame, and 6" adjustable flanged legs.
  • Front-serviceable safety system – 15 psi safety valve, high-limit pressure switch & pressure gauge.

Technical Specifications

Model Classic Convection 24-CSM

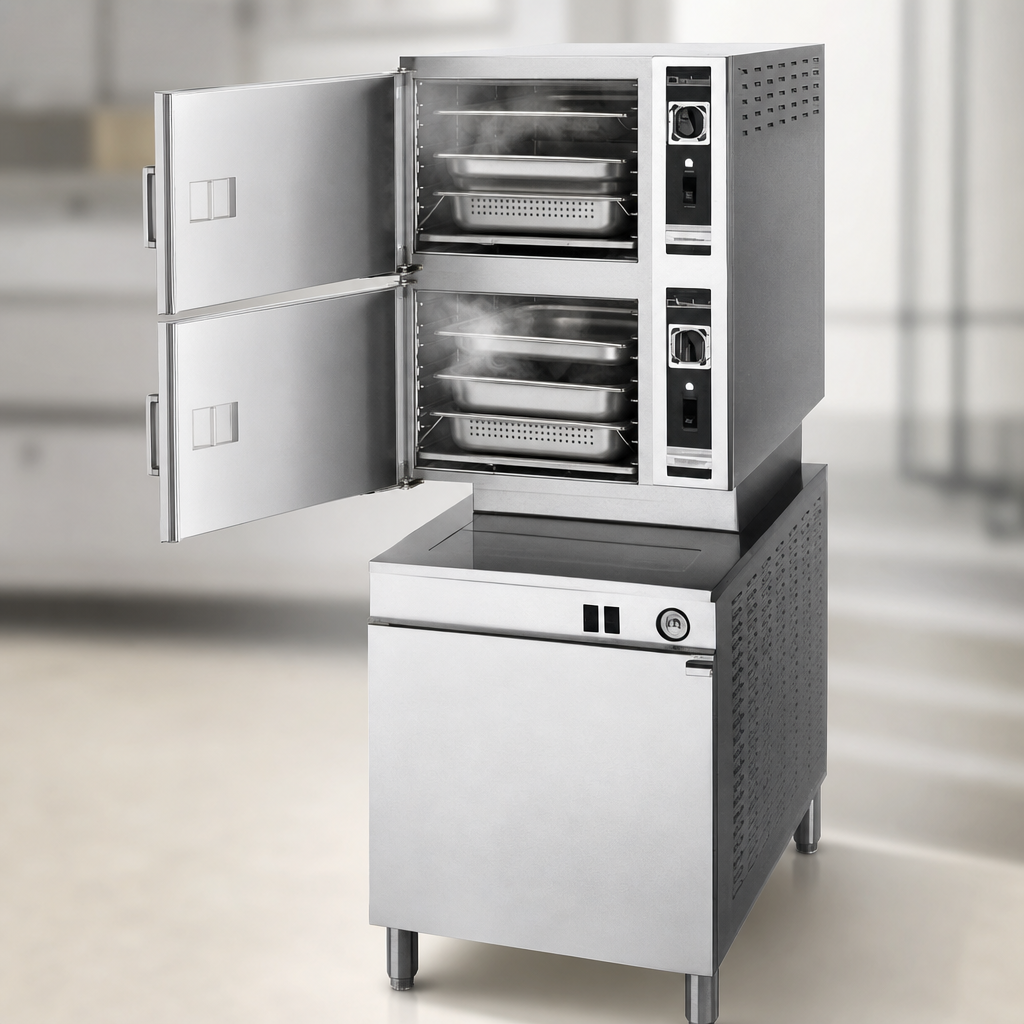

Compartments 2 pressureless cavities
Pan Capacity 3 × 12" × 20" × 2.5" pans per cavity (6 total)
Steam Source Steam coil generator – requires 35 psi @ ¾" line
Controls 60-min mechanical timer & manual bypass (continuous) switch per cavity
Door Hinging Left-hand doors, controls on right side
Construction 14-ga 304 SS cavity, stainless cabinet & base frame
Electrical 115 V, 60 Hz, 1-phase (controls only)
Legs 6" stainless, flanged & adjustable (NSF)
Drain 1 ½" IPS common drain
Shipping Weight Approx. 635 lb / 288 kg
Certifications NSF, UL, ASME
Warranty 1-year parts & labor + 4-year prorated generator parts

Need extra peace of mind? Ask about Cleveland’s extended warranty and water-filtration bundles.

Important: The 24-CSM must be supplied with clean steam at a minimum of 35 psi and feed water that meets Cleveland Range quality guidelines (TDS 50–250 ppm, hardness 50–200 ppm, chloride < 50 ppm). Non-compliant water may void the warranty.

Features & Specs

Manufacturer

Cleveland Range

Brand_name

Classic Convection

Height

62.0in

Width

23.62in

Depth

33.5in

Shipping Weight

635.0lbs

Compartments

2

Width (side - side)

24"

Pan Capacity per Compartment

(3) 12"x20"x2-1/2" deep

Interior

stainless steel

Specifications

Convection Steamer, Steam Coil Generator, 24", (2) compartments, (3) 12 x 20 x 2-1/2" pan/per compartment capacity, manual controls, 60-minute mechanical timer & manual (continuous steaming) bypass switch, left-hand hinged door, controls on right, instant steam mode, stainless steel construction, stainless steel base frame, requires 35 psi steam input
