Description
Classic Convection Two-Compartment Gas Steamer – 24"
Model 24-CGM-220 | Pressureless | 220,000 BTUTurn out perfectly-steamed vegetables, seafood, rice and more in seconds—not minutes. Cleveland’s Classic Convection steamer delivers instant, even heat with industry-leading reliability, making it the go-to choice for high-volume commercial kitchens.
Key benefits
- Pressureless, forced-convection design lets you open the door at any time without shutting down the cycle.
- Two independent compartments hold 3 full-size 12 × 20 × 2 ½" pans each (6 total).

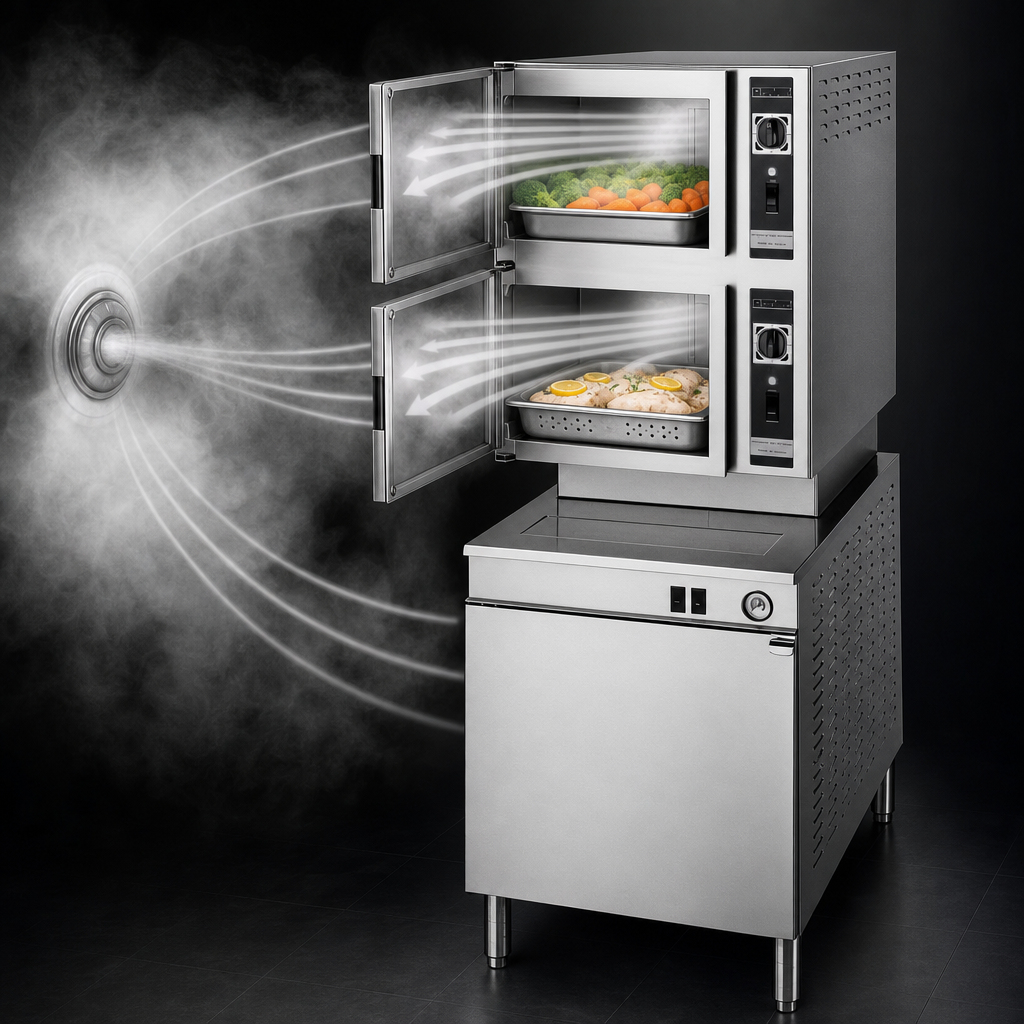

- Exclusive Convection Jet system produces high-velocity steam without mechanical fans for quieter operation.
- Instant Steam Standby keeps the boiler at temperature so you can load & cook immediately.
- 60-minute mechanical timer plus manual bypass switch for continuous steaming.
- “Cool-to-the-Touch” left-hinged doors with slam-latch and reversible gasket ensure a tight, safe seal.
- NickelGuard™ 15 psi steam boiler with electronic spark ignition, auto-fill, auto-drain & mineral-purge cycles reduces scale and maintenance.
- Coved-corner type-304 stainless cooking cavity with removable slide racks cleans up fast.

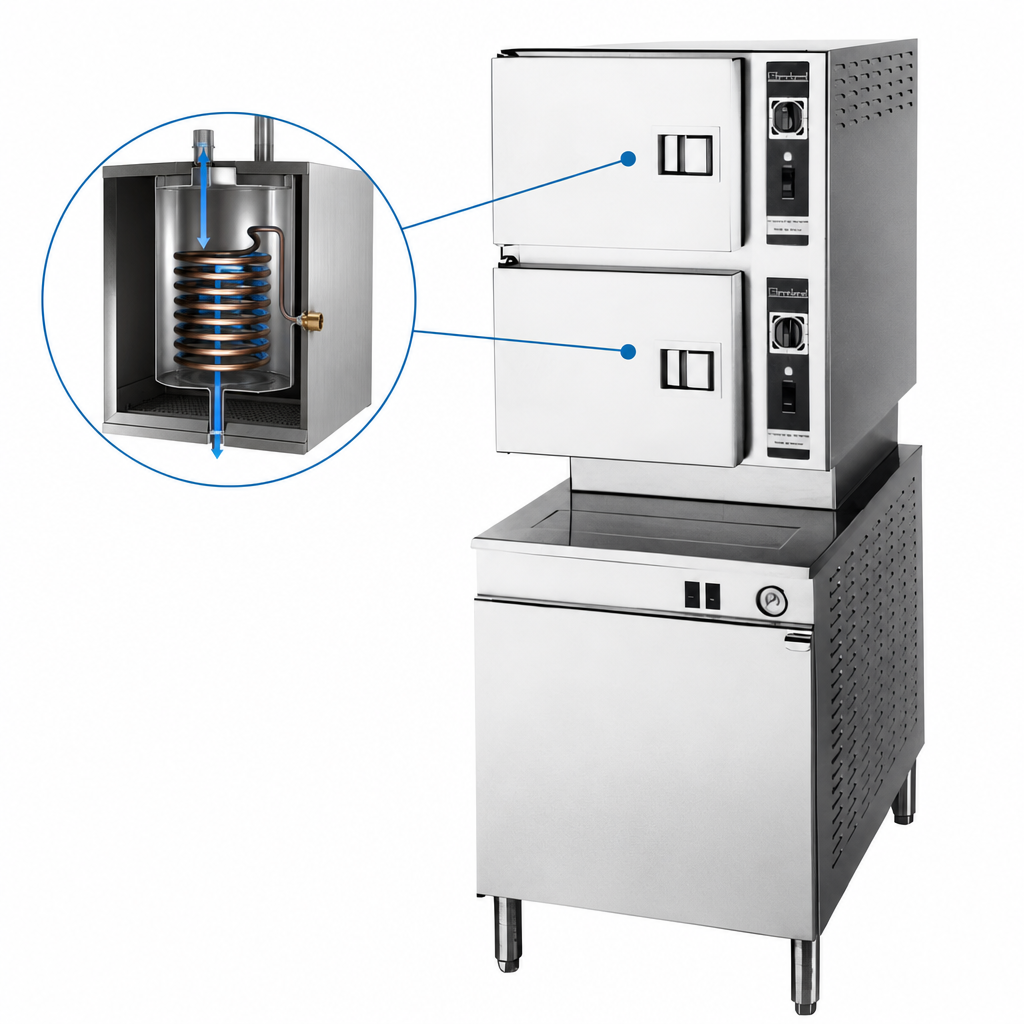

- Cold-water condenser in each compartment keeps steam dry and kitchen temps down.
- Front-serviceable solid-state controls monitor water level, low-water cutoff and safety circuits.
- Heavy-duty FSS stainless steel base frame built to thrive in demanding environments.
Specifications
| Compartments | 2, independent & pressureless |
|---|---|
| Total pan capacity | (6) 12" × 20" × 2 ½" pans |
| Gas input | 220,000 BTU/hr (natural or LP) |
| Steam boiler | 15 psi NickelGuard™ coated, electronic spark ignition |
| Controls | Solid-state; 60-min timer, manual bypass, main power & steam shut-off |
| Electrical (controls) | 115 V, 60 Hz, 1 ph, 5 A |
| Construction | 14-ga type-304 stainless cavity & exterior, FSS stainless base frame |
| Dimensions (W × D × H) | 24" cabinet (30" overall) × 43" × 78" |
| Shipping weight | Approx. 617 lb / 280 kg |
| Required clearances | 6" sides & rear (12" on control side if adjacent wall/equipment > 30"H) |
Built-in safety & maintenance
- Automatic low-water cutoff with secondary probe (CALG compliant).
- High-limit pressure switch & 15 psi safety valve.
- Automatic boiler blowdown with water-jet rinse keeps drain clear.
- Front-mounted steam pressure gauge & gas pressure regulator.
Standard warranty
1-year parts & labor, plus a 4-year prorated limited parts warranty on the pressure boiler. Complimentary performance start-up and water-quality test available on request.
Extended coverage available when paired with a Cleveland-specified water filter. See full warranty for details.
Perfect for
- K-12 and university cafeterias
- Healthcare and long-term-care facilities
- Corporate & government dining
- High-volume restaurants and banquet operations
