Cleveland Range  |  Quick Ship  |  SKU: 24CGA10NEZTQS

Cleveland Range 24CGA10NEZTQS Quick Ship Steamers (Countertop & Floor)

$27,190.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Parts manual Cookbook Service manual Warranty sheet
Related Searches
Steam Cooking Equipment Steamers (Countertop & Floor)

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

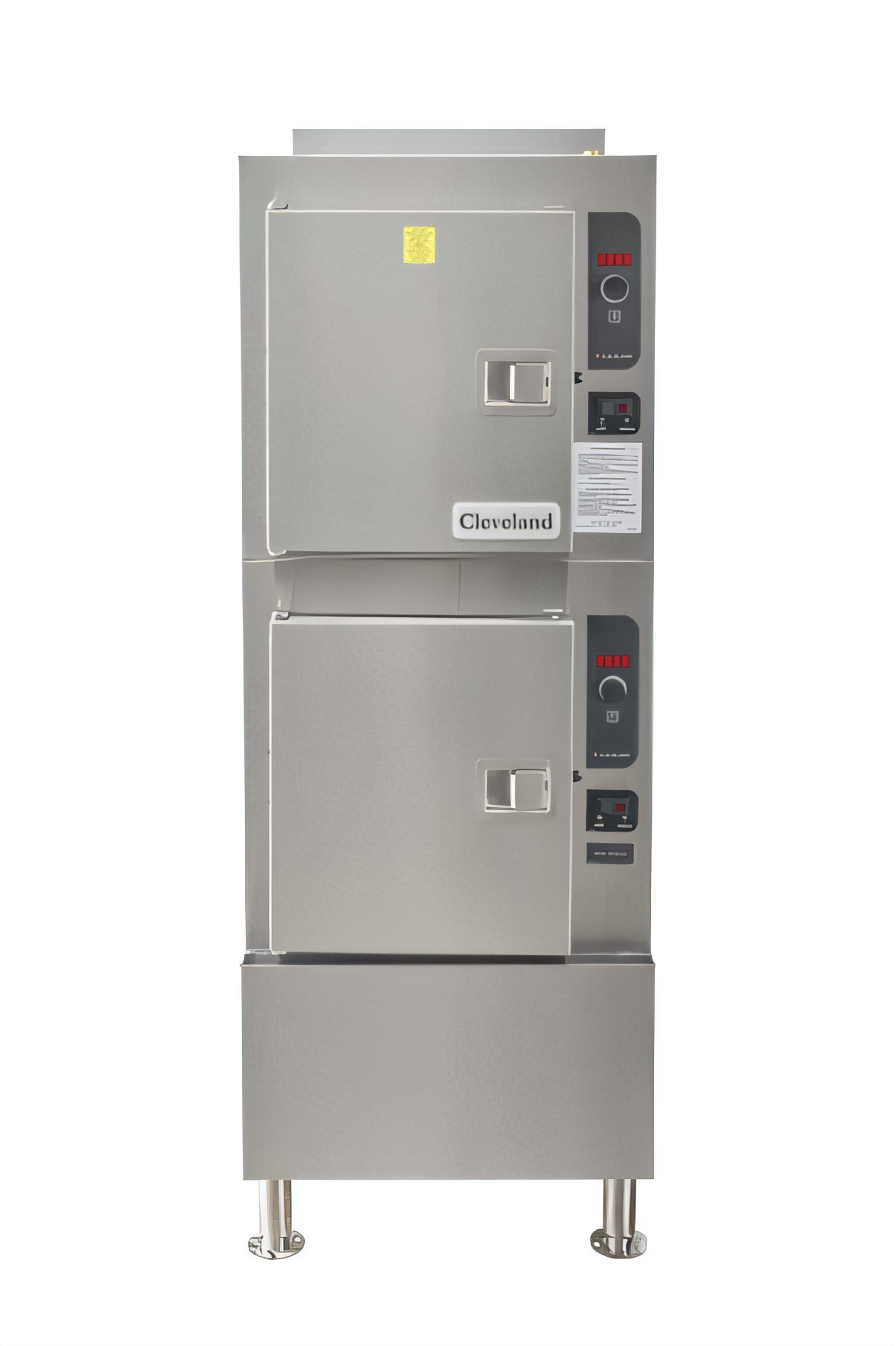

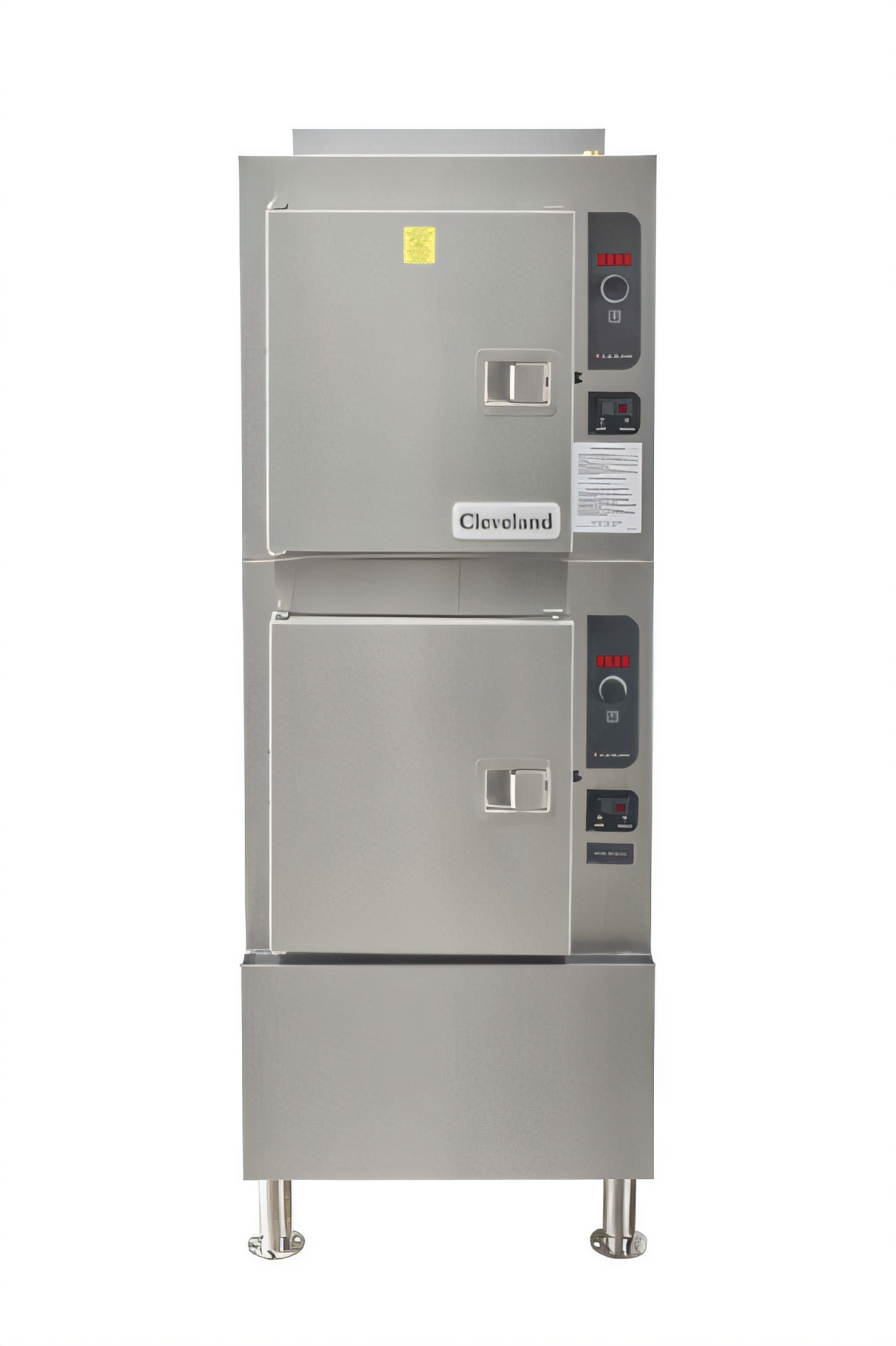

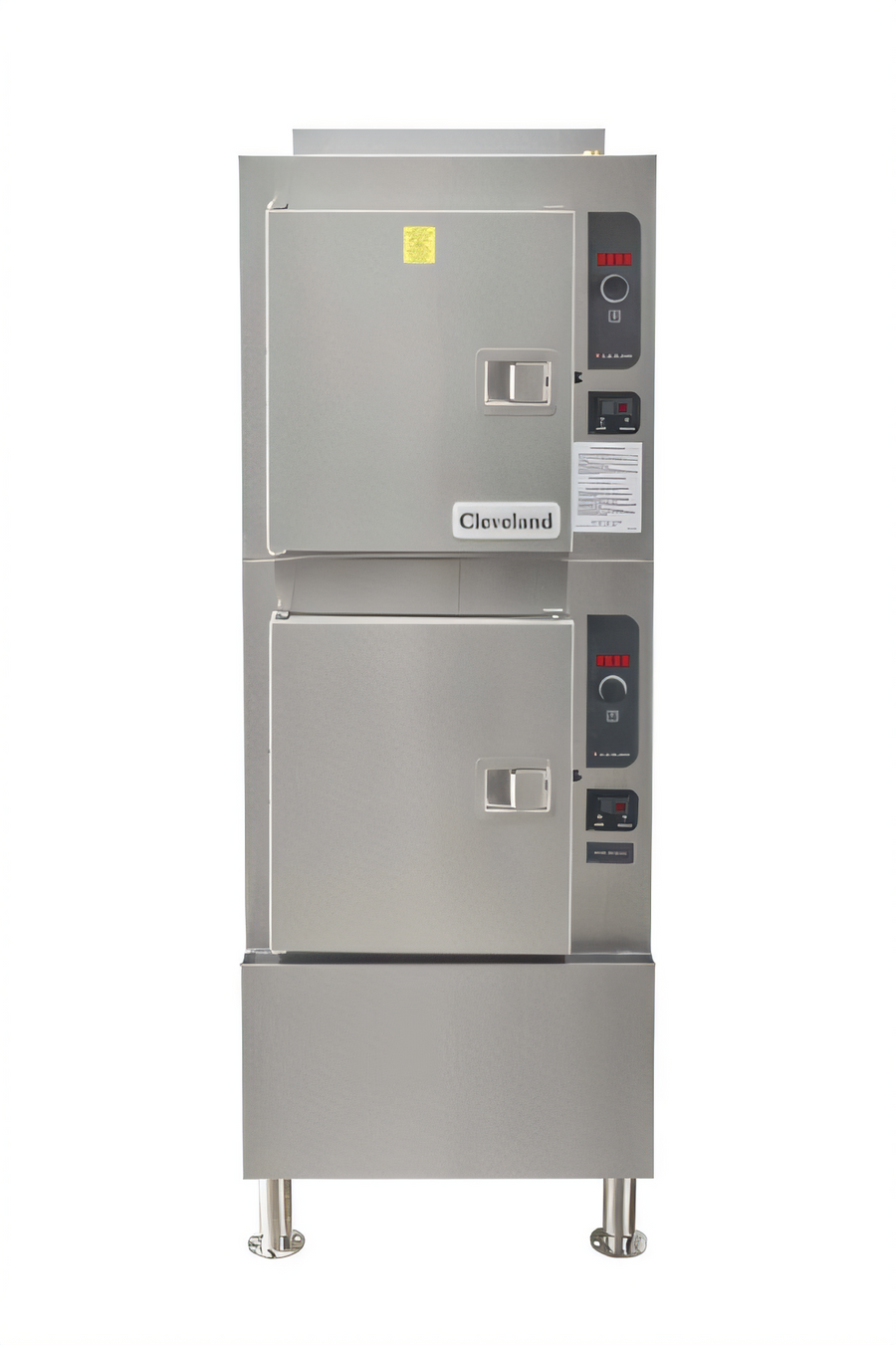

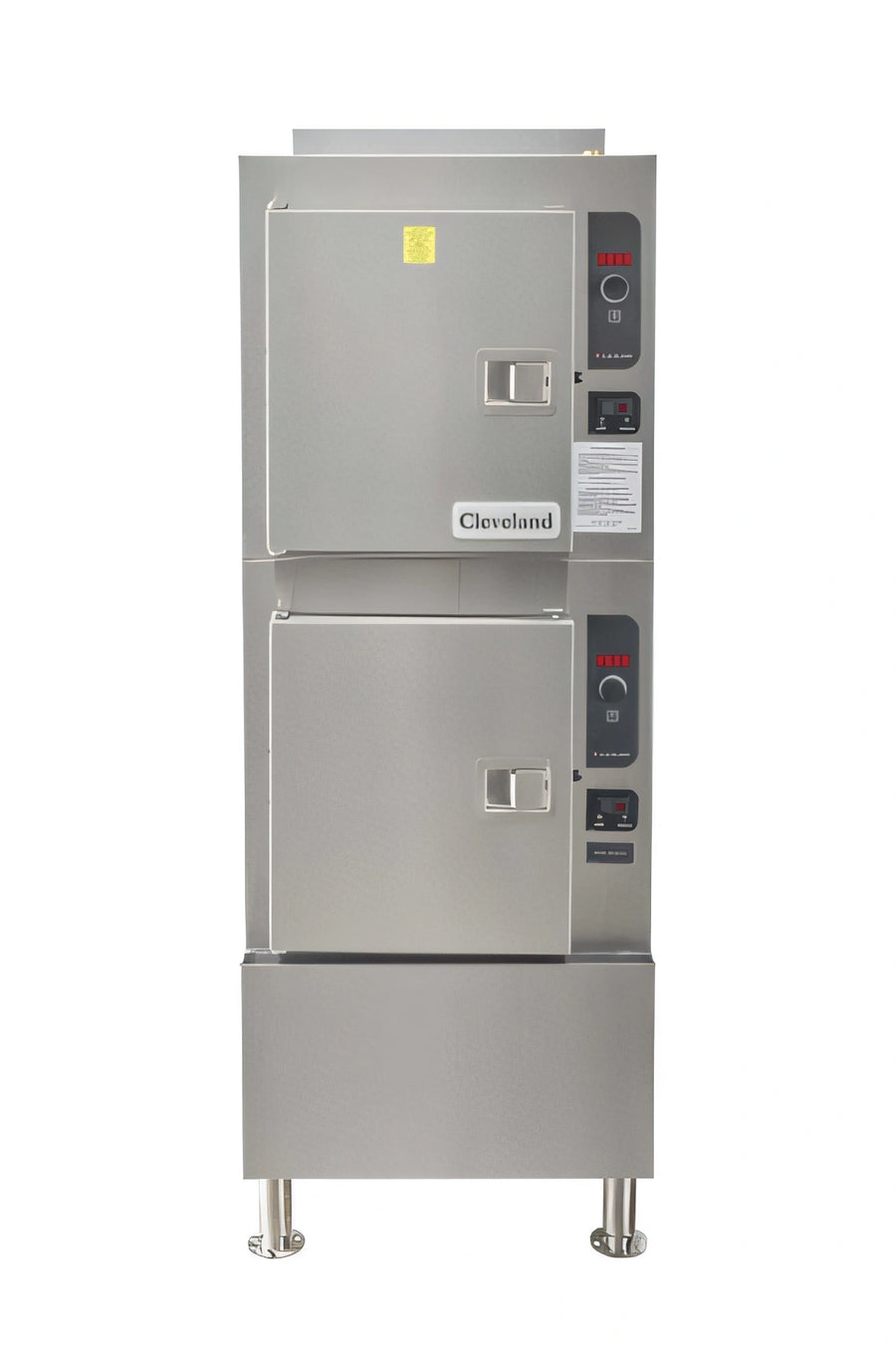

Cleveland SteamCraft® Ultra 10 – Quick Ship

Natural-Gas, Two-Compartment Pressureless Convection Steamer • 125,000 BTU

Need high-volume, high-speed steaming without the wait? The Quick Ship SteamCraft Ultra 10 delivers full-size performance for up to ten hotel pans while fitting neatly under a standard exhaust hood. Its 80 % efficient PowerPak™ steam generator, intuitive Easytimer controls and “cool-to-the-touch” doors keep your kitchen productive, safe and profitable from day one.

Why you’ll love it

  • Instant steam on demand – standby mode keeps the 7.5 gal generator hot so you can load & cook immediately.
  • True two-zone efficiency – uses only 75,000 BTU when one compartment is active, saving fuel during slower periods.
  • Easytimer with SureCook™ load compensation automatically adjusts for cold-food loads and counts down 0–99 minutes in minutes & seconds.

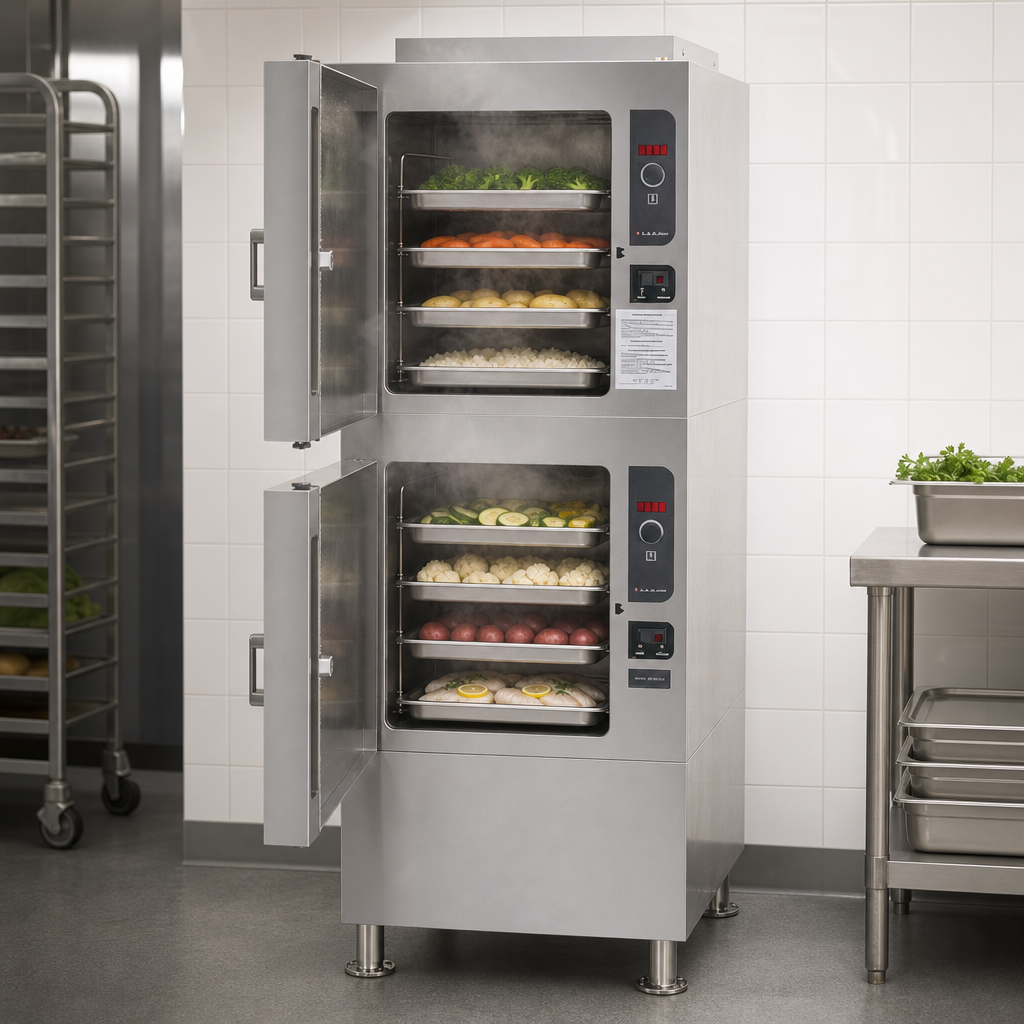

  • Pressureless convection system – exclusive brass steam jets provide high-velocity steam with no fans to maintain.
  • Simple maintenance – top-mounted cleaning port, automatic blow-down & water-level probe rinse cycle fight scale build-up.
  • Operator-safe doors – free-floating inner panel stays cool; slam-latch locks tight yet opens easily when cycle ends.
  • NSF 6 in. adjustable legs with flanged feet let you bolt the unit level on uneven floors.
  • All-stainless build – 14 ga generator shell, type 430 exterior & coved-corner compartments stand up to the toughest kitchens.

Capacity at a glance

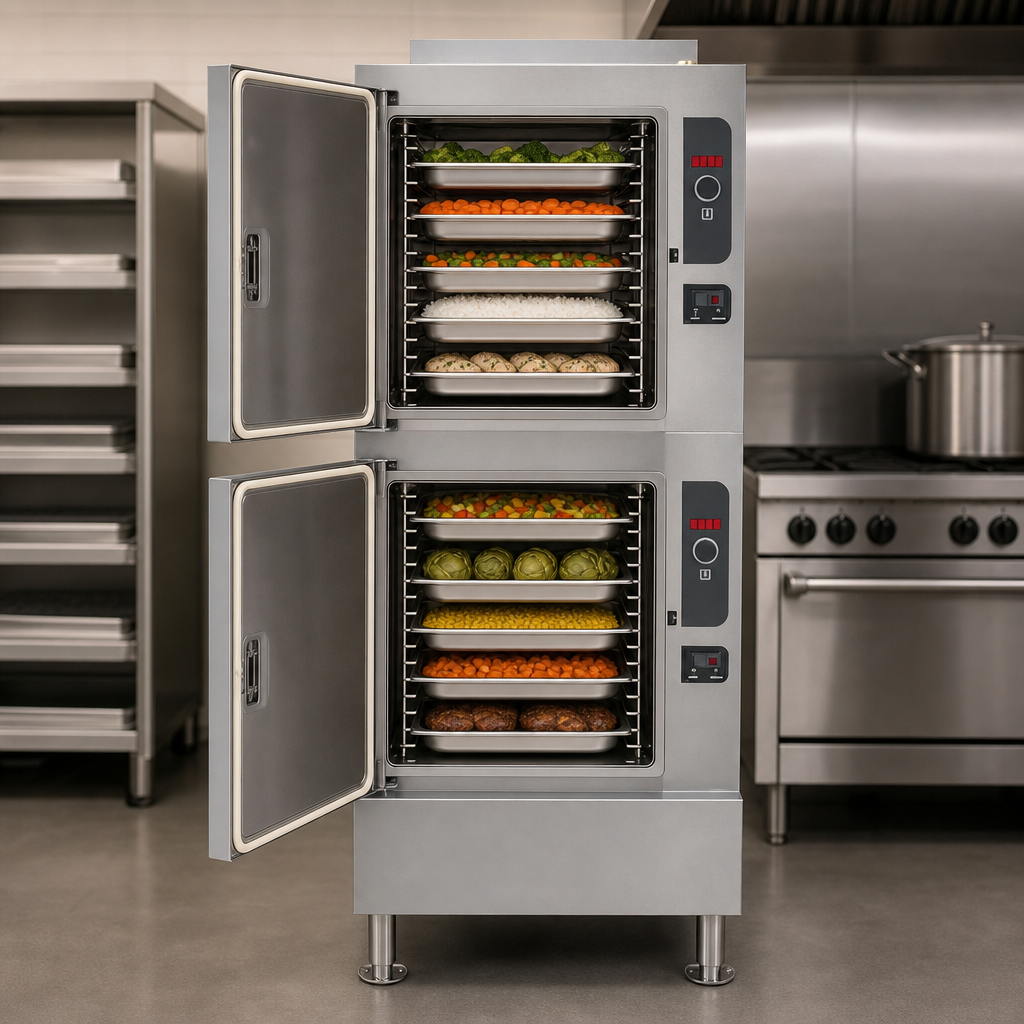

Compartments 2 pressureless
Cafeteria pans per compartment 5 × 12 in × 20 in × 2.5 in deep
Total pan capacity 10 pans (or 26 × 4 in deep with staggered loading)

Technical specifications

Manufacturer / Model Cleveland Range 24-CGA-10 (SteamCraft® Ultra 10)
Gas type / Input Natural gas, 125,000 BTU h-1 (75,000 BTU when single compartment used)
Electrical 115 V, 60 Hz, 1-phase (controls & fan)
Steam generator Vertical atmospheric PowerPak™ – 7.5 gal, 80 % efficiency
Water connections (1) ¾ in NPT cold water (treated or tap)
Drain 1½ in IPS
Exterior dimensions* W 33.1 in × D 34.3 in × H 78 in
Shipping weight* 540 lb (crated)
Legs 6 in stainless, adjustable, flanged
Door swing Left-hand hinged (controls on right) – field reversible
*Dimensions and weight are approximate and include flue/exhaust. Refer to spec sheet for detailed rough-in.

Utility requirements

  • Gas supply: ¾ in NPT, 4–14 in W.C. natural gas
  • Water pressure: 35–80 psi, 40–104 °F (follow Cleveland water quality guidelines)
  • Dedicated 15 A, non-GFCI circuit required (Cleveland recommends hard-wiring)
  • Must be installed under a ventilation hood with adequate make-up air

Warranty & support

  • 1-year parts & labor standard warranty (18 months from shipment if earlier)
  • Additional 4-year prorated limited parts warranty on the steam generator
  • Free factory-authorized performance start-up & water quality test upon request
  • Extended warranty & water-filter packages available at time of purchase
Important: Use only water that meets Cleveland’s published quality standards (TDS 50–250 ppm, hardness 50–200 ppm, pH 7.0–8.5, chloride < 50 ppm). Failure to maintain and descale the generator may void the warranty.
Quick Ship items typically depart the factory in 48 hours or less. Availability subject to change.

Features & Specs

Manufacturer

Cleveland Range

Brand_name

Quick Ship

Height

65.5in

Width

24.0in

Depth

33.0in

Shipping Weight

565.0lbs

Interior Finish

stainless steel

Pan Capacity per Compartment

(5) 12"x20"x2-1/2" deep

Width (side - side)

24"

Type

1 steam generator

Specifications

(Quickship) Steamcraft® Ultra 10 Convection Steamer, pressureless, natural gas, (2) compartments, (5) 12 x 20 x 2 1/2 pans, , easytimer control, SureCook load compensating thermostat, descale indicator, left-hand hinged door, controls on right, steam shut-off switch, electronic spark ignition, (1) standard treated & tap water connection, stainless steel construction, 6" adjustable legs with flanged feet, 115v/60/1-ph, 125,000 BTU
