Cleveland Range

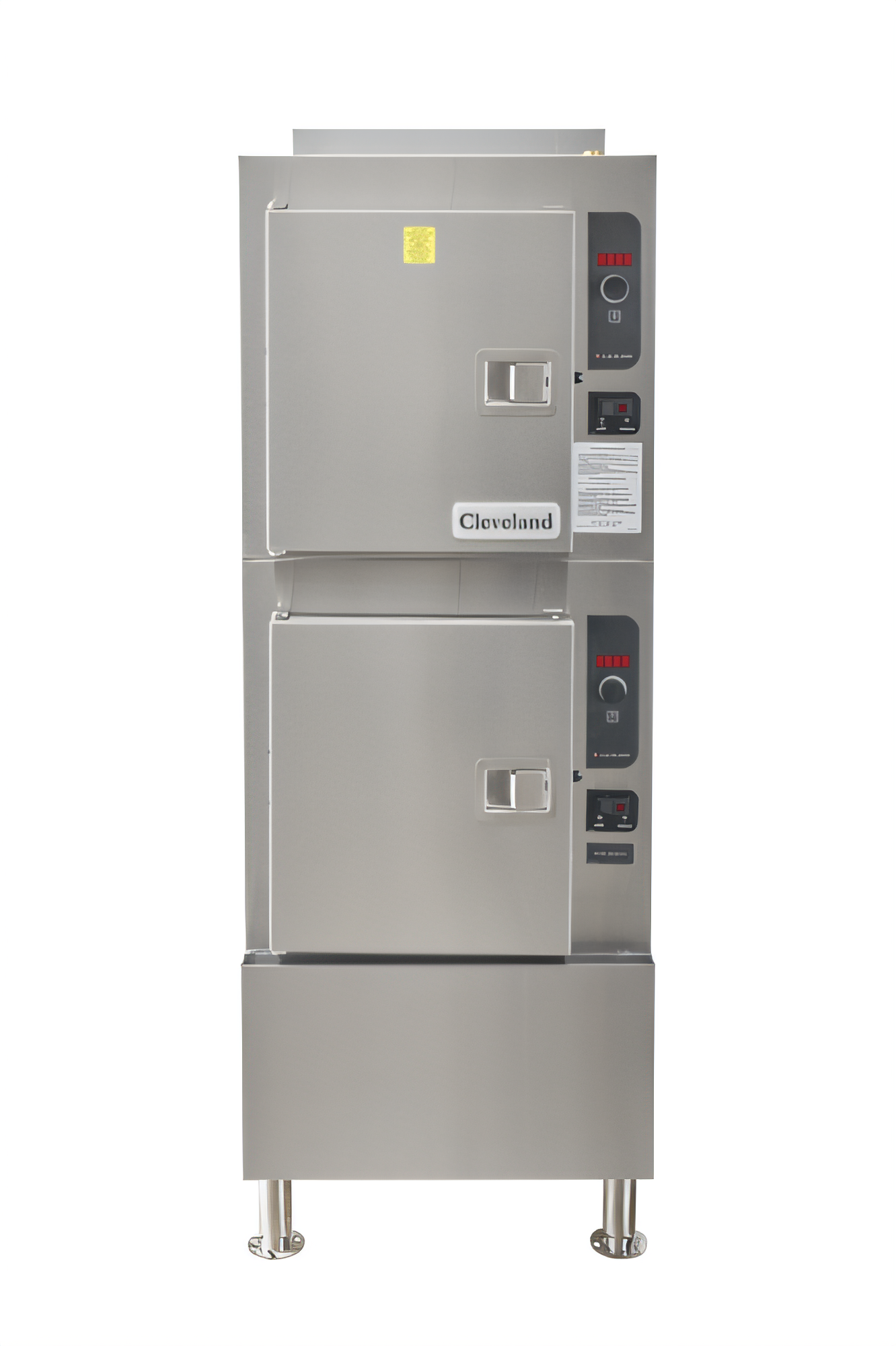

Cleveland SteamCraft Ultra 10 Two-Compartment Pressureless Gas Convection Steamer, 24-Inch Wide Floor Model

SKU: 24CGA10
$27,190.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Cleveland SteamCraft Ultra 10 Two-Compartment Pressureless Gas Convection Steamer, 24-Inch Wide Floor Model

125,000 BTU, Manual Controls, Left-Hand Door, Stainless Steel

A high-capacity, pressureless gas steamer built for fast production, simple manual control, and easy daily cleaning.

  • Two pressureless compartments hold five 12 x 20 x 2-1/2 inch pans each, for up to 10 pans total.
  • 125,000 BTU gas steam generator delivers fast recovery and high-speed cooking performance.
  • EasyTimer manual controls add a digital readout, selector dial, SureCook load-compensating timing, and LED descale indicator.
  • Electronic spark ignition, automatic water fill, automatic blowdown, and steam shut-off switch help streamline operation.
  • Left-hand hinged, cool-to-the-touch two-piece doors with right-side controls support efficient workflow.
  • Stainless steel construction, insulated compartments, cold water condensers, and removable slide racks support durability and easy cleaning.
  • 6-inch adjustable stainless steel legs with flanged feet make leveling simple.

Overall Dimensions:

24.0"W x 33.0"D x 65.5"H

Product Weight:

565.0 lb

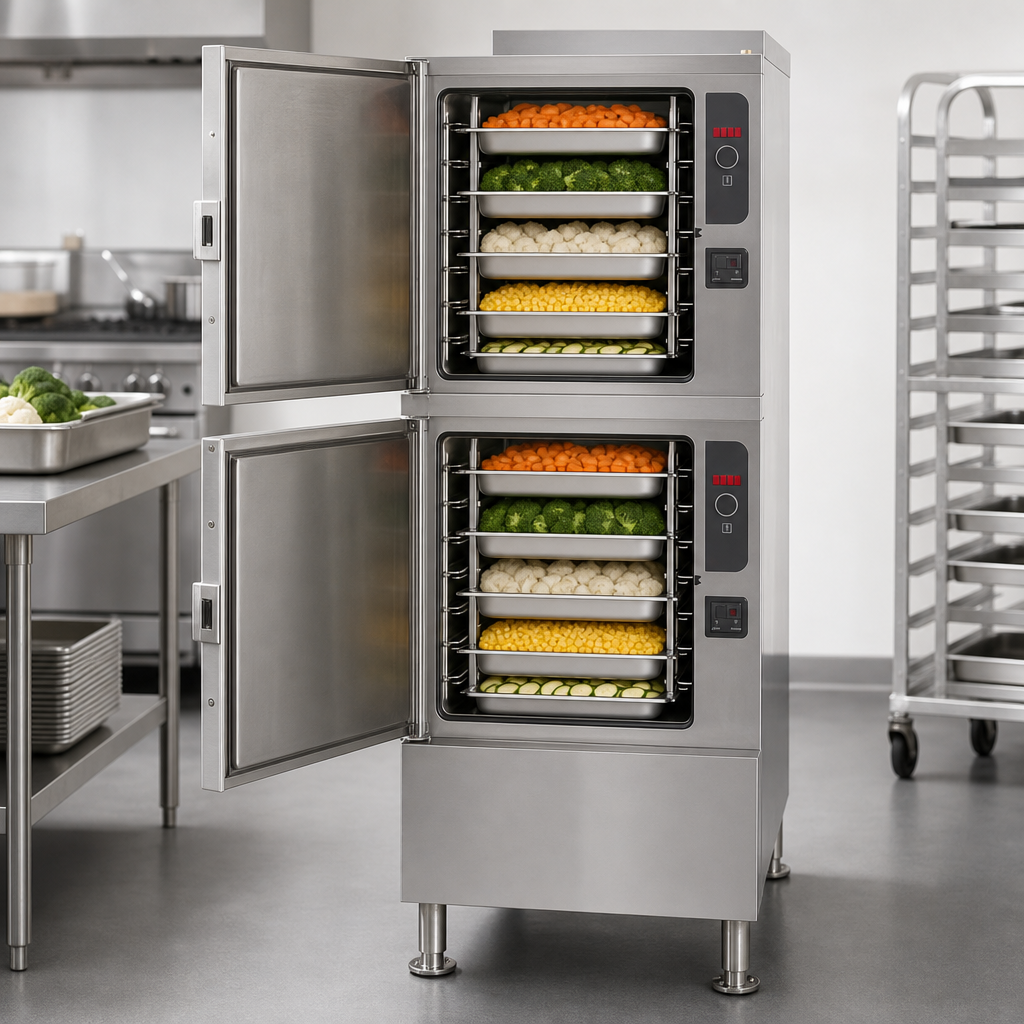

Two-Compartment Capacity

Dual compartments provide high-volume steaming capacity, with five full-size pans per compartment for a total of 10 pans.

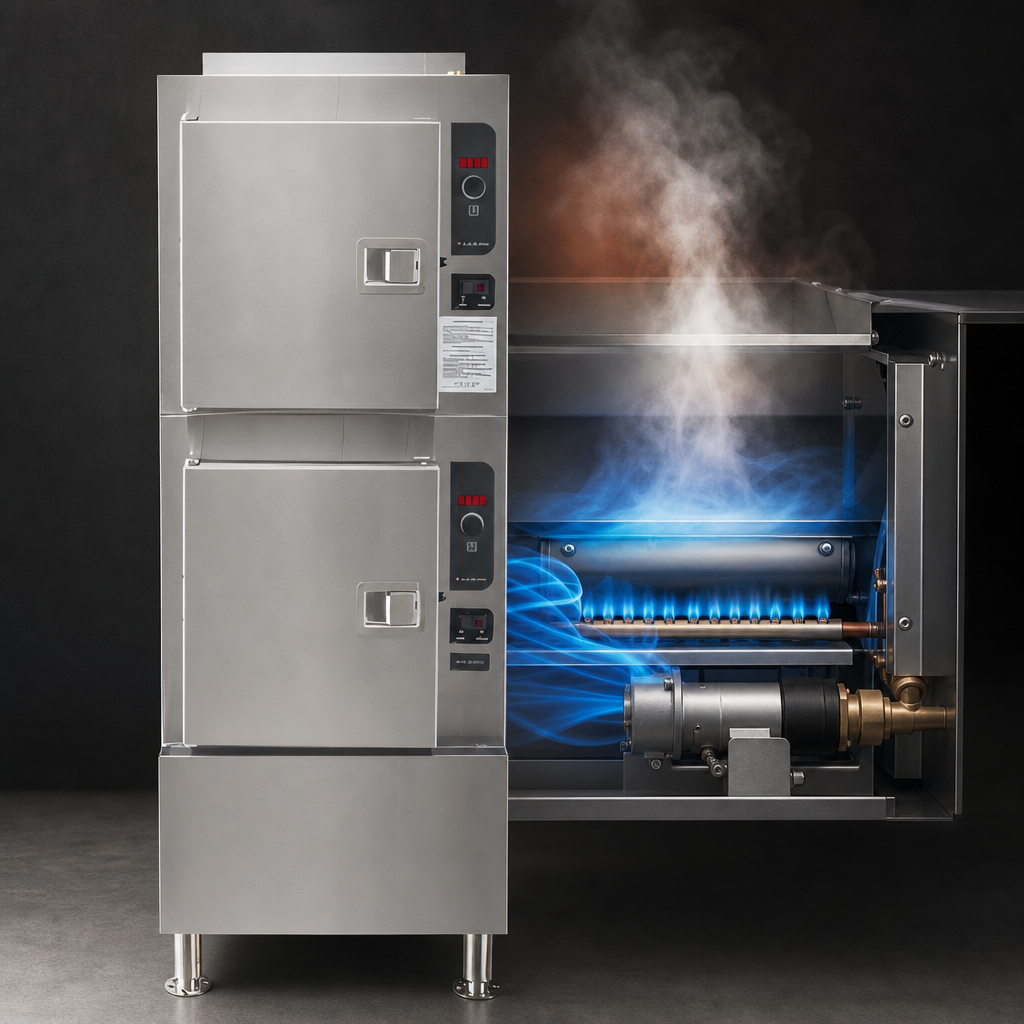

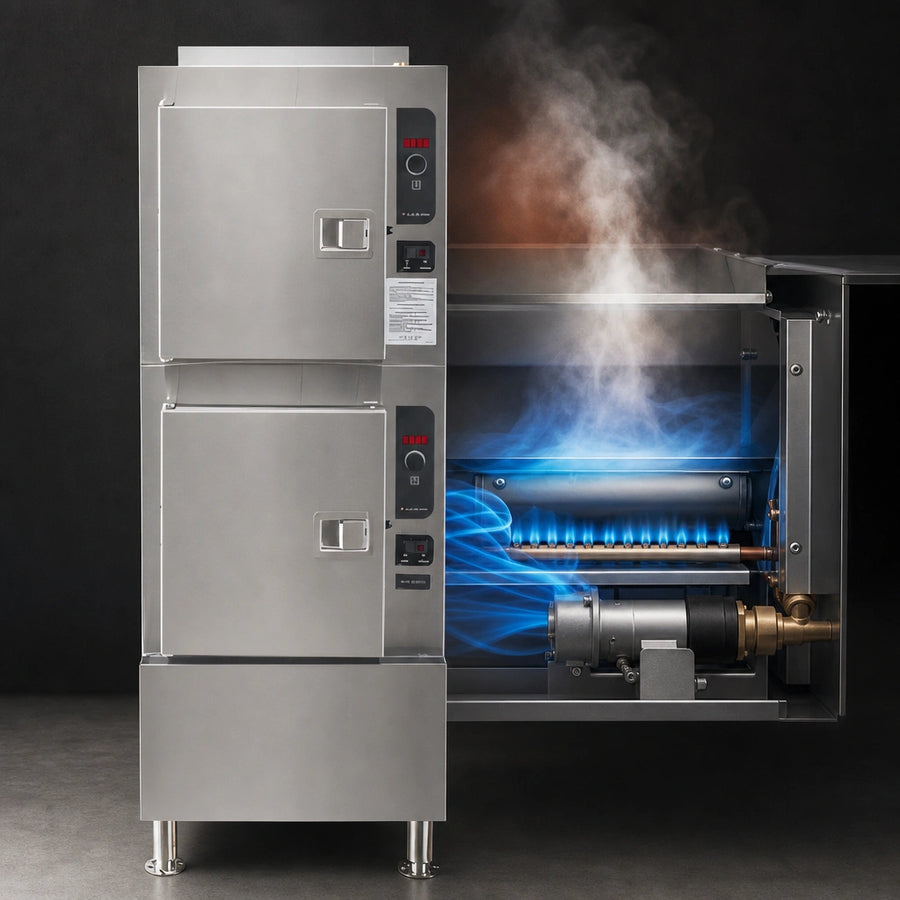

125,000 BTU Gas Generator

Gas-fired atmospheric steam generation delivers rapid steam production for demanding kitchen output.

EasyTimer Controls

Manual controls include a digital minute-and-second readout, selector dial, SureCook load-compensating timer, and LED descale indicator.

Automatic Steam System

Electronic spark ignition, automatic water fill, automatic generator blowdown, and a steam shut-off switch simplify startup and daily operation.

Cool-To-The-Touch Door Design

Two-piece compartment doors with a reversible gasket and slam/latch mechanism help improve safety and sealing.

Stainless Steel Construction

Stainless steel exterior and cooking compartments, removable slide racks, coved corners, and insulated chambers support cleaning and efficiency.

Service-Friendly Design

Features include a cold water condenser, generator cleaning port, automatic water-level control, and a water-jet spray rinse drain-cleaning cycle.

Adjustable Leveling Legs

6-inch stainless steel legs with flanged feet provide stability and a one-inch level adjustment.

Type Pressureless Convection Steamer
Style Generator Style
Installation Type Floor Model
Compartments 2
Capacity 10 Full-Size Pans
Pan Capacity 5 12 x 20 x 2-1/2 Inch Pans Per Compartment
Pan Size 12 x 20 x 2-1/2 Inches
Controls Manual
BTU 125,000 BTU
Material Stainless Steel
Interior Finish 430 Stainless Steel
Voltage 120 Volts
Watts 200 Watts
Amps 2 Amps
Phase 1-Phase
Plug Type Hardwired
Water Inlet Size 3/8 Inch NPT
Water Connection Required
Drain Connection Size 1 1/2 Inch IPS-M
Drain Connection Required
Gas Connection Size 3/4 Inch
Shipping Width 24 Inches
Shipping Depth 33 Inches
Shipping Height 66 Inches
Shipping Weight 565 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It holds five 12 x 20 x 2-1/2 inch pans per compartment, or 10 pans total across two compartments.
Yes. The unit is a pressureless, floor model convection steamer.
The documentation lists 120V, 1-phase, 200W, 2 amps, a gas supply connection, a 3/8 inch NPT water connection, and a 1 1/2 inch drain connection.
Yes. The documentation lists propane gas as an available option.
Yes. The unit is listed with left-hand door hinging and field reversible door hinging.
Yes. Features include a descale indicator, generator cleaning port, automatic blowdown, and a water-jet spray rinse drain-cleaning cycle.
