Description

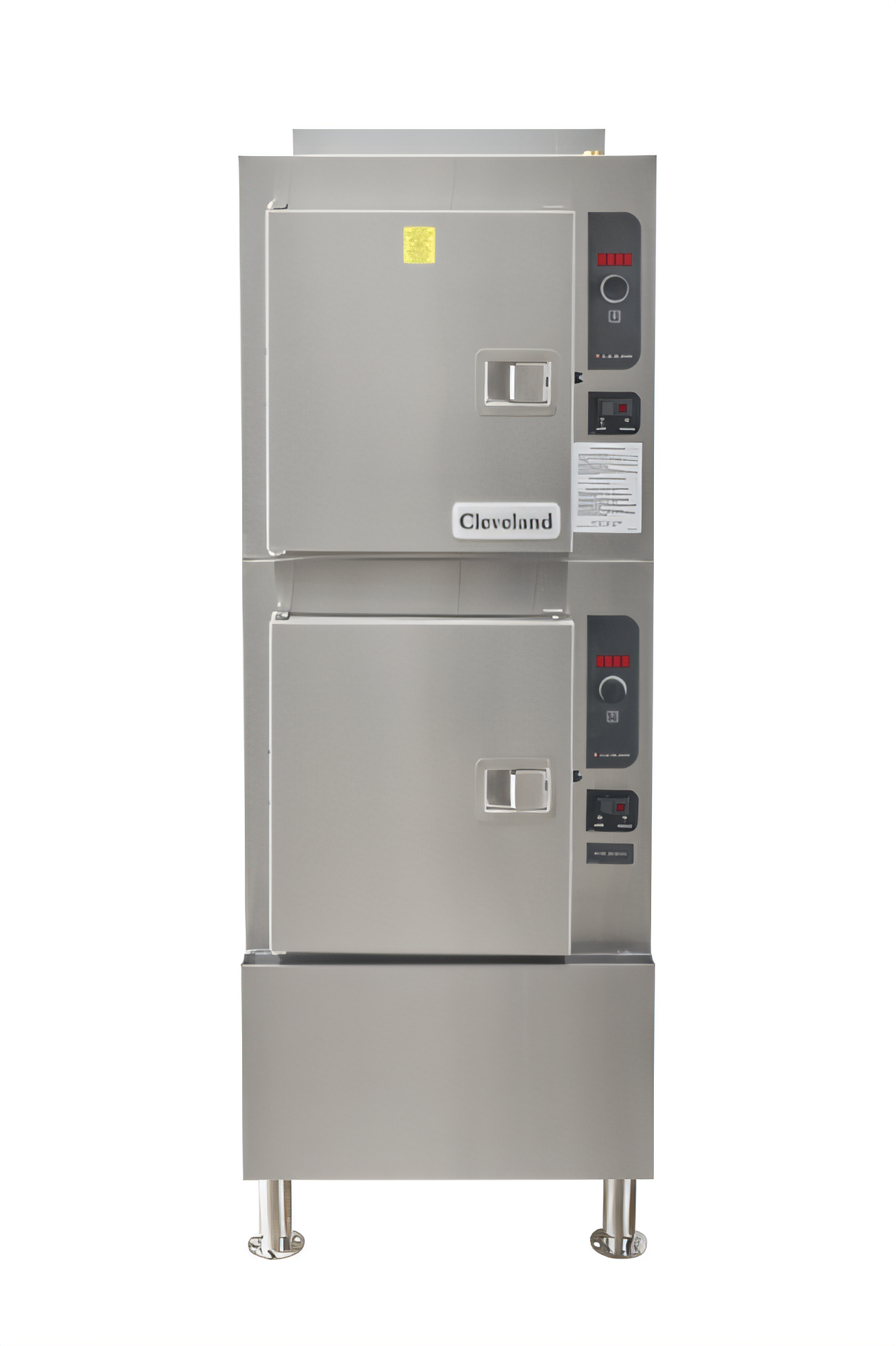

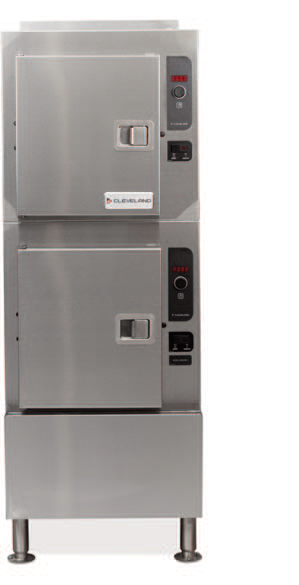

Steamcraft® Gemini™ 10 Gas Convection Steamer
Model 24CGA10.2ES – 2 independent compartments • 100,000 BTU • ENERGY STAR®Cook more food, in less time, for less money. Cleveland Range’s Steamcraft Gemini 10 pairs two fully-independent, high-efficiency gas generators with smart SteamSaver™ technology, giving you outstanding throughput while trimming energy and water costs.
Key performance features
- SteamSaver™ Technology modulates steam output to match the food load—cutting utility consumption without slowing production.

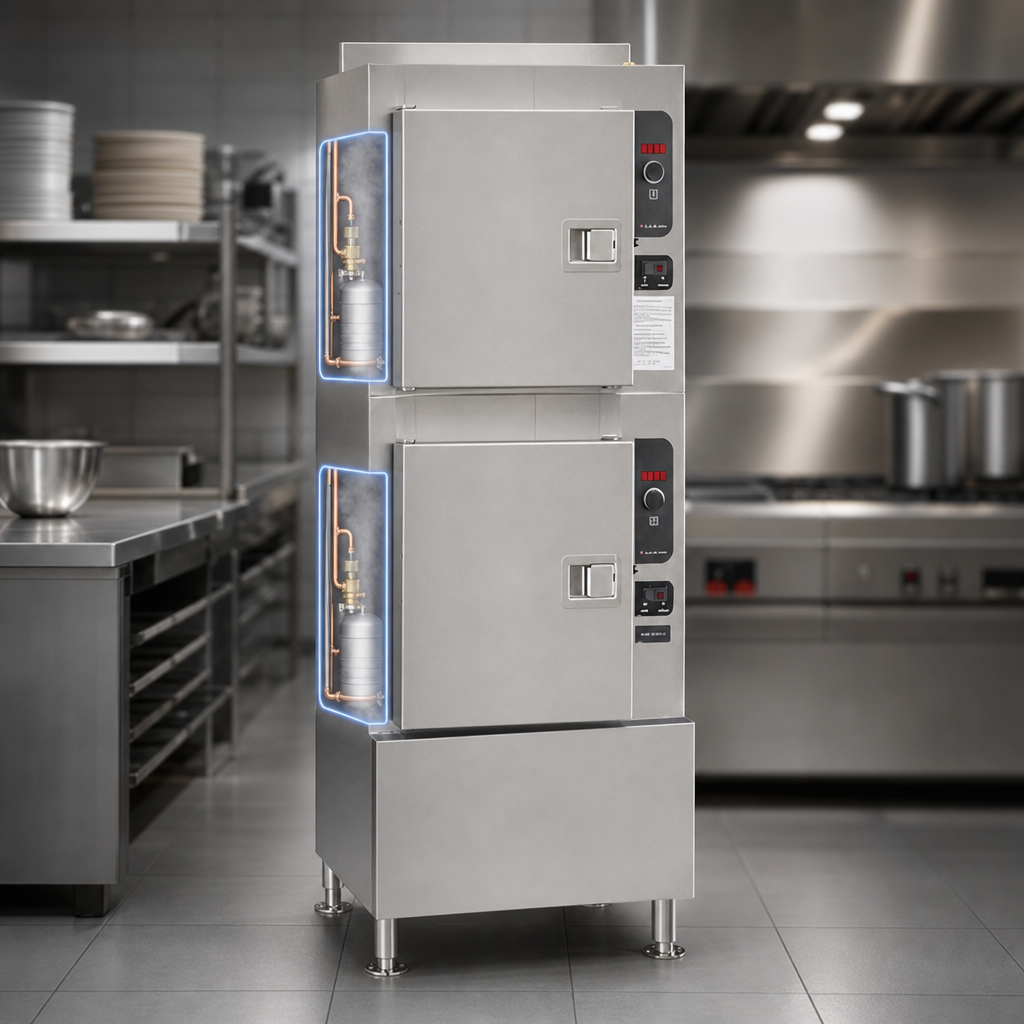

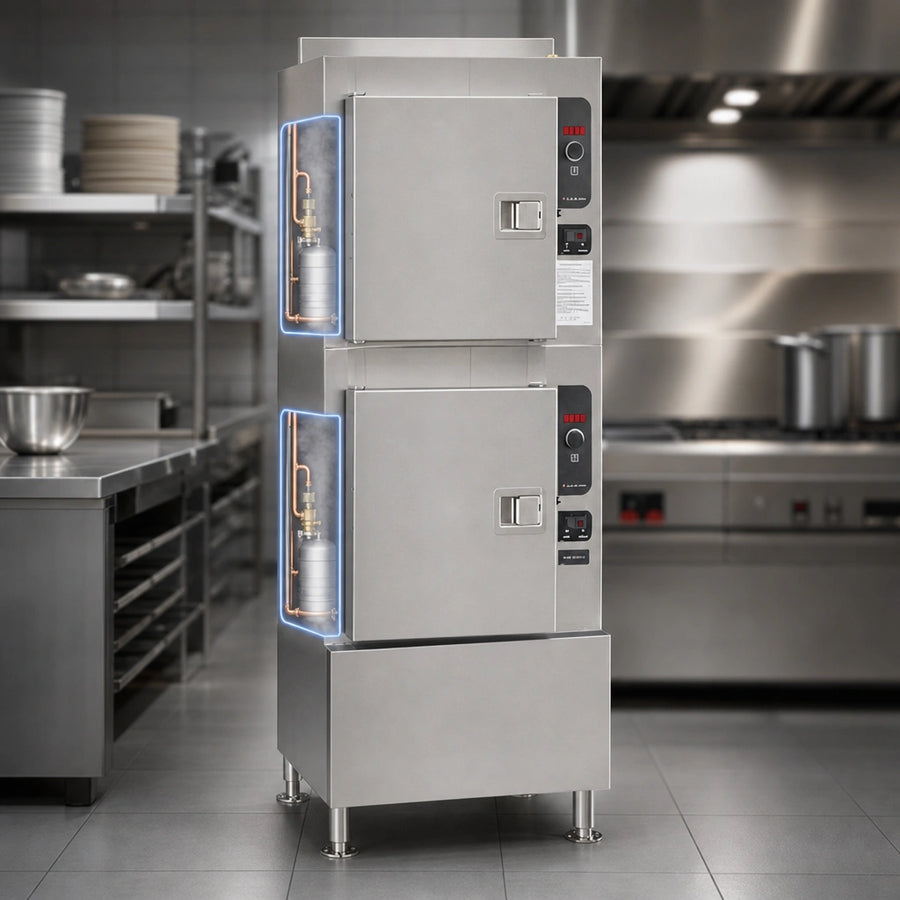

- (2) forced-air gas generators – 50,000 BTU each – deliver rapid steam recovery for back-to-back batches.

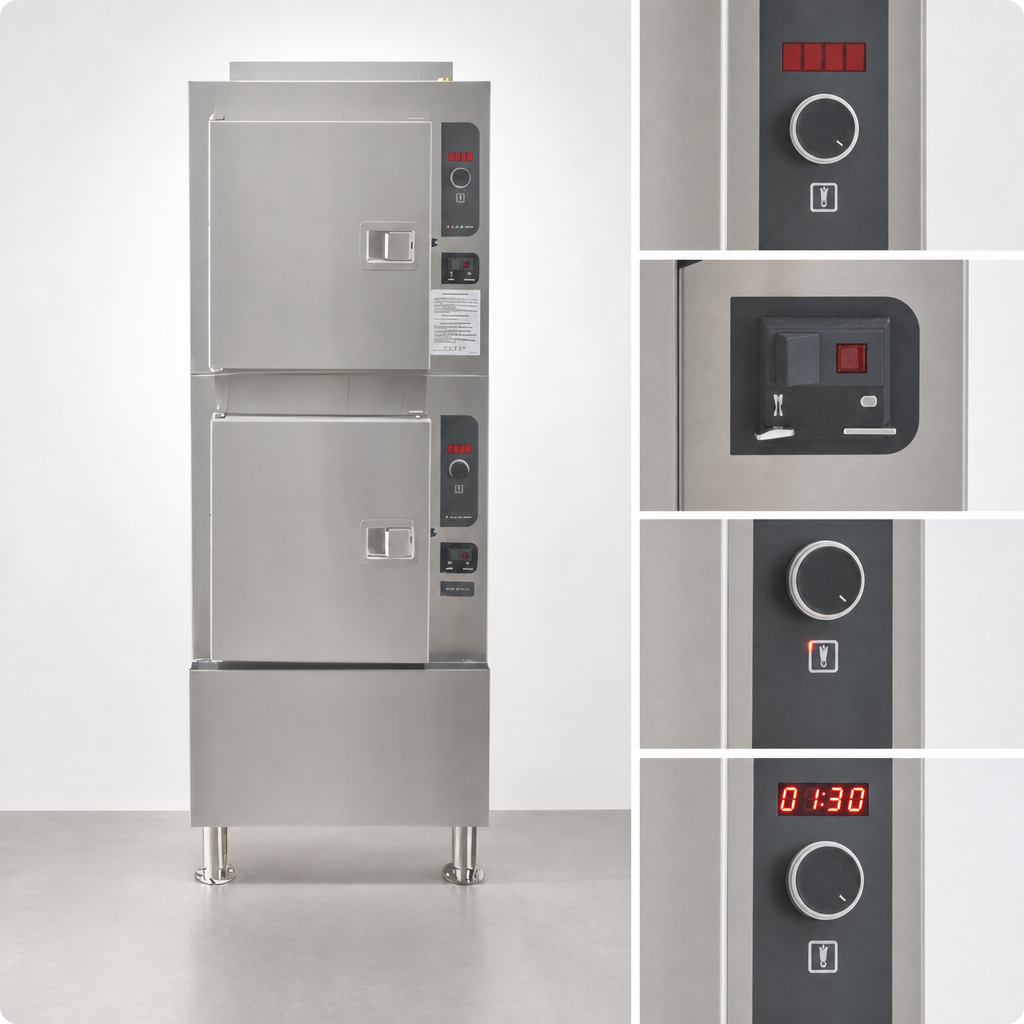

- SureCook load-compensating thermostat guarantees consistent results with full or partial loads.
- easyTimer rotary dial with bright LED display (up to 90 minutes, minutes : seconds) plus Manual Constant-Steam mode.
- LED descale indicator and external deliming port simplify preventive maintenance.
- Field-reversible, two-piece slammable doors with self-adjusting gaskets for an airtight seal every time.
- Brass steam jets blanket the cavity with even, high-velocity steam to shorten cook times.
- Gemini Drain/Power control – one ½" ball valve simultaneously drains the generators and shuts off power for safety.
- Generator Standby keeps water at steaming temp so you’re always ready for the next load.
- All-stainless steel cabinet & cavities, plus 6" adjustable legs with flanged feet for rock-solid installation.
Why chefs choose Gemini 10
- True menu flexibility – cook vegetables in one cavity while seafood finishes in the other; no flavor transfer.
- ENERGY STAR® qualified – proven to reduce operating costs and qualify for many local rebates.
- Front pull-out service drawer keeps routine maintenance fast and mess-free.
- Meets NSF 4, UL and CSA standards for safety and sanitation.
Technical specifications
| Capacity | 10 pans – 12" × 20" × 2½" (5 per compartment) |
|---|---|
| Operating pressure | Pressureless convection steam |
| Total input | 100,000 BTU/hr (natural or propane) |
| Gas connection | ¾" NPT |
| Water connection | (1) ½" treated & tap water |
| Drain | 2" OD free-vented |
| Electrical | 115 V, 1-phase, 60 Hz, 300 W (fans & controls) |
| Ship dimensions (W × D × H) | 49" × 41" × 78" |
| Shipping weight | 548 lb |
| Construction | Stainless steel interior & exterior, 6" flanged legs |
| Certifications | ENERGY STAR®, CSA, UL, NSF 4 |
Supplied with 1-year parts & labor warranty (5-year prorated generator parts) and free factory-authorized start-up. For maximum longevity, follow Cleveland’s water quality guidelines or pair with a KleenSteam™ II filter.
