Cleveland Range  |  Gemini  |  SKU: 24CGA10.2

Cleveland Range 24CGA10.2 Gemini Steamers (Countertop & Floor)

$29,982.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Manual Cookbook Warranty sheet
Related Searches
Cleveland Range Commercial Steamer Cooking Equipment Cooking Equipment Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor)

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

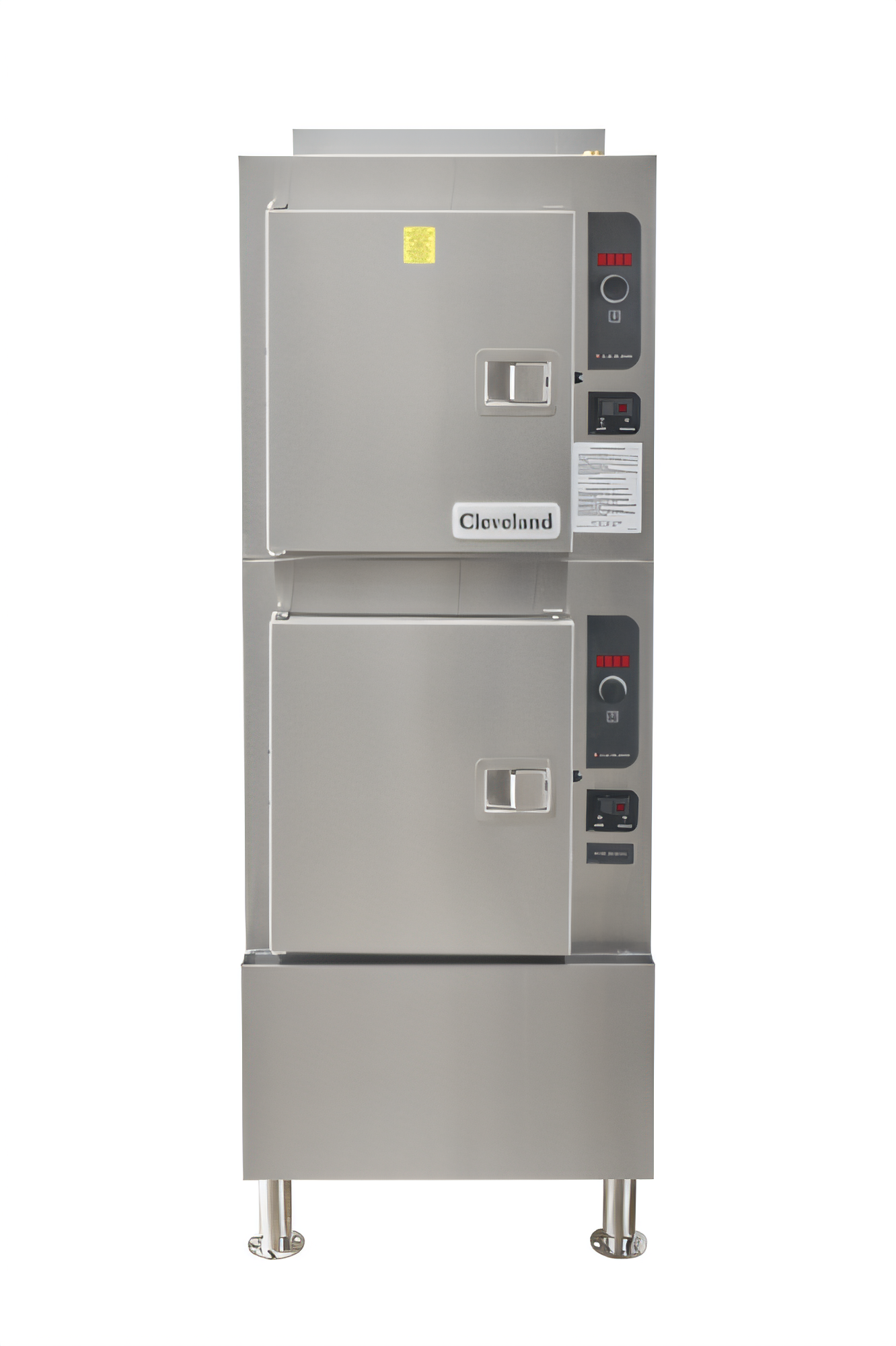

SteamCraft® Gemini™ 10 Gas Convection Steamer

Model 24-CGA-10.2  |  Two independent 5-pan compartments  |  144,000 BTU total

Double your throughput without doubling your footprint. The Gemini 10 pairs two completely independent gas-fired steam generators with Cleveland’s SureCook™ precision controls, so you can run different menus side-by-side and still finish every batch at peak quality and speed.

Why operators choose the Gemini 10
  • 10-pan capacity – (5) 12 × 20 × 2 ½ in. pans per compartment.

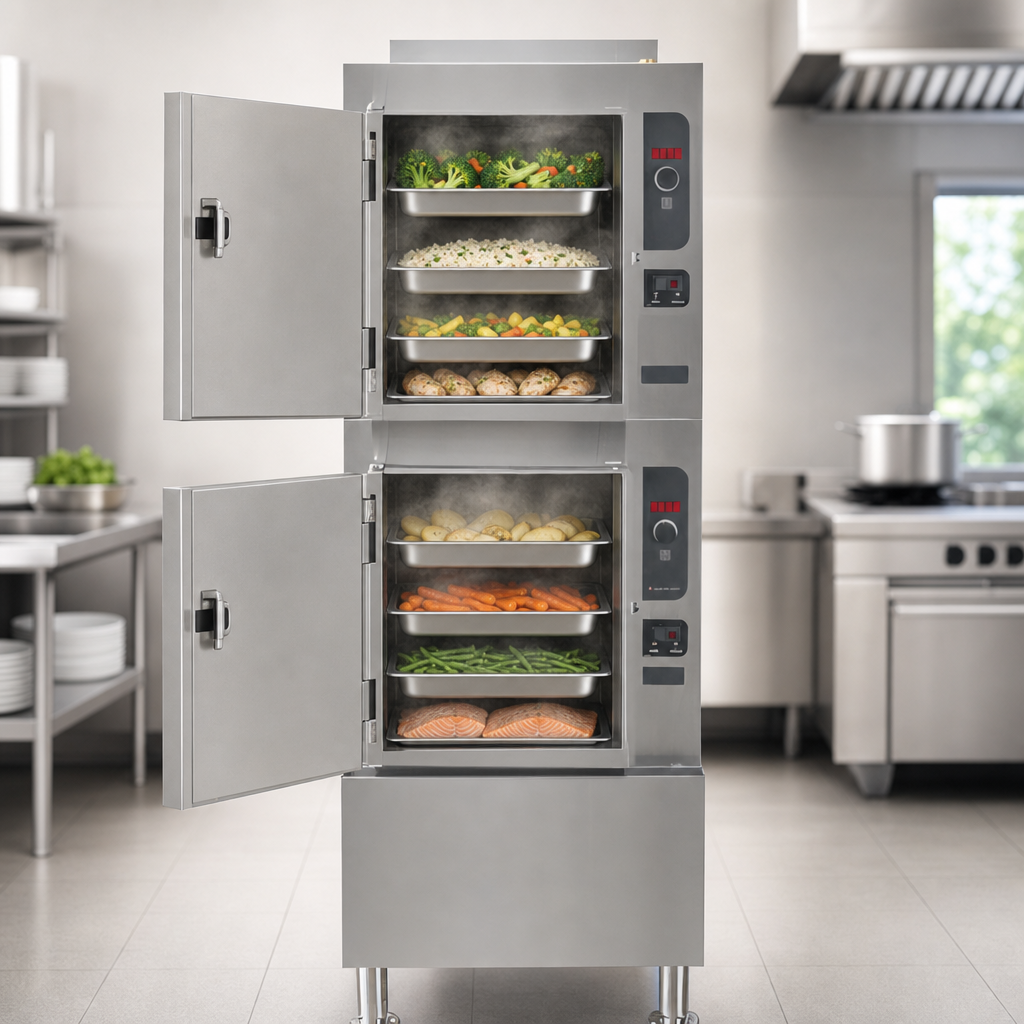

  • Twin, totally independent compartments – each with its own 72,000 BTU forced-air generator, gas valve & water-level controls.
  • SureCook™ controls – load-compensating thermostat plus easyTimer countdown (up to 90 min) with LED minutes/seconds display.
  • Manual constant-steam mode and illuminated descale indicator for effortless maintenance.
  • Slammable, self-adjusting two-piece door with reversible silicone gasket for an air-tight seal and longer life.
  • Gemini Drain/Power Control – ½ in. ball-valve drain automatically switches power ON/OFF.
  • High-velocity brass steam jets distribute heat evenly for faster cooking times.
  • Top-mounted deliming ports & pull-out front service drawer = quick, tool-free maintenance.
  • Stainless-steel cabinet & cooking chambers on 6 in. adjustable legs with flanged feet.
  • Agency approvals: CSA (AGA / CGA) & UL/NSF #4.
At-a-glance specifications
Pan capacity (10) 12 × 20 × 2 ½ in. pans (5 per compartment)

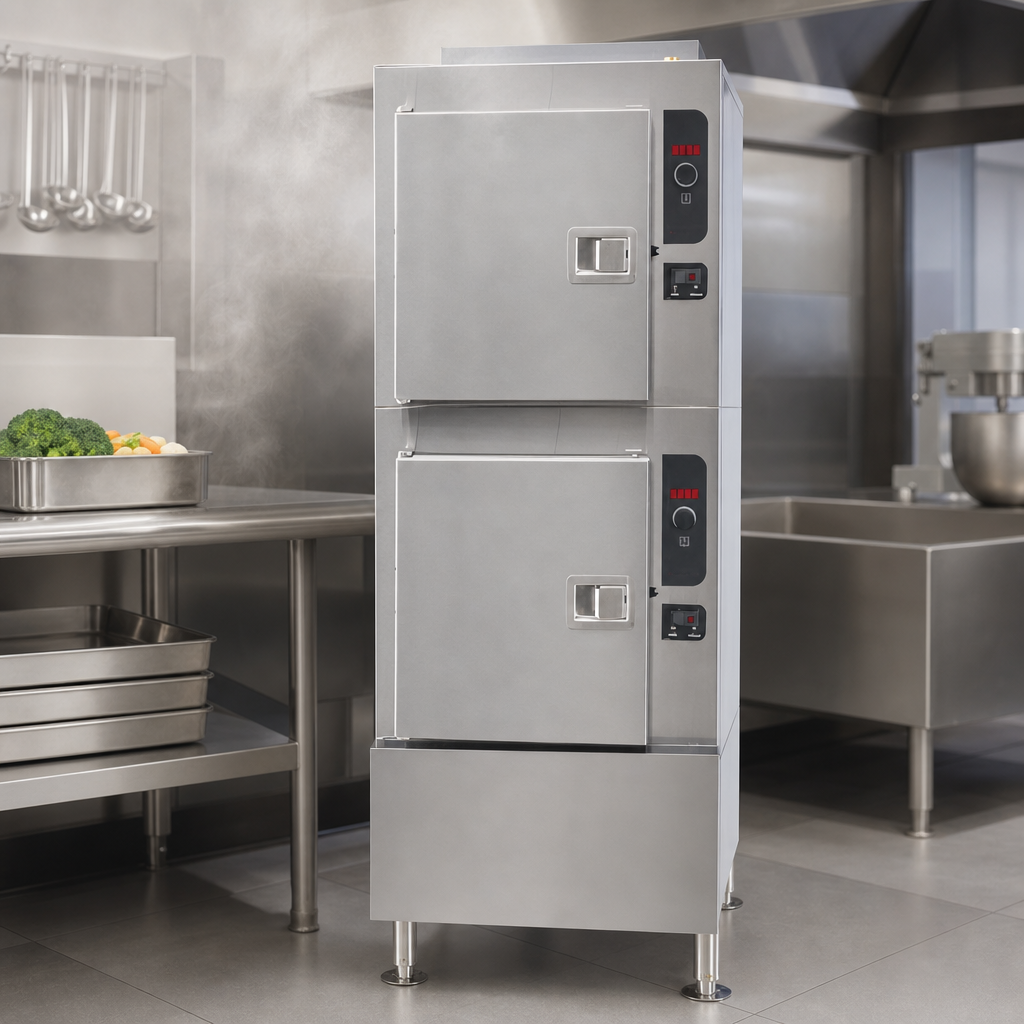

Steam type Pressureless convection, individual atmospheric generators
Gas input 144,000 BTU/hr total (72,000 BTU per generator)
Gas connection ¾ in. NPT, 4.5–14.0 "W.C. natural gas (11–14 "W.C. propane option)
Electrical 120 V / 1-phase / 60 Hz, 150 W (blowers & controls) – hard-wire, non-GFCI
Water connection ½ in. IPS (treated or potable), 35–60 psi
Drain connection ½ in. IPS, do not locate drain beneath the unit
Overall dimensions* ≈ 22 in. W × 30.3 in. D × 65.4 in. H (with 6 in. legs)
Construction Type 430 stainless-steel exterior & cooking compartments
Door swing / controls Left-hand hinged door, controls on right
Standard warranty 1 year parts & labor + 4-year prorated generator parts

*Refer to the official Cleveland Range cut sheet for detailed clearances and utility rough-ins.

Installation & water quality notes
  • Unit must be installed under a ventilation hood with adequate make-up air.
  • Recommended water quality: 50–250 ppm TDS, 7.0–8.5 pH, < 50 ppm chlorides.
  • Regular descaling is required; Dissolve® Descale Solution (#106174) sold separately.
Important: Connecting the steamer to a GFCI outlet or using untreated hard water may void the manufacturer’s warranty. Always follow local codes and the Cleveland installation manual.

Features & Specs

Manufacturer

Cleveland Range

Brand_name

Gemini

Height

65.5in

Width

24.0in

Depth

33.0in

Shipping Weight

565.0lbs

Type

2 steam generators

Pan Capacity per Compartment

(5) 12"x20"x2-1/2" deep

Interior Finish

stainless steel

Width (side - side)

24"

Specifications

Steamcraft® Gemini™ 10 Convection Steamer, pressureless, gas, 2 compartments with individual generators, (5) 12 x 20 x 2-1/2 pans/compartment capacity, SureCook controls, easyTimer 90-minute timer with dial and LED digital readout in minutes and seconds, includes SureCook load compensating thermostat, manual cooking mode and descale indicator, left-hand hinged door, controls on right, 1 standard treated & tap water connection, stainless steel construction, 6" adjustable legs with flanged feet, 144,000 BTU total
