Description

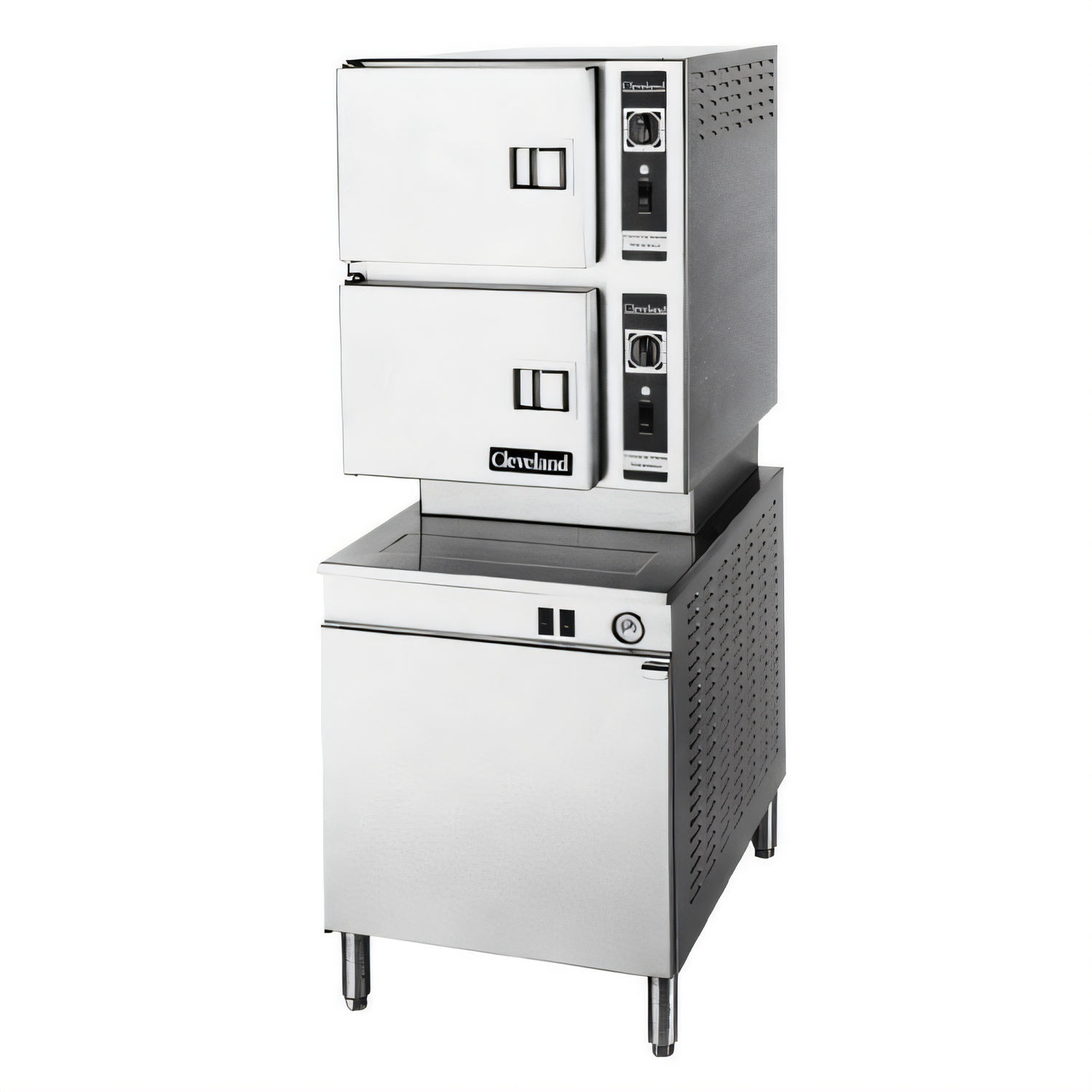

Cleveland Classic Convection™ 24" Electric Pressureless Convection Steamer
Two-Compartment | Model 24-CEM Series (24, 36 or 48 kW)Harness the power of Cleveland’s exclusive convection jet system in a compact 24" cabinet. The Classic Convection™ pressureless steamer cooks with fast, even, fan-free steam, lets you open the door mid-cycle, and automatically handles water and boiler management—keeping production high and labor low in any high-volume kitchen.
Performance & Convenience
- High-velocity convection jets circulate dry, even steam without a fan.

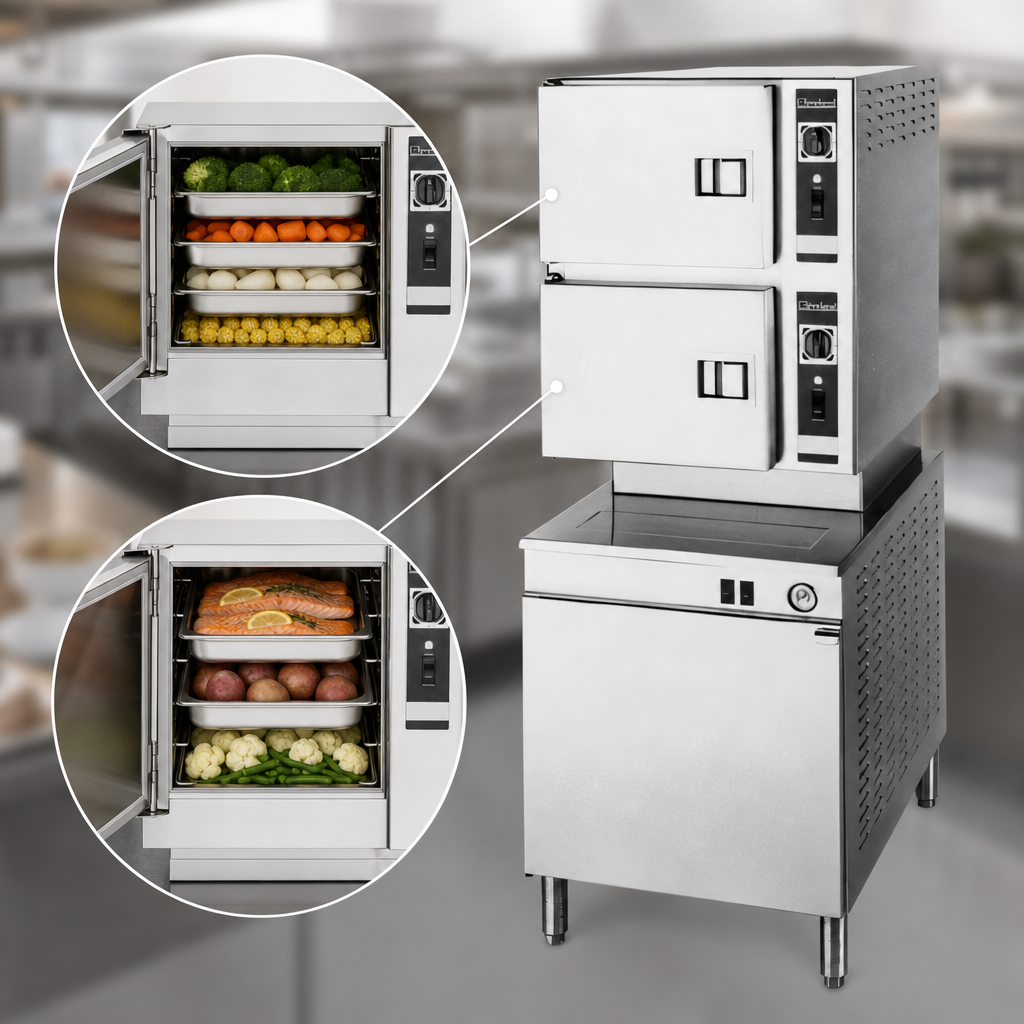

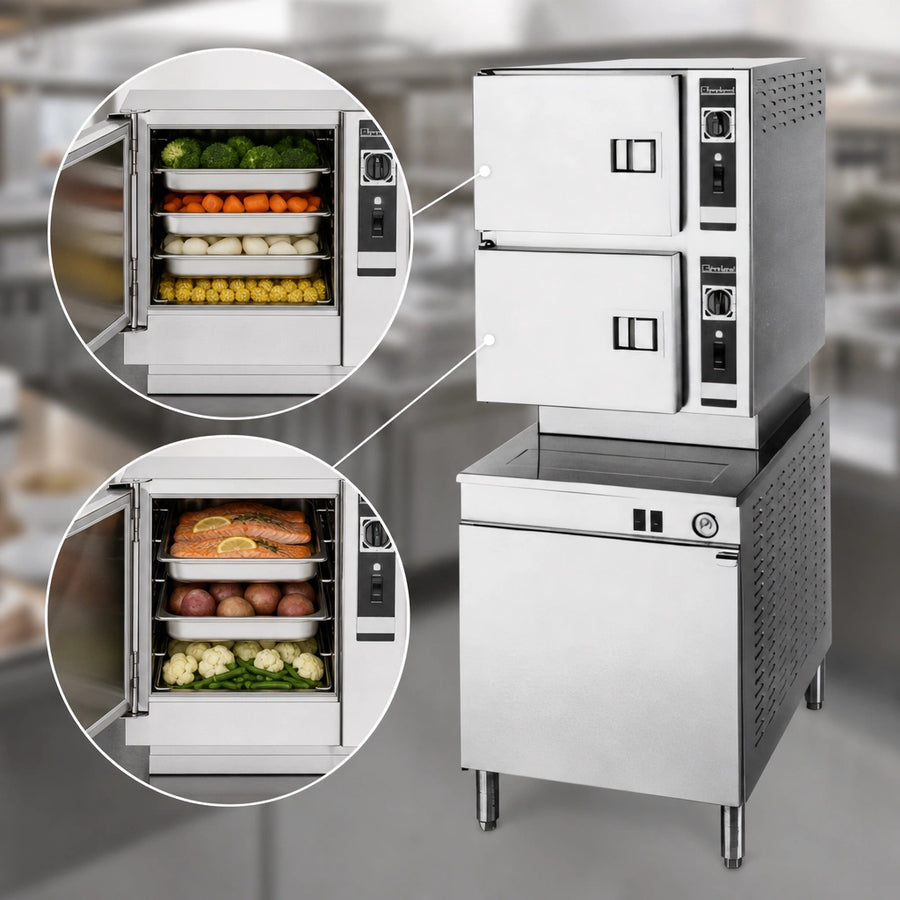

- Two independent cavities, each holding three 12" × 20" × 2½" hotel pans (6 pans total).

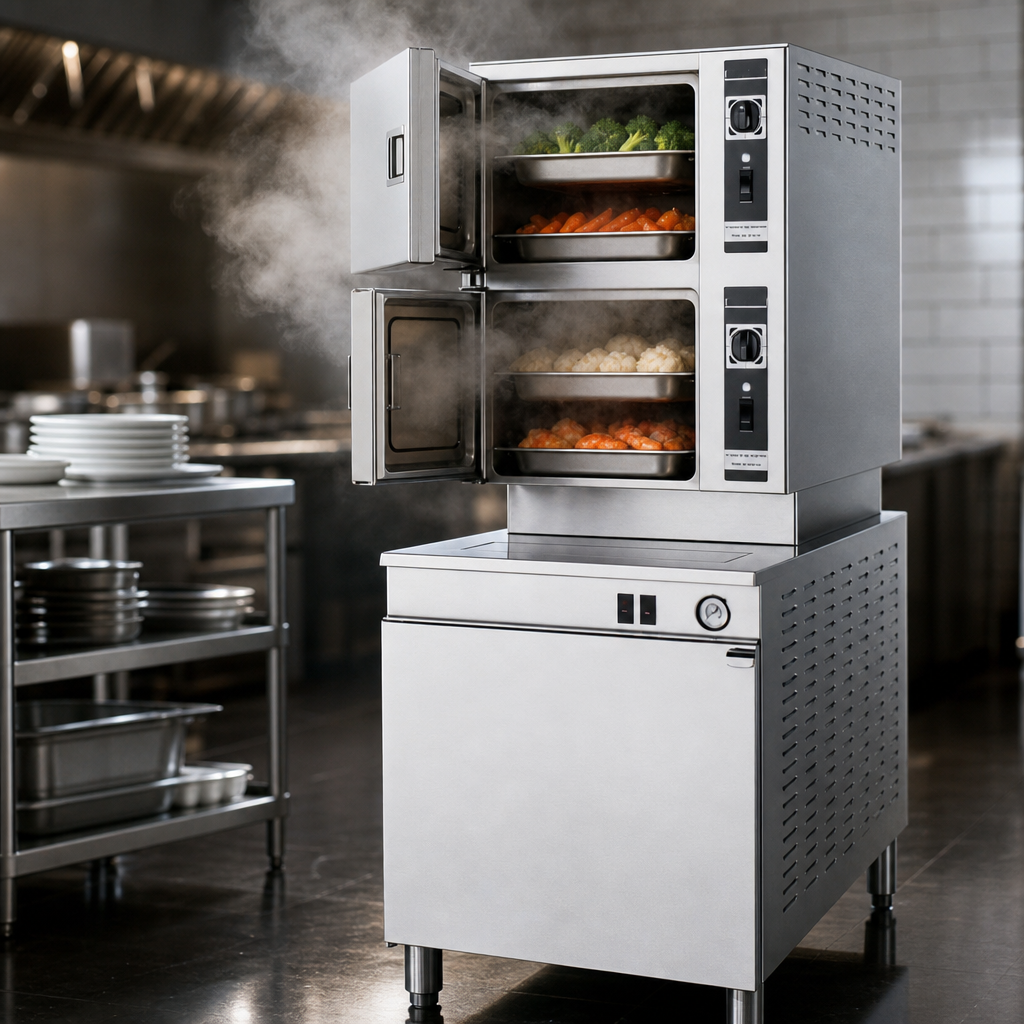

- Pressureless design allows doors to be opened while cooking continues.
- 60-minute mechanical timer plus manual bypass switch for continuous steaming.
- Instant-Steam Standby keeps the boiler at temperature for immediate cook starts.
- Automatic water fill at start-up and automatic boiler drain with water-jet rinse at shut-down.
- “Cool-to-the-touch” left-hand doors with slam-latch and reversible gaskets.
- Cold-water condenser for each compartment minimizes steam release.
- All controls grouped on the right side for easy operator access.
Built for the Long Haul
- 14-gauge, 304 stainless-steel cooking chambers with coved corners for quick wipe-downs.
- Stainless-steel exterior and FSS stainless-steel base frame resist corrosion.
- Fully insulated cavities maximize thermal efficiency.
- Redundant safety system: primary & secondary low-water cut-offs, high-limit pressure switch and 15 psi relief valve.
- NSF-certified 6" adjustable stainless legs with flanged feet.
- Front-serviceable components reduce downtime and maintenance cost.
Capacities at a Glance
| Compartments | 2 pressureless cavities |
|---|---|
| Pan Capacity | 3 × 12" × 20" × 2 ½" pans per compartment (6 total) |
| Cabinet Width | 24" (610 mm) |
| Shipping Dimensions | 30" W × 43" D × 68" H |
| Shipping Weight | Approx. 541 lb (245 kg) |
Electrical Options
| kW Rating | 208 V / 3Φ | 240 V / 3Φ | 480 V / 3Φ |
|---|---|---|---|
| 24 kW | 59.7 A | 57.8 A | 28.9 A |
| 36 kW | 89.5 A | 86.7 A | 43.4 A |
| 48 kW | 119.2 A | 115.6 A | 57.8 A |
Other voltages available on request.
Utility Connections
| Cold-Water Inlet | ¼" NPT, 35–60 psi |
|---|---|
| Common Drain | 1½" IPS (floor drain must be outside equipment base; do not use PVC) |
| Minimum Clearances | 3" sides & rear (12" on control side if adjacent equipment exceeds 30") |
Warranty & Start-Up Support
- 1-year limited parts & labor warranty (18 months from shipment, whichever comes first).
- Additional 4-year pro-rated parts coverage on the pressure boiler.
- Complimentary factory-authorized performance start-up & water-quality check.
Upgrade your cookline with the Cleveland Classic Convection™ steamer and enjoy high-volume, worry-free, energy-efficient steaming—shift after shift.
