Cleveland Range

Cleveland Range SteamCraft Gemini 10 Two-Compartment Floor Model Electric Pressureless Convection Steamer

SKU: 24CEA10.22083EZTQS
$28,392.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleveland Range Commercial Steamer Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor)

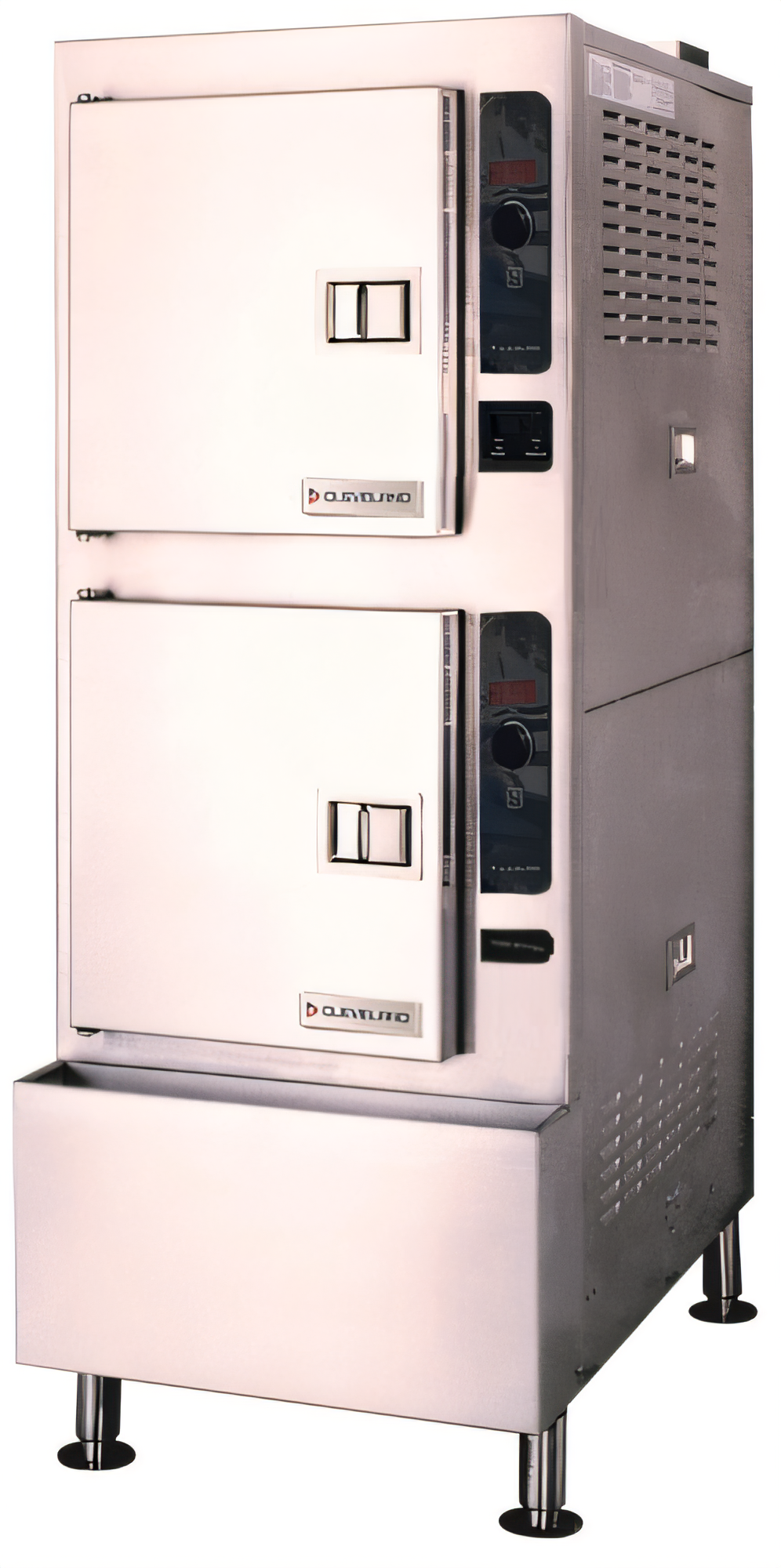

Cleveland Range SteamCraft Gemini 10 Two-Compartment Floor Model Electric Pressureless Convection Steamer

480V, 3-Phase, Easytimer Controls, 5-Pan Capacity Per Compartment

Built for fast, consistent batch cooking, this two-compartment electric steamer delivers independent steam generation and easy digital control for high-volume kitchen production.

  • Two-compartment floor model with independent electric steam generators for each compartment.
  • Holds up to 10 full-size cafeteria pans total, with five 12" x 20" x 2-1/2" pans per compartment.
  • Easytimer digital control includes a SureCook load-compensating timer, manual steam mode, and descale indicator.
  • Stainless steel construction with insulated compartments, cold water condensers, and removable slide racks.
  • Ships with left-hand hinged doors, controls on the right, and 6" stainless steel legs with adjustable feet.

Overall Dimensions:

24.0"W x 33.0"D x 65.5"H

Product Weight:

528.0 lb

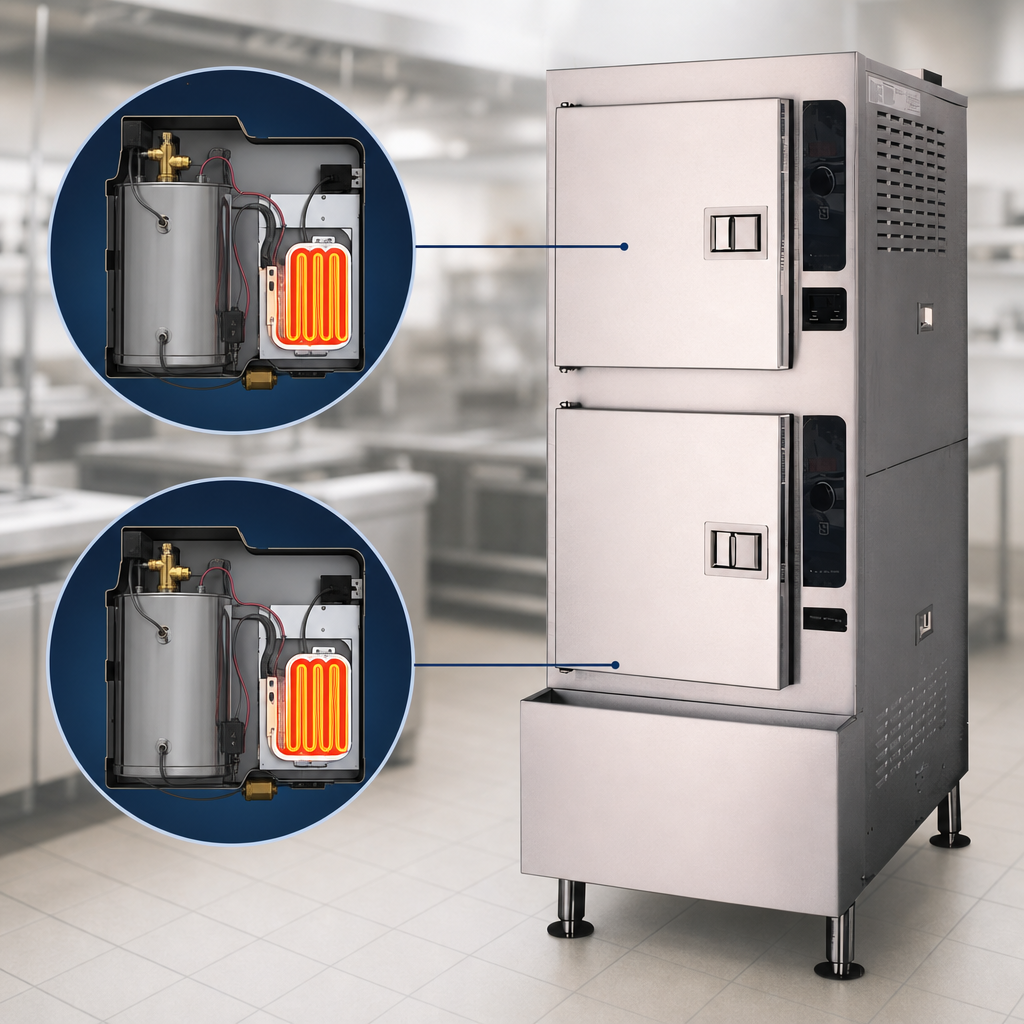

Independent Steam Generators

Each compartment has its own electric steam generator, allowing independent operation and control.

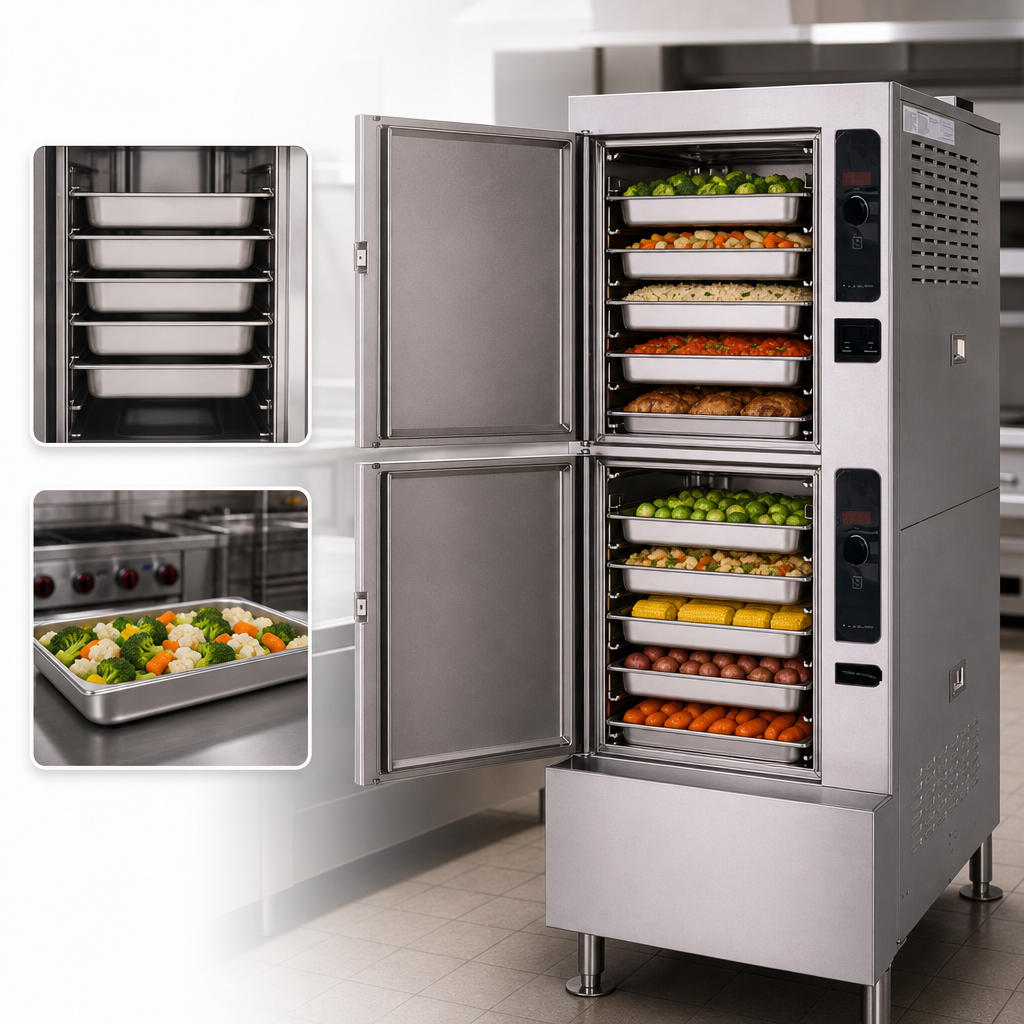

High-Capacity Batch Cooking

Designed to cook up to 10 cafeteria pans total, with five 12" x 20" x 2-1/2" pans per compartment.

Easytimer Digital Controls

Includes a 99-minute digital timer, SureCook load-compensating timer, manual constant steam mode, and LED descale indicator.

Steam Shut-Off Switch

Compartment door steam shut-off switch helps control steam release during operation.

Stainless Steel Construction

Durable stainless steel exterior and cooking compartments are built for commercial use and easy cleaning.

Cold Water Condenser

An individual cold water condenser for each compartment helps maintain dry steam and improve cooking performance.

Easy Maintenance Design

Top-mounted generator cleaning ports, automatic generator drainage, and a water level probe rinse cycle help simplify service.

Flexible Door Layout

Ships with left-hand hinged doors and controls on the right; door hinging is field reversible.

6-Inch Stainless Steel Legs

Includes stainless steel legs with adjustable flanged feet for stable floor installation and leveling.

Type Pressureless Convection Steamer
Style Generator Style
Installation Type Floor Model
Compartments 2
Pan Capacity 5 Full-Size Pans Per Compartment
Pan Size 12 x 20 x 2-1/2 Inches
Capacity 10 Full-Size Pans Total
Controls Digital Timer
Material Stainless Steel
Interior Finish Stainless Steel
Reservoir Capacity 5 Gallons Per Compartment
Water Connection Required
Water Inlet Size 3/8 Inch NPT
Drain Connection Required
Drain Connection Size 1-1/2 Inch IPS-M
Voltage 480 Volts
Amps 39.8 Amps
Watts 32.6 kW
Hertz 60 Hz
Phase 3-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 33 Inches
Shipping Height 66 Inches
Shipping Weight 528 lb.

Documents

PDF Cutsheet PDF Download PDF Manual PDF Download PDF Cookbook PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds up to 10 cafeteria pans total, with five 12" x 20" x 2-1/2" pans per compartment.
The unit is configured for 480 Volts, 60 Hz, 3-phase power and is rated at 32.6 kW and 39.8 Amps.
The steamer requires cold water connections for the condenser and generator/water injection, both 3/8" NPT, plus a 1-1/2" IPS-M drain.
Yes. The unit ships with left-hand hinged doors and field reversible door hinging.
It includes Easytimer digital controls with a 99-minute readout, SureCook load compensation, manual constant steam mode, and a descale indicator.
The documentation recommends TDS of 50-250 ppm, hardness of 50-200 mm (3-12 gpg), pH of 7.0-8.5, chloride up to 50 ppm, free chlorine up to 0.1 ppm, silica up to 13 ppm, monochloramine up to 0.1 ppm, and total alkalinity of 50-100 ppm.
