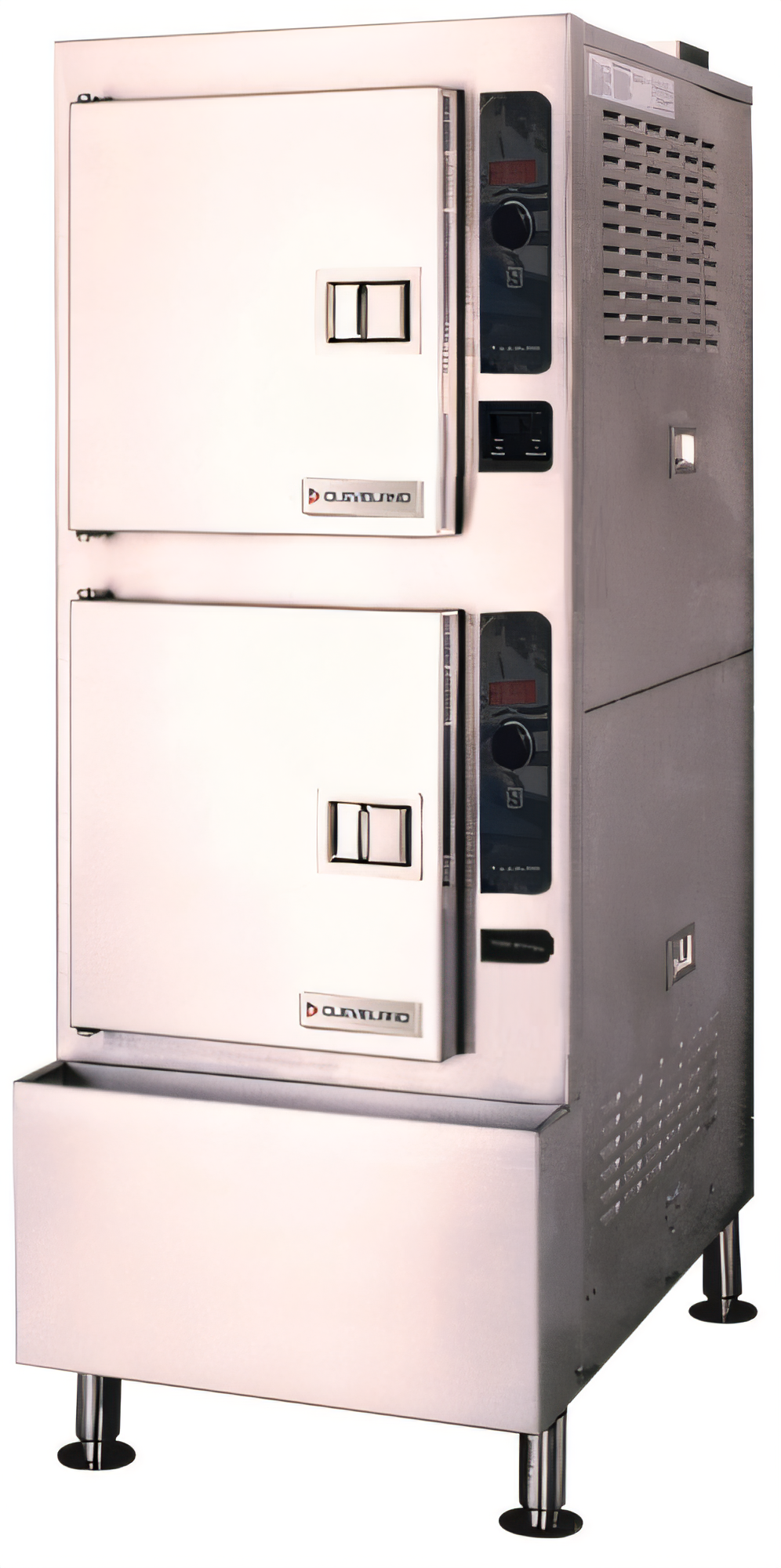

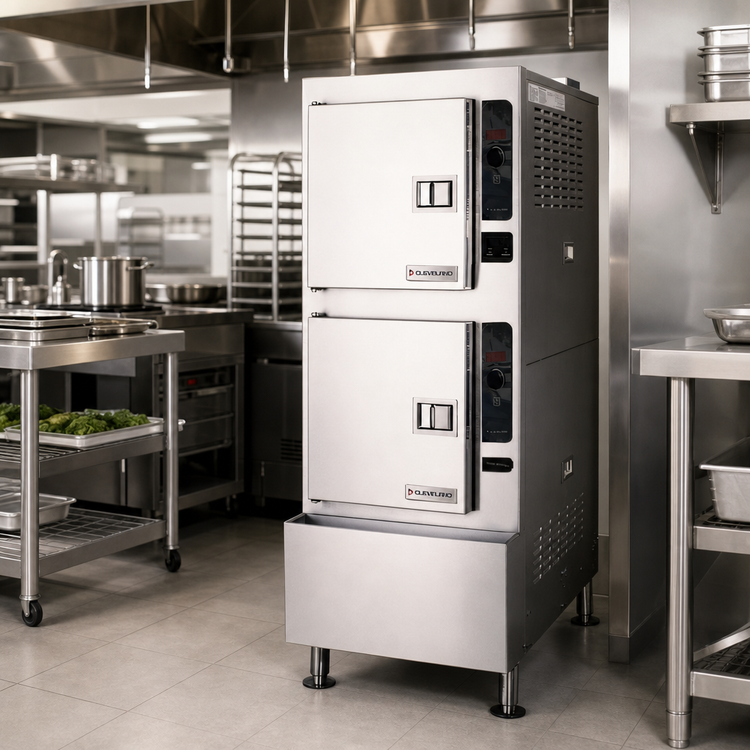

Cleveland Range 24CEA10.2 Gemini Steamers (Countertop & Floor)
Description
SteamCraft® Gemini™ 10 Pressureless Convection Steamer
Model 24-CEA-10 | Twin 16 kW Electric Generators | 10-Pan Floor ModelBuilt for the pace of a high-volume kitchen, the Cleveland SteamCraft Gemini 10 delivers rapid, even convection steam in two completely independent compartments. From vegetables and seafood to delicate custards, every load comes out perfectly thanks to Cleveland’s easyTimer™ and SureCook™ technologies.
Key performance features

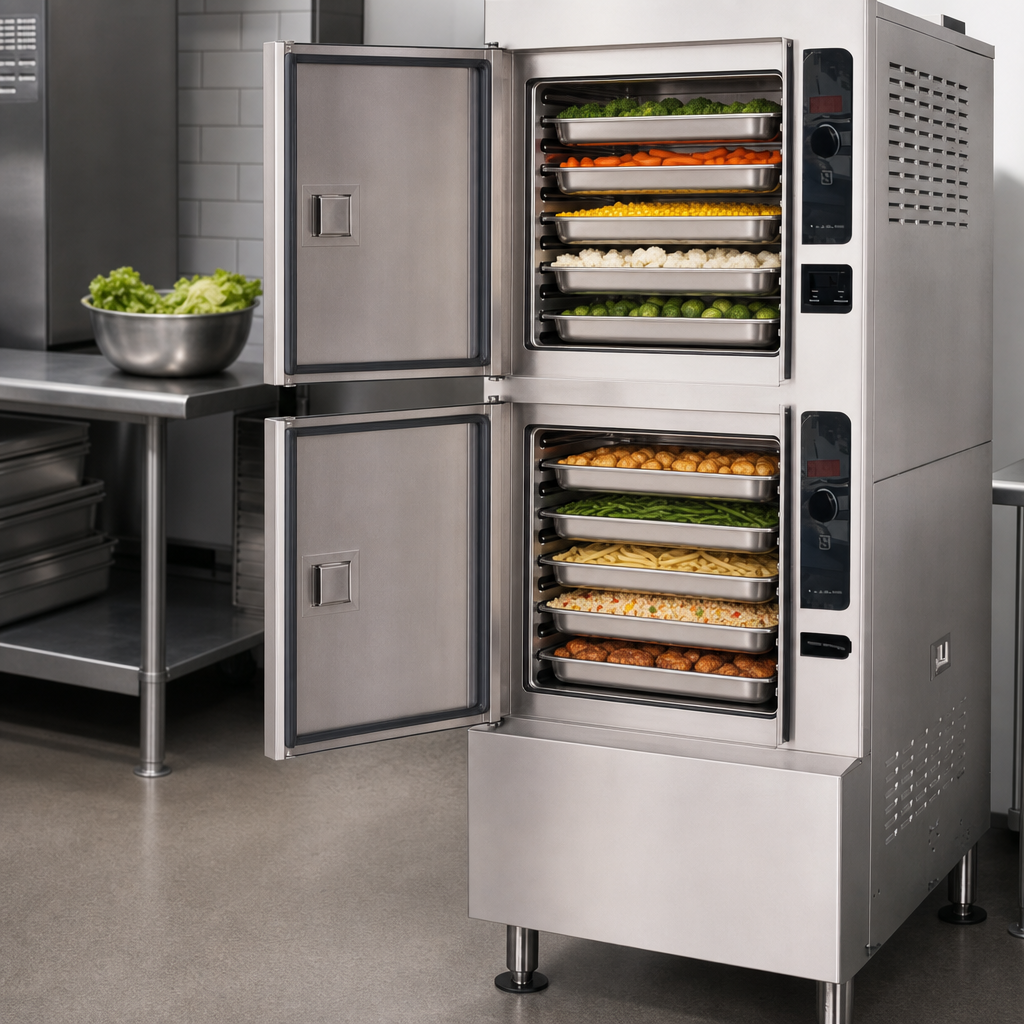

- Capacity for ten 12 × 20 × 2½ in pans—five in each compartment.

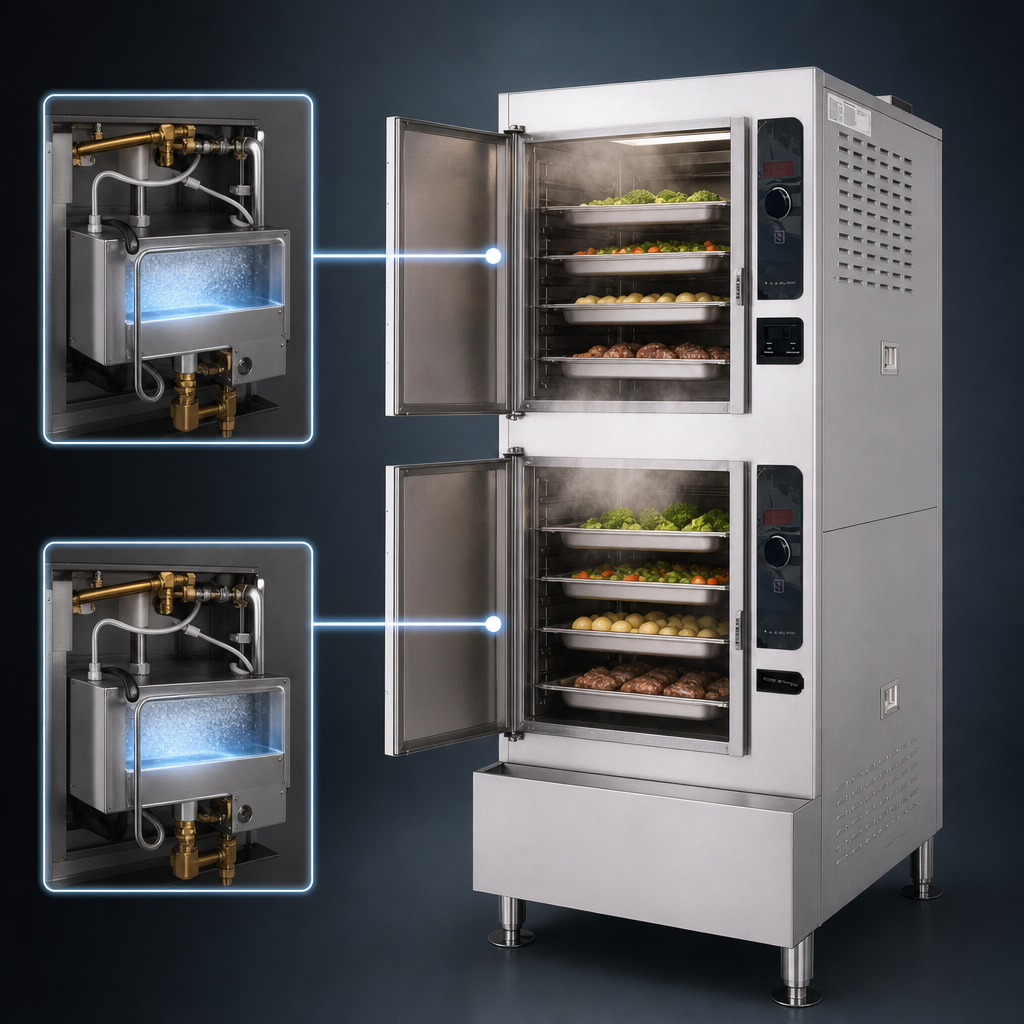

- Twin vertical 16 kW PowerPak™ atmospheric steam generators (32 kW total) operate independently for true menu flexibility.
- easyTimer™ 0–90 min dial with bright LED minutes/seconds readout and SureCook™ load-compensating thermostat.
- Instant-steam standby mode: keep generators hot so you can load and cook immediately during rush periods.
- Exclusive brass steam jets create high-velocity convection steam—no fans to service or replace.
- Automatic water fill, level control, blow-down and spray-rinse drain cycle minimize daily maintenance.
- “Cool-to-the-Touch” two-piece doors with reversible gasket and slam-latch closure for a tight seal every time.
- Left-hand hinged doors, right-side control panel; field-reversible if your kitchen layout changes.
- All-stainless exterior & interior on sturdy NSF-certified 6 in adjustable flanged legs.
At-a-glance specifications
| Cooking compartments | 2 independent, pressureless |
|---|---|
| Pan capacity | 10 pans total – (5) 12 × 20 × 2½ in per compartment (accepts 4 in deep pans) |
| Steam generators | (2) 16 kW vertical atmospheric, 5 gal reservoir each |
| Total connected load | 32 kW (standard) | 16 kW total with low-wattage option |
| Controls | easyTimer 0–90 min, LED readout, SureCook thermostat, manual steam mode, descale indicator, steam shut-off switch |
| Doors | Left-hand hinged, right-side controls, double-wall “cool” construction |
| Exterior finish | 430 stainless steel cabinet and cooking compartments |
| Overall dimensions (W × D × H) | 35.14 × 33.13 × 65.64 in (893 × 842 × 1668 mm) |
| Water connection | (2) ⅜ in NPT cold water (generator & condenser) at 35–60 psi |
| Drain | 1½ in IPS; do not use PVC |
Utility requirements
- Voltage options: 208, 220, 240 or 480 V, 3-phase (see spec sheet for amperage).
- Cold water: 35–60 psi (max 104 °F / 40 °C).
- Drain line must have 3 in clearance; do not manifold with other equipment.
Recommended water quality
| Total dissolved solids | 50–250 ppm |
|---|---|
| Hardness | 50–200 ppm (3–12 gpg) |
| pH value | 7.0–8.5 |
| Chloride (Cl-) | ≤ 50 ppm |
| Free chlorine (Cl₂) | ≤ 0.1 ppm |
| Silica (SiO₂) | ≤ 13 ppm |
| Monochloramine (NH₂Cl) | ≤ 0.1 ppm |
| Total alkalinity | 50–100 ppm |
Operating outside these limits can reduce performance and may void the manufacturer’s warranty. Cleveland strongly recommends a water treatment system and regular descaling.
Options & accessories
- 10 in stainless steel legs (LF10)
- Dissolve® descaling solution – case of six 1 gal containers
- 12 × 20 in cafeteria pans (1, 2½ and 4 in depths)
- Low-wattage 8 kW generators (16 kW total)
- Factory-approved water filtration packages
Warranty coverage
• 1-year parts & labor warranty with factory-authorized start-up included.
• Additional 4-year prorated parts warranty on both steam generators.
