Cleveland Range 21CGA5 Steamcraft Steamers (Countertop & Floor)
Cleveland Range 21CGA5 Steamcraft Steamers (Countertop & Floor) is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

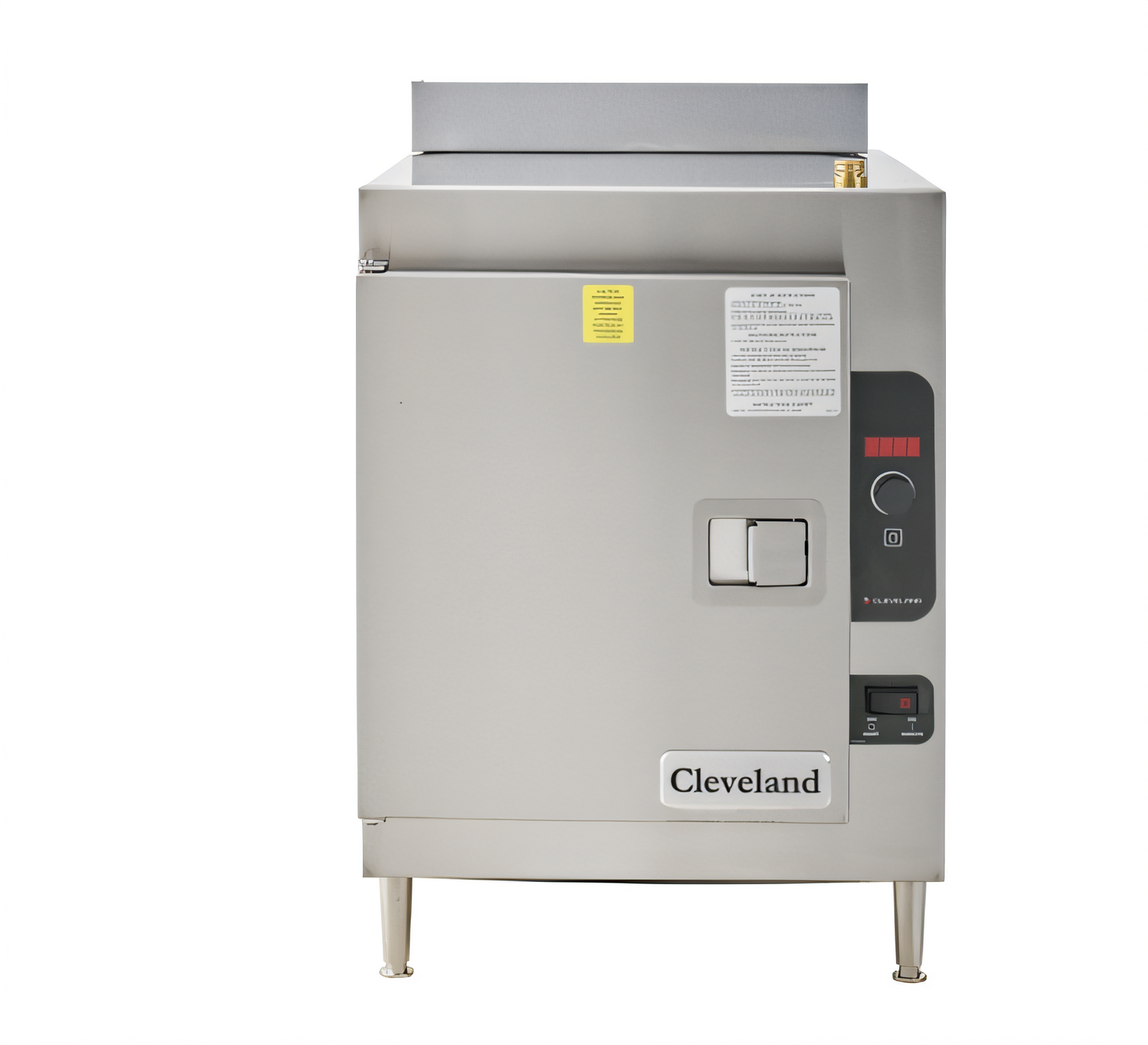

Cleveland SteamCraft® Ultra 5 Countertop Gas Convection Steamer
Model 21-CGA-5 • 70,000 BTU • (5) 12" × 20" × 2½" Pan CapacityTurn out perfectly steamed vegetables, seafood, meats, and more in minutes with the SteamCraft® Ultra 5. Its high-efficiency 70 MBTU PowerPak™ steam generator delivers true convection steam without fans, while intuitive controls and automatic maintenance features keep your kitchen running at peak productivity.
Why You’ll Love It

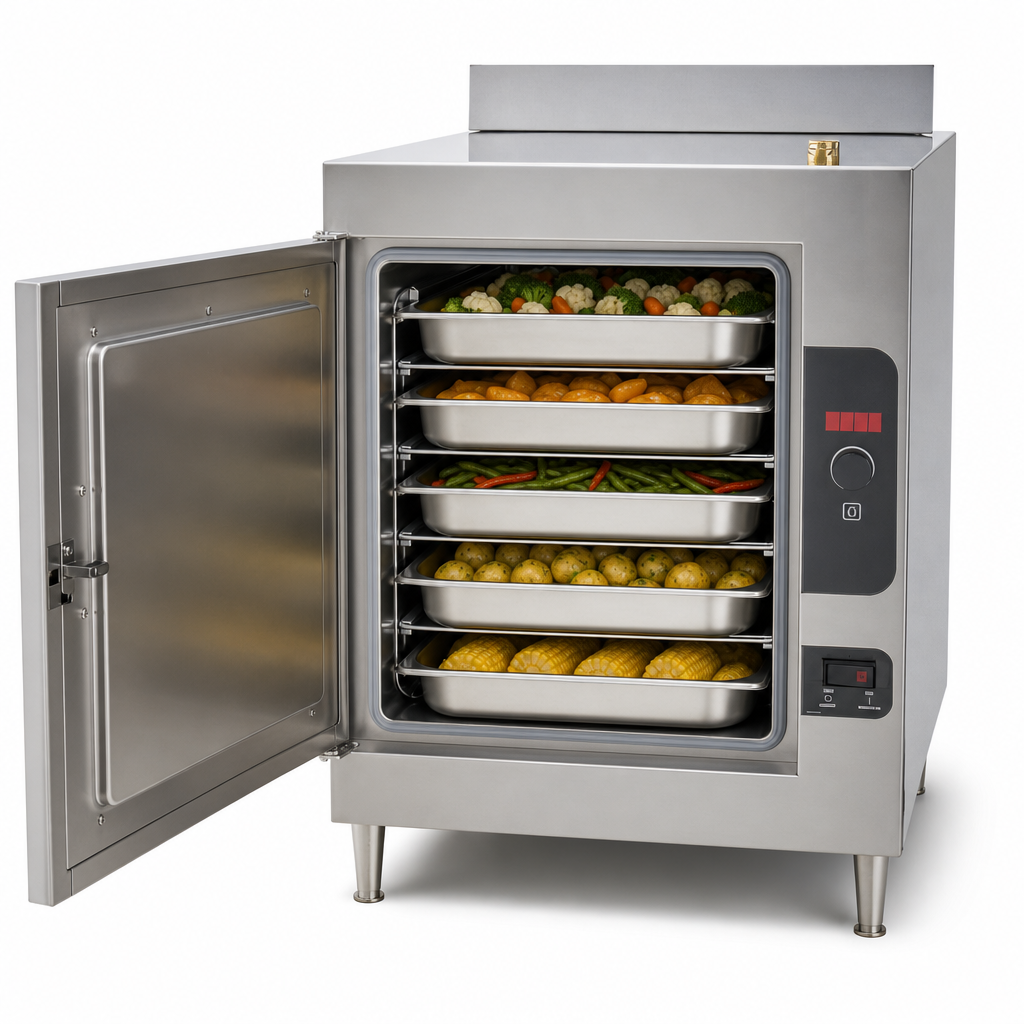

- Five-pan productivity – single compartment holds up to five 1/1 GN (12" × 20" × 2½") pans.

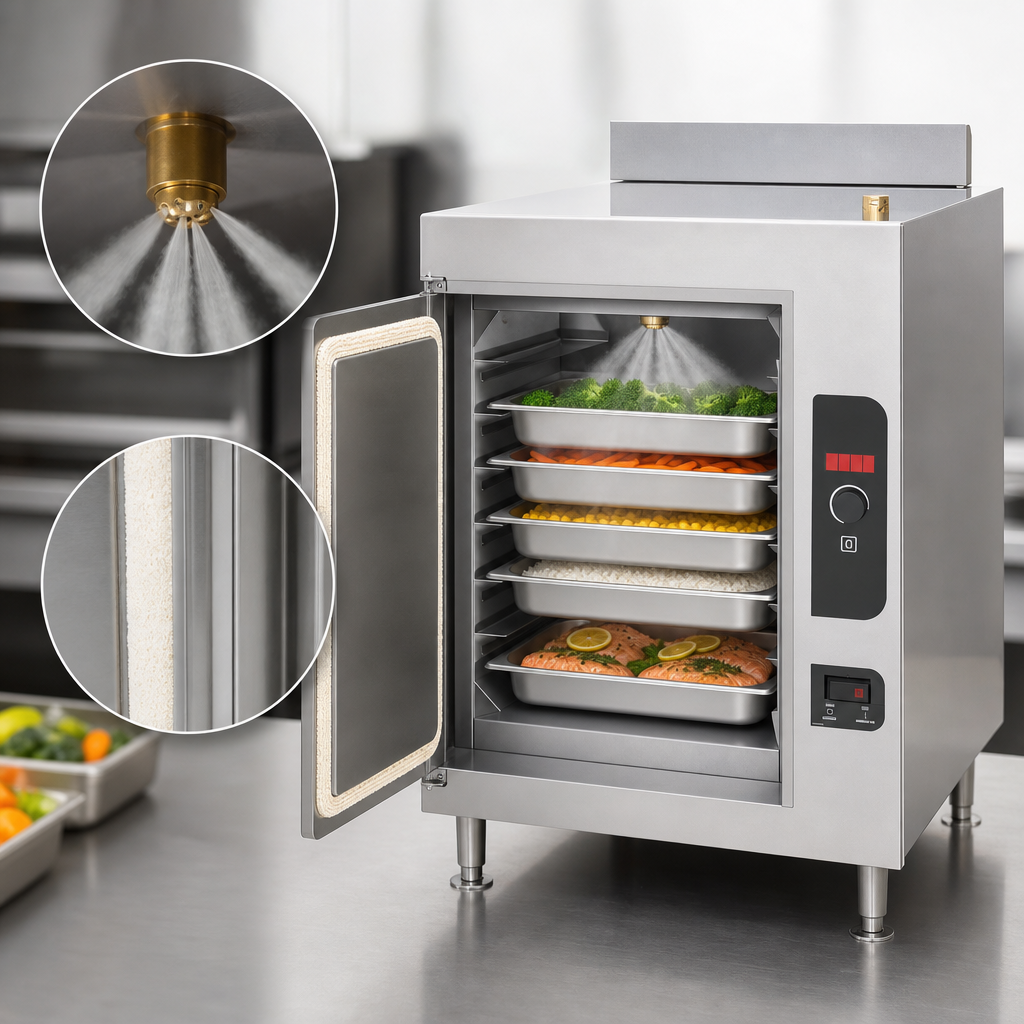

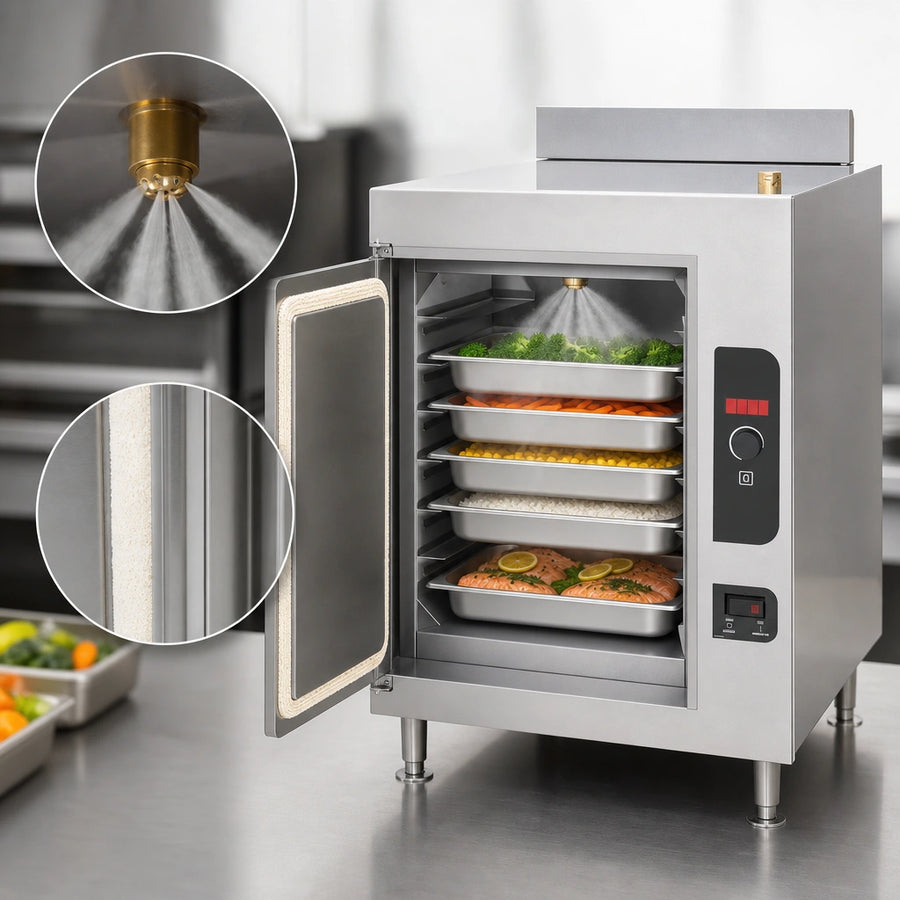

- Pressureless, high-speed convection – exclusive brass steam jets create even circulation for consistent results.
- 70,000 BTU PowerPak™ generator – 72 % efficient, pilot-less electronic ignition and “Stand-By” mode for instant steam on demand.
- easyTimer™ – 90-minute selector dial with LED digital countdown (minutes & seconds), SureCook™ load-compensating thermostat and manual constant-steam mode.
- Hands-off maintenance – automatic boiler blow-down, remote float water-level control, Water Jet drain-cleaning and descale indicator.
- Cool-to-touch two-piece door – left-hand hinged with reversible gasket and slam-latch for an airtight seal; controls stay conveniently on the right.
- Built for the long haul – 14-gauge all-stainless cabinet, fully insulated compartment, removable slide racks and 4" adjustable stainless legs.
Operator-Focused Controls
- Simple ON/OFF switch simultaneously fills the generator and lights the burners.
- Steam shut-off safety switch for quick compartment venting between loads.
- Bright “DESCALING REQUIRED” LED takes the guesswork out of maintenance.
- Stand-By temperature hold eliminates lengthy morning heat-up times.
PowerPak™ Generator Advantage
- External cleaning port—no hot panels to remove.
- Pilot-less electronic spark ignition reduces gas consumption and service calls.
- Automatic remote float water-level control for reliable steaming at any load size.
Specifications
Capacity | (5) 12" × 20" × 2½" pans | (1) compartment |
---|---|
Generator Output | 70,000 BTU/hr (natural gas) Propane kit available |
Gas Connection | ½" IPS, Natural 4.0" W.C. / Propane 10.2" W.C. |
Electrical | 115 V, 1-phase, 4 A (35 W) – cord & plug included |
Water Connections | (2) ¾" NH cold-water (35–60 psi) – condenser & generator |
Drain | 1¼" IPS, vented |
Exterior Dimensions* | Approx. 21" W × 30" D × 30" H |
Shipping Dimensions / Weight | 31" W × 41" D × 37" H | 260 lb |
Approvals | UL Gas, UL Sanitation (NSF 4), CSA |
*Add 3" service clearance on left, right and rear (12" on control side if adjacent equipment exceeds 30" H).
Perfect For
- K-12 and higher-education cafeterias
- Healthcare & long-term care finishing kitchens
- Quick-service & full-service restaurants
- C-stores and ghost kitchens needing compact, high-volume steam power
Warranty & Service
- 1-year parts & labor (18 months from ship date, whichever occurs first)
- Additional 4-year prorated parts coverage on the steam generator
- Performance start-up & water-quality check by a Factory Authorized Servicer included (U.S. & Hawaii)
Use cold water that meets Cleveland Range guidelines (50–250 ppm TDS, 50–200 ppm hardness, pH 7.0–8.5, ≤0.1 ppm free chlorine). Failure to maintain proper water quality and regular descaling may void the warranty.
