Channel Manufacturing WS02 Refrigeration Accessories
Description

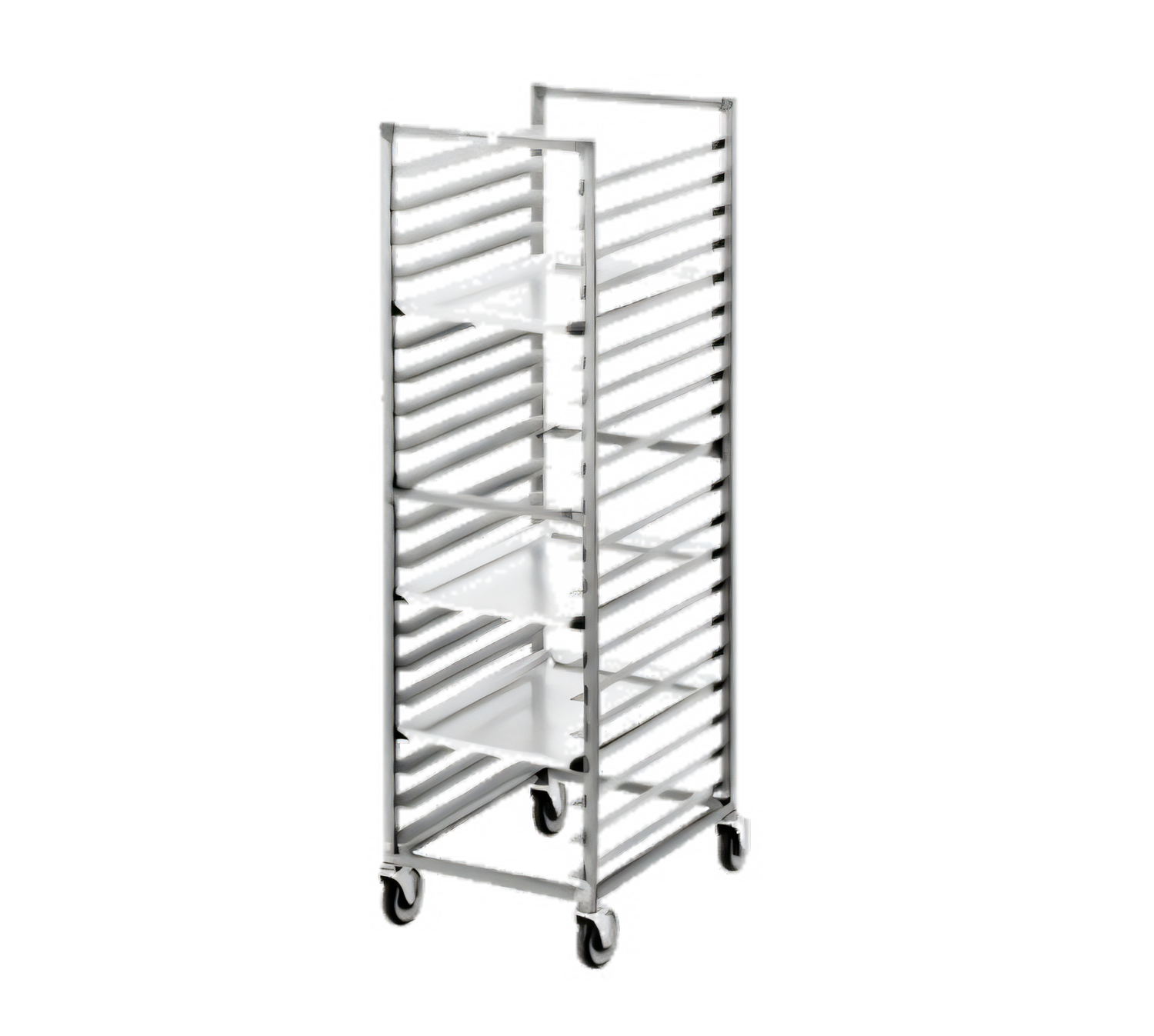

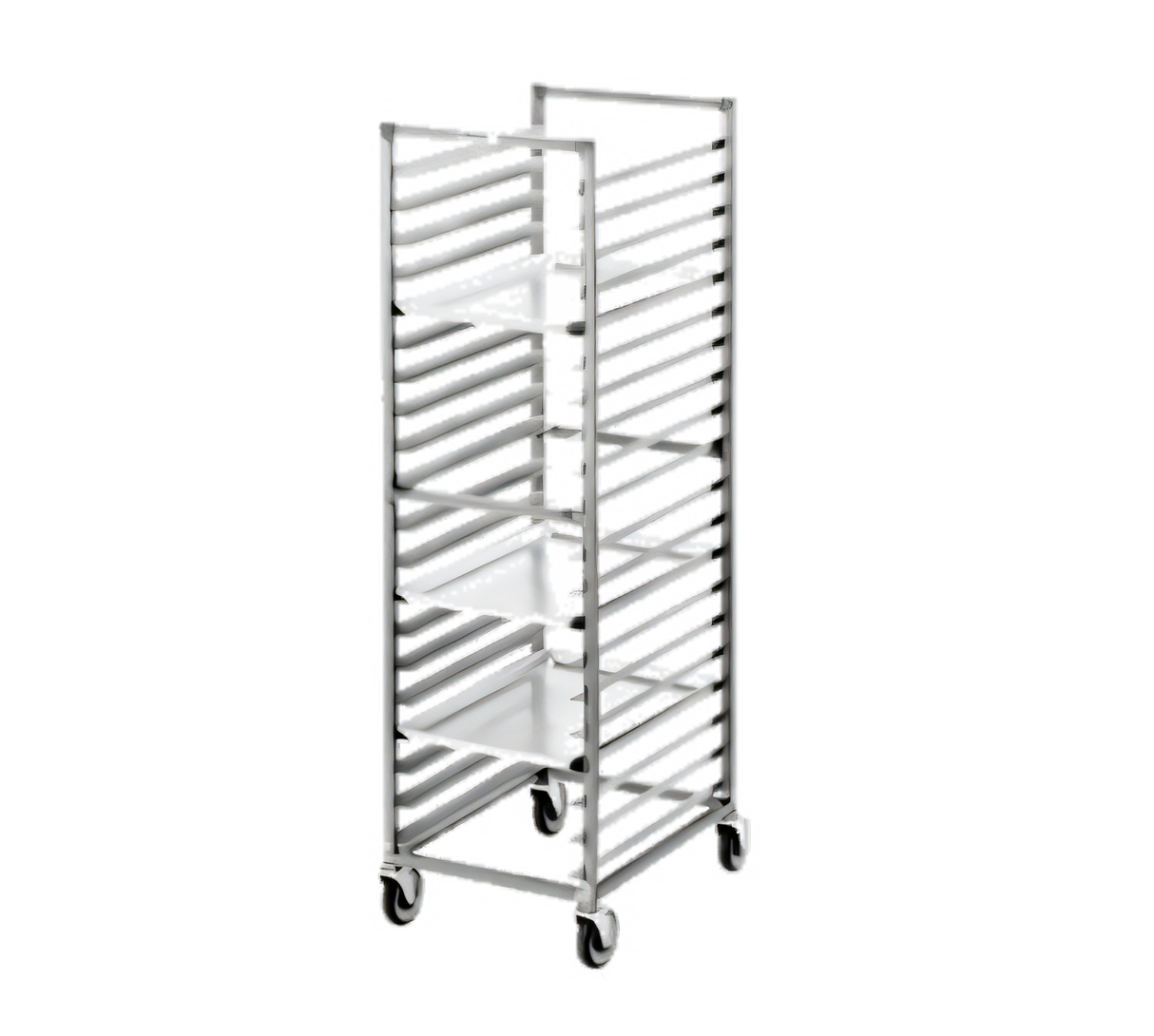

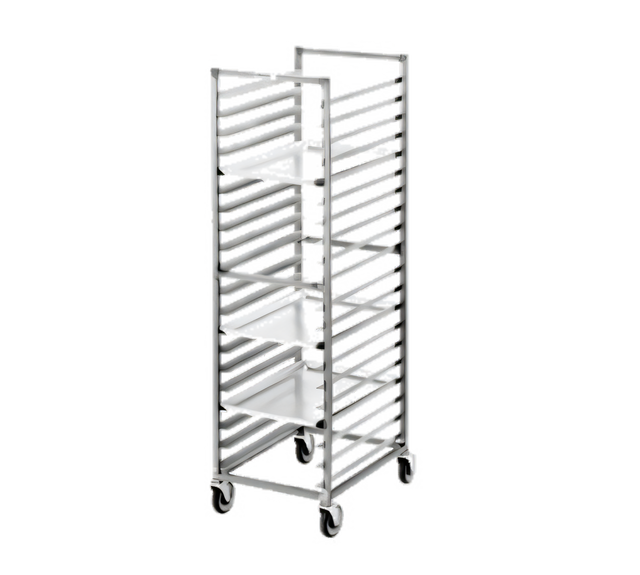

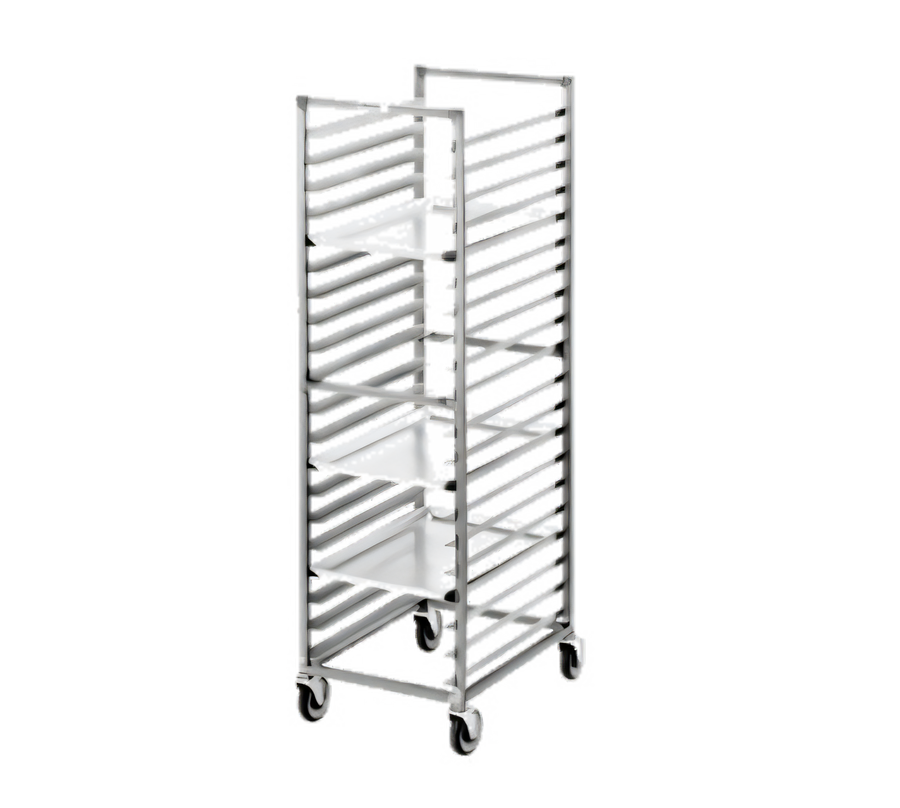

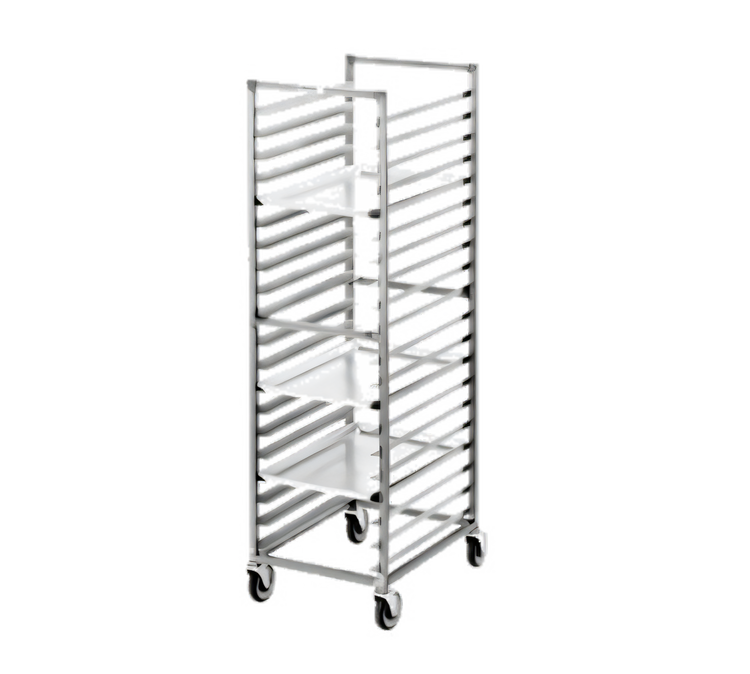

Channel CPS45U Stainless Steel Walk-In Bun Pan Rack

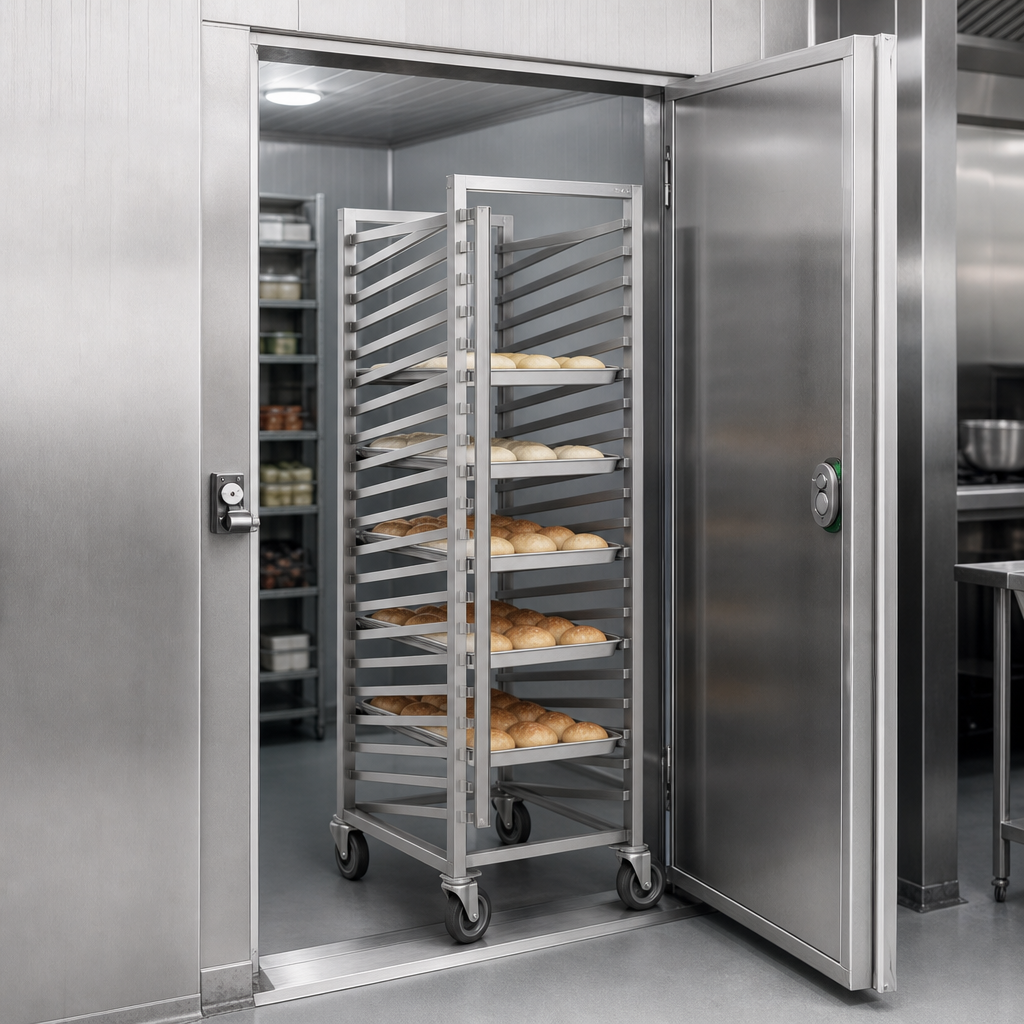

27-Pan • 2" Spacing • End Load • NSFBuilt to excel in walk-in coolers, freezers, and other demanding back-of-house environments, the Channel CPS45U keeps full-size and half-size sheet pans organized, protected, and effortlessly mobile. Heavy-duty 304 stainless steel and welded angle slides give this rack the strength you need, while 5" swivel plate casters make repositioning a breeze—even when fully loaded.
Key Features

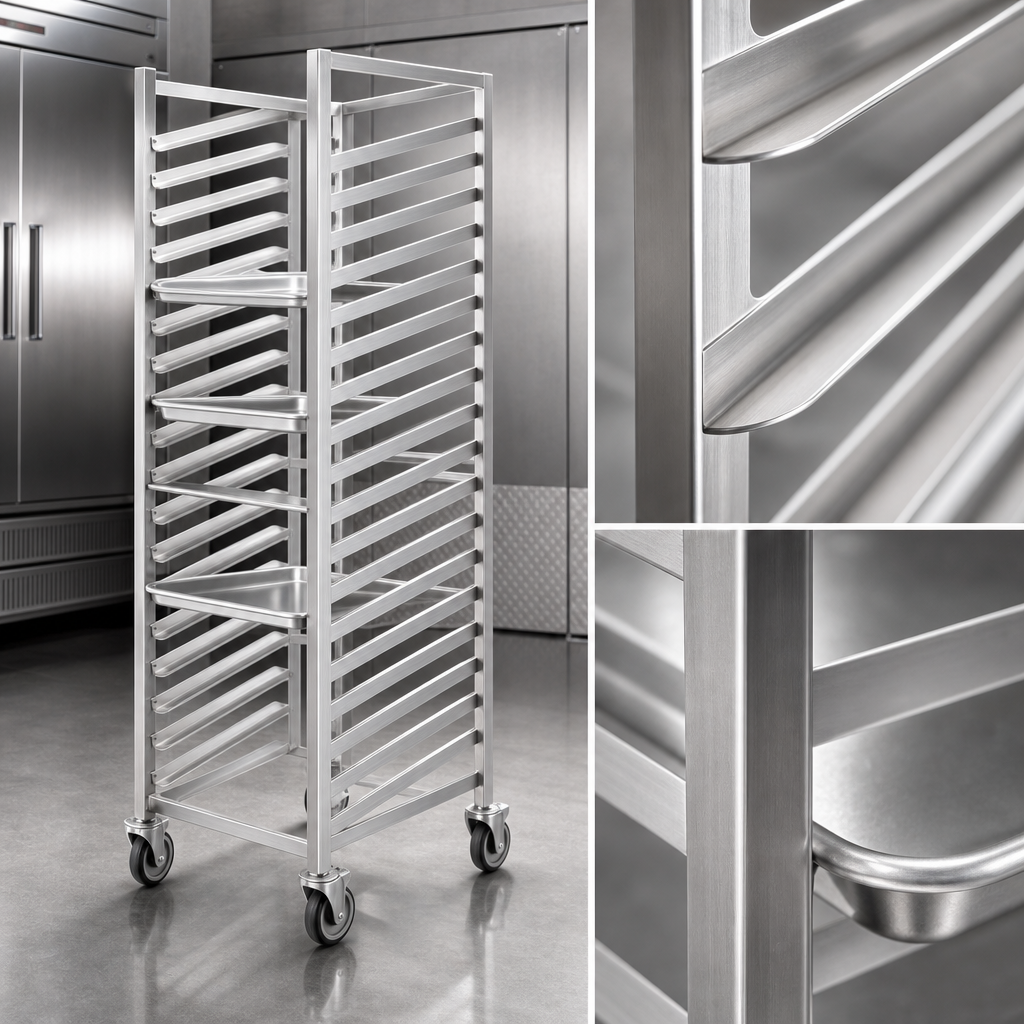

- 18-gauge, 304 series stainless steel construction for maximum corrosion resistance.
- End-load design accepts (27) 18" × 26" full-size sheet pans or (54) 13" × 18" half pans (two per ledge).
- 2" angle spacing keeps product low-profile yet high-capacity.
- Continuous heli-arc welded 1" × 1-1/2" tray slides—no rivets to loosen over time.
- (4) 5" full-swivel non-marking plate casters provide smooth, quiet mobility.
- Designed for both cooler and freezer applications.
- NSF listed and proudly Made in the USA.
Specifications
| Model | CPS45U |
|---|---|
| Overall Dimensions (W × D × H) | 20.5" × 26" × 64" |
| Slide Spacing | 2" center-to-center |
| Pan Capacity | 27 full-size (18" × 26") 54 half-size (13" × 18") |
| Load Orientation | End / Front Load |
| Caster Type | (4) 5" swivel plate, non-marking rubber |
| Construction | 18-gauge 304 stainless steel |
| Unit Weight | 70 lb (item weight only) |
| Approx. Shipping Weight | ≈120 lb (includes 50 lb pallet) |
| Certifications | NSF |
| Country of Origin | USA |
Popular Options (sold separately)
- Caster brakes (field-installed) – /011
- 5" × 2" heavy-duty casters – /052
- Corner, perimeter, or vertical bumpers – /022, /024, /PB, /VB
- Aluminum or stainless steel pan stops – /009, /010
- Card clips and ID tags – /CC
Ships fully assembled on a pallet. Lift-gate service recommended if a loading dock is unavailable.
