Channel Manufacturing  |  SKU: CTR15206  |  UPC: 835384012307

Channel Manufacturing CTR15206 Specialty Storage & Transport

$1,063.45
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Restaurant Racks Specialty Storage & Transport Storage & Shelving Storage & Transport

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

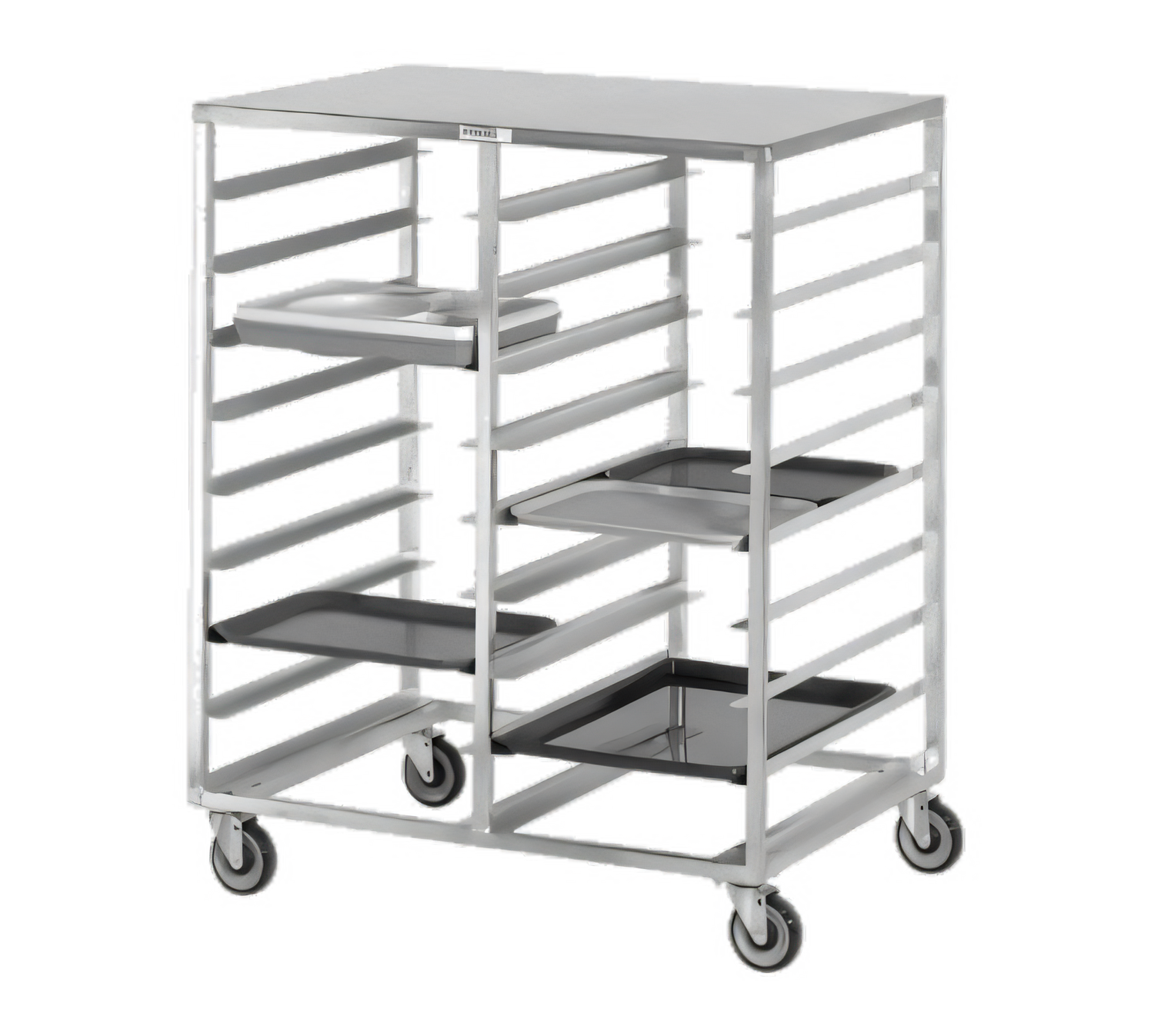

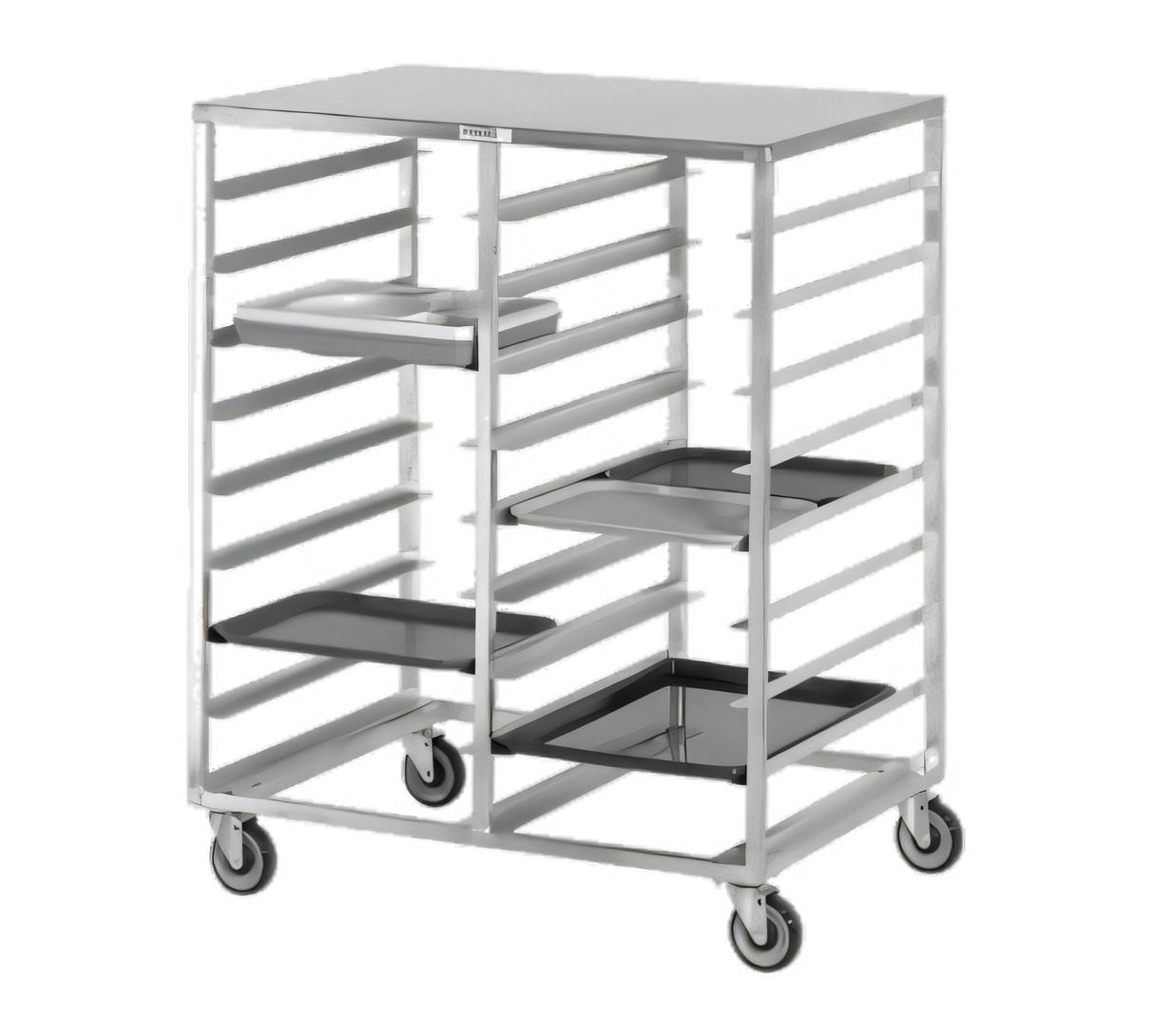

Channel Manufacturing CPS45U Cafeteria Tray Delivery Rack

Solid Aluminum Top • Double-Section • Side Load • 20-Tray Capacity

Built for high-volume cafeterias, hospitals and institutional kitchens, the CPS45U moves, stores and delivers up to twenty 15" × 20" trays in a single, easy-to-maneuver cart. Its compact 36" height keeps contents comfortably within reach while the rugged aluminum construction shrugs off the daily rigors of food-service life.

Key Features

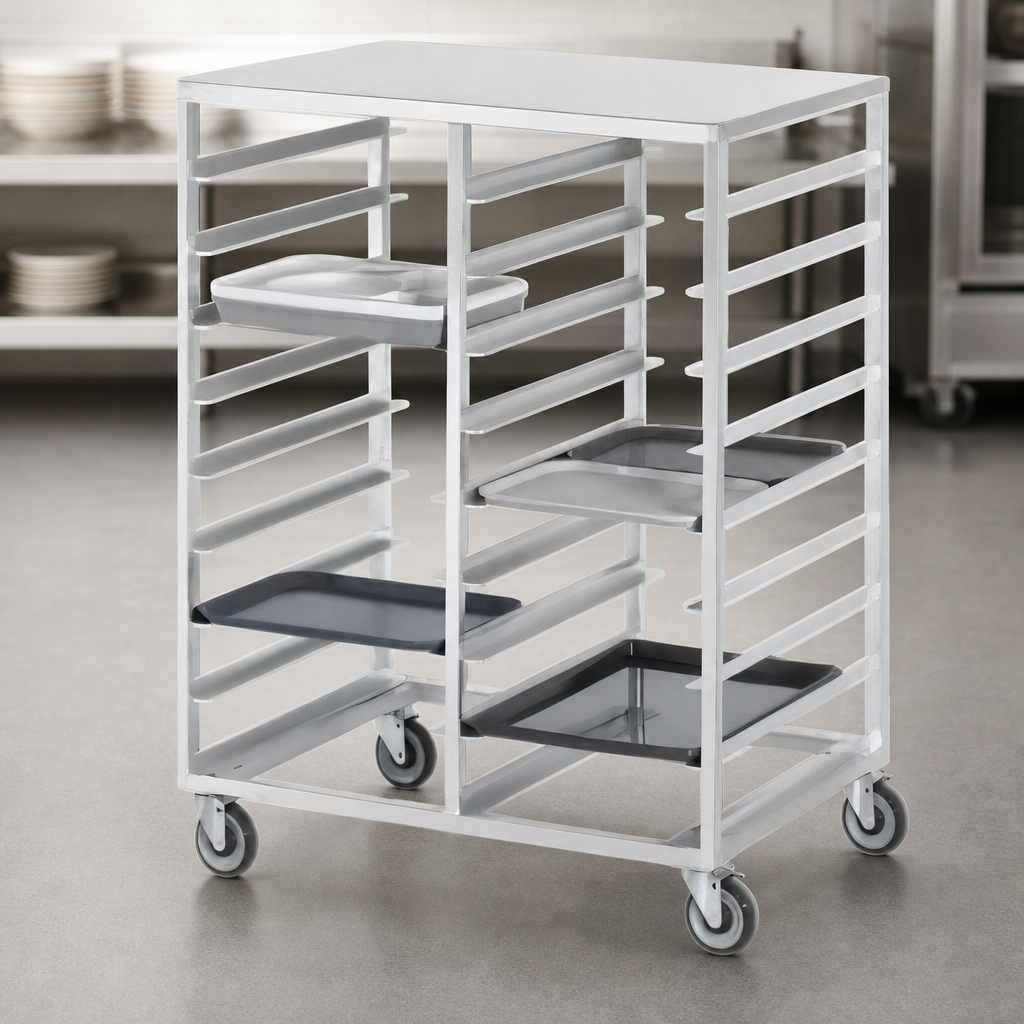

  • Double-section, side-loading design – 2 trays per tier, 10 tiers total
  • 5" slide spacing fits insulated carriers, dome-covered plates and standard trays
  • Lifetime rust-proof 6063-T5 extruded aluminum frame with solid aluminum top
  • 1" × 1-½" angle slides heli-arc welded to the frame for permanent rigidity
  • (4) 5" non-marking full-swivel plate casters for quiet, effortless transport
  • Lightweight – 42 lb (rack only) for easy maneuverability
  • NSF listed for food safety compliance
  • Proudly Made in the USA and backed by a 5-year workmanship warranty

Specifications

Model CPS45U
Tray Size 15" × 20"
Total Capacity 20 trays (2 per level)
Slide Spacing 5"
Overall Dimensions (W × D × H) 44" × 30" × 36"
Construction 6063-T5 extruded aluminum frame & solid aluminum top
Load Type Side load, bottom-ledge slides
Casters (4) 5" non-marking swivel plate casters
Item Weight 42 lb
Certifications NSF, Made in USA

Popular Factory Options (sold separately)

  • Caster brakes (/011) or heavy-duty brakes (/5B)
  • 5" × 2" wide caster upgrade (/052) for rough floors
  • Corner, perimeter or vertical bumpers for wall protection
  • Card clips (/CC) for tray identification
  • Gravity, web-strap or aluminum pan stops

Shipping weight includes an additional 50 lb pallet. Contact us for freight quotes or to add factory-installed options to your order.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

36.0in

Width

44.0in

Depth

30.0in

Shipping Weight

42.0lbs

Centers

5"

Height

36"

Sides

open

Ships

welded

Tray Size

15" x 20"

Total Capacity

18

Size

double

Loading

side

Construction

aluminum

Specifications

Cafeteria Tray Rack, Tray Delivery Racks – Solid Aluminum Top, 44"W x 30"D x 36"H, Aluminum Construction, Side Load, 5" Angle Spacing, (20) 15" x 20" trays, 5" Swivel Plate Casters model # CPS45U, Made in USA, NSF, 42lbs. (ITEM WEIGHT ONLY), double section, (2) trays per level, weight does not include 50 lbs. for pallet weight
