Channel Manufacturing  |  SKU: CTR1520  |  UPC: 835384004784

Channel Manufacturing CTR1520 Specialty Storage & Transport

$1,086.02
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Restaurant Racks Specialty Storage & Transport Storage & Shelving Storage & Transport

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

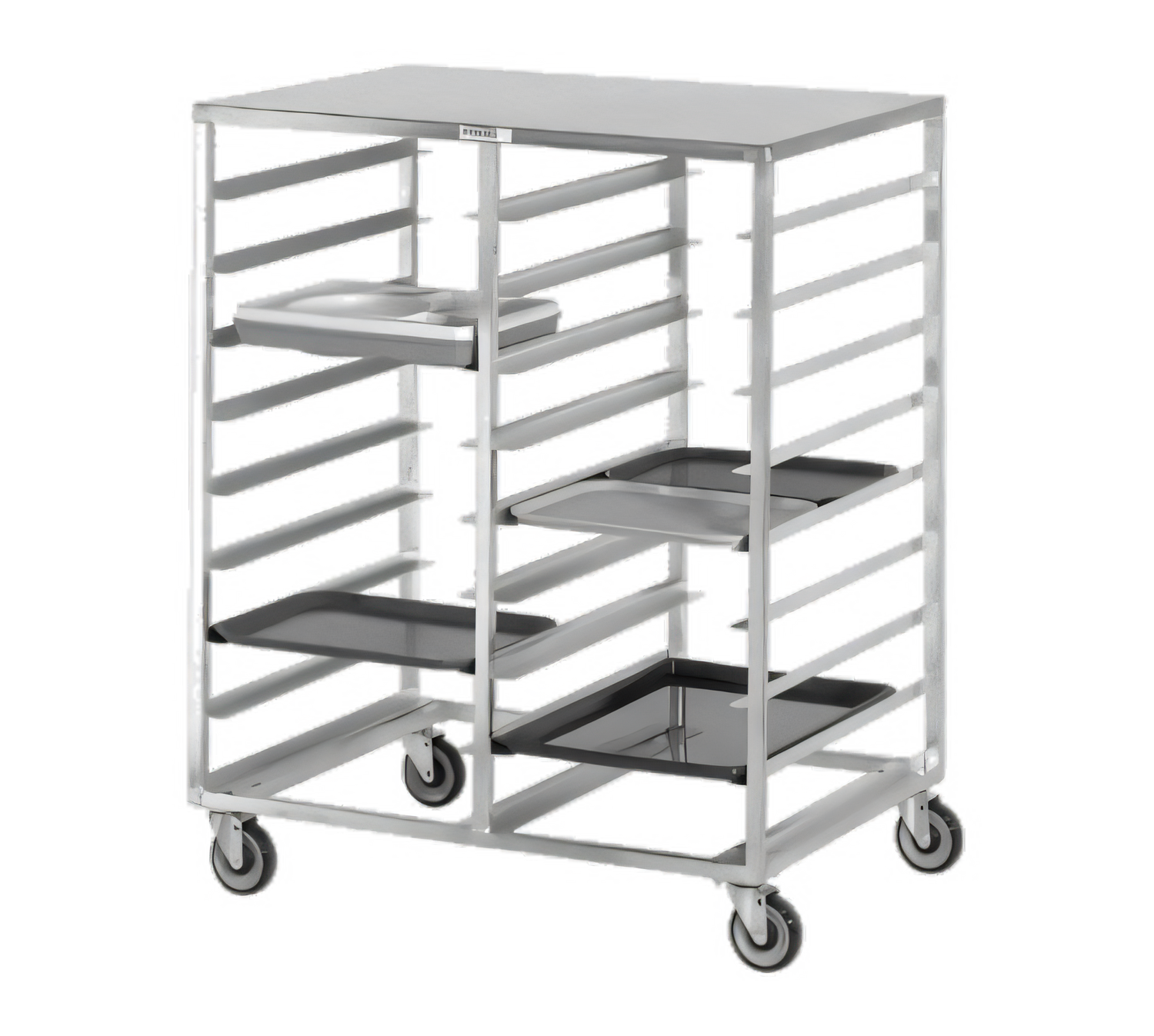

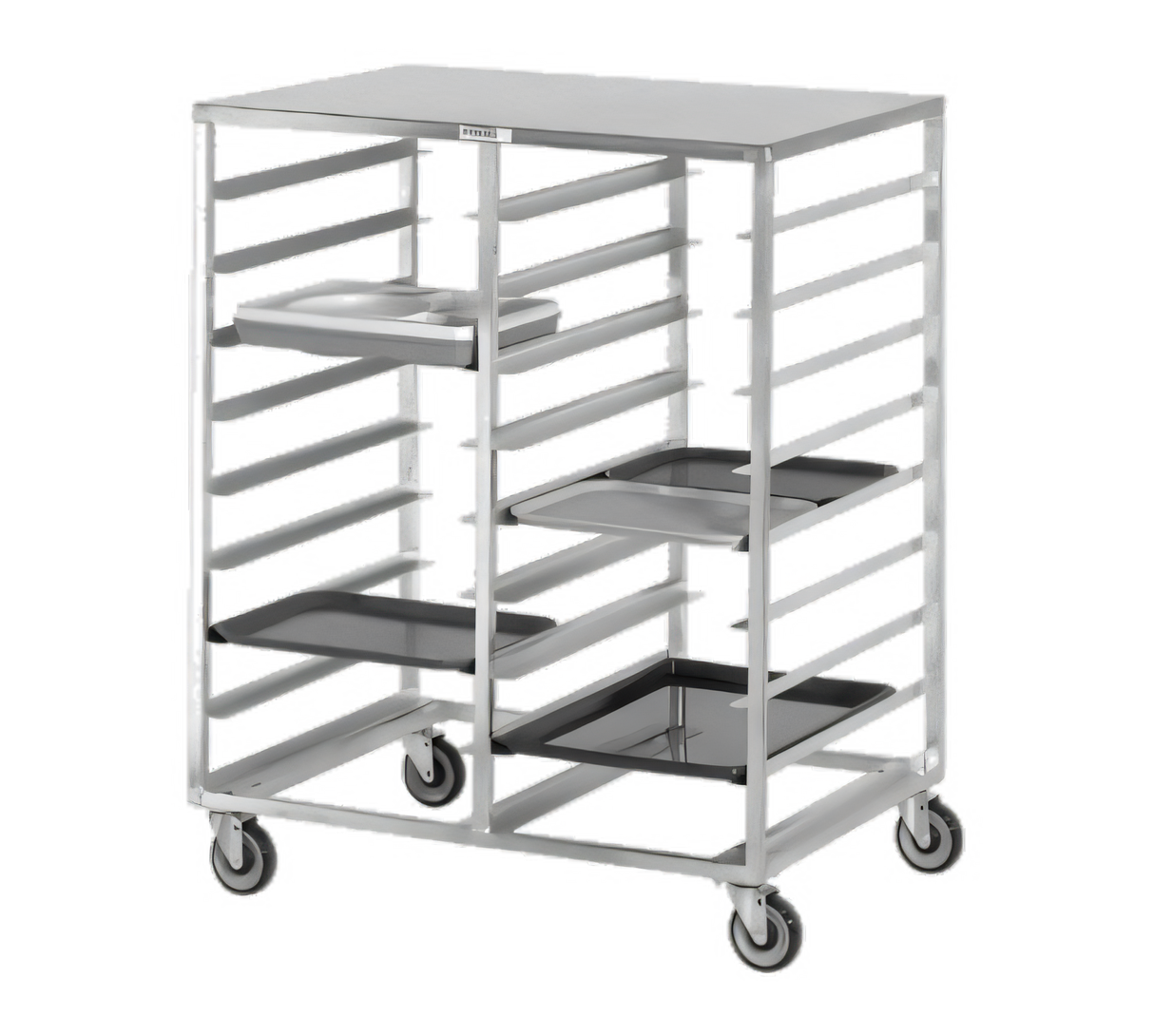

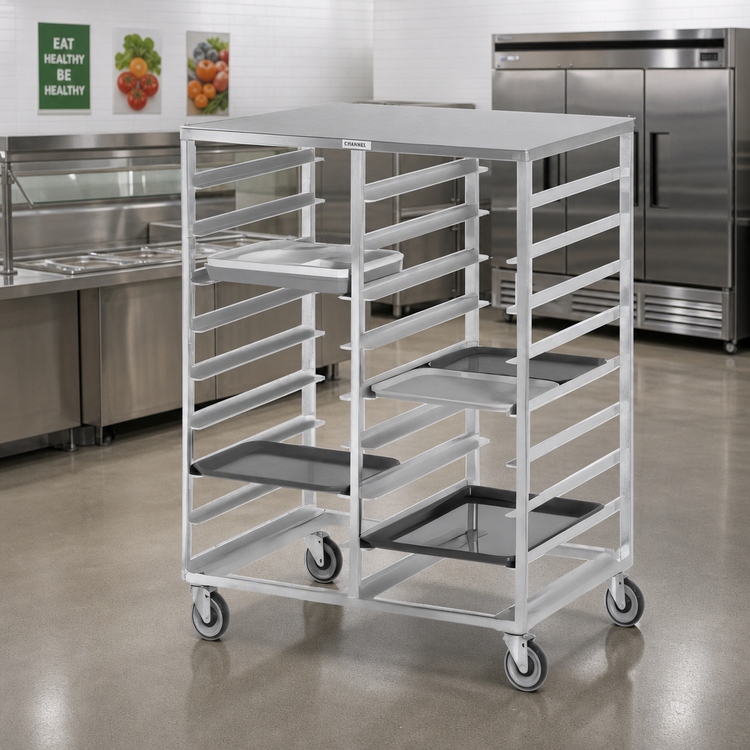

Channel CPS45U Cafeteria Tray Delivery Rack

Solid Aluminum Top • Side-Load • 36-Tray Capacity

Built for the non-stop pace of commercial kitchens, schools and healthcare facilities, the CPS45U keeps your meal service rolling smoothly. Heavy-duty extruded aluminum, a convenient solid work top and whisper-quiet 5" casters combine to deliver a rack that’s as tough as it is easy to maneuver.

Key Features

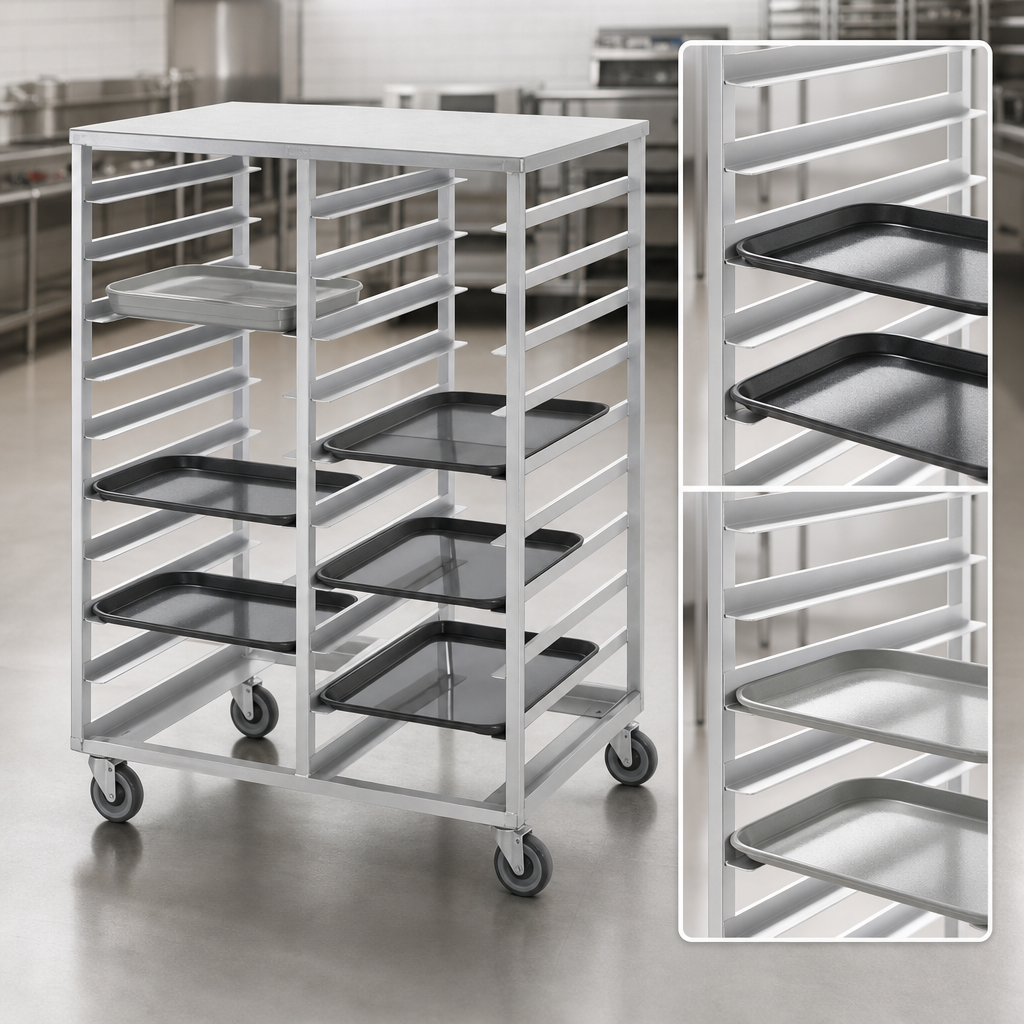

  • Accommodates 36 ea. 15" × 20" trays – two per level on 18 levels.
  • 5" vertical slide spacing handles insulated or lidded trays with ease.
  • Side-load design speeds up loading and retrieval along serving lines.
  • Fabricated from 6063-T5 high-tensile aluminum; lifetime guarantee against rust.
  • Durable solid aluminum top doubles as a prep or staging surface.
  • 1" × 1-1/2" heli-arc-welded tray angles for maximum rigidity.
  • (4) 5" full-swivel, non-marking plate casters for smooth, quiet mobility.
  • NSF listed and proudly Made in the USA.
Technical Specifications
Model CPS45U
Tray size 15" × 20"
Total capacity 36 trays (2 per level)
Slide spacing 5"
Overall dimensions 44" W × 30" D × 54" H
Construction Extruded aluminum frame & solid aluminum top
Load style Side load
Casters (4) 5" swivel plate, non-marking
Item weight 61 lb
Certifications NSF
Country of origin USA
Popular Options & Accessories
  • Caster brakes or heavy-duty 5" × 2" casters
  • Perimeter, corner or vertical bumpers for wall protection
  • Pan-stop systems: aluminum bar, web strap or gravity style
  • Card clips for easy route or content ID
  • Solid aluminum bottom panel or X-brace for extra-heavy loads
Shipping weight notice: Pallet adds approximately 50 lb to the item weight listed above.

Need a different size or spacing? Custom configurations are available—contact us for details.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

54.0in

Width

44.0in

Depth

30.0in

Shipping Weight

61.0lbs

Height

54"

Loading

side

Ships

welded

Sides

open

Centers

5"

Tray Size

15" x 20"

Size

double

Construction

aluminum

Total Capacity

36

Specifications

Cafeteria Tray Rack, Tray Delivery Racks – Solid Aluminum Top, 44"W x 30"D x 54"H, Aluminum Construction, Side Load, 5" Angle Spacing, (36) 15" x 20" trays, 5" Swivel Plate Casters model # CPS45U, Made in USA, NSF, 61lbs. (ITEM WEIGHT ONLY), double section, (2) trays per level, weight does not include 50 lbs. for pallet weight
