Channel Manufacturing  |  Lifetime Tough  |  SKU: AXD1830  |  UPC: 835384000724

Channel Manufacturing AXD1830 Lifetime Tough Pan Racks

$1,205.66
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Pan Racks Racks & Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

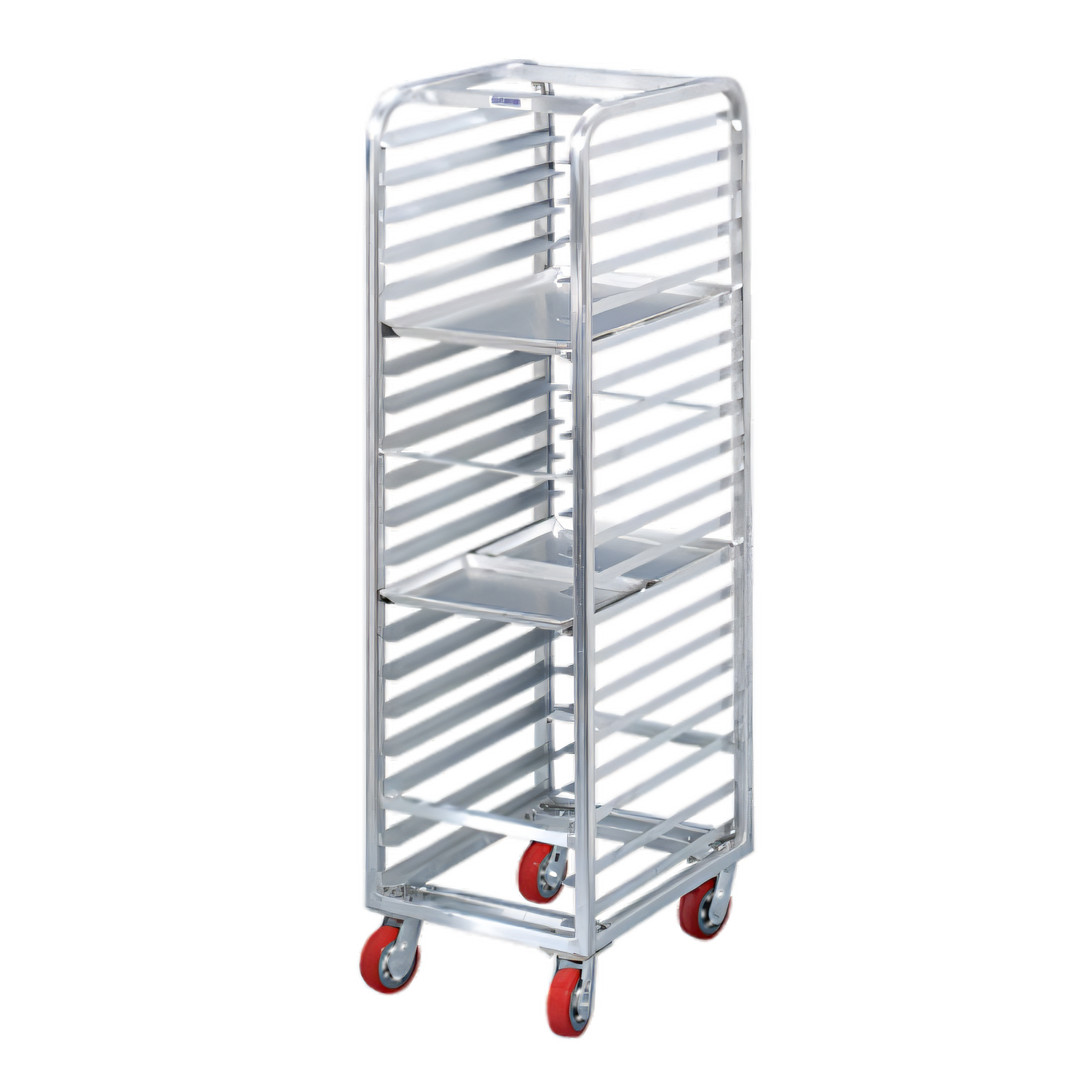

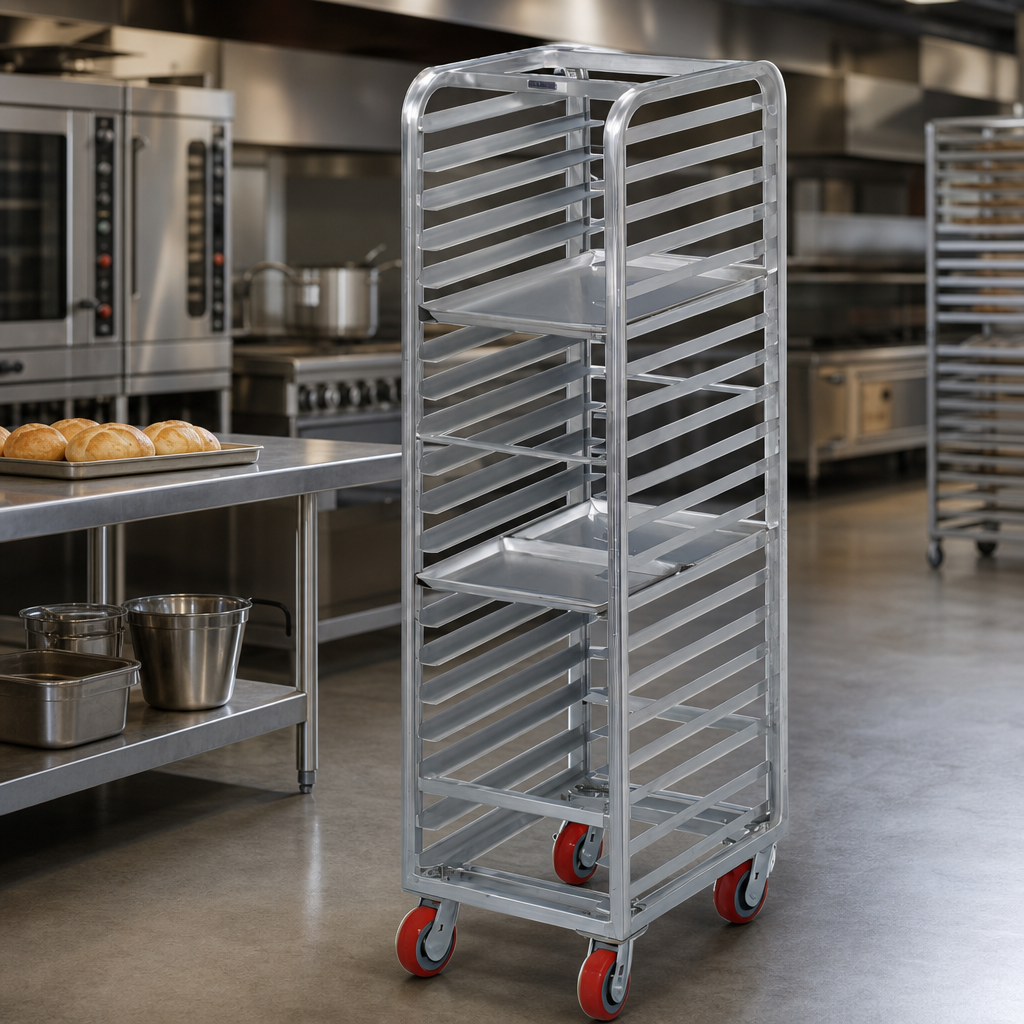

Channel “Lifetime Tough” Bun Pan Rack – Model CPS25U

Extra Heavy-Duty • 30-Pan End Load • Made in USA

Built for kitchens, bakeries and correctional facilities that punish equipment daily, Channel’s Lifetime Tough racks deliver unbeatable strength, smooth mobility and a lifetime of service. The CPS25U handles a full cart of product with ease—then asks for more.

Key Features

  • Capacity: (30) 18" × 26" full-size pans or (60) 13" × 18" half pans (2 per ledge)
  • 2" angle-style slide spacing keeps pans locked in on the bottom rim
  • End-load design for quick, straight-in loading to ovens, freezers or proofers
  • All-welded 6063-T5 aluminum—no bolts or rivets to loosen or trap debris
  • Extra-thick 1-1/4" tubular frame resists twisting under heavy loads
  • (4) 5" × 2" swivel plate casters with Zerk grease fittings for easy maintenance
  • NSF listed, corrections-facility approved & backed by a Lifetime Warranty
  • Proudly fabricated in the USA

Specifications

Manufacturer / Series Channel Manufacturing – Lifetime Tough (Extra Heavy-Duty)
Model Number CPS25U
Load Style End Load (Front Load)
Slide Spacing 2" centers
Pan Capacity 30 full-size • 60 half-size
Overall Dimensions 22" W × 26" D × 70" H
Frame Material 6063-T5 extruded aluminum, heli-arc welded
Casters (4) 5" × 2" heavy-duty swivel plate casters, grease-able
Item Weight 60 lb
Shipping Weight Approx. 110 lb (includes 50 lb pallet)
Certifications NSF, Made in USA
Warranty Lifetime (traditional food-service applications)

Popular Factory Options (sold separately)

  • /5B heavy-duty braking casters
  • /022 (2) or /024 (4) corner bumpers
  • /PB full-perimeter bumper
  • /CC aluminum card clip for labeling
  • /BA solid bottom shelf • /A solid top cover
  • Pan-stop kits: /009 aluminum, /PG gravity, /015 web strap

Need custom slide spacing, vertical bumpers or other modifications? Ask us for a quote—Channel builds to order.

Features & Specs

Manufacturer

Channel Manufacturing

Brand_name

Lifetime Tough

Certifications

NSF, Made in USA

Height

70.0in

Width

21.0in

Depth

26.0in

Shipping Weight

60.0lbs

Pan Capacity

26 - 30

Height

67" - 72"

Ships

assembled / welded

Sides

open sides

Loading

end loading

Centers

2 to 2-1/2" centers

Top

open top

Construction

aluminum

Specifications

Bun Pan Rack, LifeTime Tough, EXTRA Heavy-Duty Series, 22"W x 26"D x 70"H, Aluminum Construction, End Load, 2" Angle Spacing, (30) 18" x 26" or (60) 13" x 18" pans (2 per shelf), 5" x 2" Heavy-Duty Swivel Plate Casters w/ Zerk Grease Fitting model # CPS25U, Made in USA, NSF, 60lbs. (ITEM WEIGHT ONLY), weight does not include 50 lbs. for pallet weight
