Channel Manufacturing AXD-UTR-11 Lifetime Tough Specialty Storage & Transport
Channel Manufacturing AXD-UTR-11 Lifetime Tough Specialty Storage & Transport is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Channel Manufacturing AXD-UTR-11 Lifetime Tough Specialty Storage &...
Description

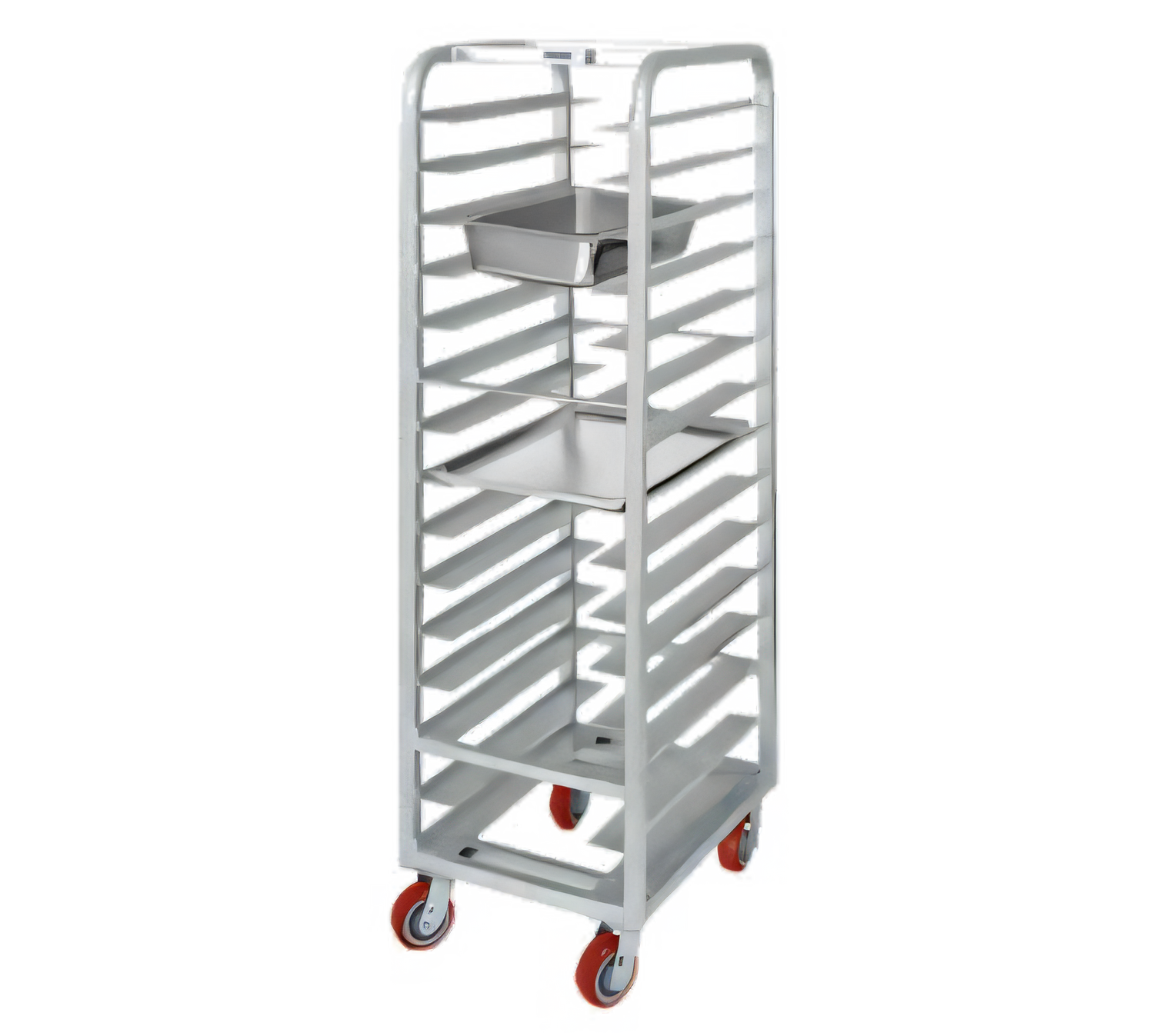

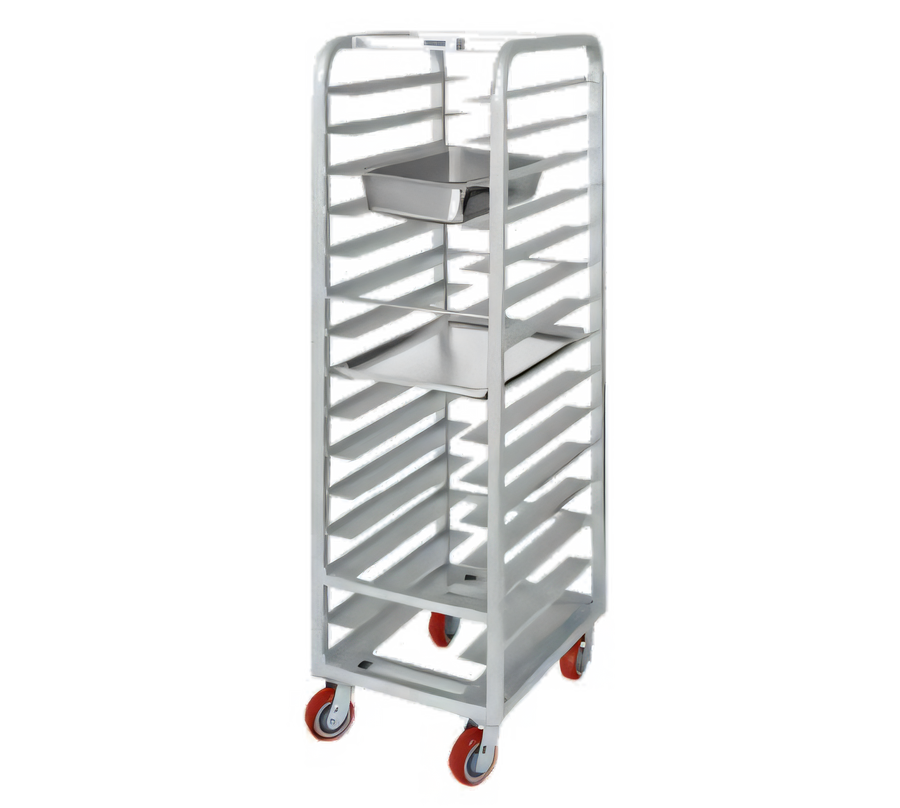

Lifetime Tough Extra Heavy-Duty Bun Pan / Steam Table Pan Rack
Model AXD-UTR-11 | Made in USA | NSF CertifiedEngineered for the most demanding food-service and correctional environments, Channel Manufacturing’s Lifetime Tough rack delivers rock-solid performance shift after shift. 6063-T5 extruded aluminum, oversized 3¼″ angles and industrial plate casters come together to create a mobile workhorse that earns its “Extra Heavy-Duty” title.
Top Features

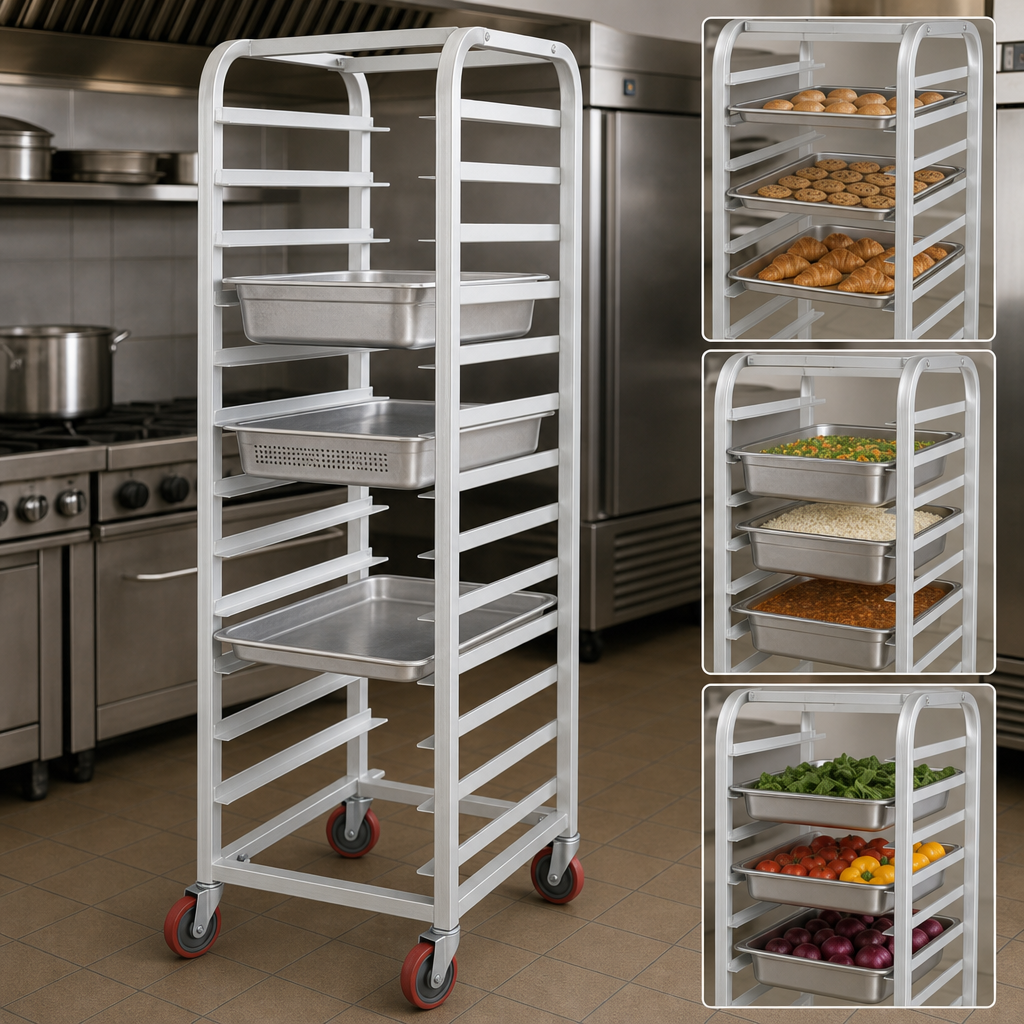

- Dual-purpose capacity – holds (11) 18″ x 26″ full-size bun pans, (22) 13″ x 18″ half pans (2 per level), or assorted 12″ x 20″ steam table pans.
- Generous 5″ slide spacing accommodates taller product, covered pans, or bulky prep.
- One-piece welded frame built from high-tensile aircraft-grade aluminum for lifetime corrosion resistance.
- Heavy-duty 5″ × 2″ plate casters (model CPS25U) with Zerk grease fittings—full swivel, non-marking, and bolt-on for fast replacement.
- End-load design (21″ wide) simplifies loading in narrow aisles and maximises floor space.
- Lifetime warranty for all traditional food-service applications.
- NSF listed for effortless code compliance.
Key Specifications
| Overall dimensions (W × D × H) | 21″ × 26″ × 64″ H |
|---|---|
| Slide spacing / levels | 5″ centers / 11 levels |
| Pan capacity | (11) 18″ × 26″ bun pans (22) 13″ × 18″ half pans 12″ × 20″ steam table pans (capacity varies by pan height) |
| Slide width | 3¼″ heavy-duty angles |
| Load orientation | End-load |
| Construction | 6063-T5 extruded aluminum, fully welded |
| Casters | (4) 5″ × 2″ swivel, non-marking, plate-mount with Zerk fittings |
| Product weight | 47 lb (rack only) + ≈50 lb pallet for LTL shipments |
| Certifications | NSF Listed, Made in USA, Lifetime Warranty |
Popular Factory Options
- /5B – caster brakes
- /PB – full perimeter bumper
- /022 or /024 – corner bumpers (2 or 4)
- /009 – fixed aluminum pan stop
- /PG – gravity pan stop
- /CC – card clip for quick labeling
- /VB – vertical bumpers for door & wall protection
Options ship installed; add to quotation at time of order.
Lifetime Tough Peace of Mind
Every Lifetime Tough rack is proudly built in Port Washington, NY and backed by Channel Manufacturing’s unconditional lifetime warranty against material defects or workmanship failure in normal food-service use.
