Channel Manufacturing  |  SKU: 486DD  |  UPC: 835384000342

Channel Manufacturing 486DD Specialty Storage & Transport

$1,096.28
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Channel Manufacturing Countertop Food Displays Food Displays & Merchandisers Pastry Display Cases Restaurant Equipment Specialty Storage & Transport Storage & Shelving

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

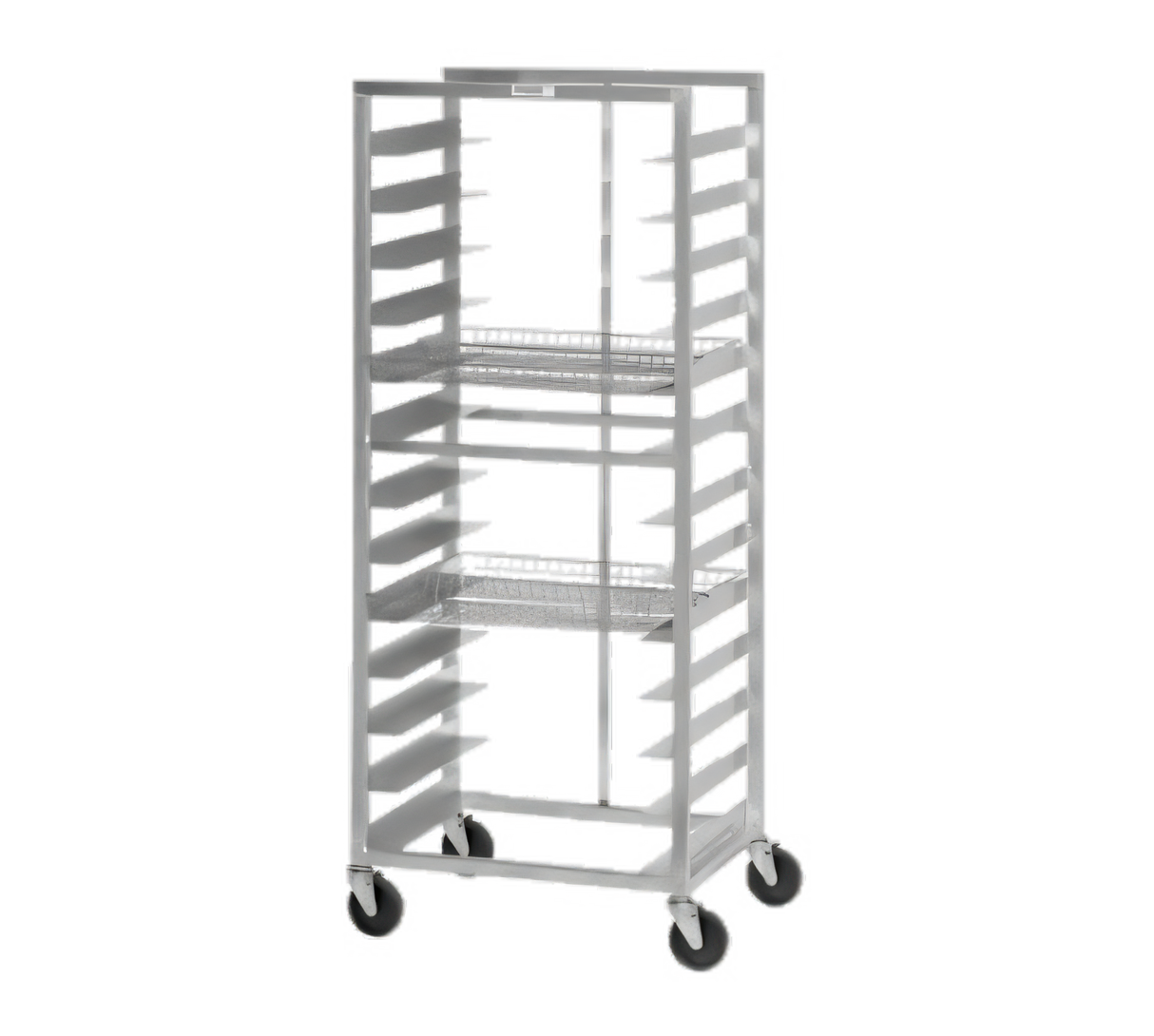

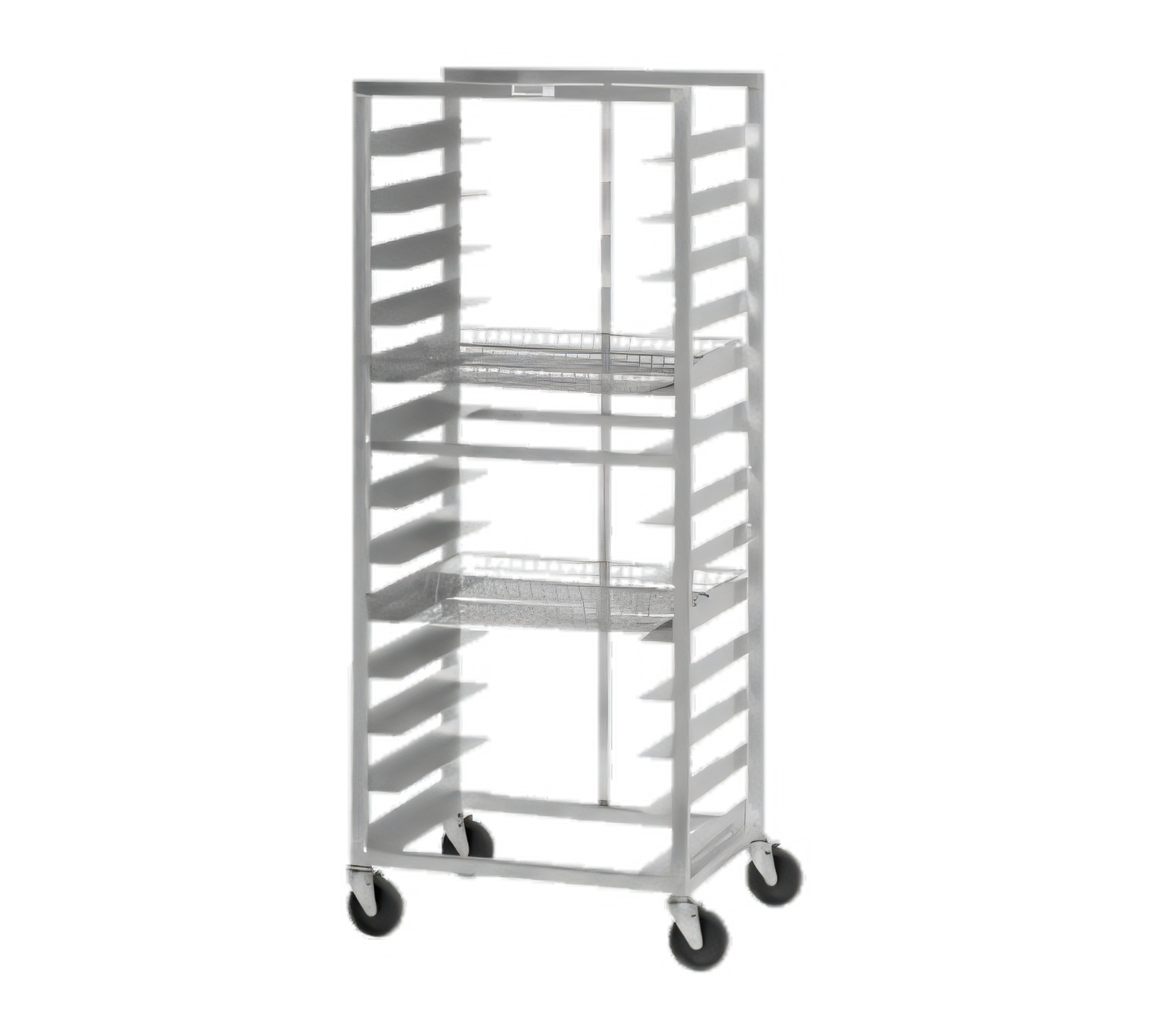

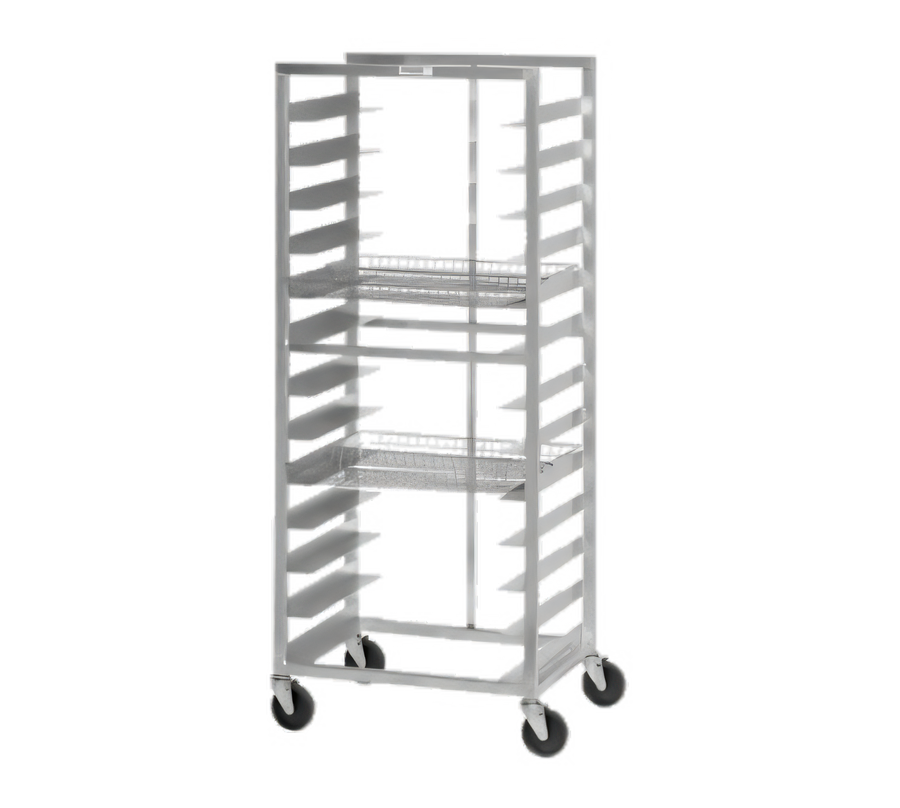

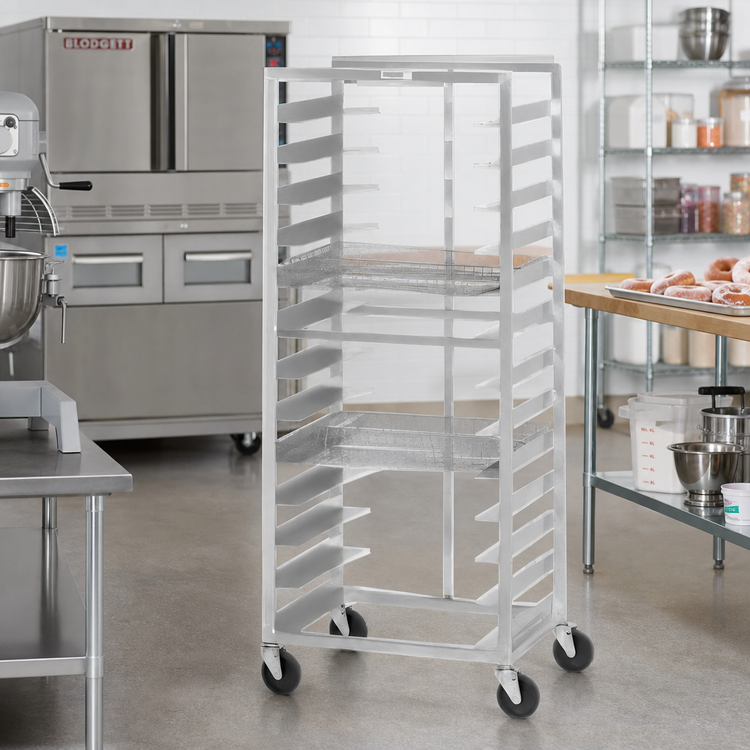

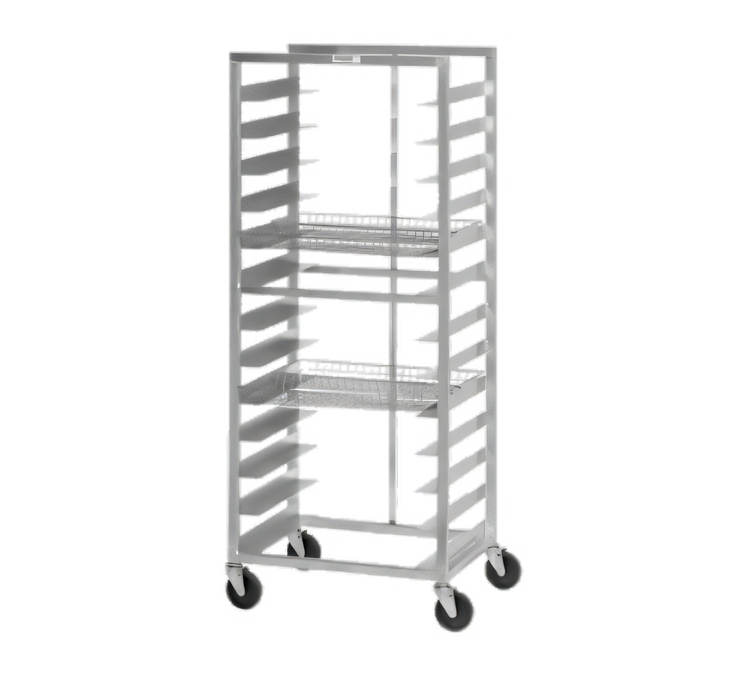

Channel Manufacturing CPS45U Extra-Heavy-Duty Donut Basket Rack

13 Levels • 4.75" Spacing • End-Load

Purpose-built for high-volume donut production, the CPS45U keeps baskets or screens organized, mobile and protected—so your team can focus on frying, glazing and filling, not on juggling product.

Why You’ll Love It

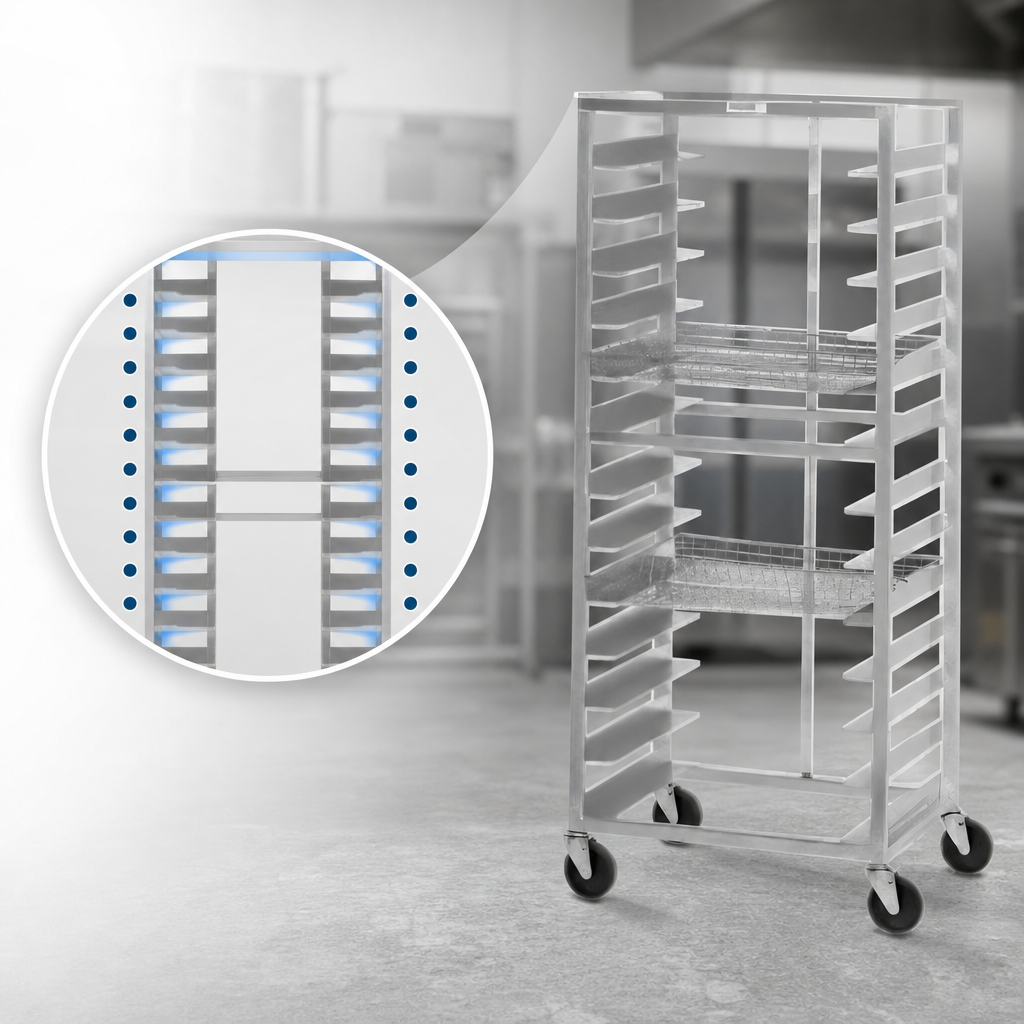

  • Holds up to 13 standard 9" × 26 ½" wire donut baskets or proofing screens
  • 2"-wide extra-heavy-duty slides eliminate sagging and extend rack life

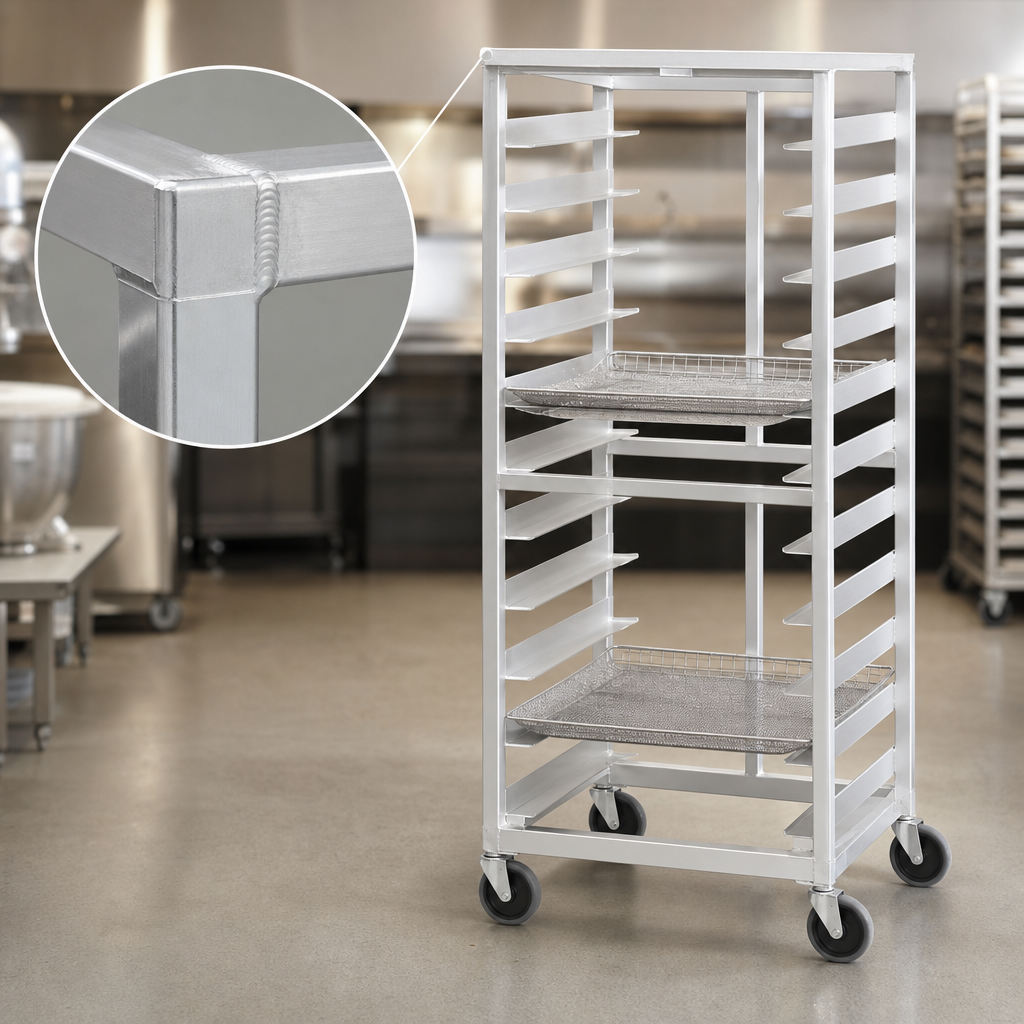

  • All-welded 6063-T5 extruded aluminum frame—guaranteed never to rust
  • 4.75" slide spacing fits tall donuts, toppings and glazes
  • End-load design streamlines loading/unloading at the fryer or icing station
  • Four 5" non-marking swivel plate casters glide smoothly across bakery floors
  • NSF listed for effortless code compliance
  • Proudly Made in the USA

Technical Specifications

Model CPS45U
Capacity 13 baskets / screens
Slide Spacing 4.75" center-to-center
Slide Width 2" aluminum angles
Loading Style End load
Overall Dimensions (H × W × D) 71.25" × 29.5" × 21"
Weight 68 lb (rack only)
Material Heli-arc welded 6063-T5 aluminum
Casters 4 × 5" all-swivel, non-marking plate casters
Compliance NSF
Origin USA

Available Factory Options

  • /5B – Heavy-duty caster brakes (pair)
  • /011 – Standard caster brakes (pair)
  • /022 – Corner bumpers (pair)
  • /052 – 5" × 2" wide caster upgrade
  • /PH10 – Pull hook for effortless maneuvering
Note: Donut baskets/screens are sold separately. Shipping weight is approximately 118 lb and includes a 50 lb pallet.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

71.25in

Width

29.5in

Depth

21.0in

Shipping Weight

68.0lbs

Loading

side

Centers

4-3/4"

Ships

welded

Construction

aluminum

Height

71-1/4"

Specifications

Donut Basket / Screen Rack, Donut Basket Rack, 29.5"W x 21"D x 71.25"H, Aluminum Construction, End Load, 4.75" Angle Spacing, (13) levels, 5" Swivel Plate Casters model # CPS45U, Made in USA, NSF, 68lbs. (ITEM WEIGHT ONLY), EXTRA Heavy-Duty Series 2" wire slides, weight does not include 50 lbs. for pallet weight
