Channel Manufacturing  |  SKU: 466A  |  UPC: 835384003091

Channel Manufacturing 466A Specialty Storage & Transport

$1,019.33
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Channel Manufacturing Restaurant Racks Specialty Storage & Transport Storage & Shelving Storage & Transport

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

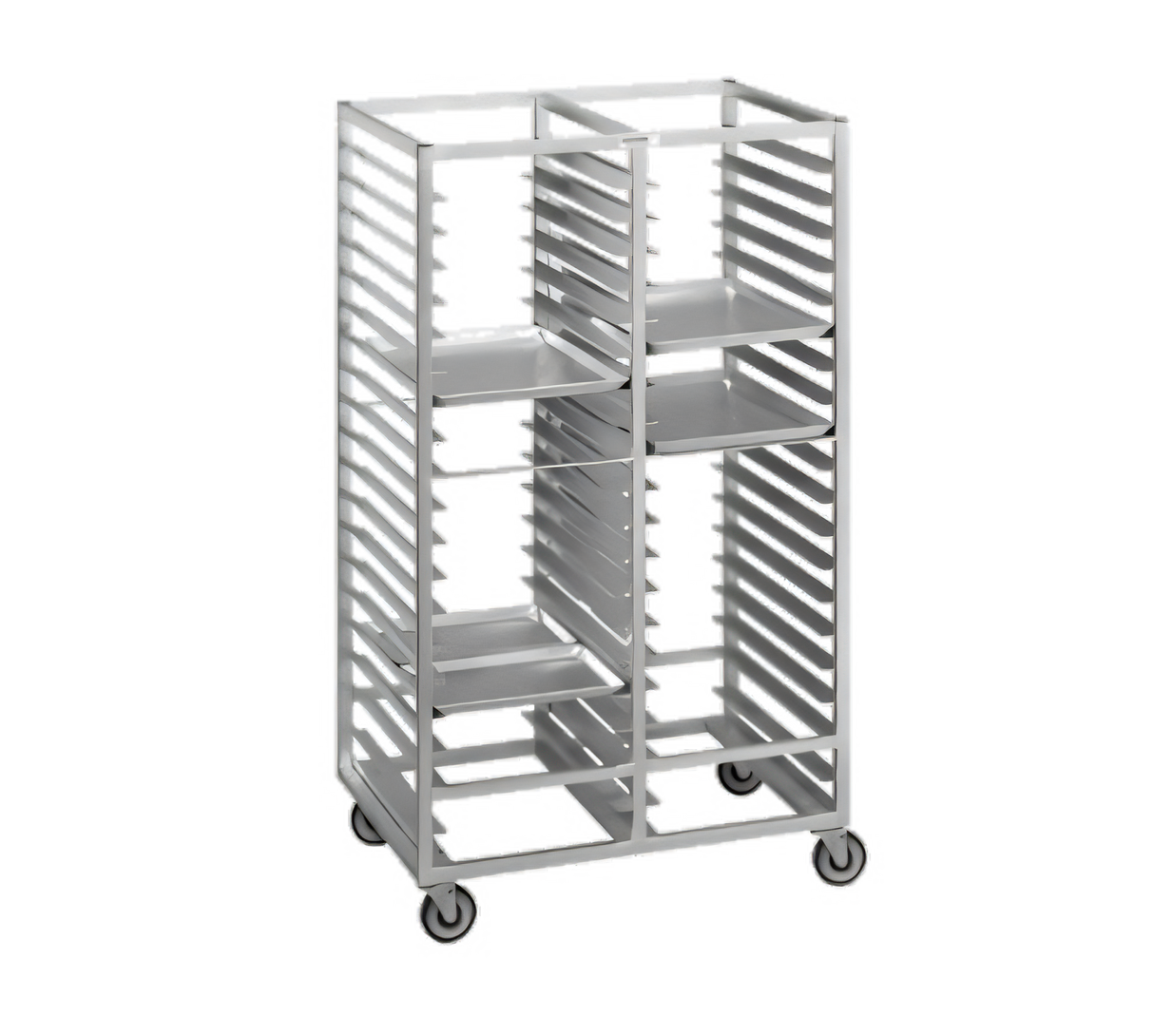

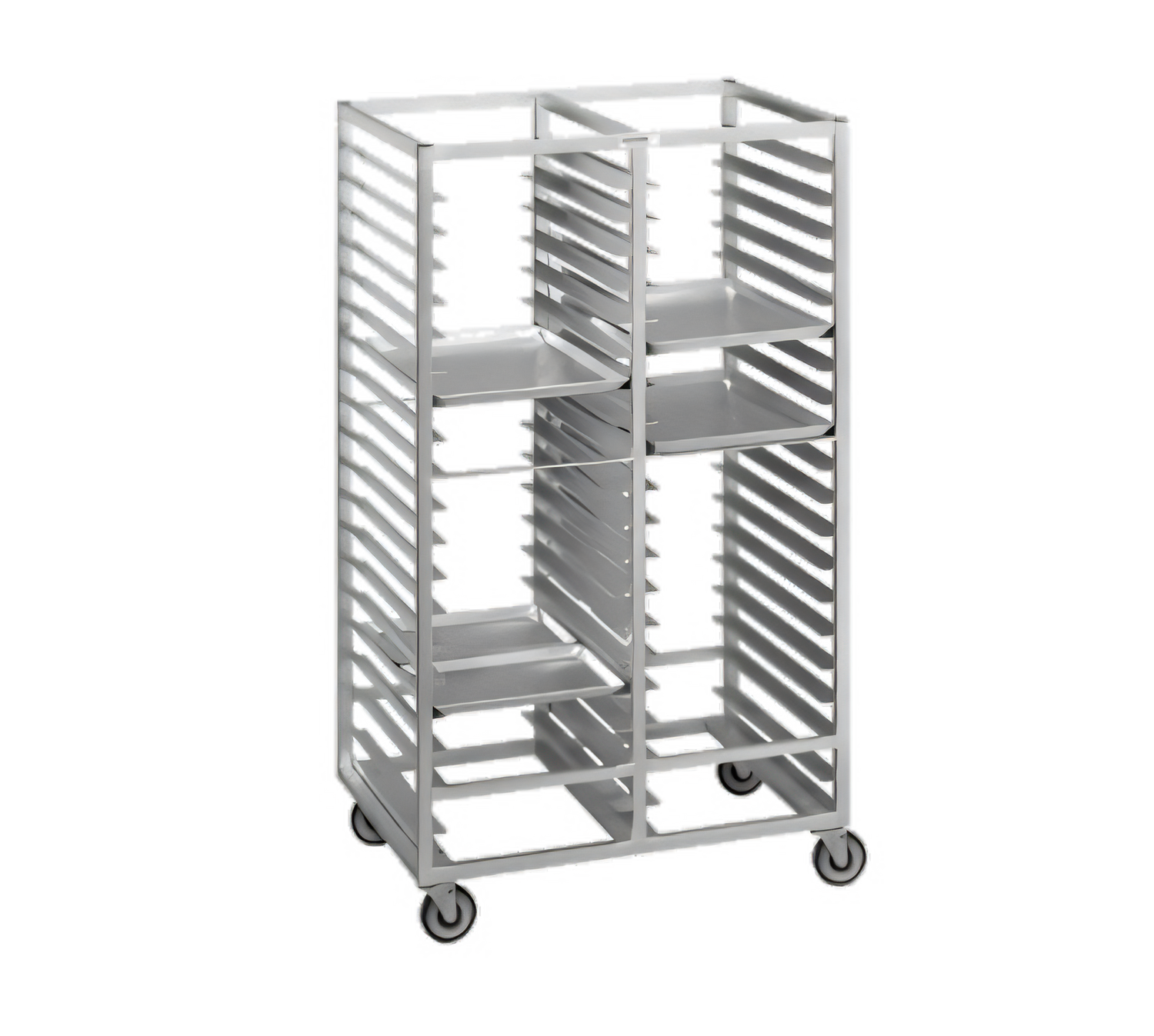

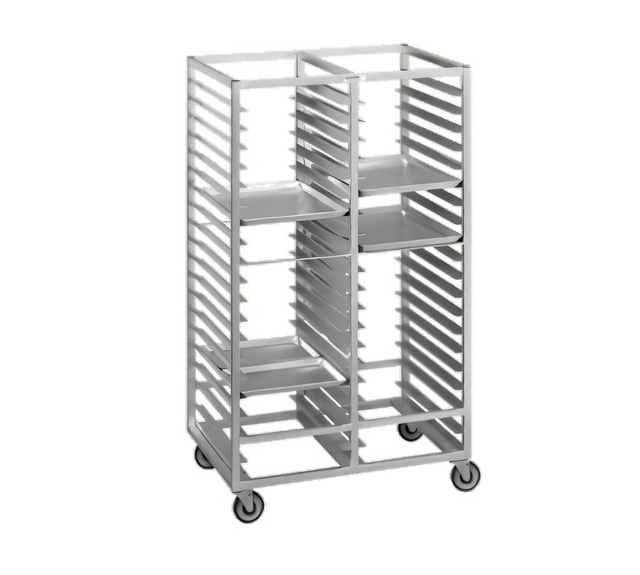

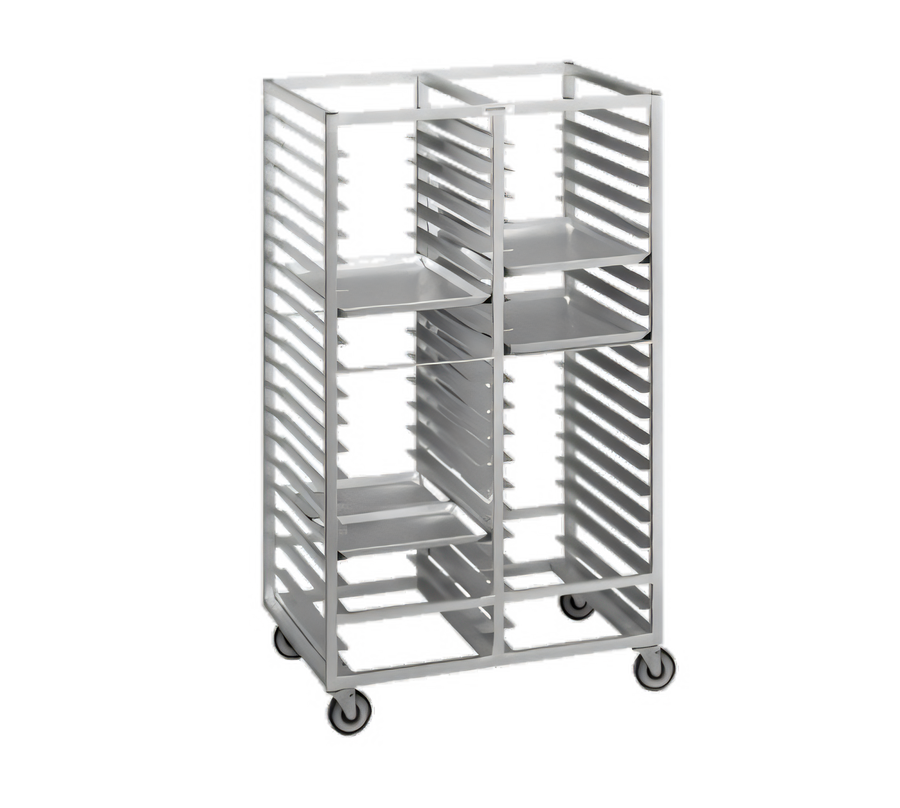

Channel Manufacturing CPS45U Cafeteria Tray Rack

Double Section • Side-Load • 60-Tray Capacity

Built for high-volume cafeterias, schools, and healthcare kitchens, the CPS45U combines Channel’s legendary all-aluminum construction with a space-saving double-section design that stores up to sixty 15" × 20" trays in just 45" of width.

Key Features

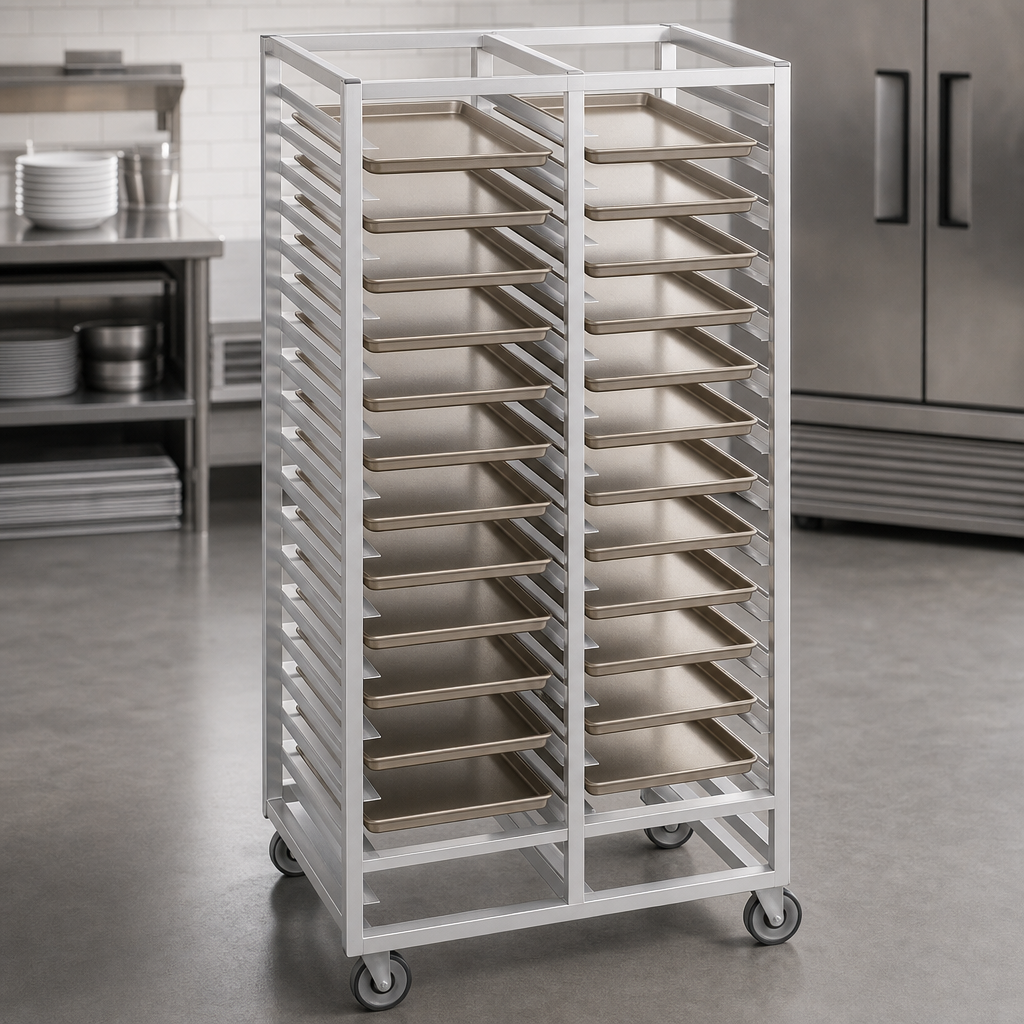

  • 60-tray capacity (15" × 20") with 30 levels at 4" spacing – two trays per level.
  • Side-load configuration for fast, ergonomic tray access from either end of the aisle.
  • Heavy-duty 6063-T5 extruded aluminum frame & 1" × 1-1/2" angle slides – lifetime guarantee against rust and corrosion.
  • Bottom-load ledge design; all slides are heli-arc welded to the frame for maximum rigidity.
  • Four 5" non-marking full-swivel plate casters deliver smooth, quiet mobility; field-replaceable.
  • Lightweight yet rugged – rack weighs only 59 lb for easier transport and handling.
  • NSF listed for sanitation and safe use in walk-in coolers & freezers.
  • Proudly Made in the USA and backed by a 5-year manufacturer’s warranty.
Specifications
Model CPS45U
Series / Construction Standard Series – All-Aluminum
Tray Size 15" × 20"
Total Capacity 60 trays (30 levels, 2 per level)
Tray Spacing 4" vertical clearance
Loading Style Side load
Overall Dimensions 45" W × 30" D × 70" H
Casters (4) 5" full-swivel, non-marking plate casters
Item Weight 59 lb (rack only)
Certifications NSF, Made in USA

Shipping weight adds approximately 50 lb for pallet and packaging. Include a sample tray with your purchase order to ensure perfect fit.

Popular Options & Upgrades (sold separately)
  • /011 Standard caster brakes or /5B heavy-duty brakes
  • /052 5" × 2" heavy-duty caster upgrade
  • /022 or /024 corner bumpers  •  /PB perimeter bumpers
  • /CC aluminum card clip for easy labeling
  • /009 aluminum or /010 stainless pan stops to secure trays
  • /BA solid aluminum bottom or /A aluminum work top
  • /VB vertical bumpers  •  /PH-10 pull handle  •  /N nesting style
Need a different size or spacing? Channel Manufacturing can build custom cafeteria tray racks to match your exact application.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

70.0in

Width

45.0in

Depth

30.0in

Shipping Weight

59.0lbs

Centers

4"

Sides

open

Ships

welded

Tray Size

15" x 20"

Loading

end

Height

70"

Total Capacity

60

Size

double

Construction

aluminum

Specifications

Cafeteria Tray Rack, Double Section, Standard Series, 45"W x 30"D x 70"H, Aluminum Construction, Side Load, 4" Angle Spacing, (60) 15" x 20" trays, 5" Swivel Plate Casters model # CPS45U, Made in USA, NSF, 59lbs. (ITEM WEIGHT ONLY), (2) trays per level, weight does not include 50 lbs. for pallet weight
