Description

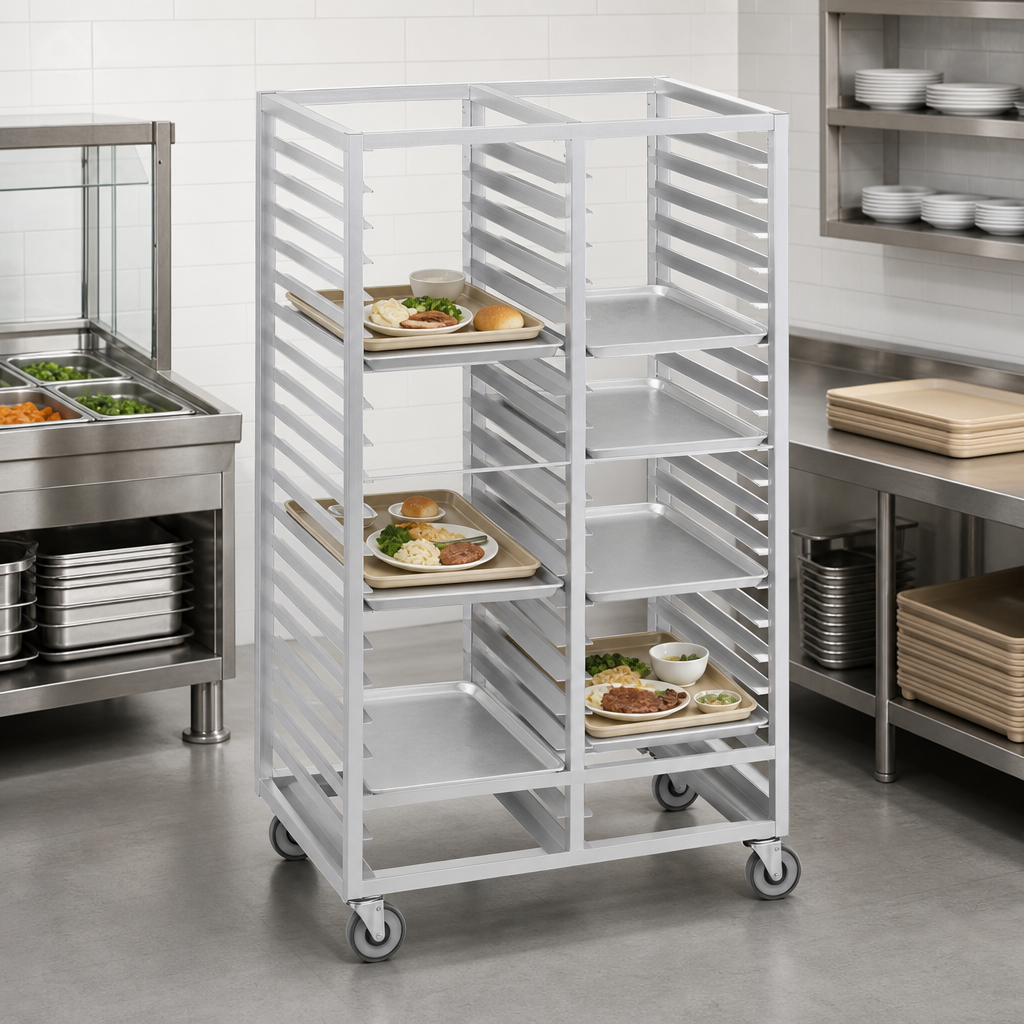

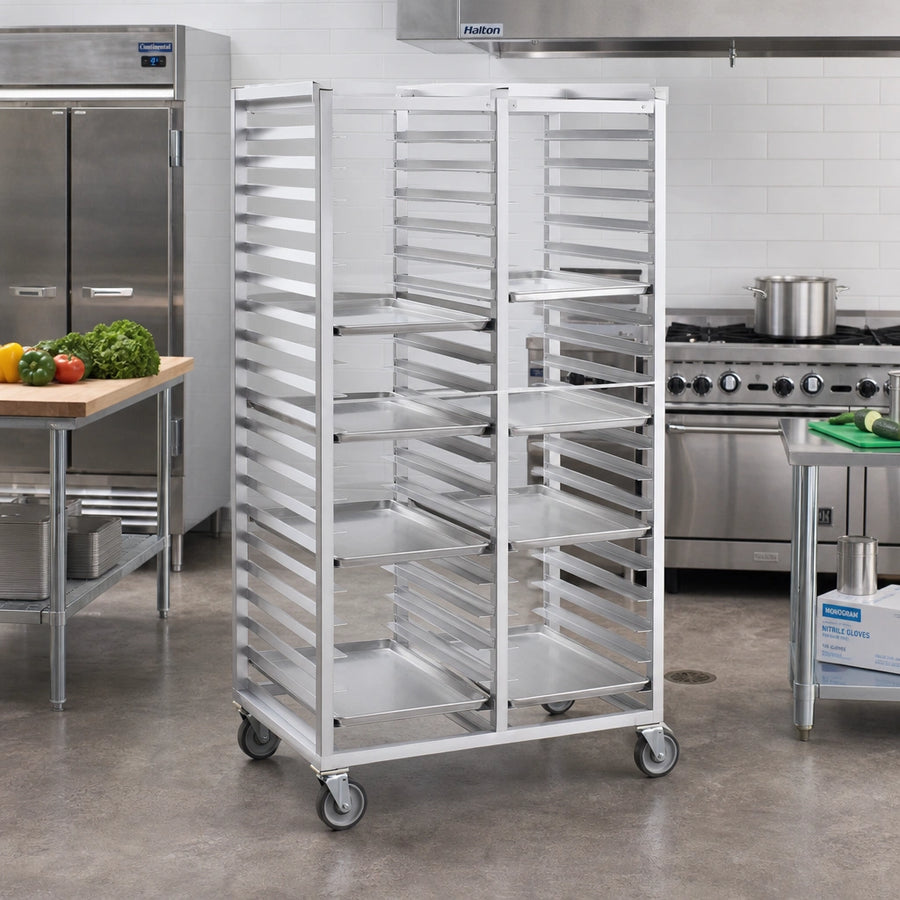

Channel Manufacturing Double-Section Cafeteria Tray Rack

Standard Series • Model CPS45U

Built for the daily grind of busy food-service operations, the CPS45U holds up to eighty 14" × 18" trays in a space-saving side-load design that rolls smoothly from kitchen to serving line. Heavy-duty, rust-proof aluminum construction, NSF certification, and a Made-in-USA pedigree make this rack the dependable choice for schools, hospitals, bakeries, and corporate cafeterias.

Why you’ll love it

  • Huge 80-tray capacity — two trays per level with a consistent 3" slide spacing.
  • Side-load access speeds up tray retrieval in tight aisles and serving stations.
  • 6063-T5 extruded aluminum frame and slides carry a lifetime guarantee against rust and corrosion.
  • Slides are 1" × 1-½" angles, heli-arc welded for rock-solid durability.
  • Standard 5" full-swivel, non-marking plate casters (all swivel) for effortless maneuvering.
  • Rated for cooler & freezer use – perfect for cold-plated meal assembly.
  • NSF listed and proudly Made in the USA.
  • Backed by Channel’s 5-year workmanship warranty.

Technical specifications

Model CPS45U (replaces 457A)
Series / Type Standard Series, Double Section, Side Load
Tray Size & Capacity (80) 14" × 18" cafeteria trays  •  2 trays per level
Slide Spacing 3" center-to-center
Overall Dimensions (H × W × D) 70" × 41" × 30"
Construction High-tensile 6063-T5 extruded aluminum
Casters (4) 5" swivel plate casters, non-marking rubber wheels
Weight 72 lbs (rack only)
Certifications NSF Listed • Made in USA

Common upgrades (special order)

  • /011 Caster brakes (pair)
  • /PB Perimeter or /VB Vertical bumpers for wall & door protection
  • /BA Solid bottom or /A Solid work-top shelf
  • /009 Aluminum or /010 Stainless pan stops
  • /052 Heavy-duty 5" × 2" casters

Contact us before purchase to add any custom options.

Shipping weight notice: Rack ships on a pallet. Listed weight (72 lbs) is for the rack only; add approximately 50 lbs for pallet and packaging.

Trays shown in images are sold separately.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

70.0in

Width

41.0in

Depth

30.0in

Shipping Weight

72.0lbs

Ships

welded

Height

70"

Total Capacity

80

Centers

3"

Loading

end

Construction

aluminum

Tray Size

14" x 18"

Sides

open

Size

double

Specifications

Cafeteria Tray Rack, Double Section, Standard Series, 41"W x 30"D x 70"H, Aluminum Construction, Side Load, 3" Angle Spacing, (80) 14" x 18" trays, 5" Swivel Plate Casters model # CPS45U, Made in USA, NSF, 72lbs. (ITEM WEIGHT ONLY), (2) trays per level, weight does not include 50 lbs. for pallet weight
