Description

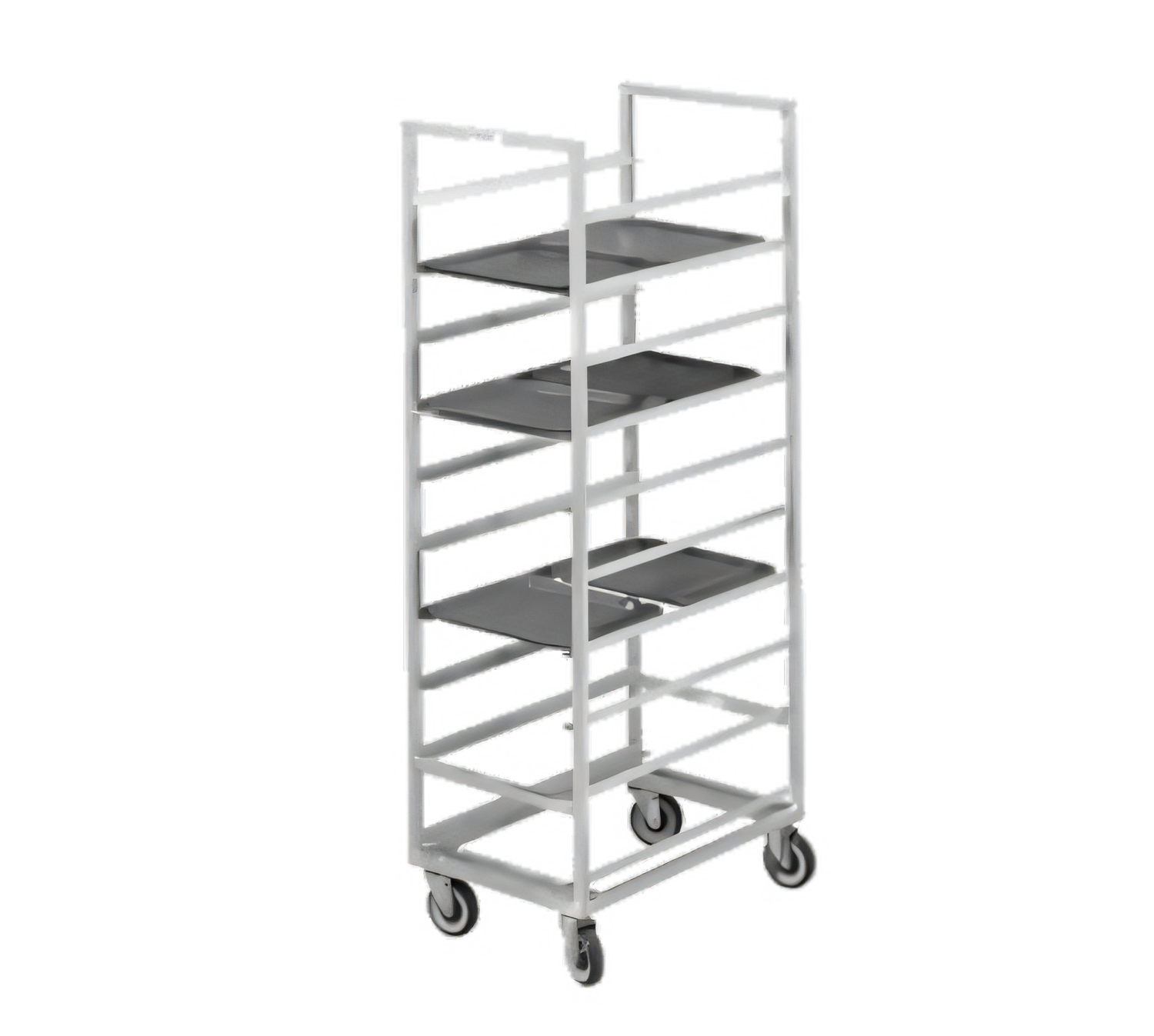

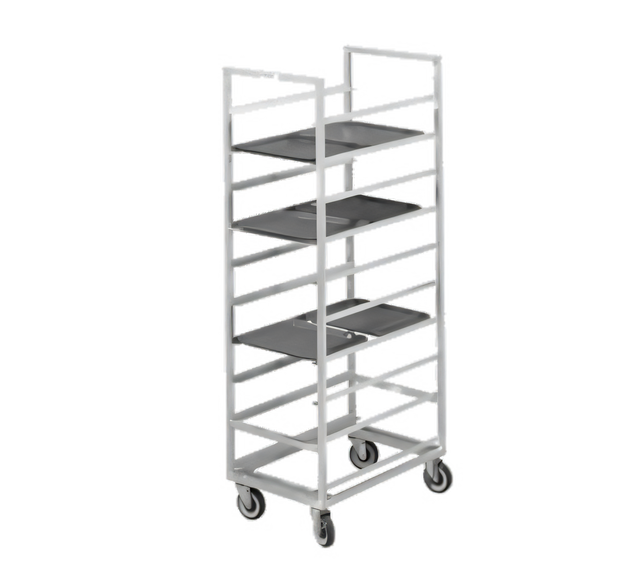

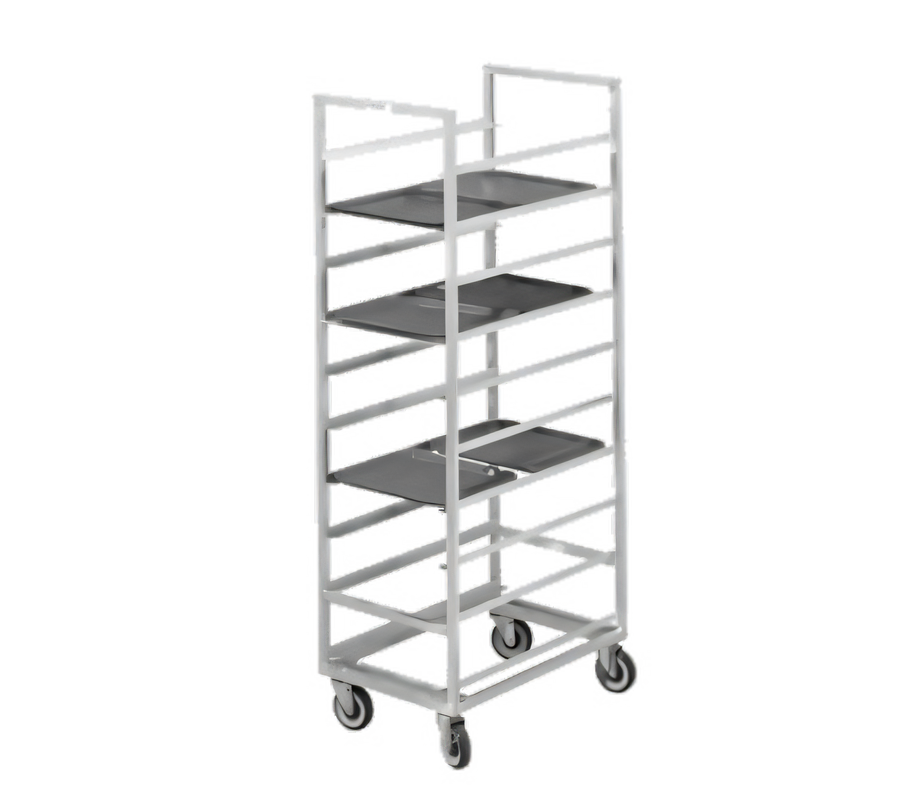

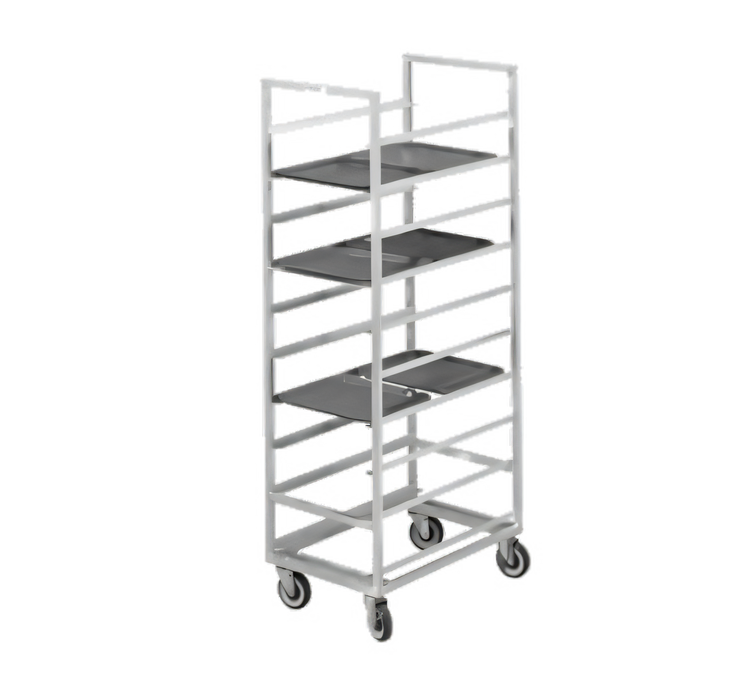

Channel CSS45PU Cafeteria Tray Rack – Stainless Series
(20) 15" × 20" trays • End-load • 6" slide spacing • 23"W × 30"D × 70"HBuilt for demanding food-service environments, the Channel CSS45PU single-section tray rack stores, transports and stages up to twenty 15" × 20" cafeteria trays with effortless mobility and rock-solid durability.
Key highlights

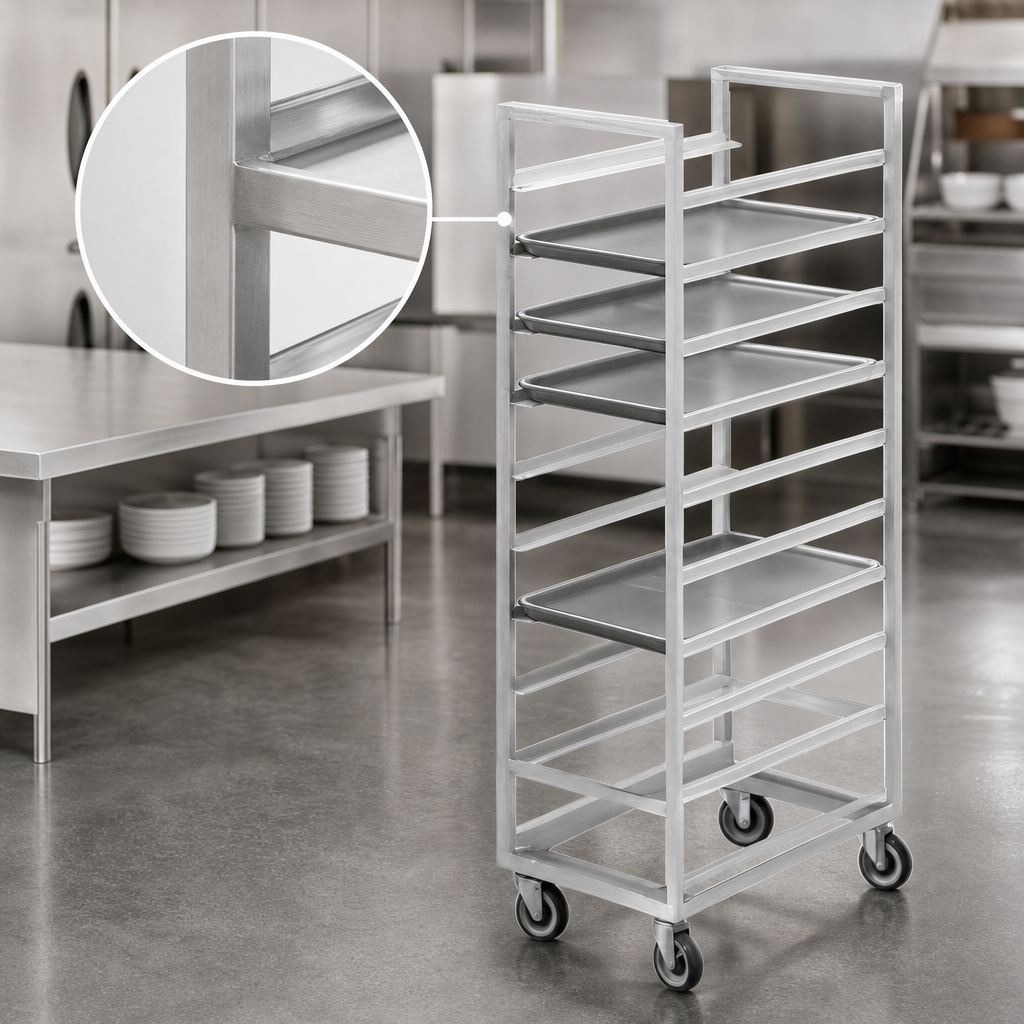

- 18-gauge, 304 stainless steel frame and slides – corrosion-resistant and NSF listed.
- (20) end-load slide levels, 6" angle spacing – two trays per level.
- 1" × 1-1/2" stainless angle slides are heli-arc welded to the frame for lifetime rigidity.
- 5" full-swivel, non-marking stem casters for smooth, quiet movement.
- Compact 23" wide footprint fits easily through standard doorways and aisles.
- Made in the USA and backed by a 5-year manufacturer’s warranty.
Built to perform
- Vertical & horizontal supports use 1" square stainless tubing for exceptional torsional strength.
- Bottom-load ledge design simplifies loading while protecting tray edges.
- All-welded construction arrives fully assembled and ready for service.
Ideal applications
- School & university cafeterias
- Hospitals and healthcare dining
- Corporate & institutional kitchens
- Catering commissaries
Specifications
| Manufacturer / Model | Channel Manufacturing • CSS45PU (Stainless Series) |
|---|---|
| Tray capacity | 20 trays (15" × 20"), 2 trays per level |
| Slide spacing | 6" center-to-center |
| Overall dimensions | 70" H × 23" W × 30" D |
| Construction | 18-ga 304 stainless steel frame & slides |
| Load orientation | End-load |
| Casters | (4) 5" swivel stem, non-marking (2 with brakes optional) |
| Item weight | 56 lb (rack only) |
| Certifications | NSF Listed, Made in USA |
| Warranty | 5 years – manufacturer’s limited |
Shipping note: Item weight does not include approximately 50 lb of pallet/crating weight.
Need a different height, tray size, or caster configuration? Channel offers custom builds – contact us for details.
Features & Specs
Features & Specs
Manufacturer
Channel Manufacturing
Certifications
NSF, Made in USA
Height
70.0in
Width
23.0in
Depth
30.0in
Shipping Weight
56.0lbs
Construction
stainless steel
Loading
end
Height (range)
67" - 72"
Centers
6"
Slide Capacity
10 pair
Tray Size
15" x 20"
Ships
welded
Specifications
Cafeteria Tray Rack, Single Section, Stainless Series, 23"W x 30"D x 70"H, Stainless Steel Construction, End Load, 6" Angle Spacing, (20) 15" x 20" trays, 5" Swivel Stem Casters model # CSS45PU, Made in USA, NSF, 56lbs. (ITEM WEIGHT ONLY), (2) trays per level, weight does not include 50 lbs. for pallet weight
