Channel Manufacturing  |  SKU: 414S-DOR  |  UPC: 835384002407

Channel Manufacturing 414S-DOR Specialty Ovens

$1,243.23
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Ovens Specialty Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

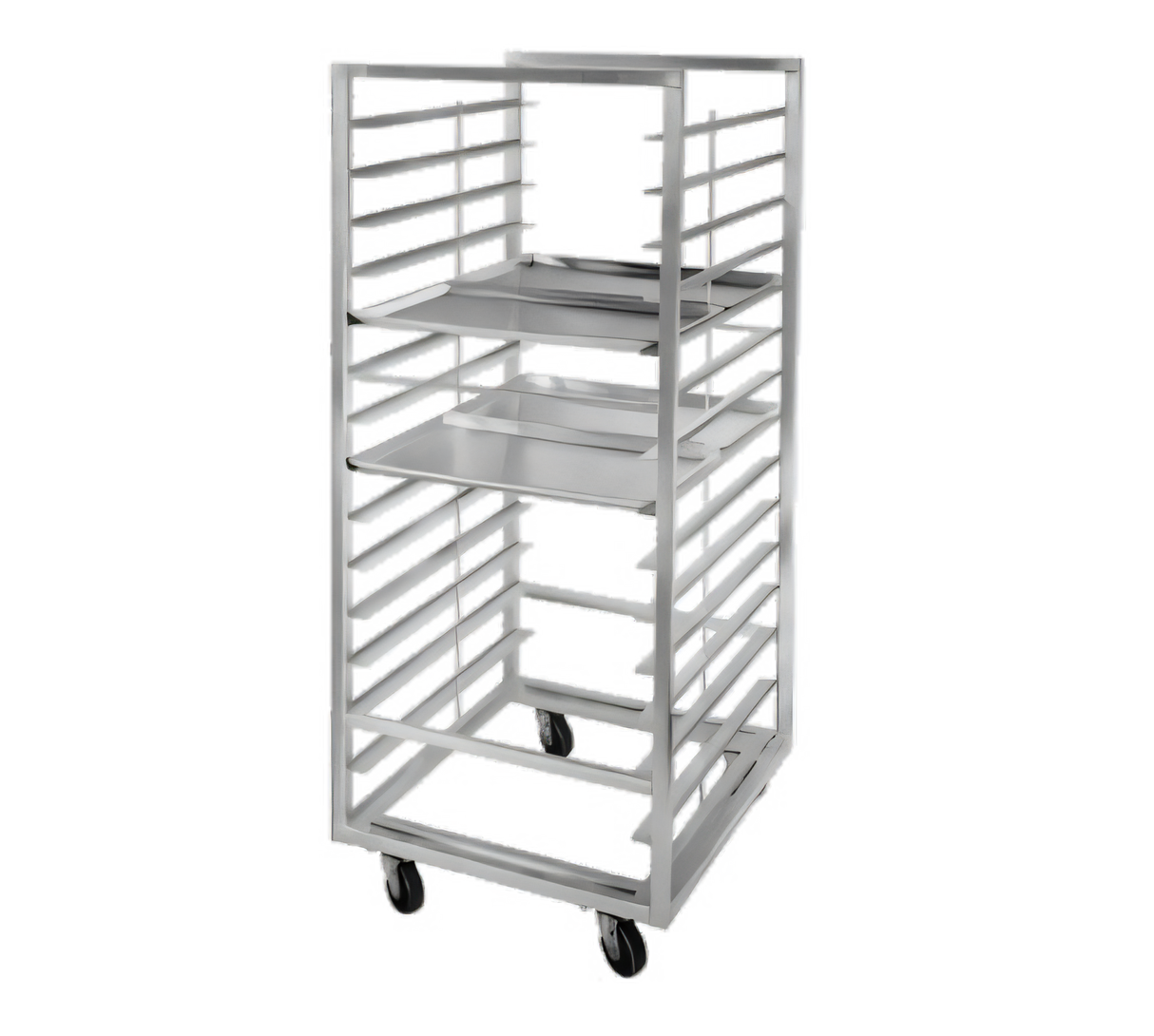

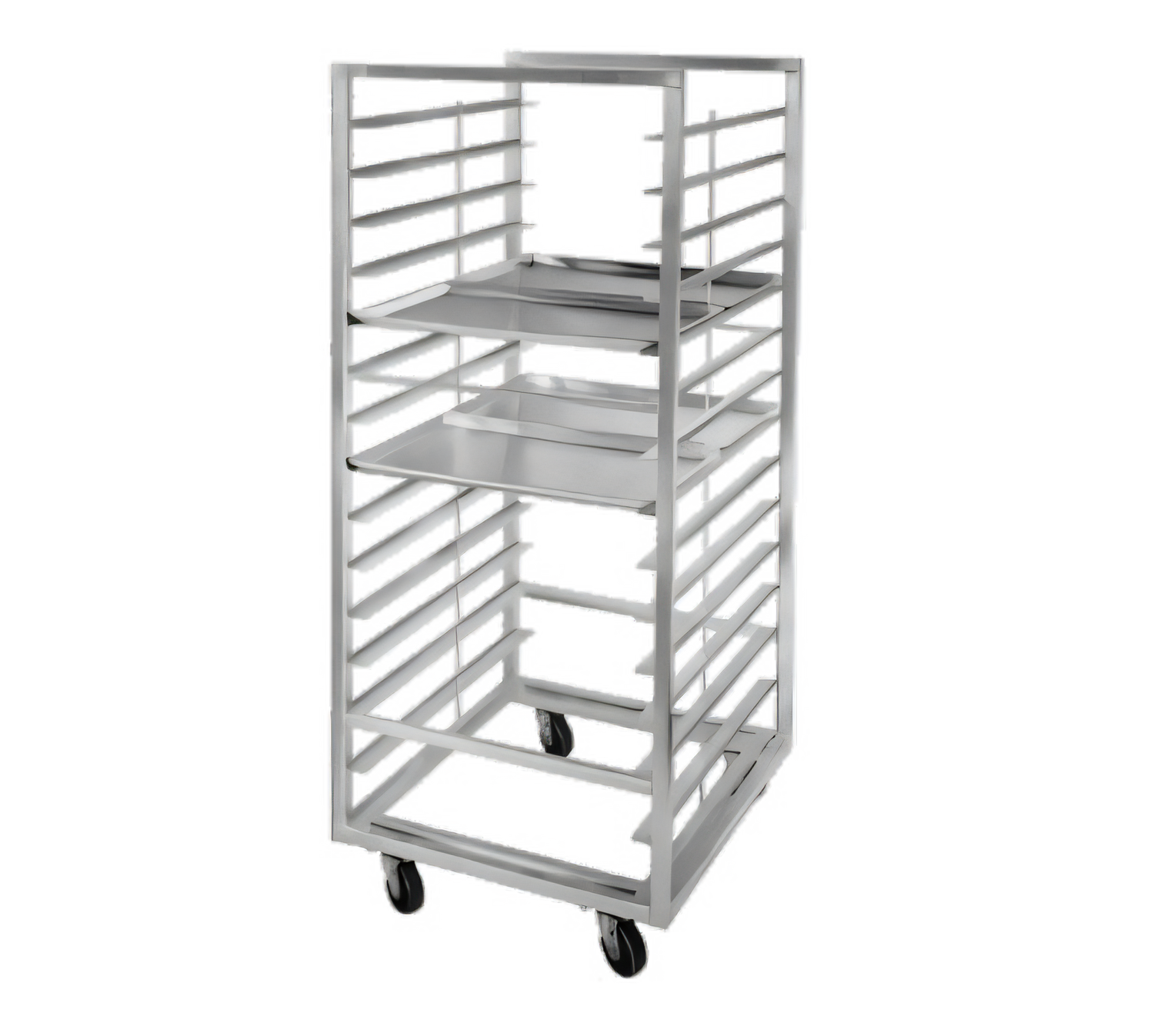

CPS54H Stainless Steel Double-Section Oven Rack

Model 414S-DOR • 20-Pan Capacity • Side Load

Engineered for extreme temperatures and heavy, everyday use, the Channel Manufacturing CPS54H oven rack rolls seamlessly from blast chiller to deck oven without missing a beat. Its fully welded 304 stainless steel frame, high-temperature casters, and generous 6 inch pan spacing make it the workhorse your kitchen can count on.

Key Features

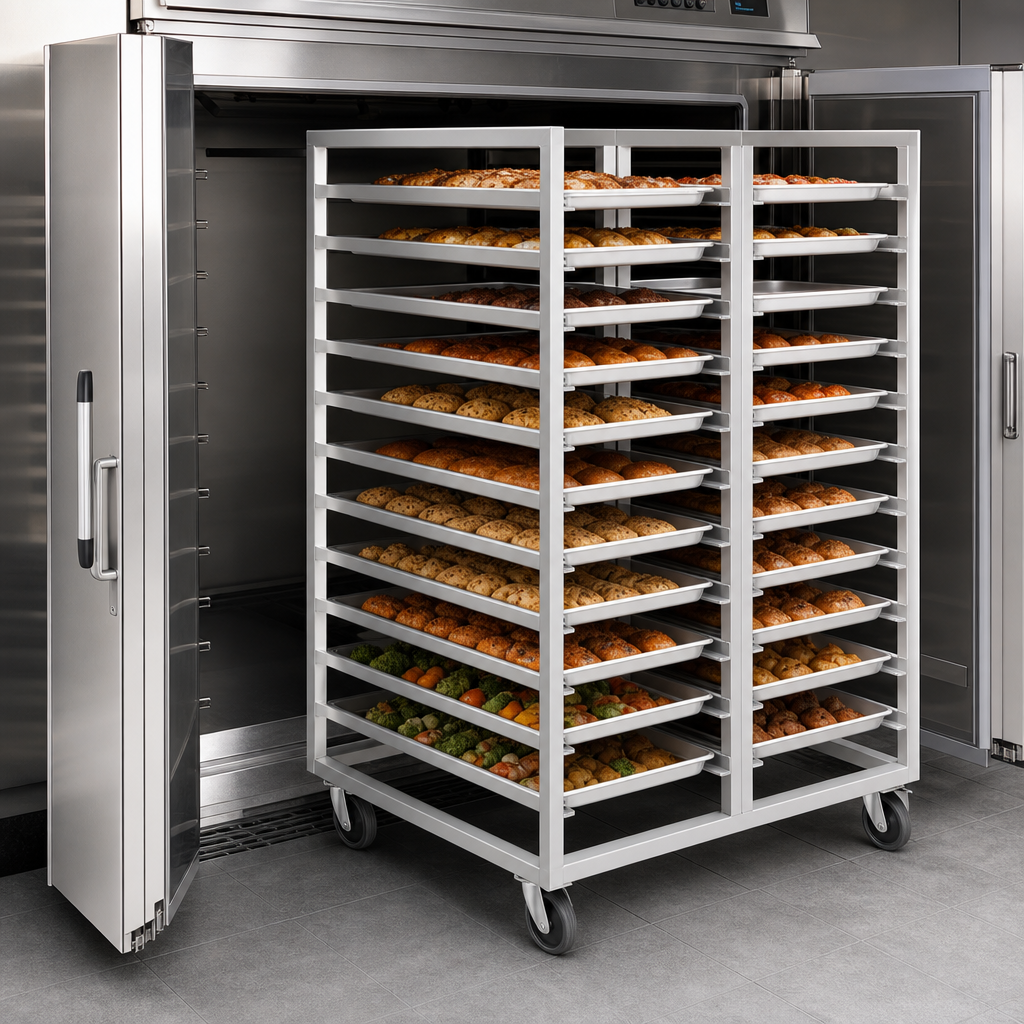

  • Double-section, side-load design holds 20 full-size (18 × 26 in.) bun pans – two per tier.
  • 6 in. angle spacing provides ample clearance for roasts, sheet-pan meals, and improved air flow.

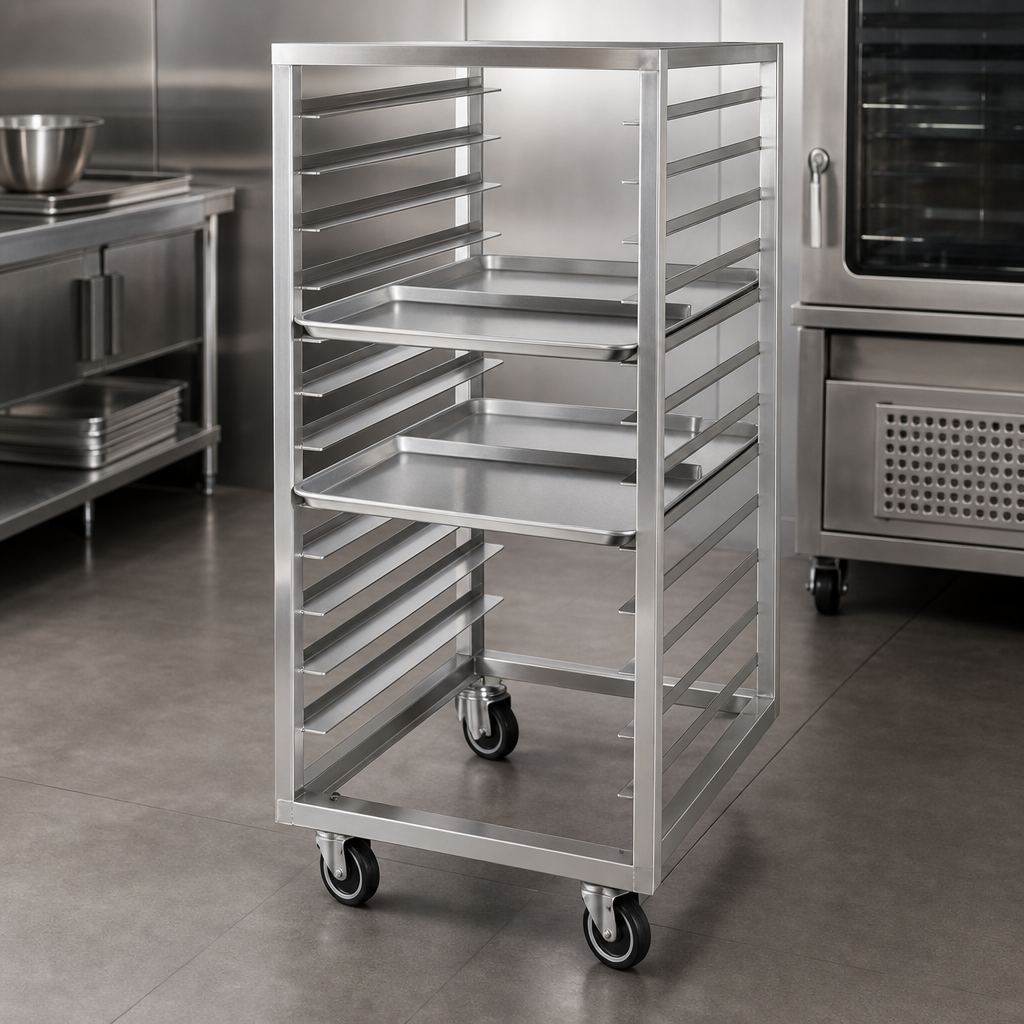

  • 18-gauge, 304 stainless steel construction resists rust and corrosion for life.
  • (4) 4 in. full-swivel, high-temperature phenolic plate casters with zerk fittings – rated 475 °F continuous / 575 °F intermittent and down to –45 °F.
  • Ships fully assembled and ready for immediate use.
  • NSF listed and proudly Made in the USA.

Ideal Applications

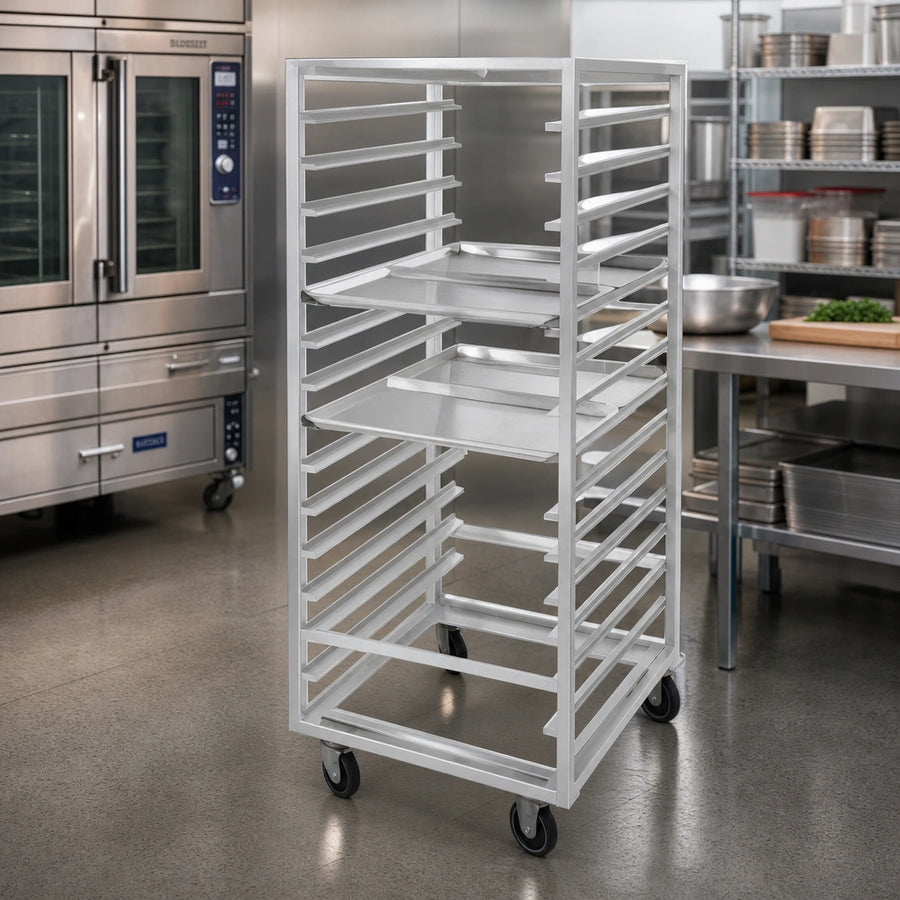

Perfect for commercial bakeries, commissaries, hotels, and institutional kitchens that demand a rack tough enough to handle proofing, baking, holding, and blast chilling—all with a single piece of equipment.

Specifications

Model No. CPS54H • base #414S-DOR-__
Capacity 20 pans (18 × 26 in.) – two per tier
Tray Spacing 6 in. angle slides
Loading Style Side load, double section
Overall Dimensions 69.75 H × 29 W × 36 D in.
Material 18-gauge 304 stainless steel
Casters (4) 4 in. swivel phenolic plate casters w/ zerk grease fittings
Item Weight 86 lb (rack only)
Warranty 5-year limited against rust & corrosion
Certifications NSF
Country of Origin United States

Popular Options & Accessories (sold separately)

  • /011 Caster brakes
  • /CC Card clips
  • /009 Aluminum pan stop  |  /010 Stainless pan stop
  • /PG Gravity pan stop
  • “B” or “C” lift devices – specify 2 or 4 lifters and end/side placement
Important: CAD drawings will be supplied for customer approval. Base rack ships without lifting devices or pan stops unless ordered above. Shipping weight will include an additional 50 lb pallet.

Need a custom spacing, special size, or other modification? Contact us— Channel can build to your exact specifications.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

69.75in

Width

29.0in

Depth

36.0in

Shipping Weight

86.0lbs

Rack Size

double

Pan Capacity

20 - 29

Style

no lift

Loading

side

Construction

stainless steel

Specifications

Oven Rack, Double Section, Stainless Series, 29"W x 36"D x 69.75"H, Stainless Steel Construction, Side Load, 6" Angle Spacing, (20) 18" x 26" pans, 4" Swivel High Temp Phenolic Plate Casters w/ Zerk grease fitting model # CPS54H, Made in USA, NSF, 86lbs. (ITEM WEIGHT ONLY), CAD drawing will be supplied for approval, base oven rack model excludes lifting devices and pan stops, weight does not include 50 lbs. for pallet weight,
