Channel Manufacturing  |  SKU: 413S-DOR  |  UPC: 835384002261

Channel Manufacturing 413S-DOR Specialty Ovens

$1,320.46
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Ovens Specialty Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

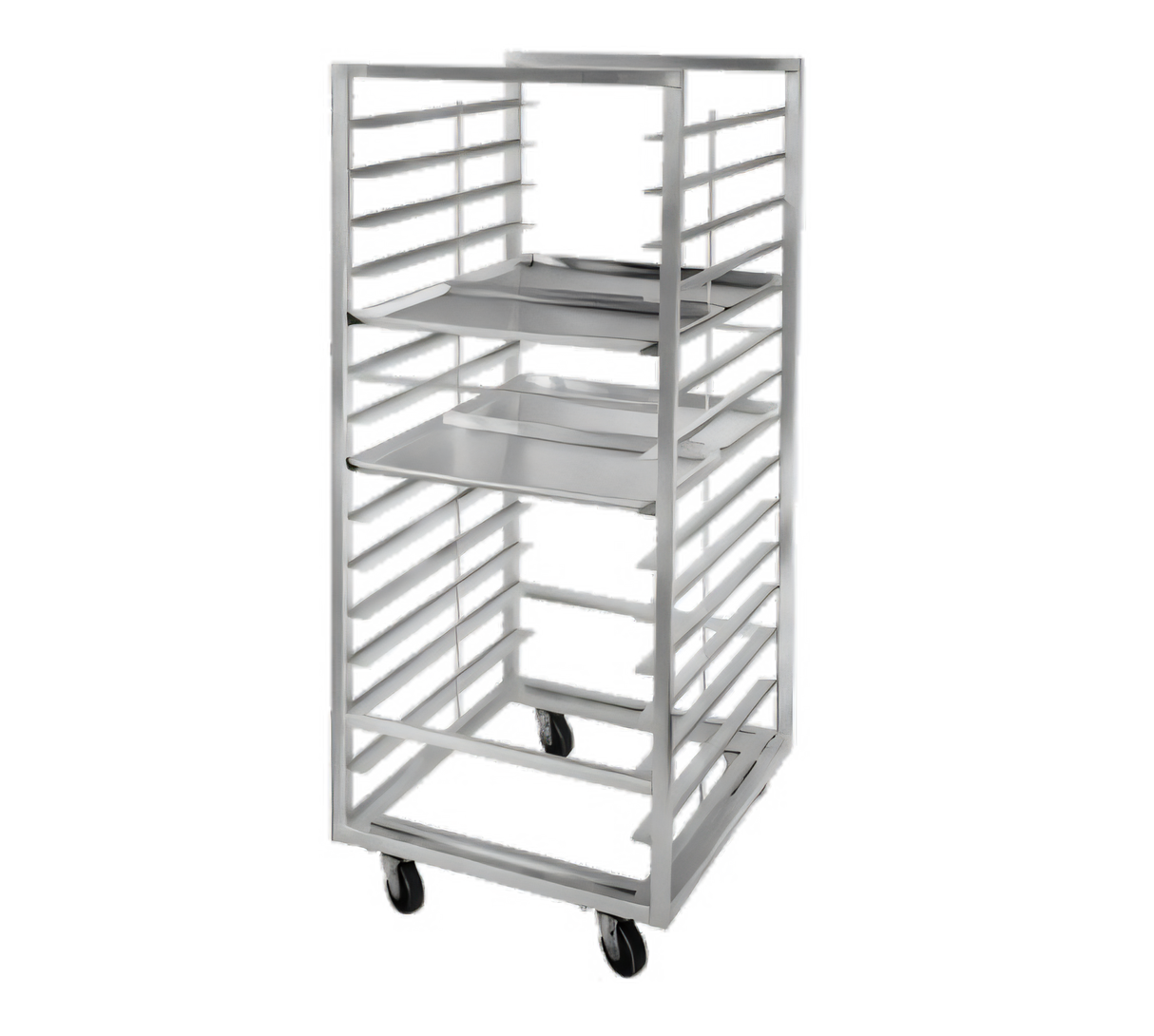

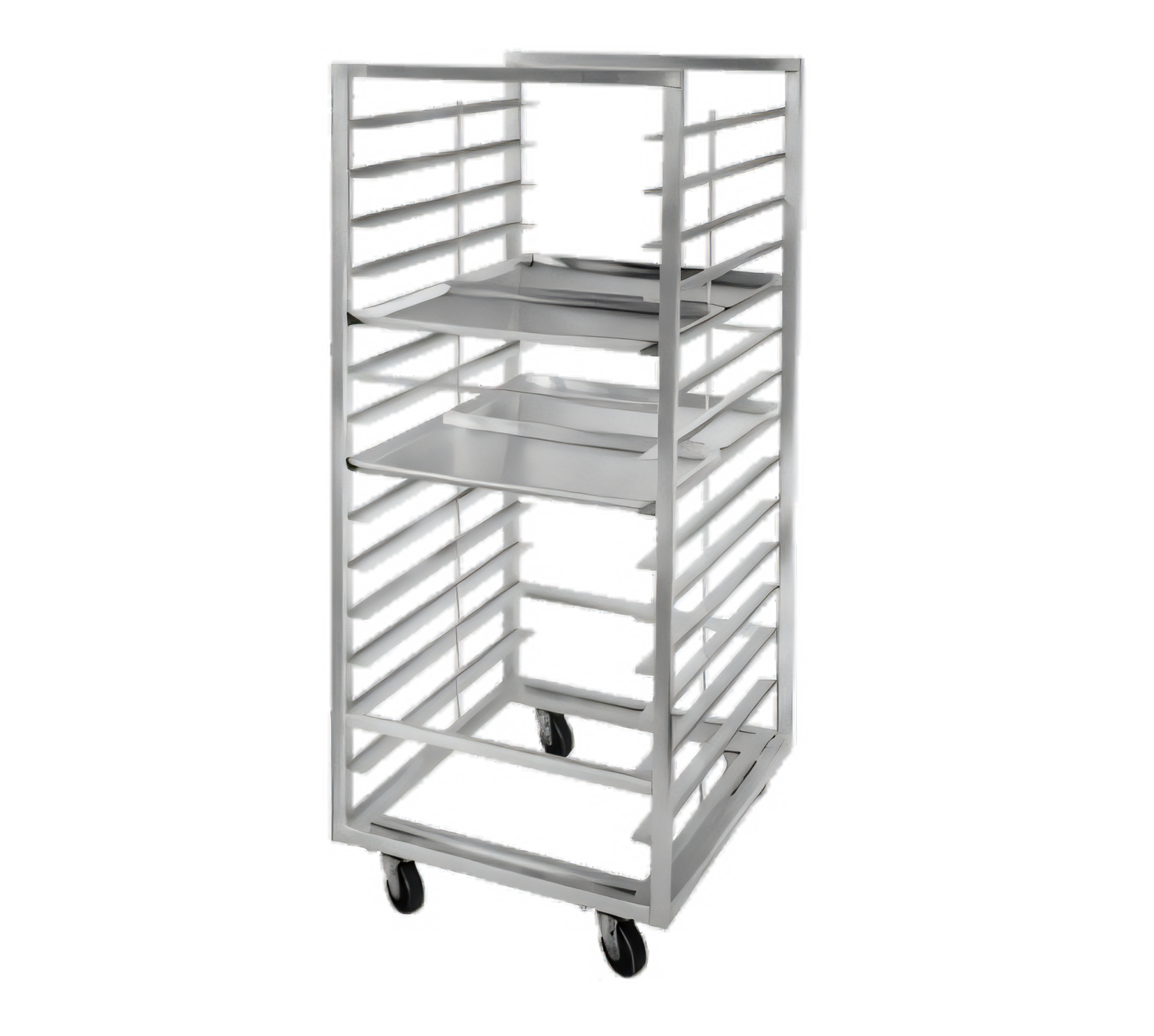

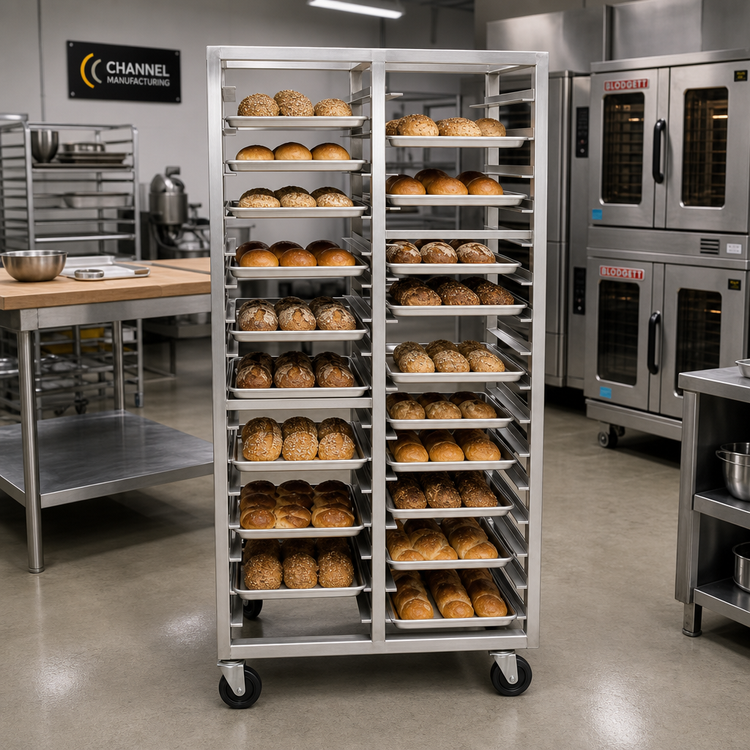

Channel CPS54H Double-Section Side-Load Stainless Steel Oven Rack

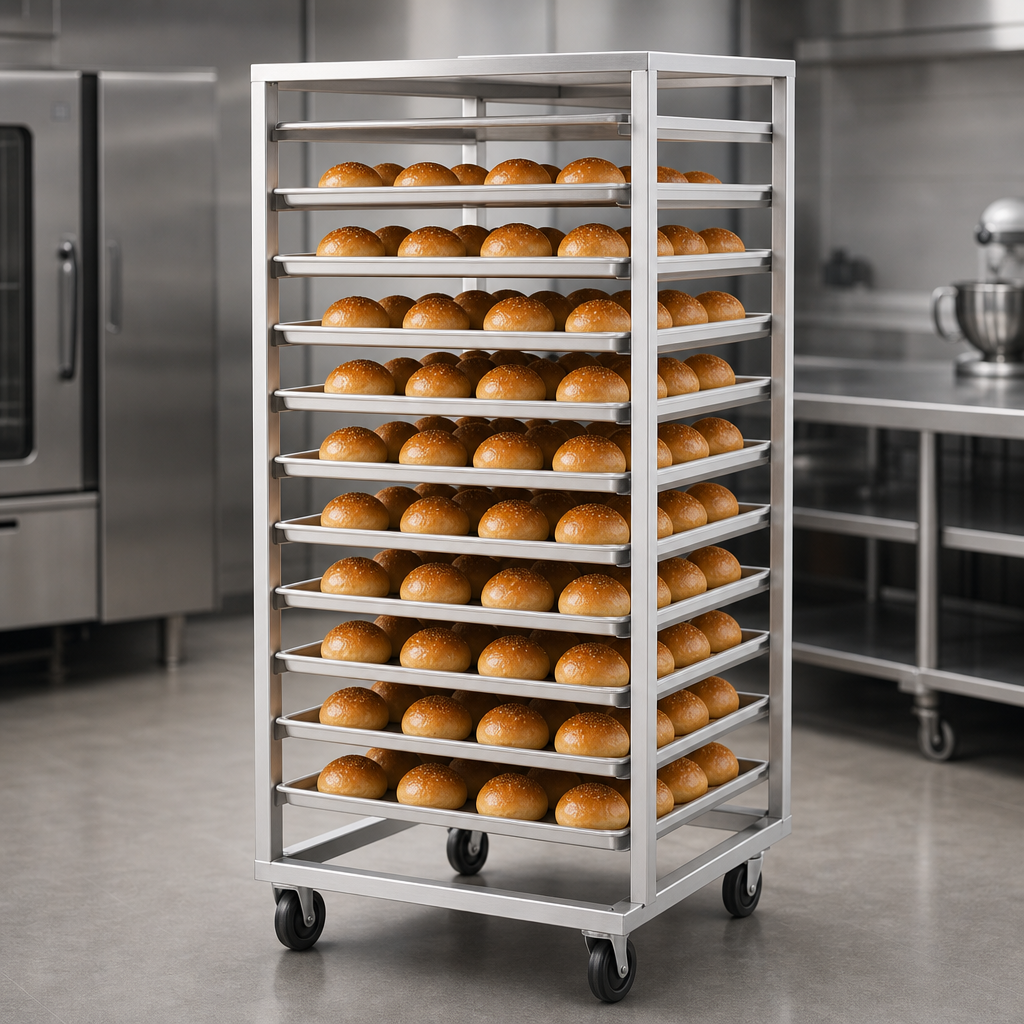

24-Pan Capacity • 5" Slide Spacing • NSF Listed & Made in the USA

Engineered for today’s high-volume bakeries, commissaries and food-service kitchens, the CPS54H delivers rock-solid durability, smooth mobility and reliable performance from –45 °F blast chillers up to 575 °F bake cycles.

Key Features

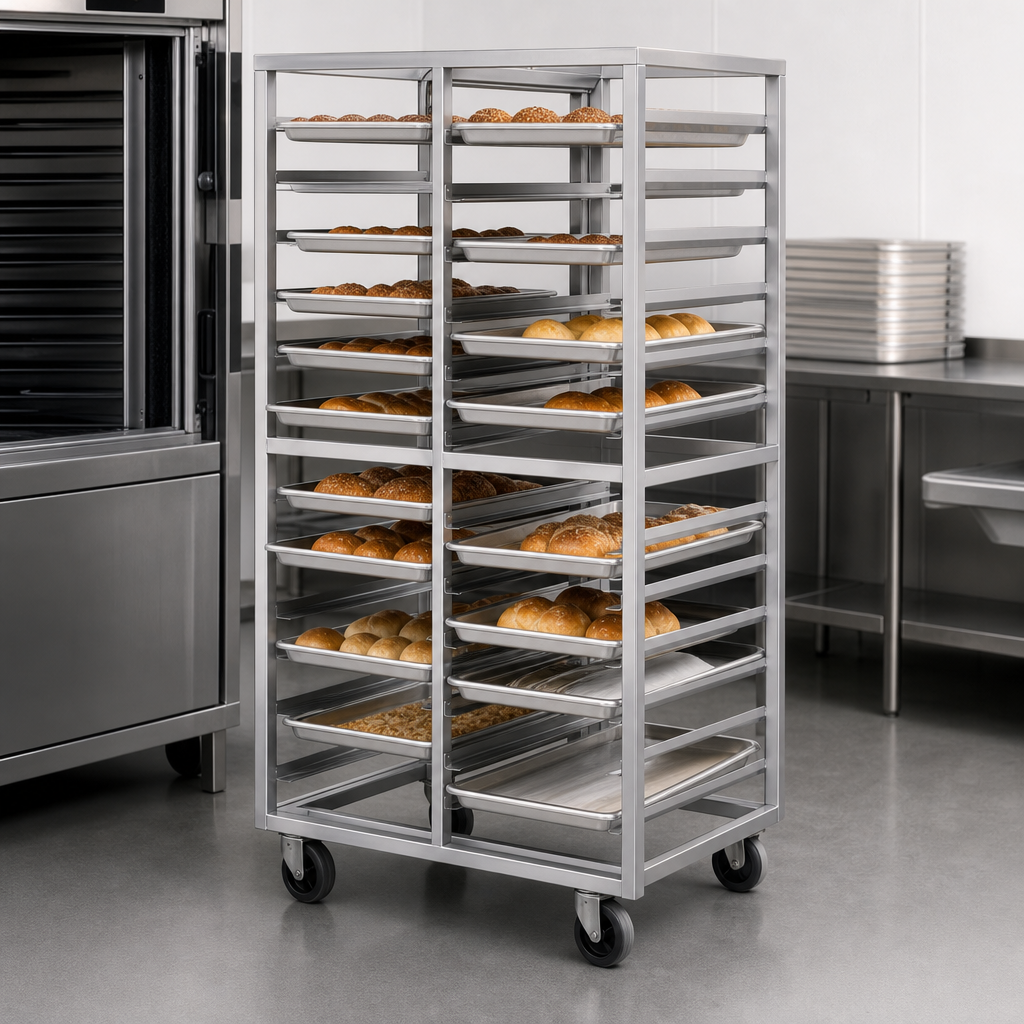

  • Double-section, side-load design holds two full-size (18" × 26") pans per level — 24 pans total.
  • Generous 5" slide spacing ideal for bulky roasts, proofing dough or cooling product without crowding.
  • All-welded 18-gauge, Type 304 stainless steel frame & slides resist rust, corrosion and cleaning chemicals.
  • Factory-installed 4" full-swivel phenolic casters with zerk grease fittings: 475 °F continuous, 575 °F intermittent, –45 °F for blast chillers.
  • Ships fully assembled & ready for use; no field welding or hardware required.
  • NSF listed for food contact and proudly made in the USA.
  • Backed by Channel’s 5-year manufacturer’s warranty.

Specifications

Model CPS54H (base rack)
Construction Stainless Series — 18-ga 304 stainless steel
Load Style Side load, double section
Pan Capacity 24 × 18" × 26" full-size sheet pans
Slide Spacing 5" center-to-center
Overall Dimensions 69.75" H × 29" W × 36" D
Casters 4" high-temp phenolic, full-swivel plate mount w/ zerk fittings
Item Weight 93 lb (shipping pallet adds approx. 50 lb)
Temperature Range –45 °F to 575 °F
Certifications NSF, Made in USA
CAD Drawing Provided for customer approval after order placement

Popular Options & Accessories (sold separately)

  • Caster brakes (/011)
  • Card clip (/CC)
  • Pan stops — aluminum (/009), stainless (/010) or gravity (/PG)
  • “B” or “C” lift devices (specify 2 or 4 lifters & placement)
Please note: The base CPS54H ships without lifting devices or pan stops. Contact us before ordering if your operation requires these or other custom configurations.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

69.75in

Width

29.0in

Depth

36.0in

Shipping Weight

93.0lbs

Rack Size

double

Pan Capacity

20 - 29

Style

no lift

Loading

side

Construction

stainless steel

Specifications

Oven Rack, Double Section, Stainless Series, 29"W x 36"D x 69.75"H, Stainless Steel Construction, Side Load, 5" Angle Spacing, (24) 18" x 26" pans, 4" Swivel High Temp Phenolic Plate Casters w/ Zerk grease fitting model # CPS54H, Made in USA, NSF, 93lbs. (ITEM WEIGHT ONLY), CAD drawing will be supplied for approval, base oven rack model excludes lifting devices and pan stops, weight does not include 50 lbs. for pallet weight,
