Channel Manufacturing  |  SKU: 412S  |  UPC: 835384002117

Channel Manufacturing 412S Pan Racks

$882.04
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Pan Racks Racks & Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

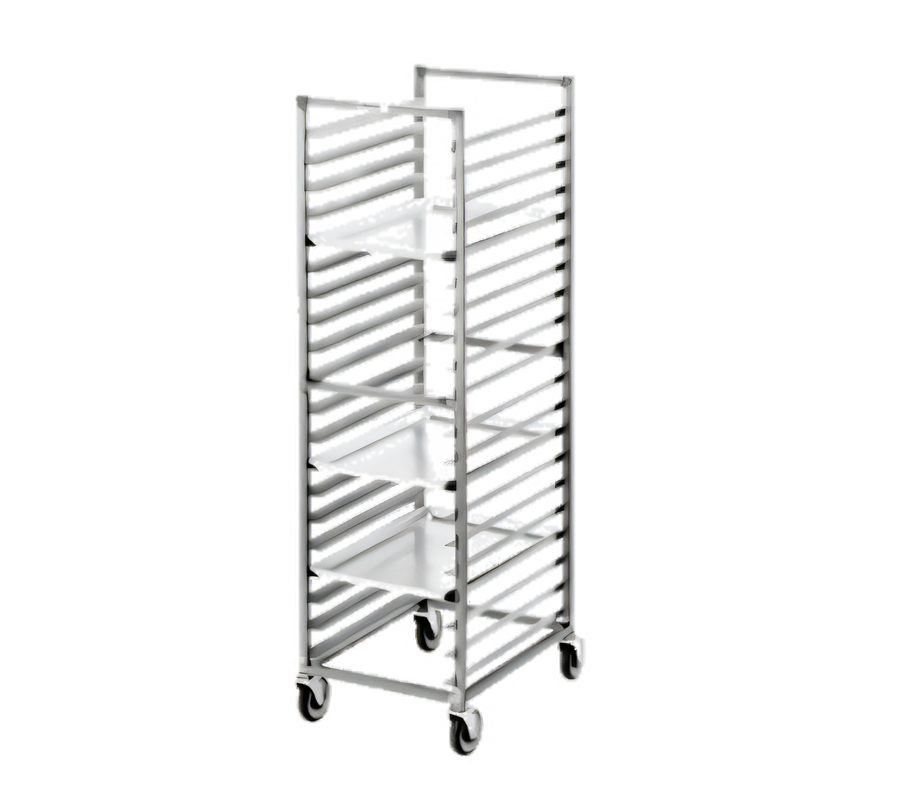

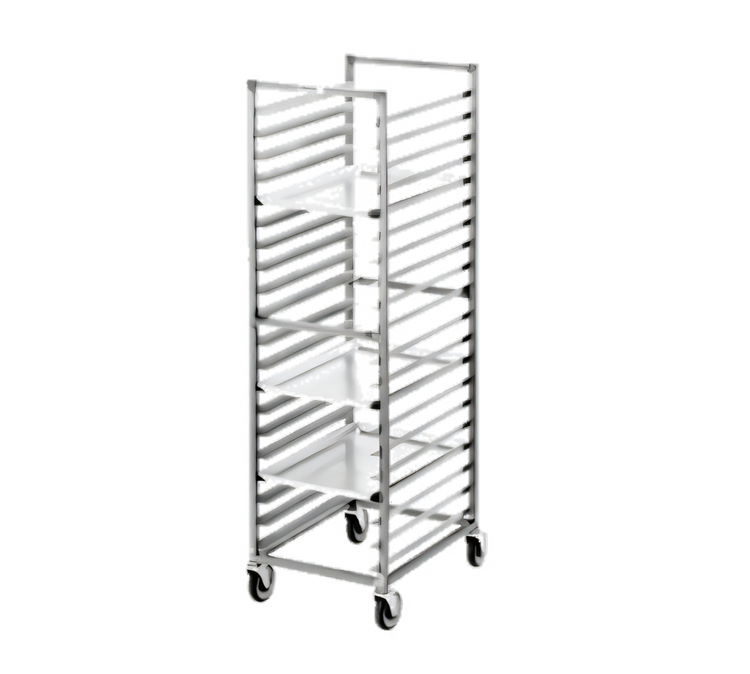

Channel Stainless Steel Side-Load Bun Pan Rack – 15 Pan, 4" Spacing (Model CSS45PU)

All-Welded • NSF Listed • Made in USA

Built for high-volume bakeries, commissaries, and commercial kitchens, the Channel Manufacturing CSS45PU rack combines rugged 304 stainless-steel construction with smooth-rolling mobility and a space-saving side-load design. Arriving fully welded and ready for work, it keeps your operation moving—pan after pan.

Key Features

  • Holds fifteen (15) full-size 18" × 26" bun/sheet pans
  • 4" slide spacing balances capacity and airflow for efficient cooling

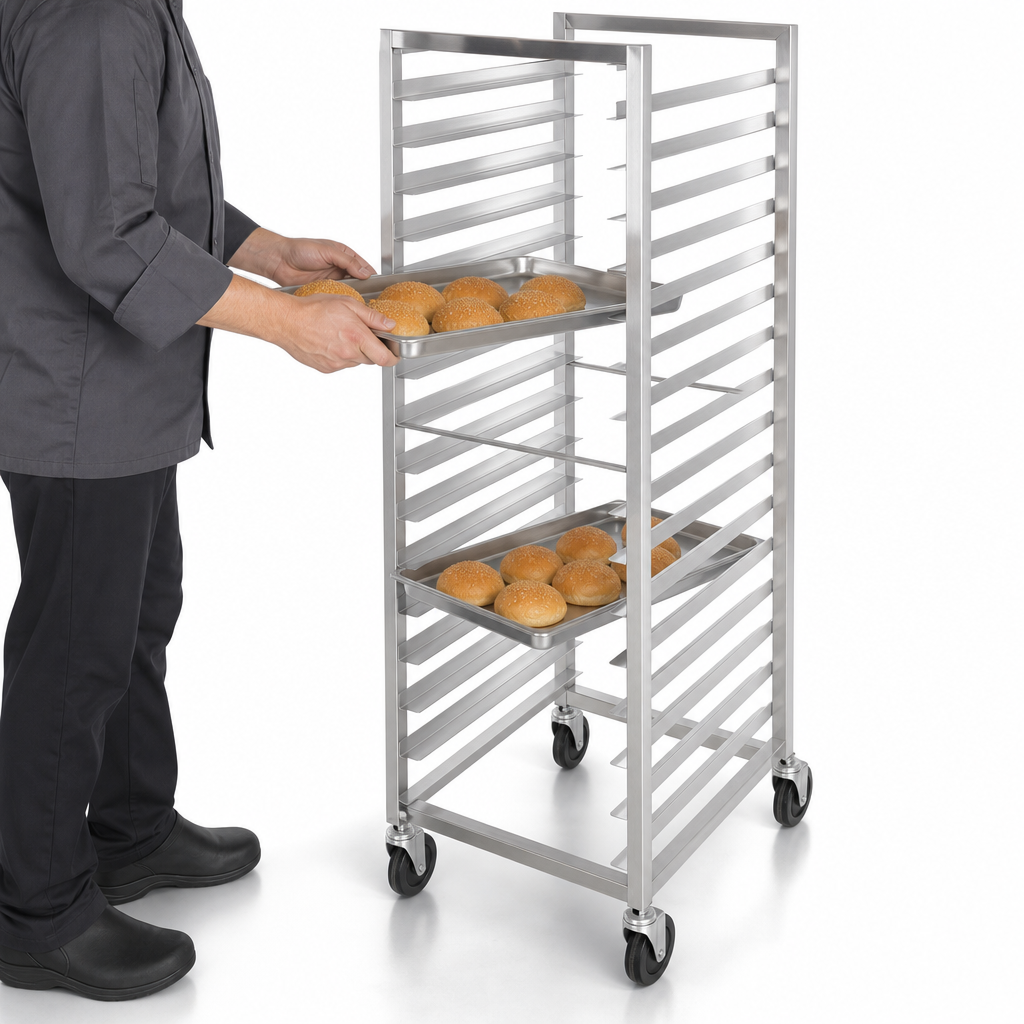

  • Side-load configuration—ideal for tight aisles and speed racks
  • All-welded 18-gauge type 304 stainless steel; no assembly required
  • 1" × 1½" angle slides heli-arc welded to frame with bottom load ledge to prevent tipping
  • 1" square tube uprights with solid flat-bar cross supports for maximum rigidity
  • (4) 5" full-swivel, non-marking stem casters (polyurethane wheels) for effortless maneuverability
  • NSF listed for direct food-contact environments
  • Proudly manufactured in the USA

Specifications

Model CSS45PU
Loading Style Side Load
Pan Capacity 15 × 18" × 26" pans (single pan per ledge)
Slide Spacing 4" on center
Overall Dimensions 28.5" W × 18" D × 70.25" H
Construction All-welded 18-ga type 304 stainless steel
Casters (4) 5" swivel stem, non-marking polyurethane wheels
Item Weight 44 lb (rack only)
Shipping Weight Approx. 94 lb (includes pallet & protective packaging)
Certifications NSF Listed
Country of Origin USA

Popular Options & Upgrades (sold separately)

  • /011 Caster Brakes – lock two casters for stationary use
  • /052 Heavy-duty 5" × 2" caster upgrade
  • /024 Four-corner bumpers to protect walls & equipment
  • /PB Full-perimeter bumper
  • /009 Pan Stop – Aluminum / /010 Pan Stop – Stainless
  • /BA Solid bottom shelf for small items
  • Custom sizes and double-section racks available—contact us for details
Shipping Note: The listed weight (44 lb) reflects the rack only. A pallet and protective packaging (≈ 50 lb) are required for freight shipment and will be included in the total shipping weight shown at checkout.

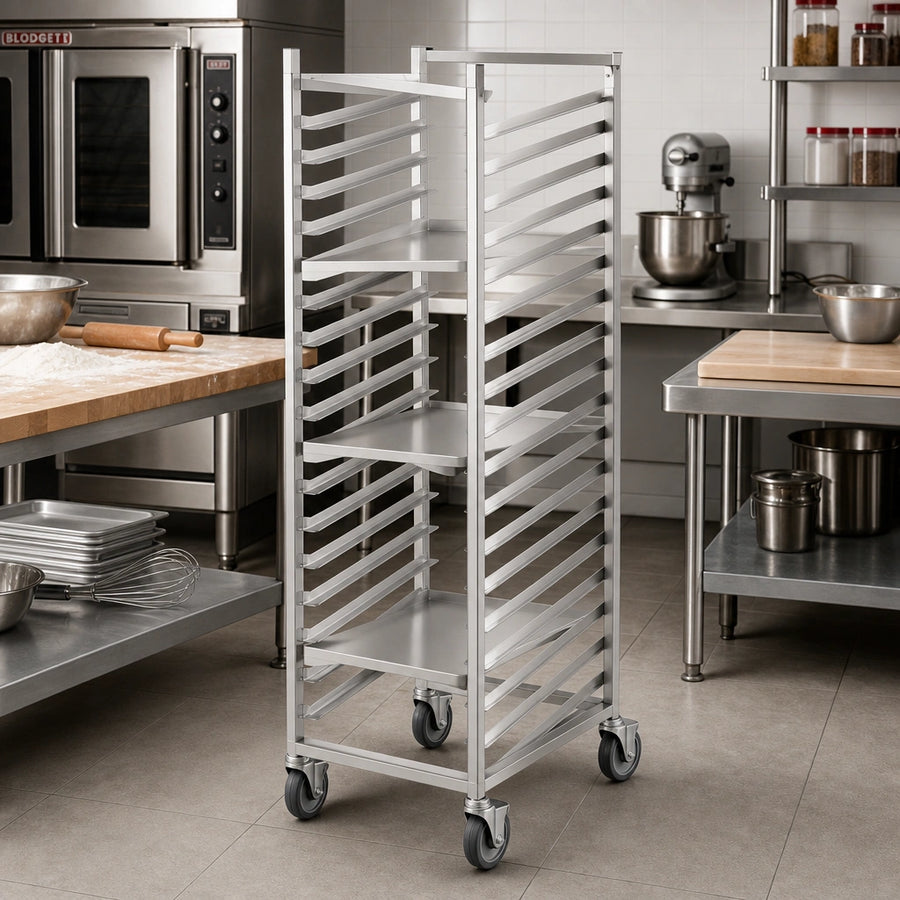

Pans shown in lifestyle images are for illustration only and are not included.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

70.25in

Width

28.5in

Depth

18.0in

Shipping Weight

44.0lbs

Loading

side loading

Height

67" - 72"

Ships

assembled / welded

Pan Capacity

11 - 15

Construction

stainless steel

Sides

open sides

Centers

4 to 4-3/4" centers

Top

open top

Specifications

Bun Pan Rack, All-Welded, Stainless Series, 28.5"W x 18"D x 70.25"H, Stainless Steel Construction, Side Load, 4" Angle Spacing, (15) 18" x 26" pans, 5" Swivel Stem Casters model # CSS45PU, Made in USA, NSF, 44lbs. (ITEM WEIGHT ONLY), weight does not include 50 lbs. for pallet weight
