Channel Manufacturing  |  SKU: 412S-OR  |  UPC: 835384002155

Channel Manufacturing 412S-OR Specialty Ovens

$1,091.66
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Ovens Specialty Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

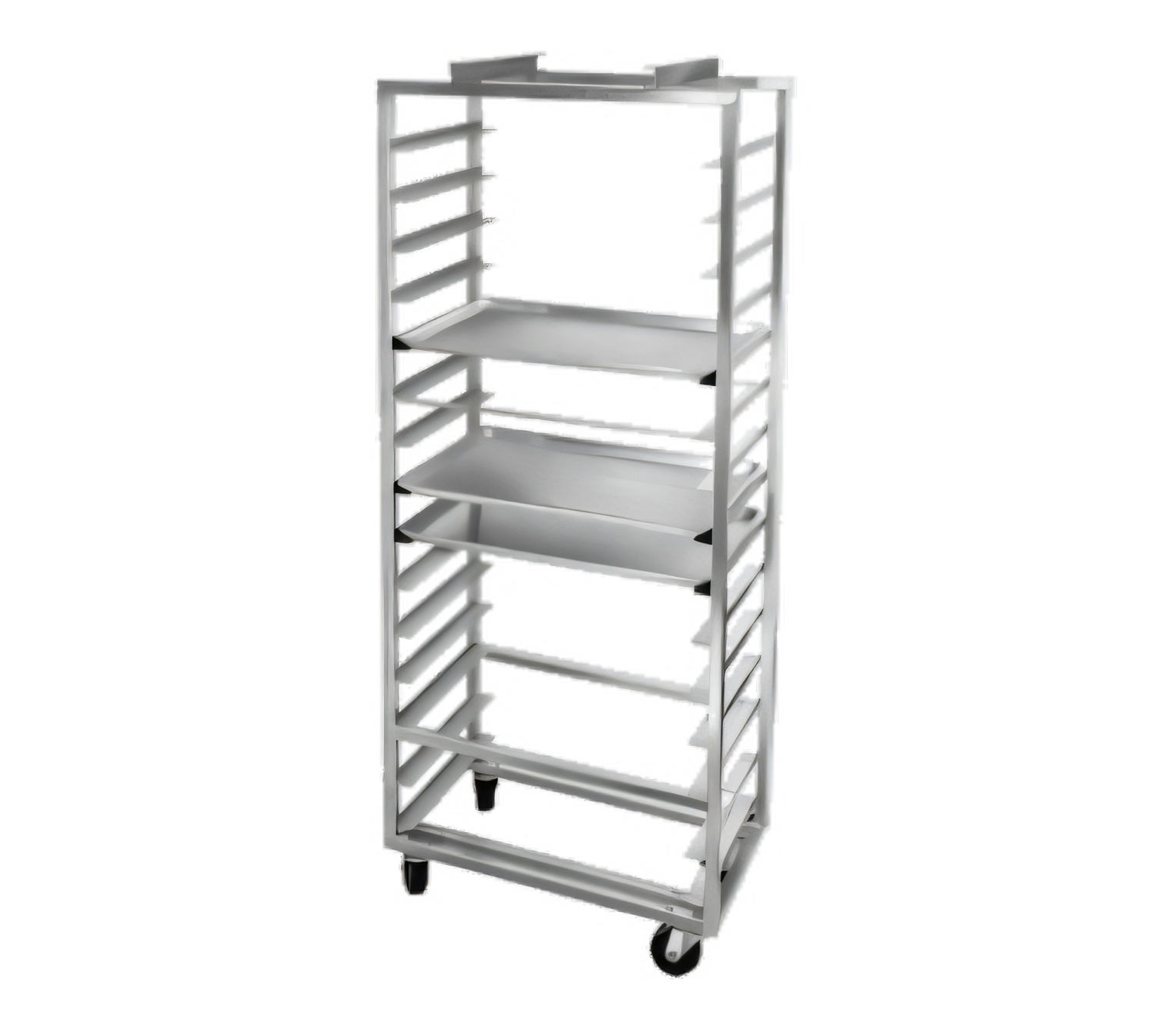

Channel CPS54H Stainless Steel Side-Load Oven Rack

Single Section • 15 Pans • 4 in Spacing

Built for intense commercial baking environments, the CPS54H delivers rock-solid stainless-steel durability, smooth side-loading workflow, and high-temperature mobility—all in a compact footprint that slips effortlessly in and out of deck, revolving, or roll-in ovens.

Key Features

  • Accepts fifteen (15) 18 in × 26 in full-size bun pans.
  • 4 in angle spacing keeps hot air circulating while giving products ample room to rise.

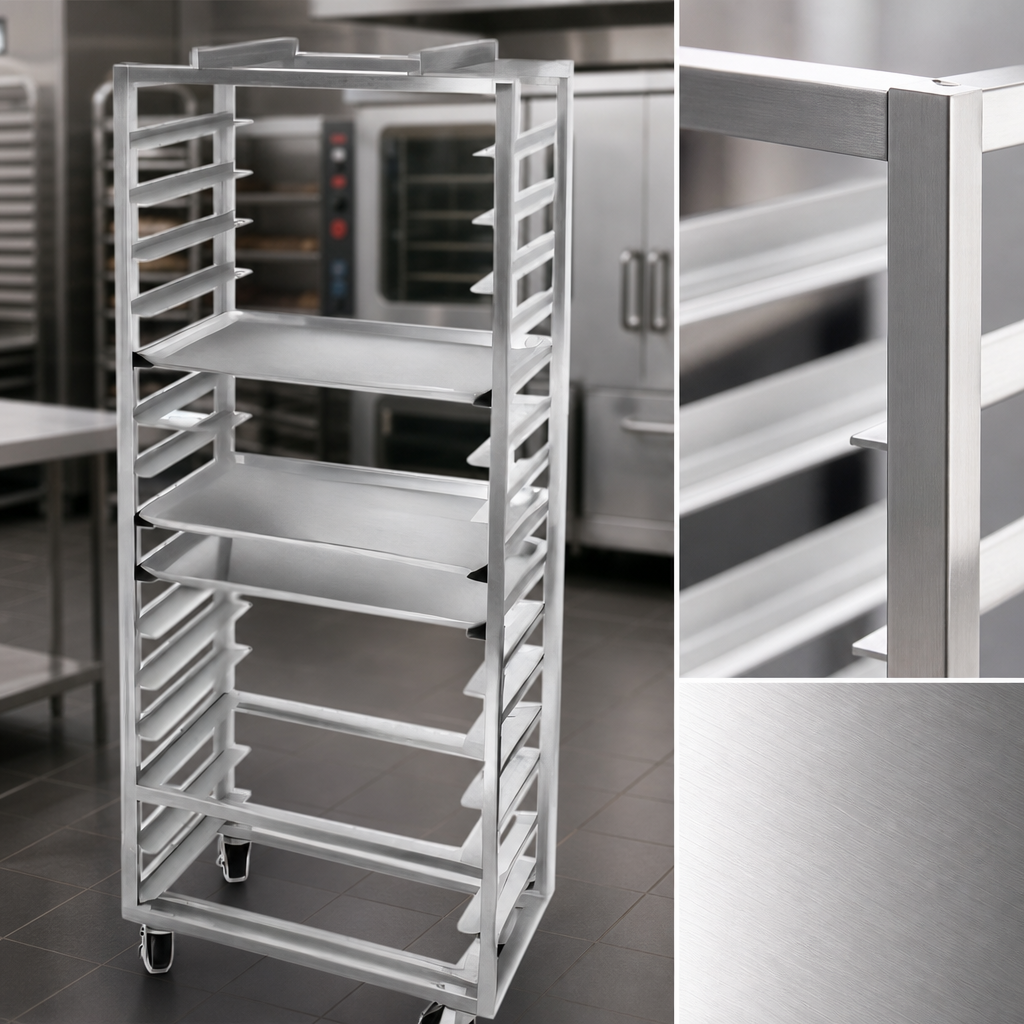

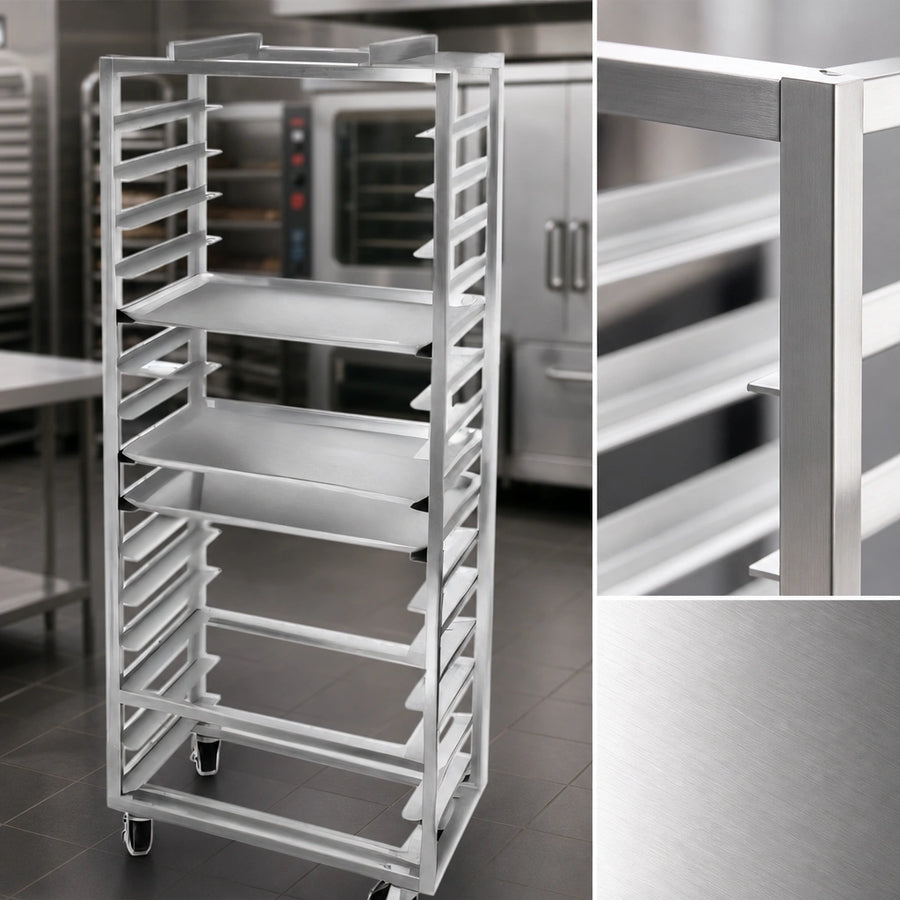

  • 18 ga, 304 stainless-steel frame and slides—resists corrosion, harsh cleaners, and daily abuse.

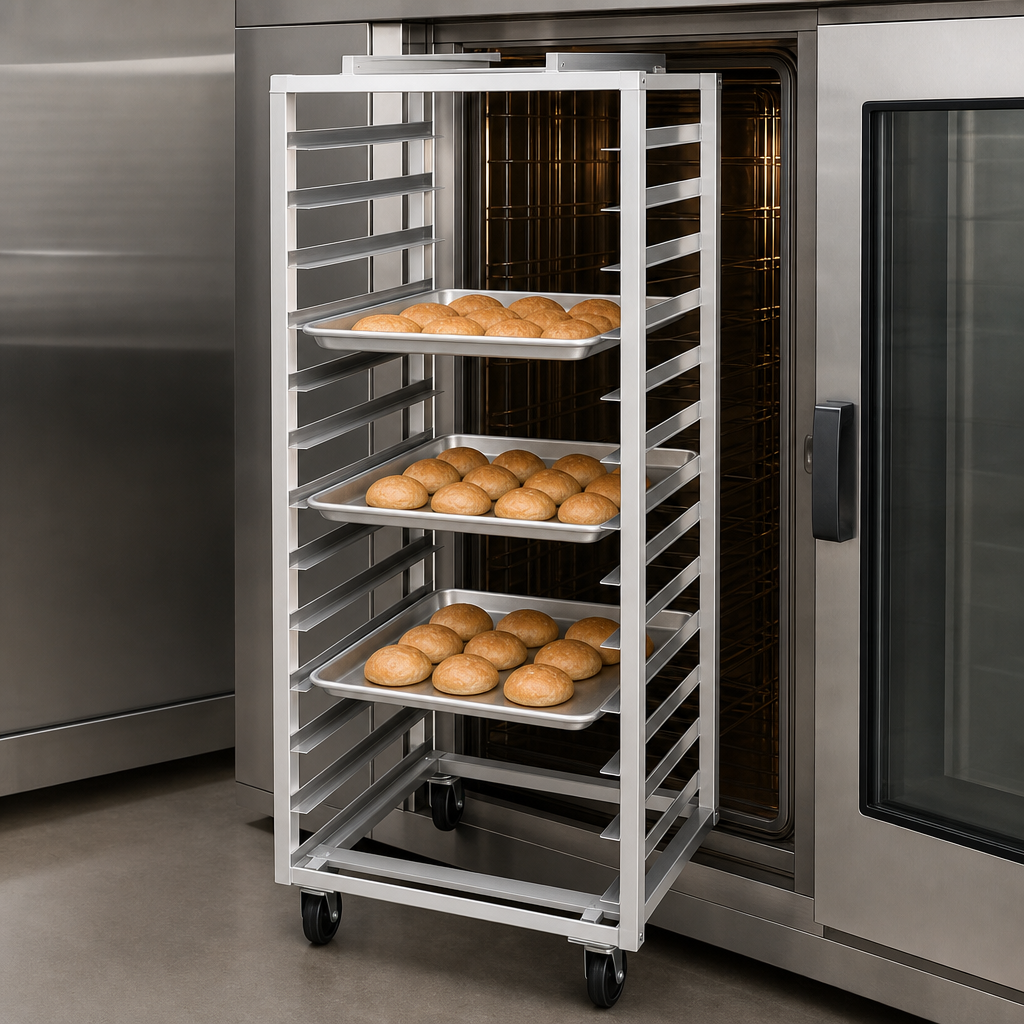

  • Side-load design simplifies loading and unloading in tight prep areas or when multiple racks are staged.
  • 4 in swivel phenolic plate casters with Zerk grease fittings
    • 475 °F continuous use
    • 575 °F intermittent use
    • –45 °F blast-chill ready
  • Ships fully welded and ready to work—no assembly required.
  • NSF listed for regulated food-service operations.
  • Proudly made in the USA and backed by a 5-year limited warranty.

Specifications

Model CPS54H
Rack Type Single section, side load
Pan Capacity 15 pans (18 × 26 in)
Slide Spacing 4 in on-center
Overall Dimensions (W × D × H) 28.5 in × 18 in × 69.75 in
Construction 18 ga, 304 stainless steel
Casters (4) 4 in high-temp phenolic swivel plate, greaseable hub
Item Weight 63 lb (rack only)
Temperature Range –45 °F to 575 °F
Certifications NSF
Country of Origin Made in USA
Warranty 5-year limited

Popular Options (sold separately)

  • Front or rear caster brakes
  • Gravity or bolt-on pan stops
  • “B” or “C” style lifter brackets (2 or 4, end or side placement)
  • Card clips for product identification
Important: The base CPS54H rack ships without lifter devices or pan stops. Quoted weight does not include the additional 50 lb pallet weight used for freight shipments. CAD drawings are provided upon request for your approval prior to production.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

69.75in

Width

28.5in

Depth

18.0in

Shipping Weight

63.0lbs

Construction

stainless steel

Style

no lift

Rack Size

single

Loading

side

Pan Capacity

14 - 19

Specifications

Oven Rack, Single Section, Stainless Series, 28.5"W x 18"D x 69.75"H, Stainless Steel Construction, Side Load, 4" Angle Spacing, (15) 18" x 26" pans, 4" Swivel High Temp Phenolic Plate Casters w/ Zerk grease fitting model # CPS54H, Made in USA, NSF, 63lbs. (ITEM WEIGHT ONLY), CAD drawing will be supplied for approval, base oven rack model excludes lifting devices and pan stops, weight does not include 50 lbs. for pallet weight,
