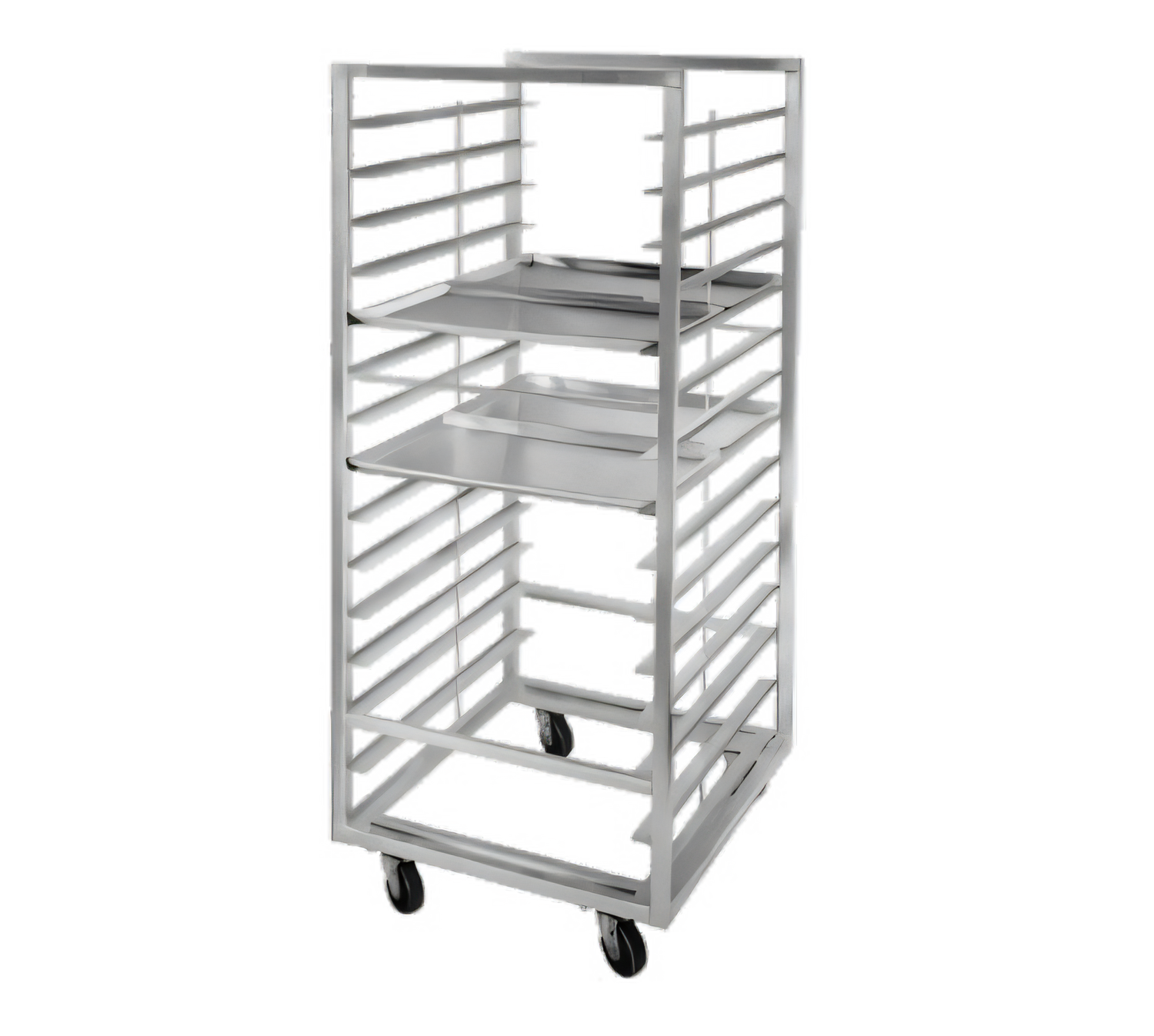

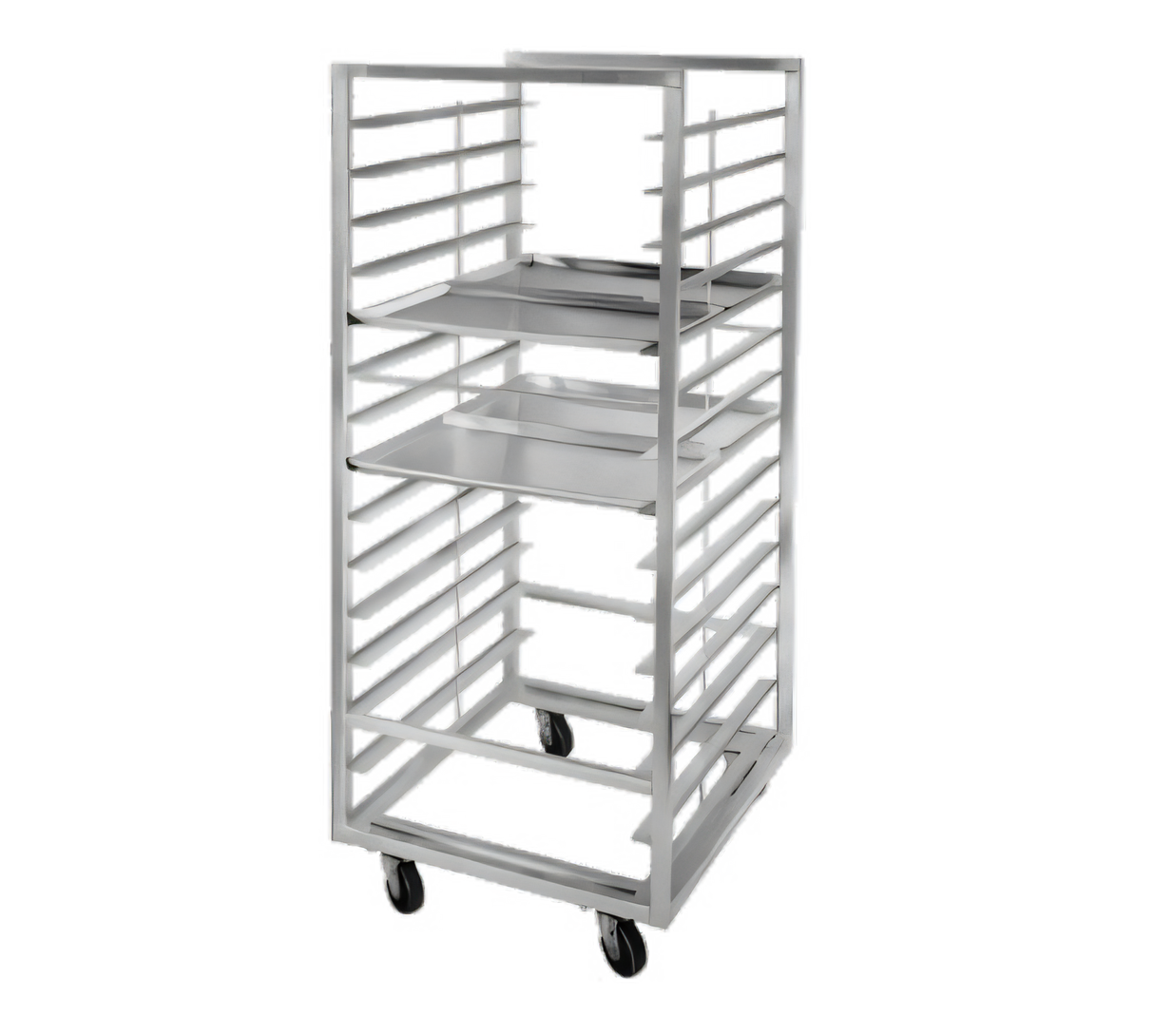

Channel Manufacturing 412A-DOR Double-Section Side-Loading No-Lift Aluminum Oven Rack, 30-Pan, 18 x 26-Inch

SKU: 412A-DOR GTIN: 835384002056
$1,048.14
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Channel Manufacturing Double Section Side-Loading No Lift Aluminum Oven Rack, 30-Pan Capacity

Standard Heavy-Duty Series, For 18 x 26 Pans

Built for demanding rotating ovens and holding cabinets, this fully assembled aluminum rack moves 30 full-size pans smoothly on high-temperature casters.

  • Double-section, side-loading design holds 30 full-size 18" x 26" pans.
  • Heavy-duty extruded aluminum construction helps resist rust and corrosion.
  • 4-inch phenolic swivel casters deliver smooth, high-temperature mobility.
  • Base model ships fully assembled and excludes lifters and pan stops.
  • Designed for rotating ovens, roll-in holding cabinets, and proofing applications.
  • Made in the USA and backed by a lifetime rust-and-corrosion guarantee.

Overall Dimensions:

29.0"W x 36.0"D x 69.75"H

Product Weight:

81.0 lb

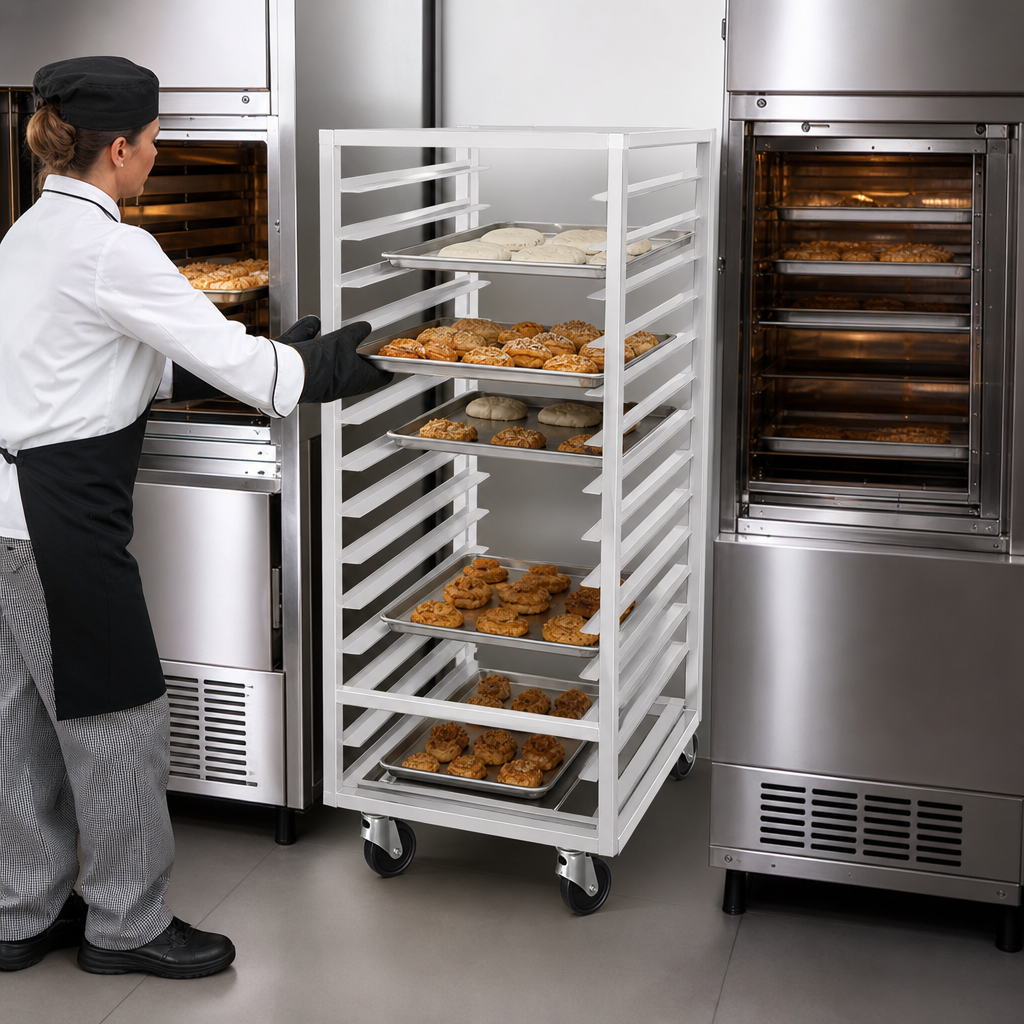

Double Section Side Loading

Built for double-section, side-loading workflow to simplify loading and unloading in busy commercial kitchens.

Double Section Side Loading

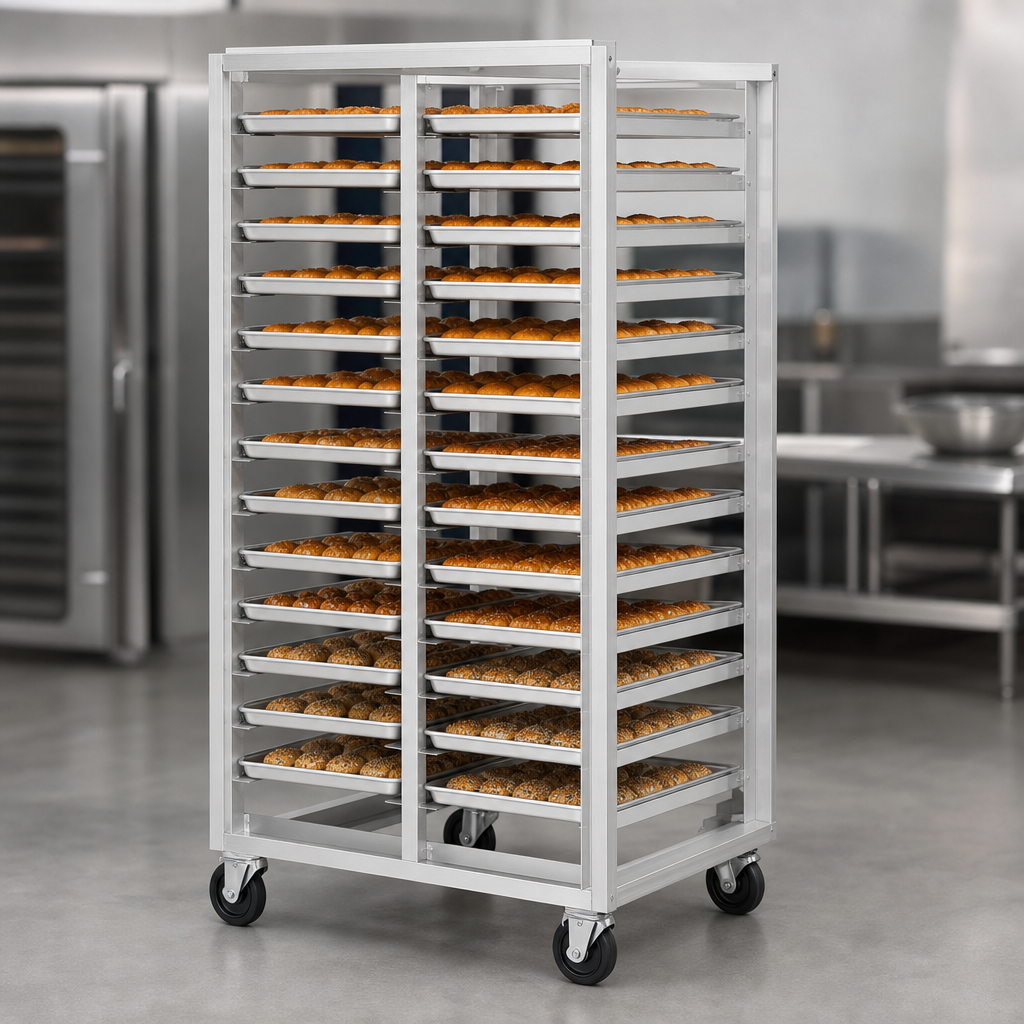

30-Pan Capacity

Accommodates up to 30 18" x 26" bun pans or perforated trays on 4-inch angle spacing.

30-Pan Capacity

Heavy-Duty Aluminum Construction

High-tensile extruded 6063-T5 aluminum construction is designed for demanding high-temperature use.

High-Temperature Phenolic Casters

Equipped with 4-inch full-swivel, non-marking phenolic plate casters with zerk grease fittings; model CPS54H.

Rust And Corrosion Resistance

Aluminum construction carries a lifetime guarantee against rust and corrosion.

Fully Assembled Base Model

Ships fully assembled and ready for use; lifting devices and pan stops are sold separately.

Blast Chiller Compatible

Caster ratings support use in high-heat applications and down to -45°F in blast chillers.

Related Searches

Storage, Transport & Shelving Commercial Shelving Racks & Storage Systems Carts & Mobile Transport Dollies & Hand Trucks Insulated Food & Beverage Transport Secure Storage
Type Oven Rack
Style No Lift
Installation Type Freestanding
Rack Size Double
Loading Side
Material Aluminum
Pan Capacity 30 Pans
Pan Size 18 x 26 Inches
Country of Origin USA
Selling Unit Each
Units Per Case 1
Width 29 Inches
Depth 36 Inches
Height 70 Inches
Weight 31 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Lifetime guarantee against rust and corrosion.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It holds up to 30 full-size 18" x 26" pans or perforated trays.
No. This is the base no-lift model, and lifting devices are not included.
It is made from heavy-duty extruded aluminum.
It uses 4-inch full-swivel phenolic plate casters with zerk grease fittings.
Yes. The casters are rated for 475°F continuous use, 575°F intermittent use, and down to -45°F in blast chillers.
