Channel Manufacturing 411S-DOR Specialty Ovens
Description
Channel CPS54H Stainless Steel Double-Section Oven Rack
40-Pan • Side-Load • 3" Slide Spacing • NSF ListedBuilt for the heat of the kitchen and the chill of the blast freezer, the Channel CPS54H double-section oven rack delivers rock-solid 18 ga 304 stainless steel construction, generous 40-pan capacity, and ultra-durable, high-temperature casters that keep your operation rolling day after day.
Why You’ll Love It

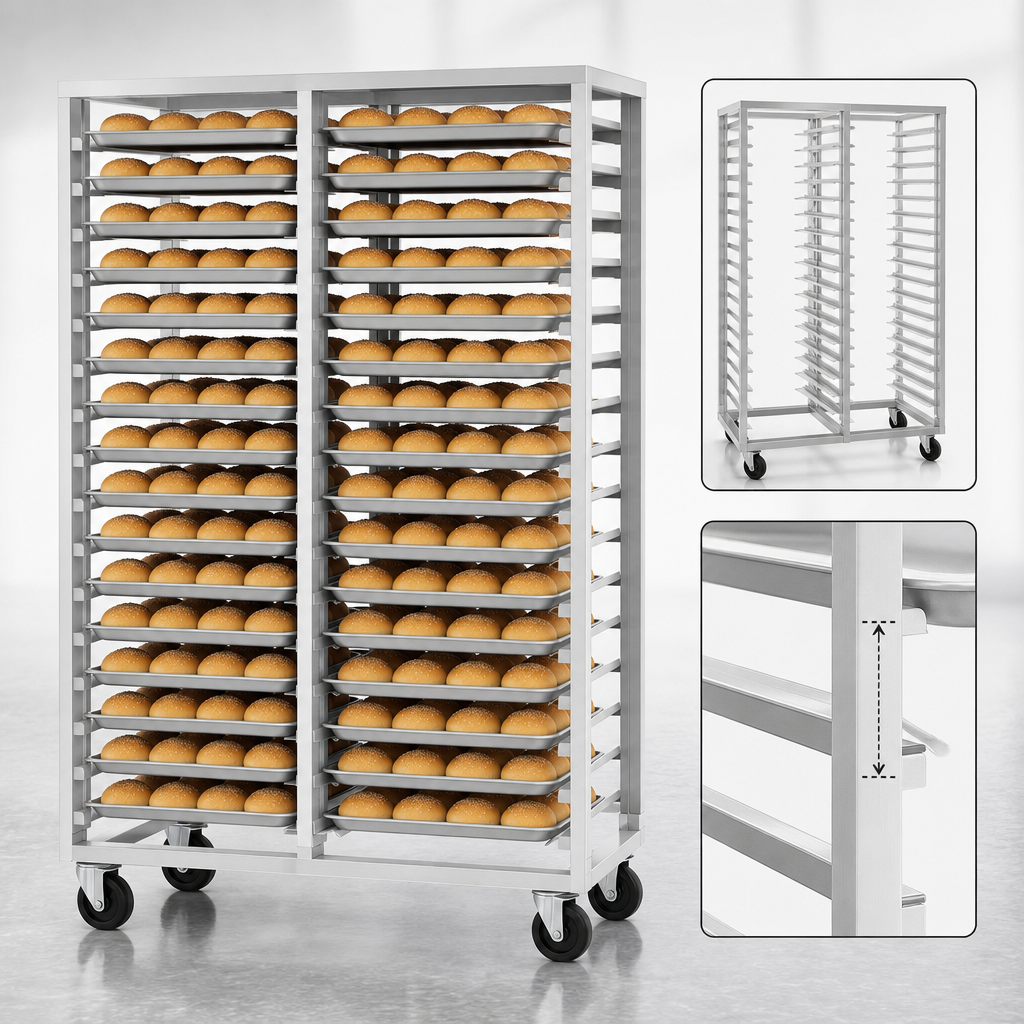

- Holds forty (40) full-size 18" × 26" bun pans—two pans per set of slides to maximize oven throughput.
- Side-load, double-section design fits 3" angle slides for easy loading/unloading and improved airflow in convection ovens.

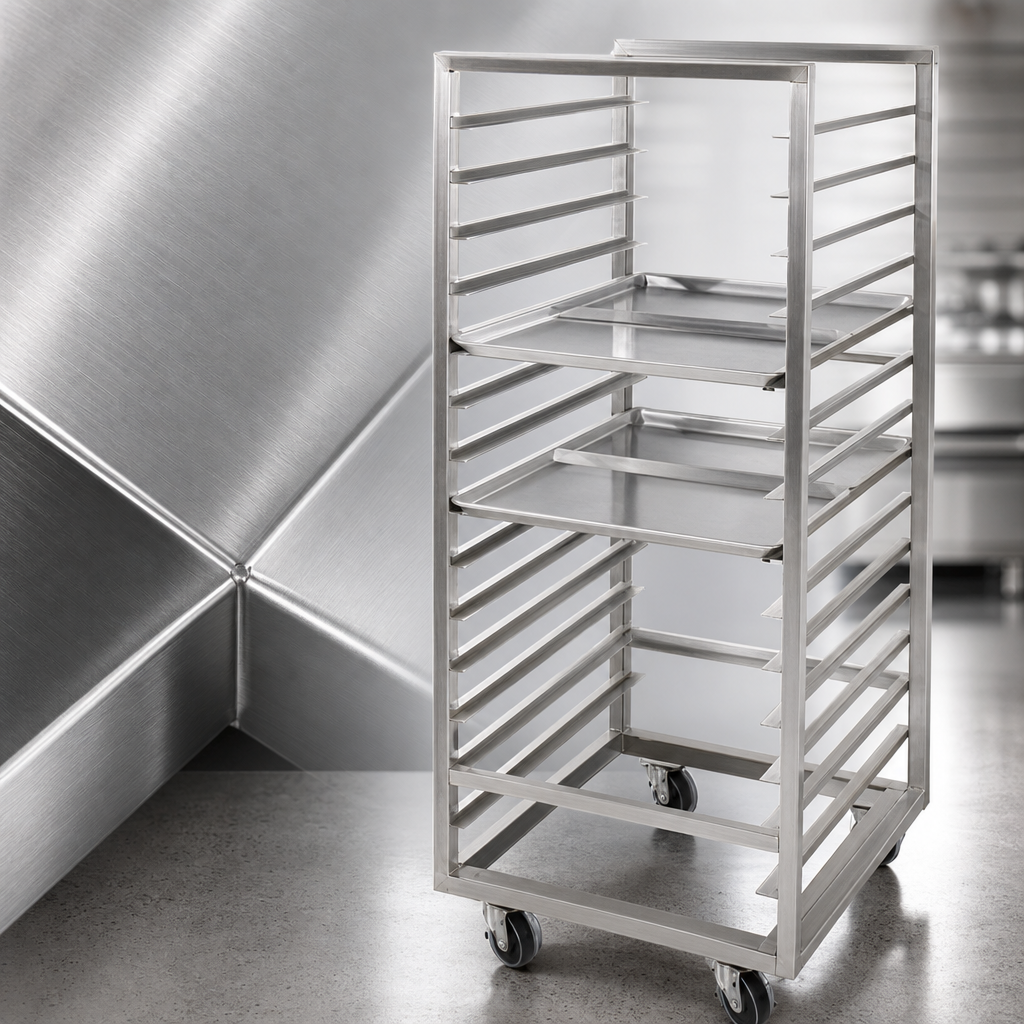

- 18 ga, 304 stainless steel frame, slides, and uprights resist corrosion, harsh cleaners, and daily wear.
- 4" swivel phenolic plate casters with Zerk grease fittings— rated 475 °F continuous, 575 °F intermittent, down to -45 °F—perfect for hot ovens, proofers, or blast chillers.
- Ships fully welded and assembled—roll it off the truck and straight to work.
- NSF listed and proudly Made in the USA.
- Backed by Channel’s 5-year warranty.
Technical Specs
| Manufacturer / Model No. | Channel Manufacturing CPS54H (base rack 411S-DOR series) |
|---|---|
| Rack Type | Oven rack, double section, side load |
| Pan Capacity | 40 pans – 18" × 26" |
| Slide Spacing | 3" centers |
| Overall Dimensions | 29" W × 36" D × 69.75" H (with casters) |
| Material | 18 ga 304 stainless steel throughout |
| Casters | (4) 4" swivel high-temp phenolic plate casters with Zerk grease fittings |
| Item Weight | 122 lb (rack only) |
| Approx. Ship Weight | ≈172 lb (includes 50 lb pallet) |
| Certifications | NSF, Made in USA |
Ordering Notes
- CAD drawing provided after order for your approval.
- Base rack excludes lifter devices and pan stops— contact us to add these or other custom options.
- Need caster brakes, card clips, or gravity pan stops? Just ask—factory modifications are available.
Specifications are subject to change without notice. All dimensions are nominal. Contact Channel Manufacturing for the latest drawings or customized configurations.
