Channel Manufacturing 410S-DOR Specialty Ovens
Channel Manufacturing 410S-DOR Specialty Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Channel Manufacturing 410S-DOR Specialty Ovens
Description

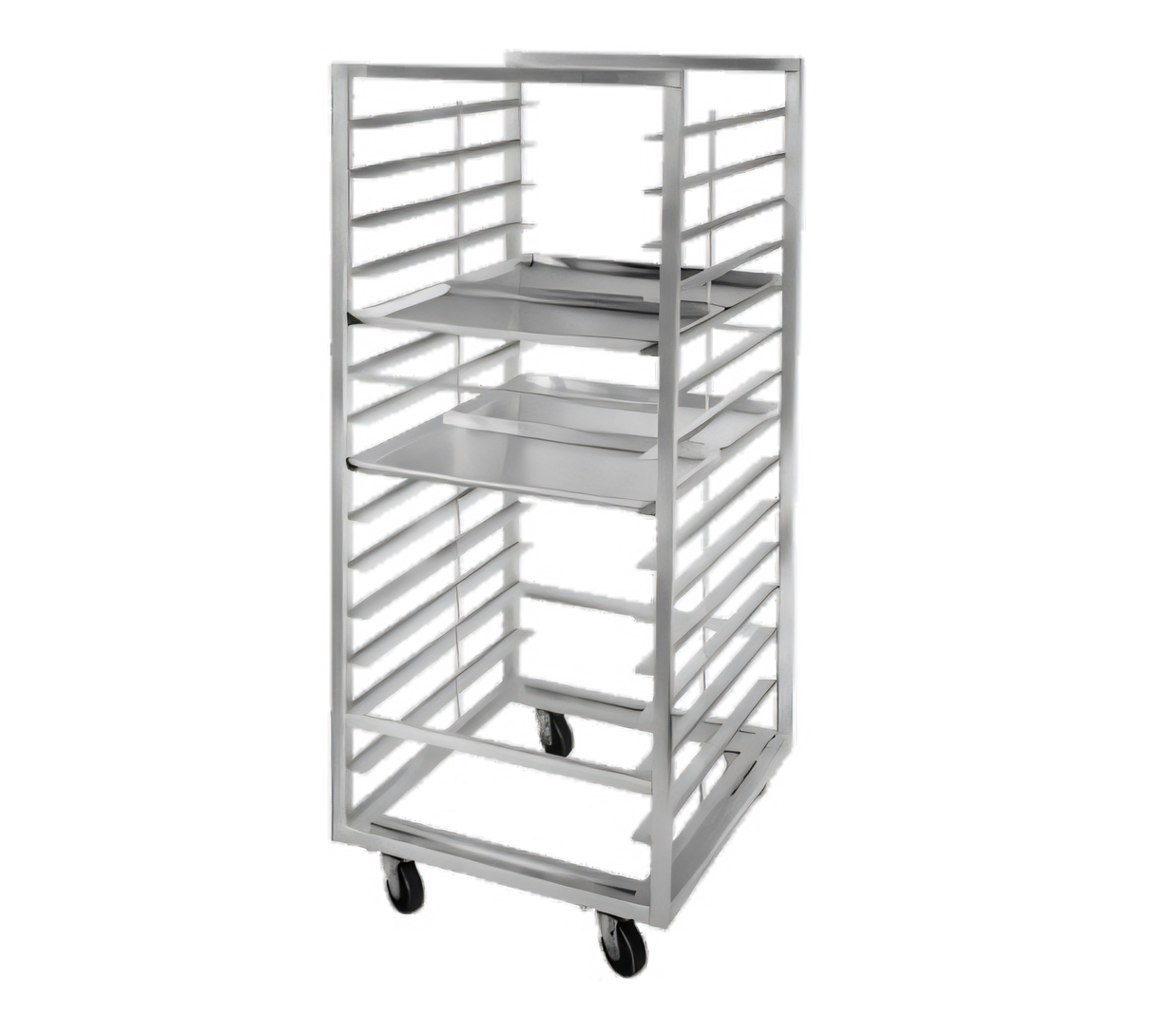

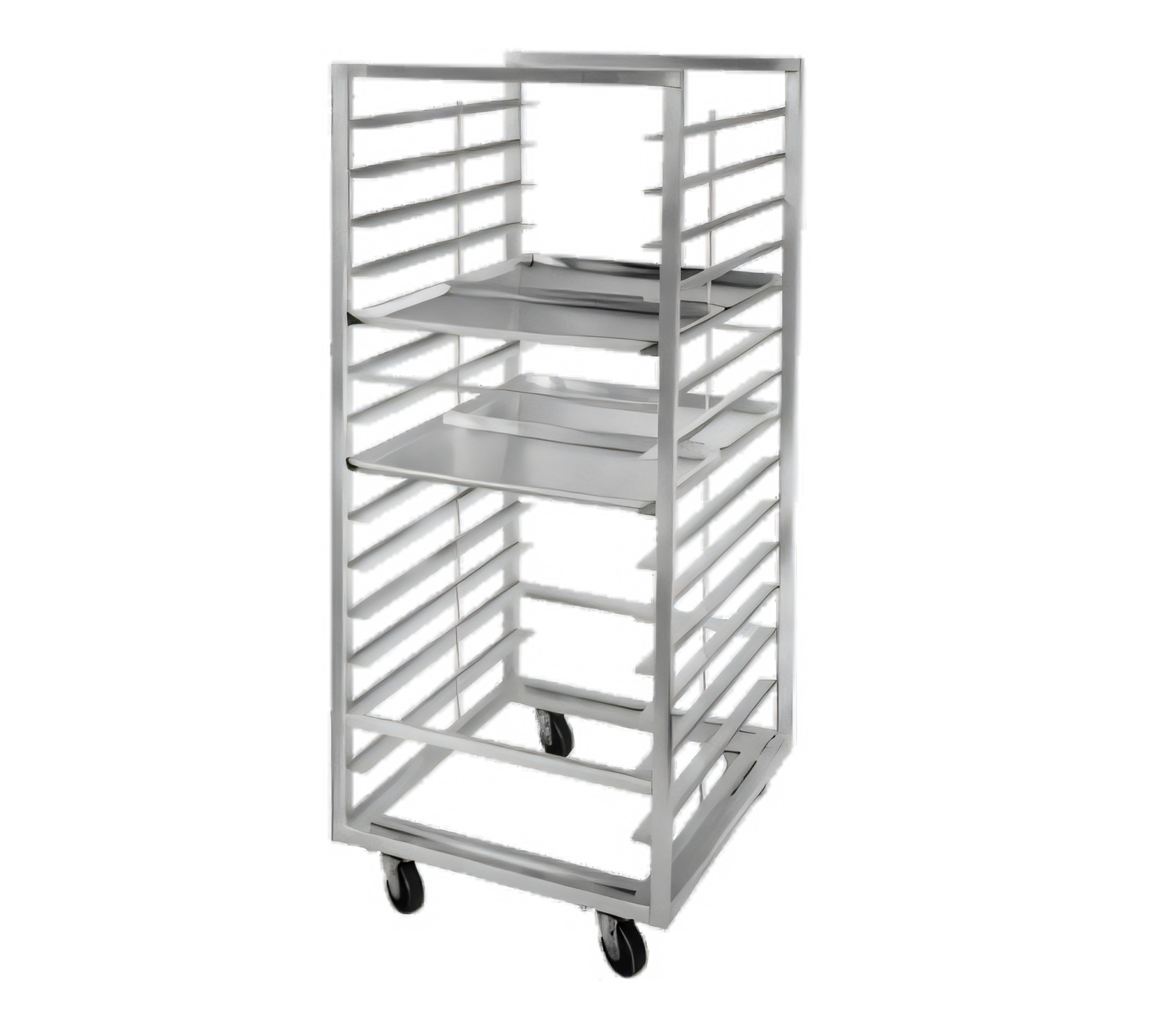

CPS54H Double-Section Stainless Steel Oven Rack

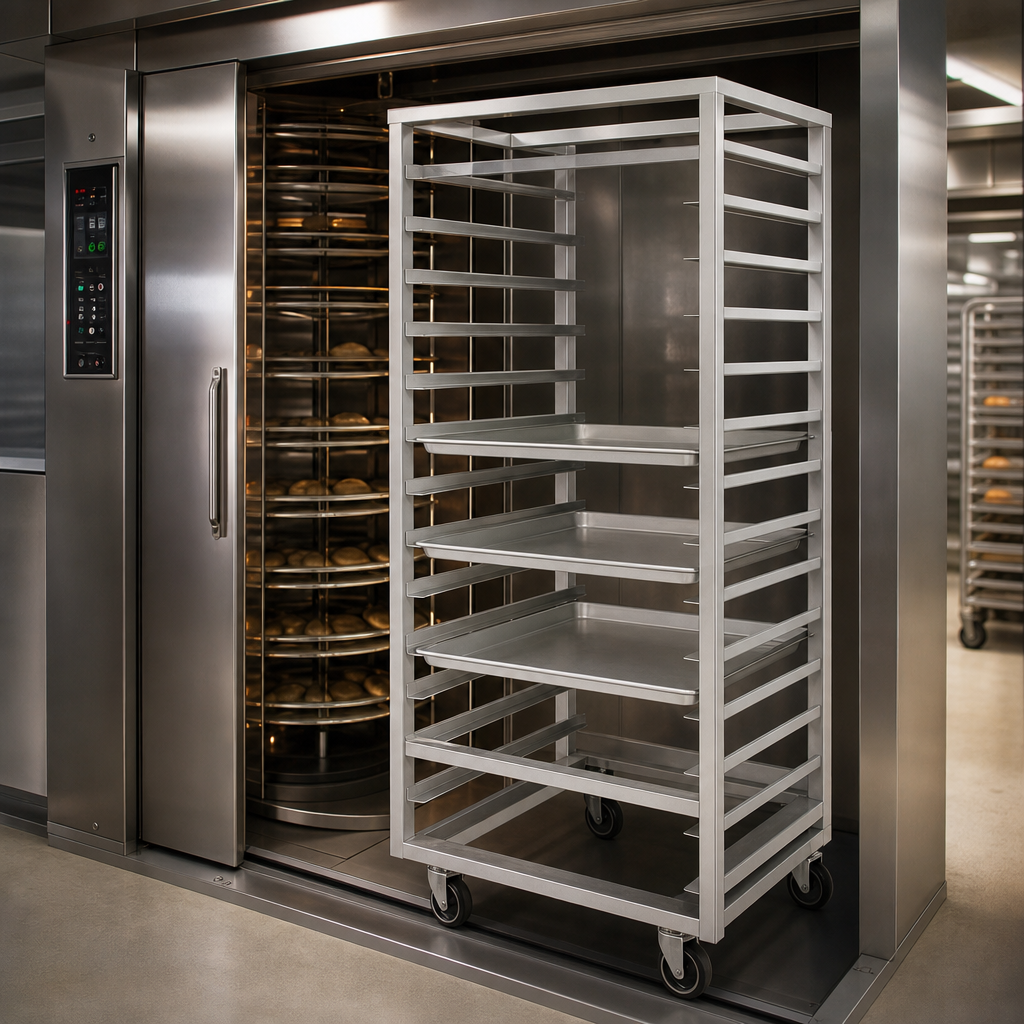

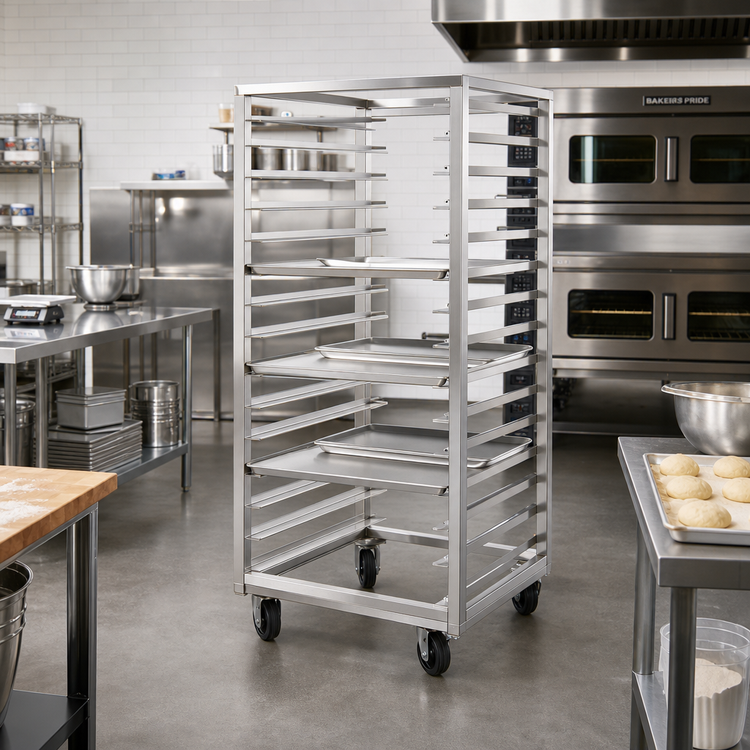

60-Pan • Side-Load • High-Temp CastersBuilt for bakeries, commissaries and institutional kitchens that demand maximum throughput, the Channel CPS54H holds sixty full-size 18" × 26" pans in a compact, double-section footprint. Heavy-gauge 304 stainless steel, precision-welded slides and extra-high-temperature casters deliver years of worry-free performance in ovens, proofers, blast chillers and everything in between.
Why you’ll love it
- High-capacity, space-saving design – 2" side-load spacing stores 60 pans while allowing quick, ergonomic access.

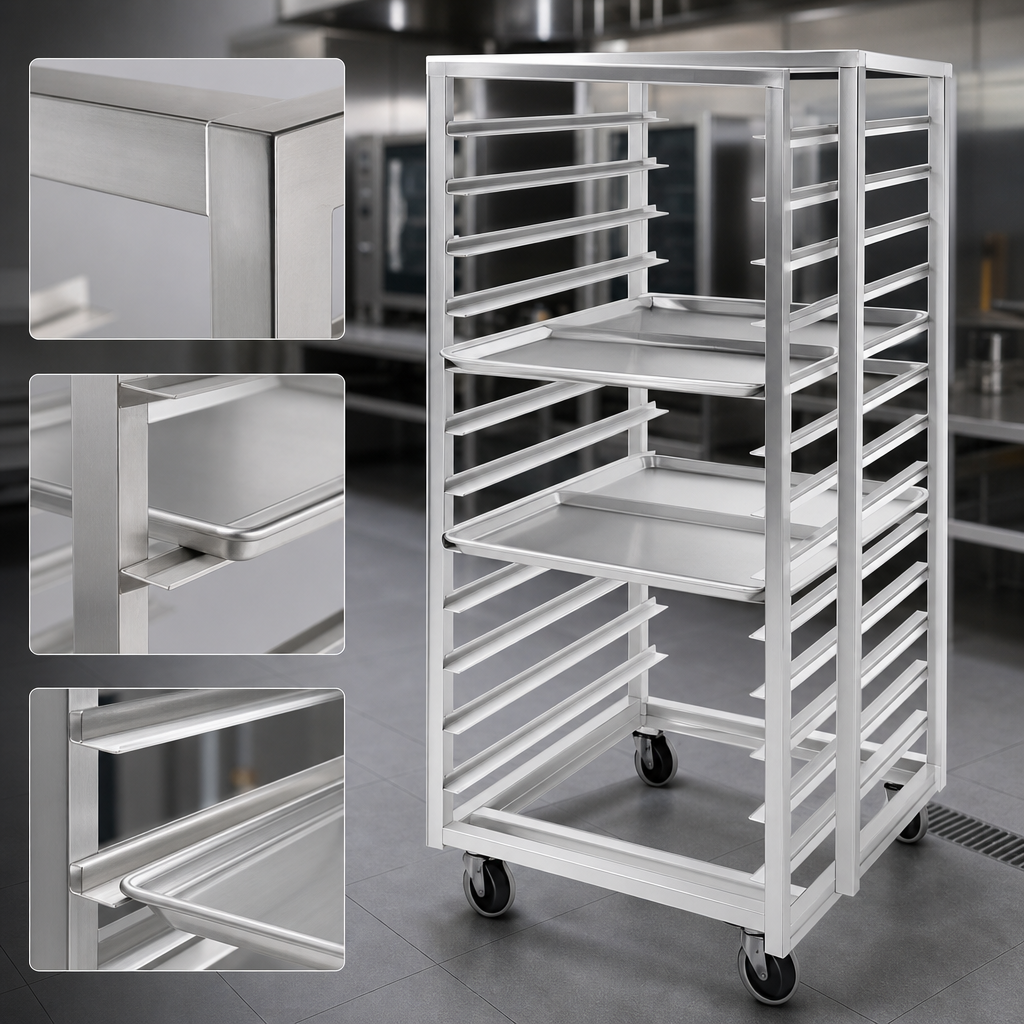

- 18 ga. 304 stainless steel – corrosion-proof and NSF-listed for the most demanding foodservice environments.
- 4" swivel phenolic plate casters with Zerk grease fittings • rated 475 °F continuous / 575 °F intermittent / −45 °F blast chill.
- Fully welded angle tray slides accommodate standard sheet pans or perforated trays without tipping.
- Made in the USA and backed by Channel’s 5-year warranty.
- Ships completely assembled; CAD drawing supplied for approval.
Technical specifications
| Model | CPS54H (base oven rack – excludes lifting devices & pan stops) |
|---|---|
| Series / Construction | Stainless Series • 18 ga. type 304 stainless steel |
| Load style | Side load, double section (two trays per slide) |
| Tray spacing / Capacity | 2" centers • 60 pans (18" × 26") |
| Overall dimensions (W × D × H) | 29" W × 36" D × 69.75" H |
| Casters | (4) 4" high-temp swivel phenolic plate casters with Zerk fittings |
| Item weight | 158 lb (rack only) |
| Certifications | NSF Listed • Made in USA |
Need brakes, pan stops or lifters? Contact us for add-on configurations—Channel will provide an updated CAD drawing for your approval.
