Description

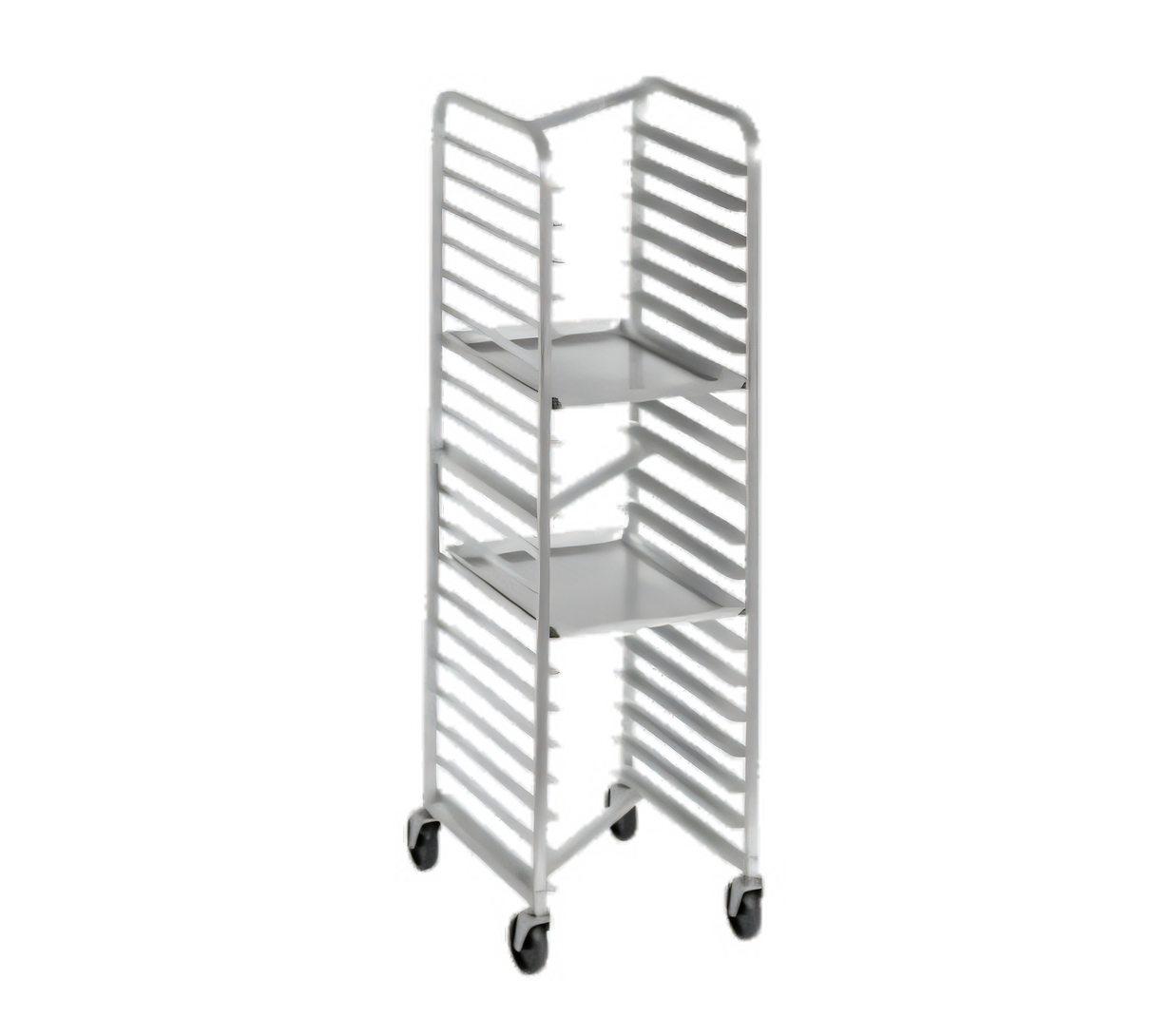

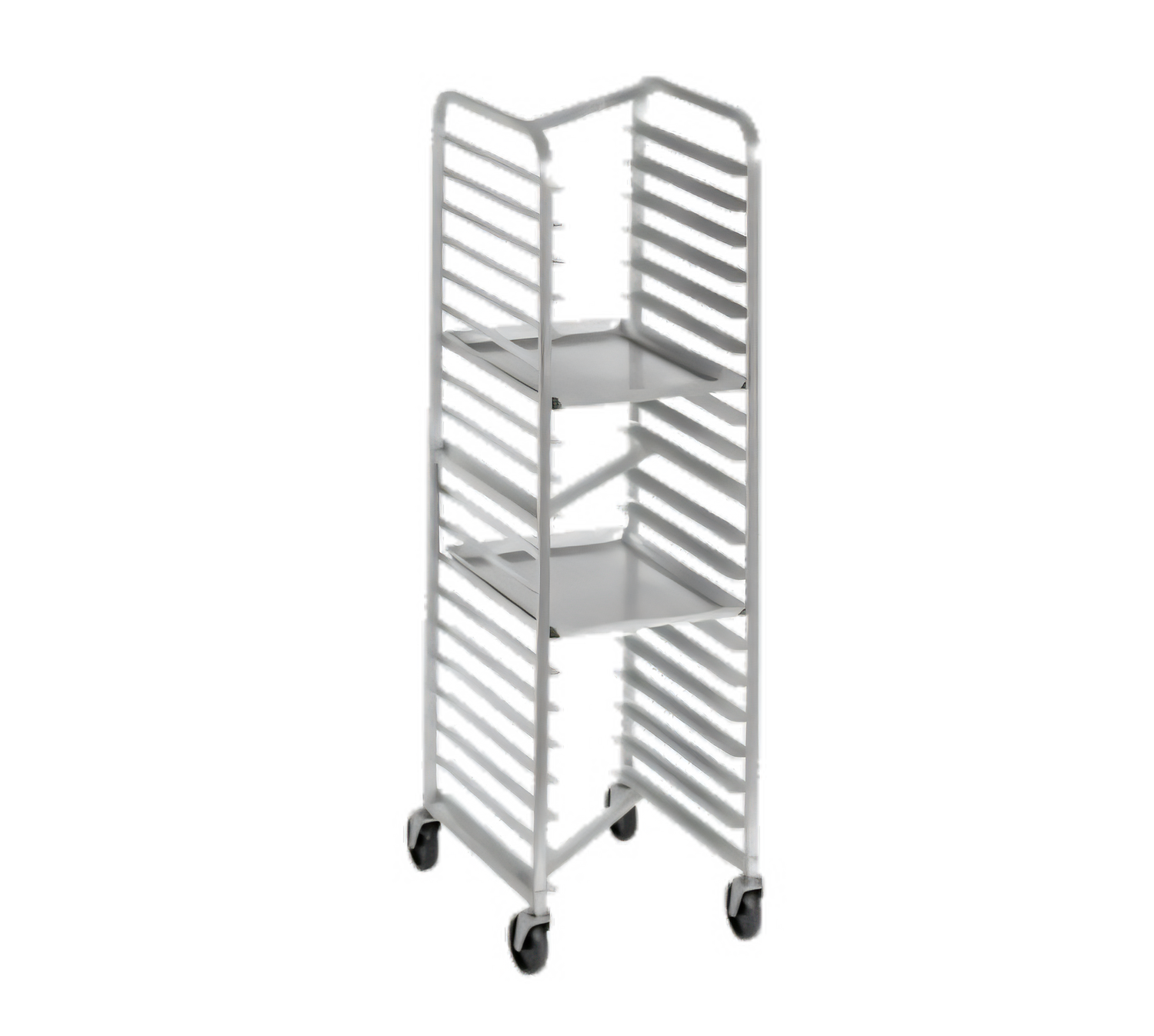

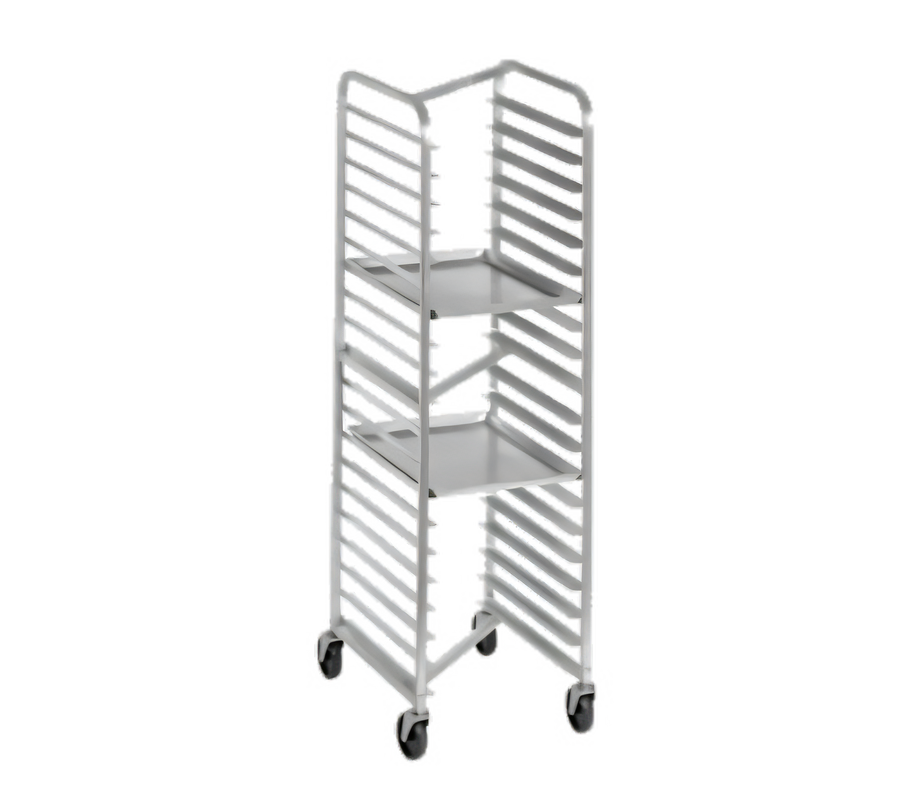

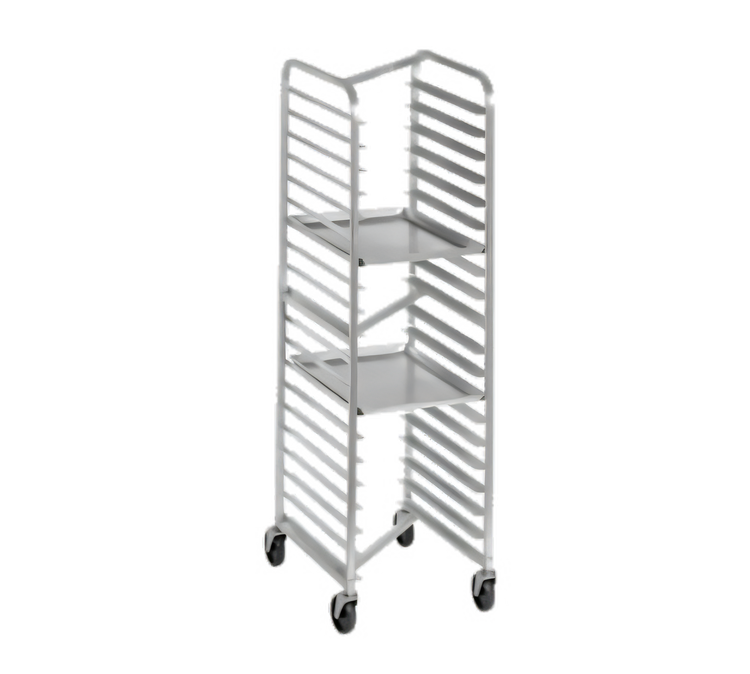

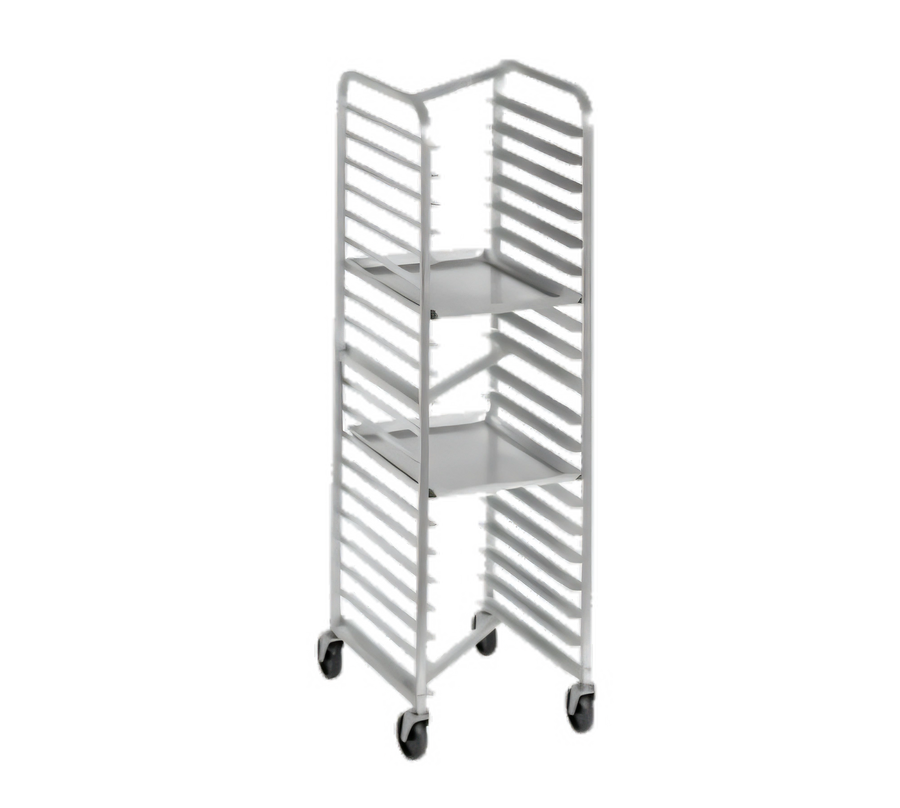

Channel CSS55PU Heavy-Duty Nesting Bun Pan Rack

21" W × 26" D × 64" H • End-Load • 2" Slide Spacing

Built for demanding commercial kitchens, the CSS55PU delivers rock-solid durability, generous pan capacity and a space-saving nesting design—all proudly made in the USA and NSF-listed for food-service peace of mind.

Why You’ll Love It

  • Massive capacity: Holds 27 full-size (18" × 26") or 54 half-size (13" × 18") pans—two pans per 2" slide level.
  • Space-saving nestability: Empty racks slide into each other to free up valuable floor space.

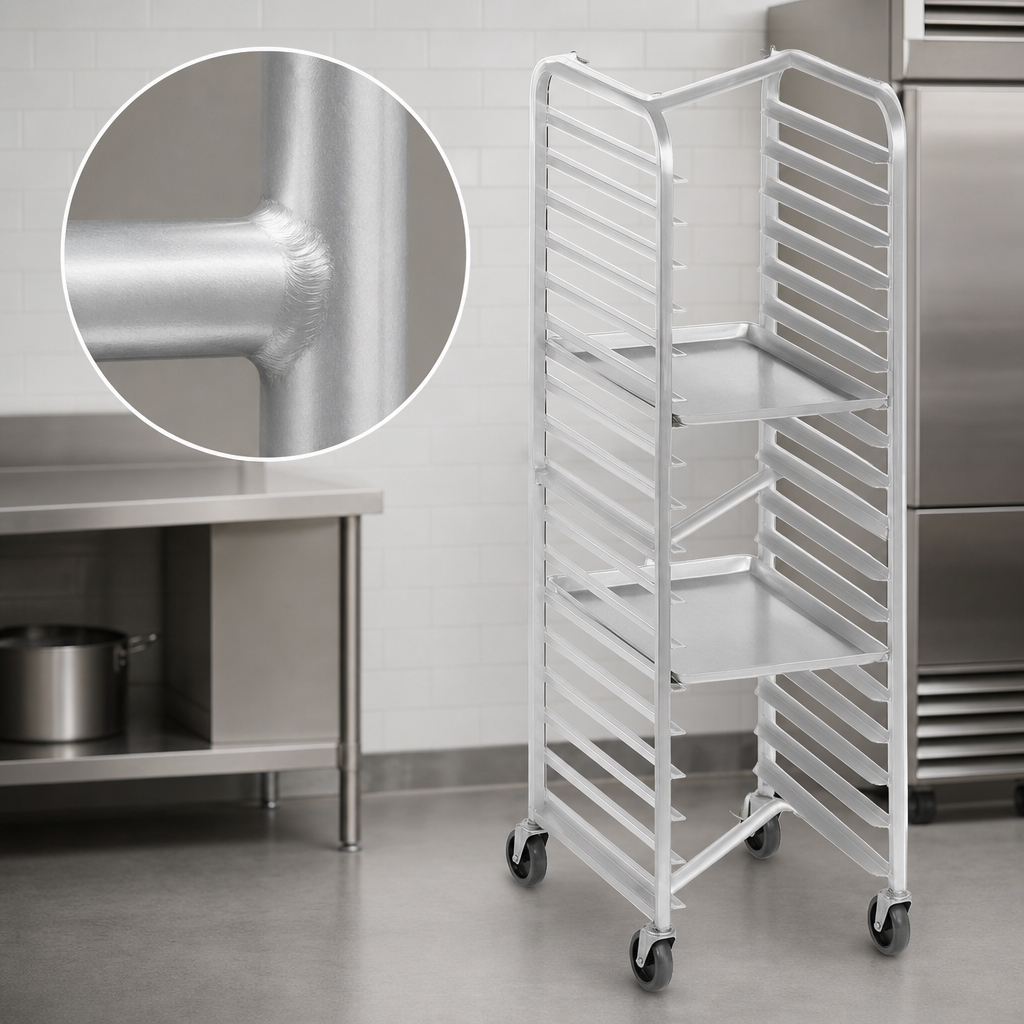

  • Heli-arc welded 6063-T5 aluminum: Extra-thick 1-1/4" tubular frame resists twisting, bending and rust.
  • Heavy-duty tray slides: 1" × 1-1/2" × .10" angle, bottom-load design—fully welded, never riveted.
  • Easy mobility: Four 5" full-swivel, non-marking polyurethane stem casters glide quietly over tile, concrete or epoxy floors.
  • End-load access: Quickly load or unload from the narrow end of the rack—ideal for tight aisles and cooling lines.
  • NSF certified & Made in the USA: Engineered, fabricated and assembled in Channel’s U.S. facilities.
  • Lifetime manufacturer’s warranty for traditional food-service applications.

Technical Specifications

Manufacturer / Model Channel Manufacturing • CSS55PU
Series Heavy-Duty Nesting Bun Pan Rack
Pan Orientation End Load
Slide Spacing 2" centers
Pan Capacity (27) 18" × 26" full-size OR (54) 13" × 18" half-size pans
Overall Dimensions 21" W × 26" D × 64" H
Construction All-welded 6063-T5 aluminum; 1-1/4" tubular frame; welded angle slides
Casters (4) 5" swivel stem, non-marking polyurethane (2 with optional brakes – kit /011)
Certifications NSF Listed, Made in USA
Item Weight 56 lb (rack only)
Approx. Shipping Weight 106 lb (includes ≈50 lb pallet)
Warranty Lifetime (traditional food-service use)

Perfect For

  • High-volume bakeries, commissaries & ghost kitchens
  • Restaurant prep lines & walk-in coolers
  • Catering operations needing mobile storage
  • Institutional kitchens—schools, hospitals, correctional facilities
Note: Pan trays shown in photos are for illustration only and are not included. Shipping weight includes an estimated 50 lb pallet. Optional caster brake kit sold separately.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

64.0in

Width

21.0in

Depth

26.0in

Shipping Weight

56.0lbs

Pan Capacity

26 - 30

Height

61" - 66"

Sides

open sides

Centers

2 to 2-1/2" centers

Top

open top

Ships

assembled / welded

Loading

end loading

Construction

aluminum

Specifications

Bun Pan Rack, Nesting, Heavy-Duty Series, 21"W x 26"D x 64"H, Aluminum Construction, End Load, 2" Angle Spacing, (27) 18" x 26" or (54) 13" x 18" pans (2 per shelf), 5" Swivel Stem Casters model # CSS55PU, Made in USA, NSF, 56lbs. (ITEM WEIGHT ONLY), weight does not include 50 lbs. for pallet weight
