Channel Manufacturing  |  SKU: 402SN  |  UPC: 835384008768

Channel Manufacturing 402SN Specialty Storage & Transport

$1,015.74
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Channel Manufacturing Pan Racks Pan Racks Racks & Cabinets Restaurant Racks Specialty Storage & Transport Storage & Shelving Storage & Transport

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

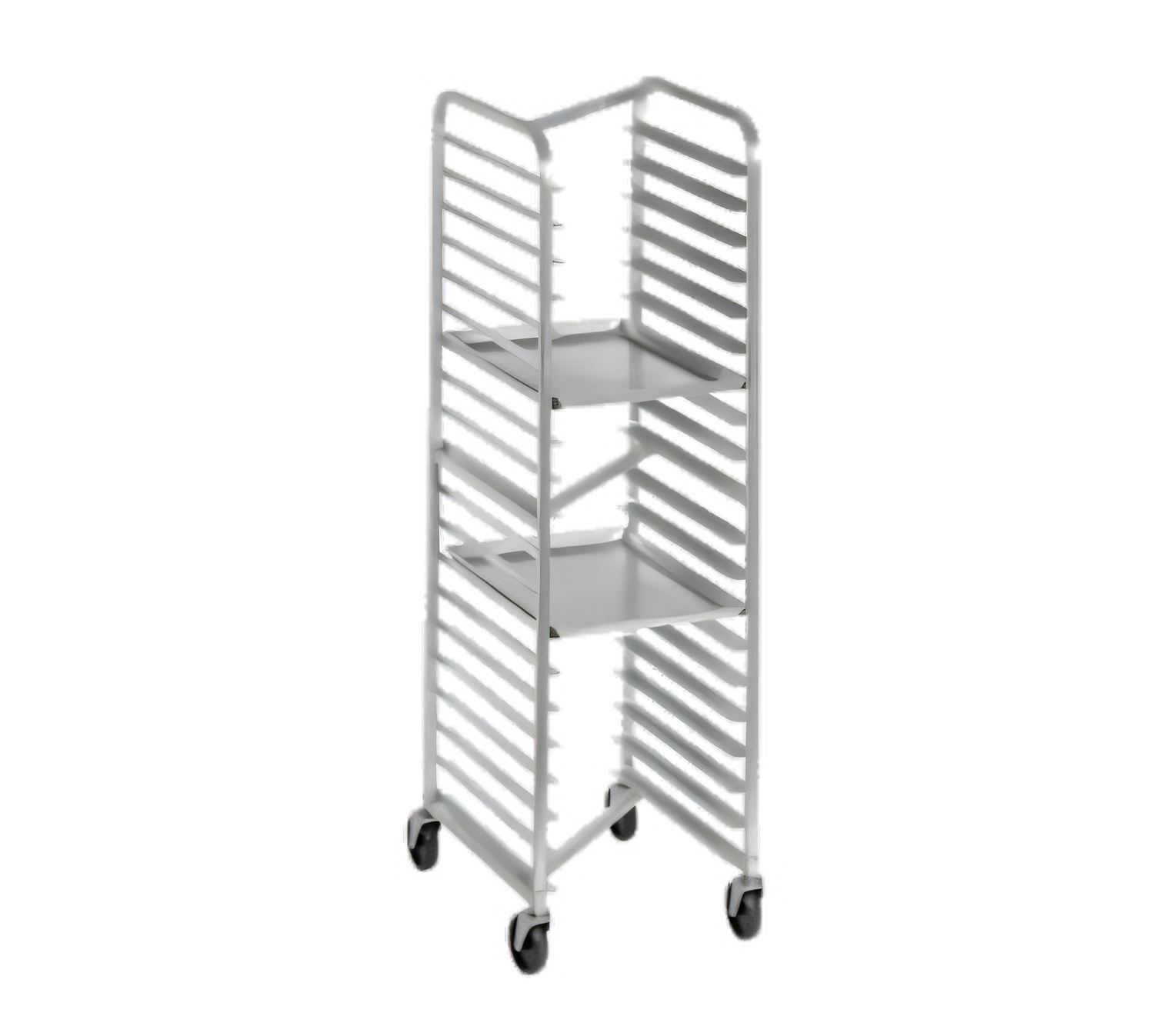

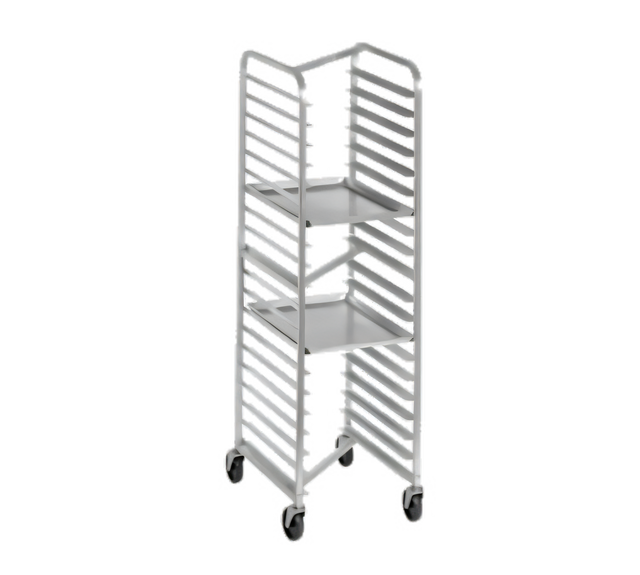

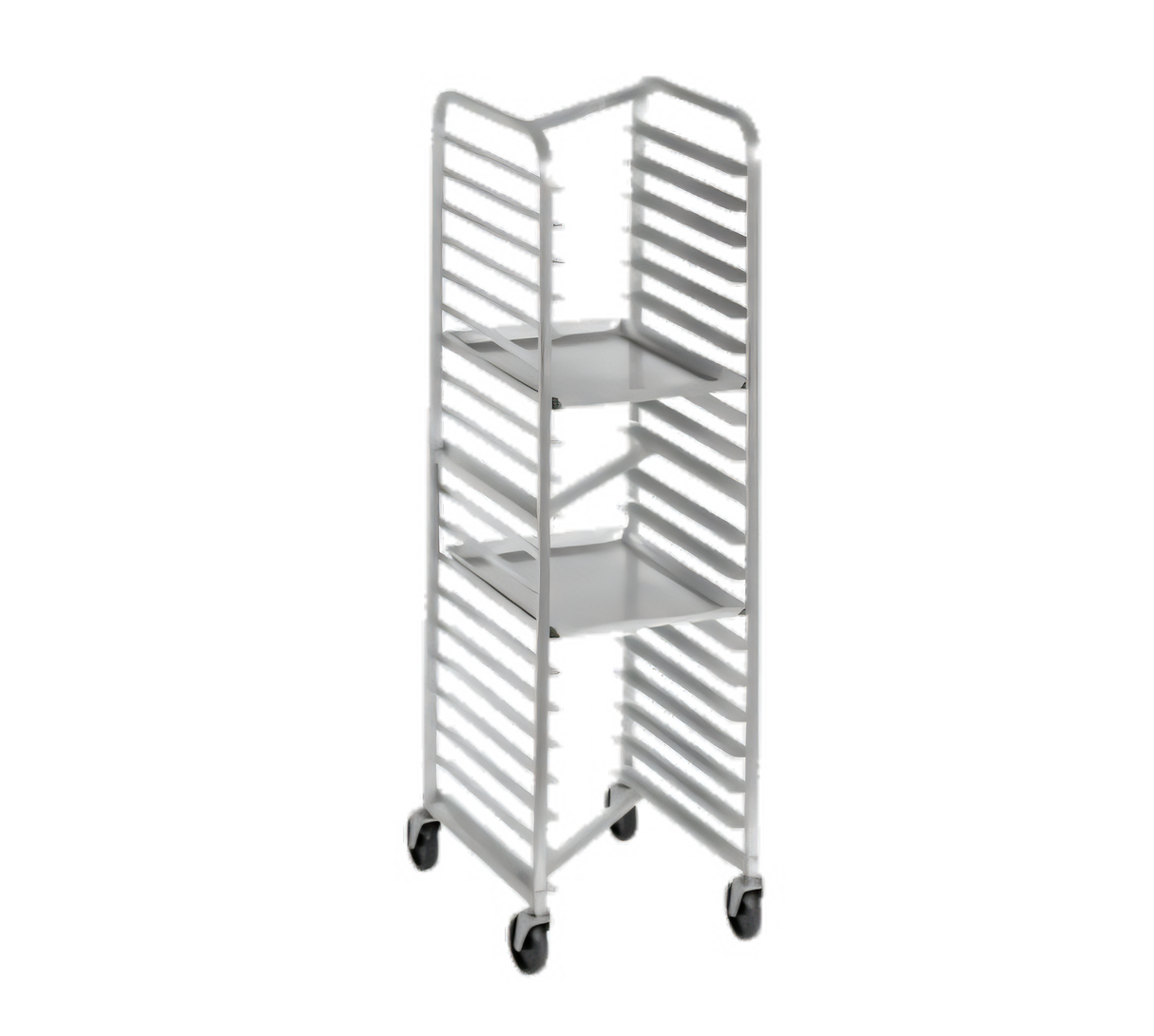

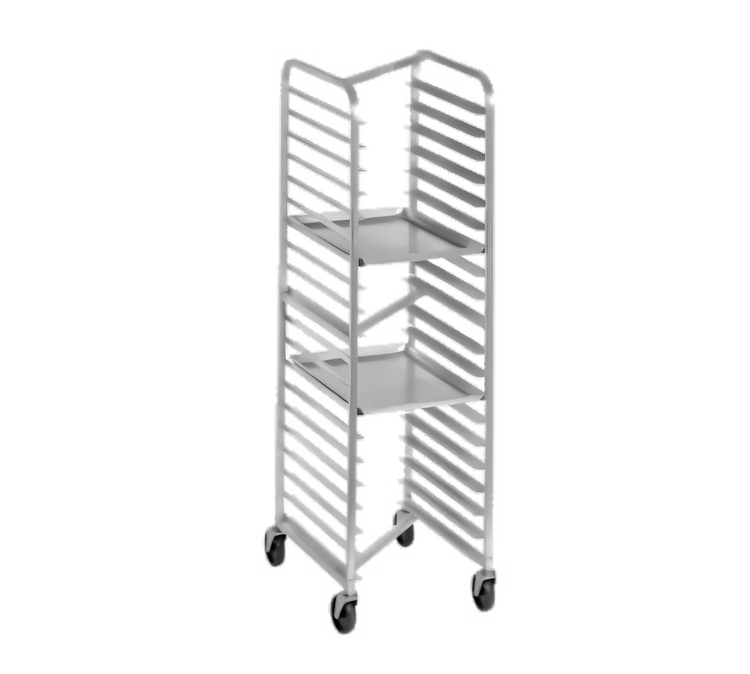

Channel CSS45PU Nesting Bun Pan Rack – Stainless Series

15-Pan | 4" Spacing | End-Load | NSF-Listed | Made in USA

Free up valuable floor space and keep your sheet pans rolling smoothly with Channel Manufacturing’s CSS45PU Nesting Bun Pan Rack. Built from rugged 18 ga. 304 stainless steel and riding on 5" swivel casters, this end-load rack holds up to fifteen 18" × 26" full-size pans—or thirty 13" × 18" half pans—while nesting neatly with identical units when not in use.

Key Benefits

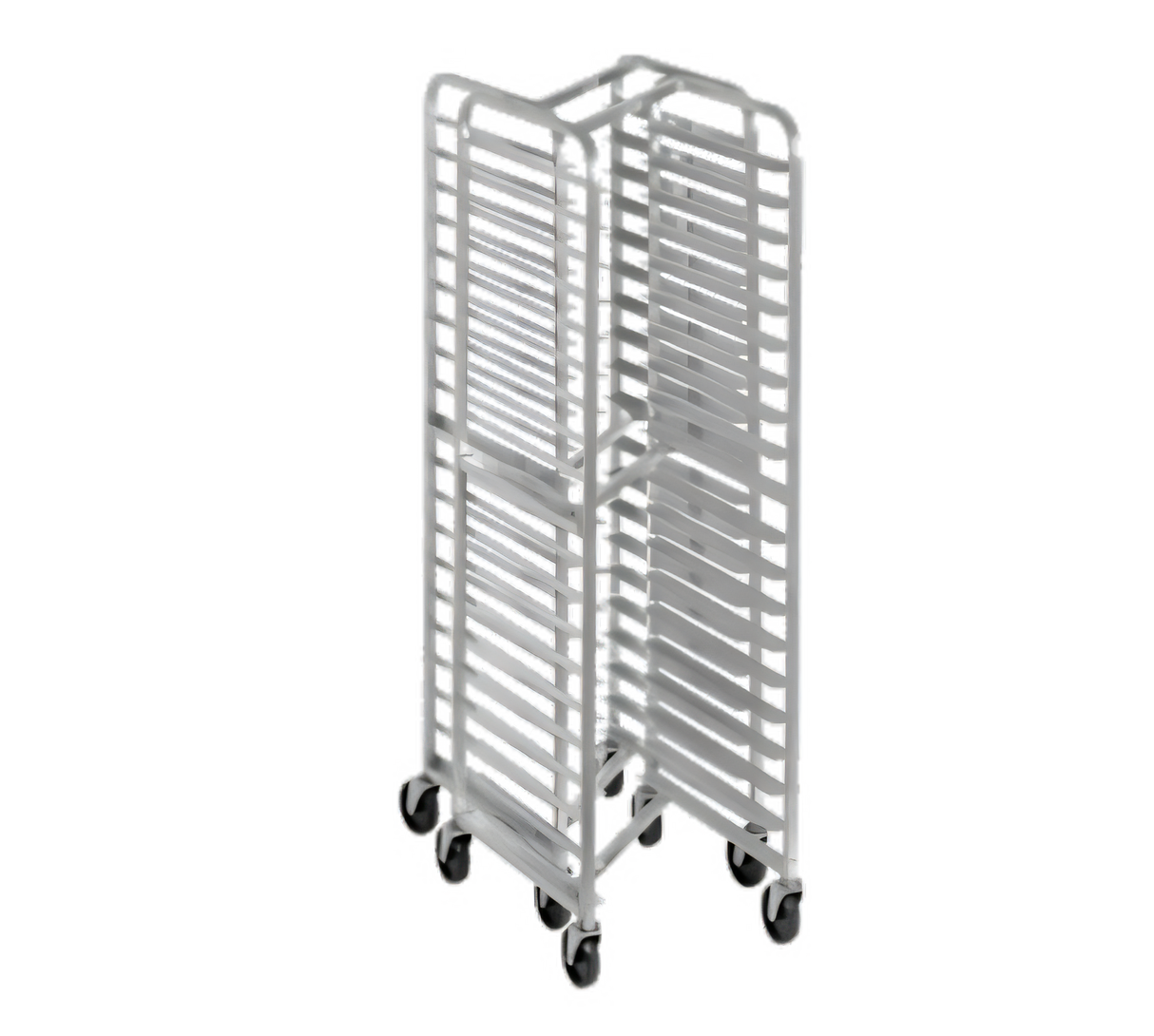

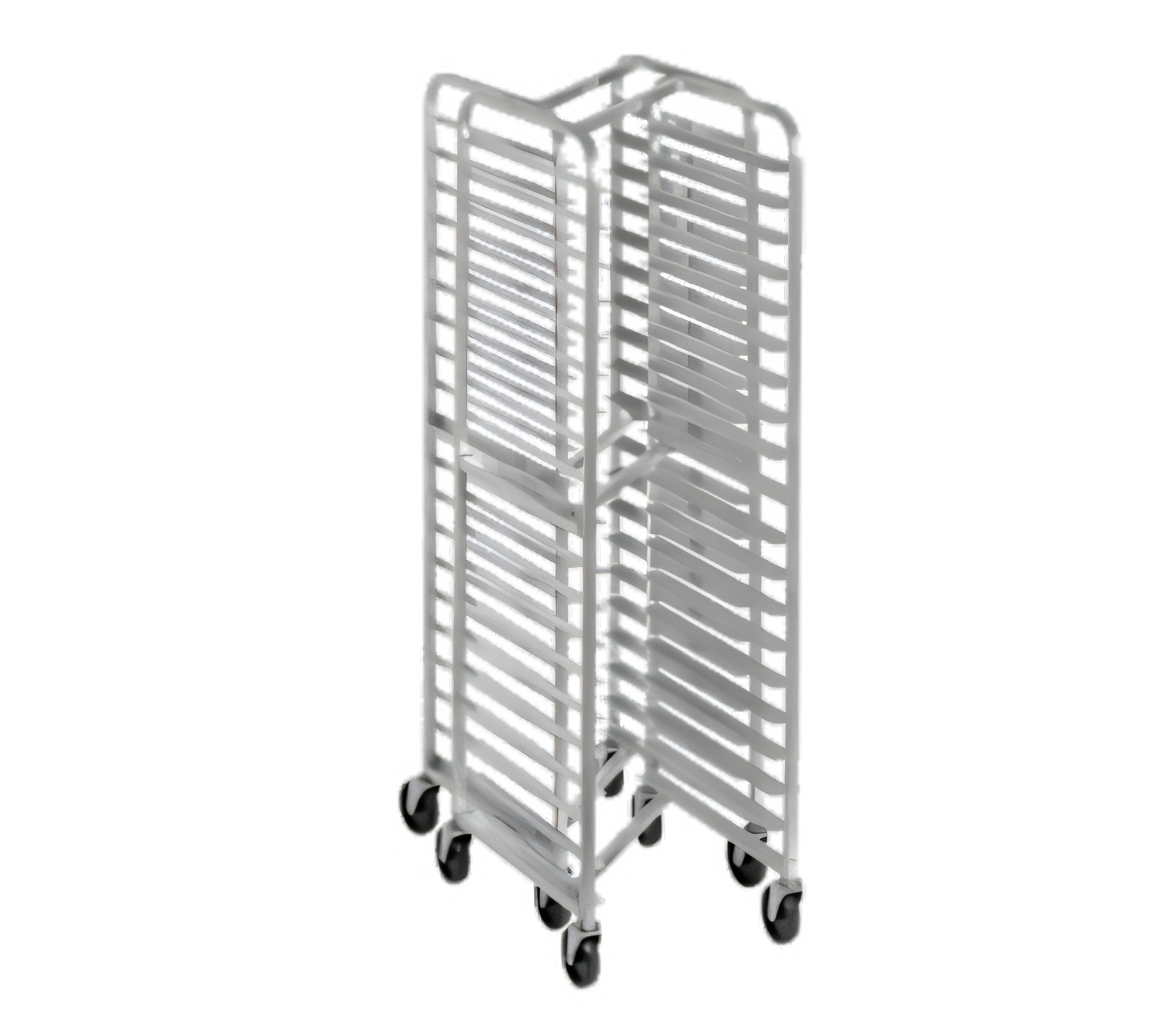

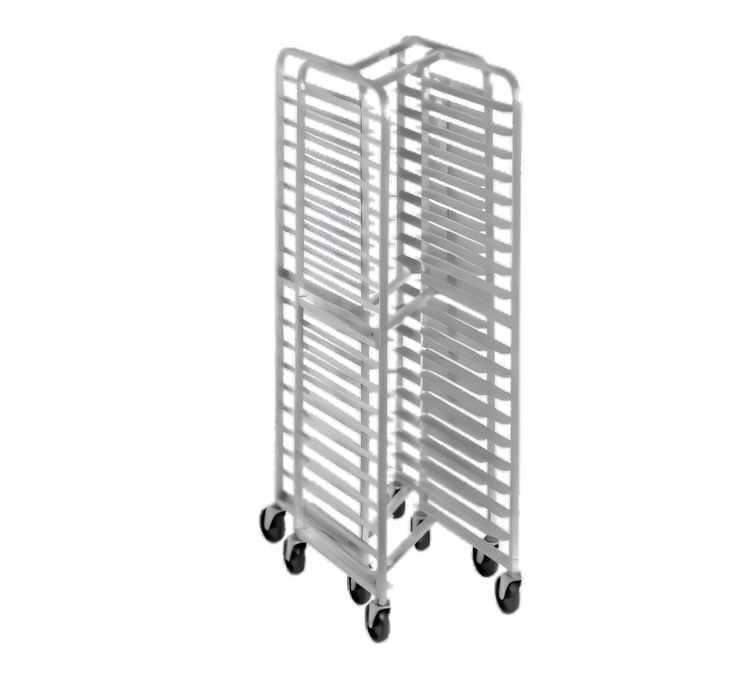

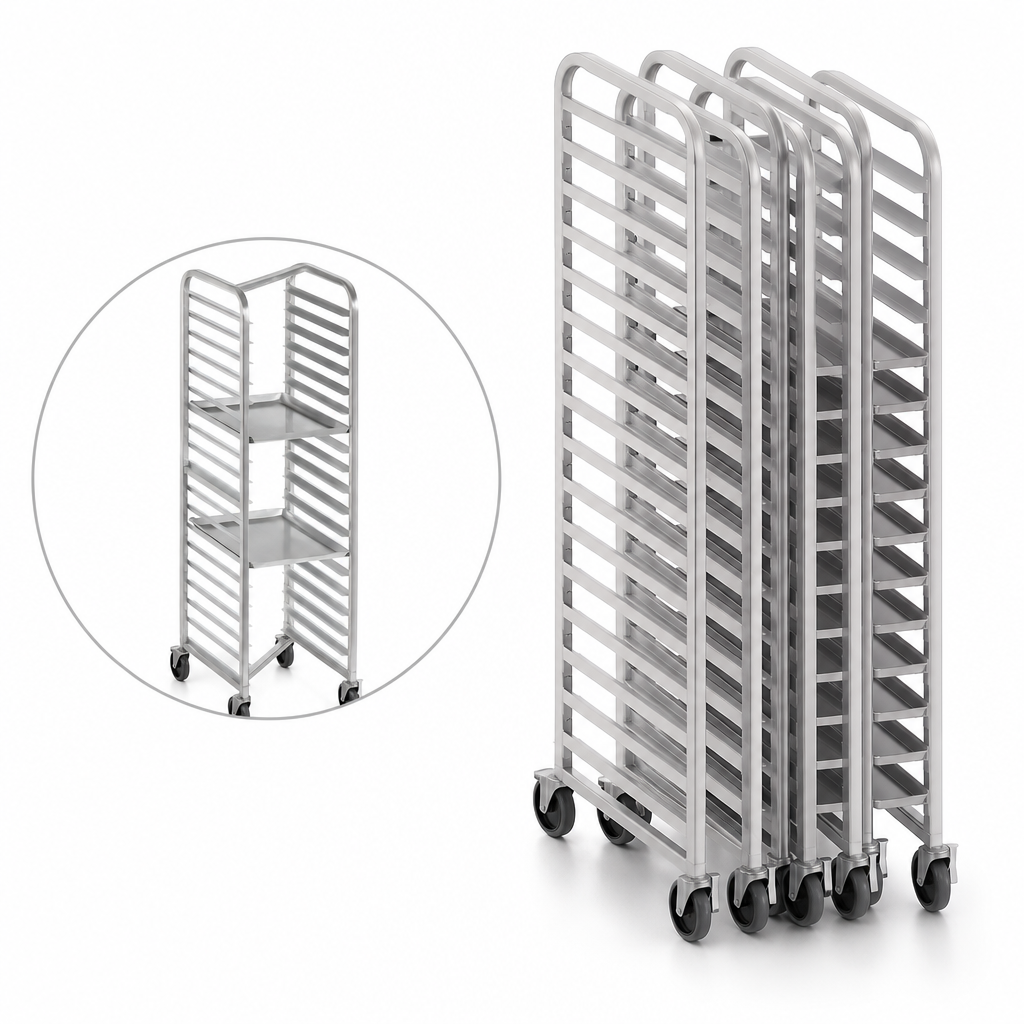

  • Nesting design reduces storage footprint when multiple racks are stacked together.
  • 4" pan spacing accommodates (15) full-size pans or (30) half pans (two per tier).
  • All-welded 18 ga. 304 stainless steel construction resists corrosion and cleans easily.
  • 1" stainless steel tube frame with 1" solid flat bar cross supports for long-term rigidity.
  • Stainless steel angle tray slides are heli-arc welded to the frame—no rivets or fasteners to loosen.
  • (4) 5" full-swivel, non-marking stem casters for effortless mobility; field-replaceable when needed.
  • NSF certified for safe use in commercial kitchens.
  • Proudly manufactured in the United States.

Ideal For

  • Bakeries & pastry shops
  • Commercial kitchens & commissaries
  • Catering operations
  • Institutional foodservice & school cafeterias

Technical Specifications

Manufacturer / Model Channel Manufacturing – CSS45PU
Overall Dimensions 20.5" W × 26" D × 70.25" H
Orientation End-load
Pan Capacity (15) 18" × 26" full-size pans
(30) 13" × 18" half pans (2 per tier)
Pan Spacing 4"
Material 18 ga. 304 stainless steel
Tray Slides 1" × 1-1/2" stainless steel angle, heli-arc welded
Casters (4) 5" swivel, non-marking stem casters (optional brakes available)
Item Weight 45 lb
Certifications NSF
Country of Origin USA

Optional accessories: /011 caster brakes (pair)  |  /CC aluminum card clip.

Shipping Notice: Rack ships assembled. 50 lb pallet weight will be added to the 45 lb item weight when calculating freight charges.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

70.25in

Width

20.5in

Depth

26.0in

Shipping Weight

45.0lbs

Pan Capacity

11 - 15

Centers

4 to 4-3/4" centers

Sides

open sides

Ships

assembled / welded

Construction

stainless steel

Loading

end loading

Top

open top

Height

67" - 72"

Specifications

Bun Pan Rack, Nesting, Stainless Series, 20.5"W x 26"D x 70.25"H, Stainless Steel Construction, End Load, 4" Angle Spacing, (15) 18" x 26" or (30) 13" x 18" pans (2 per shelf), 5" Swivel Stem Casters model # CSS45PU, Made in USA, NSF, 45lbs. (ITEM WEIGHT ONLY), weight does not include 50 lbs. for pallet weight
