Channel Manufacturing 401S-OR Specialty Ovens
Description

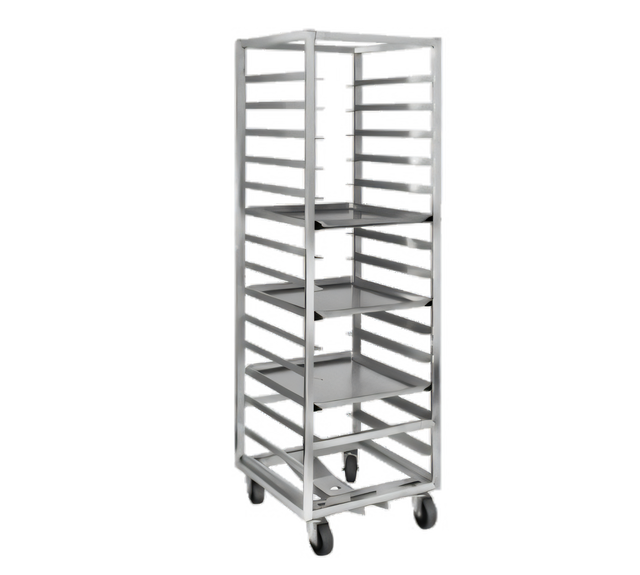

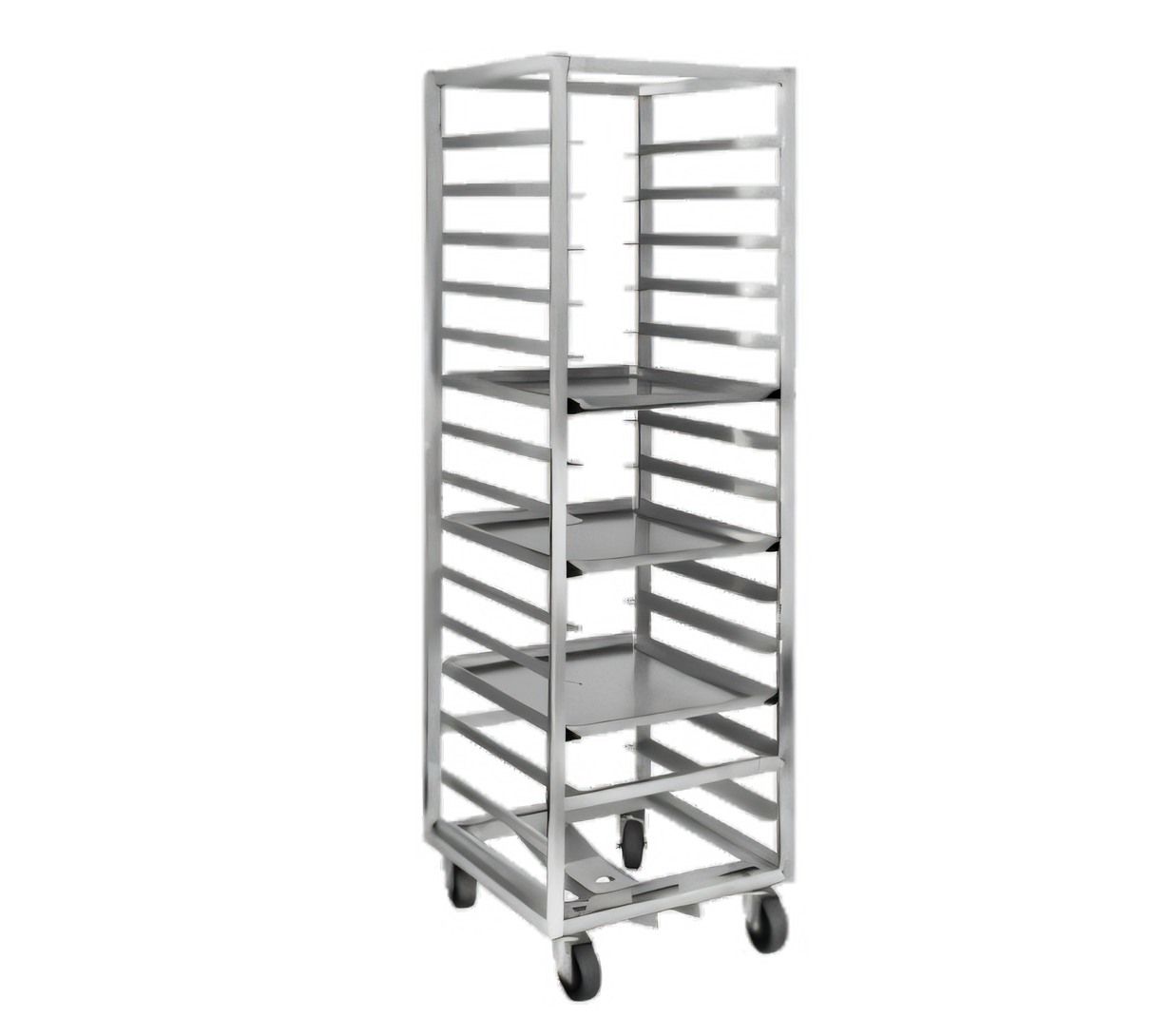

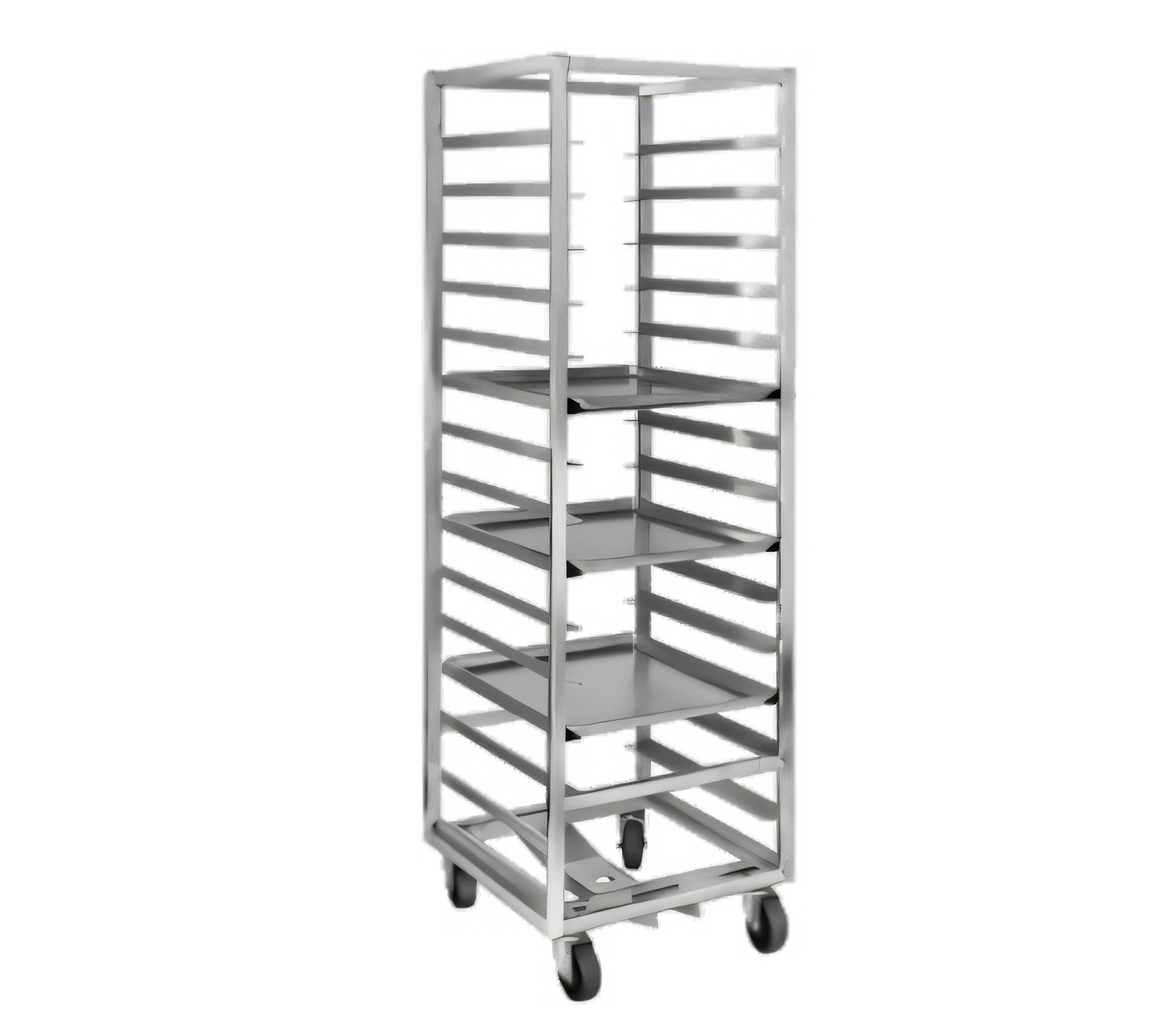

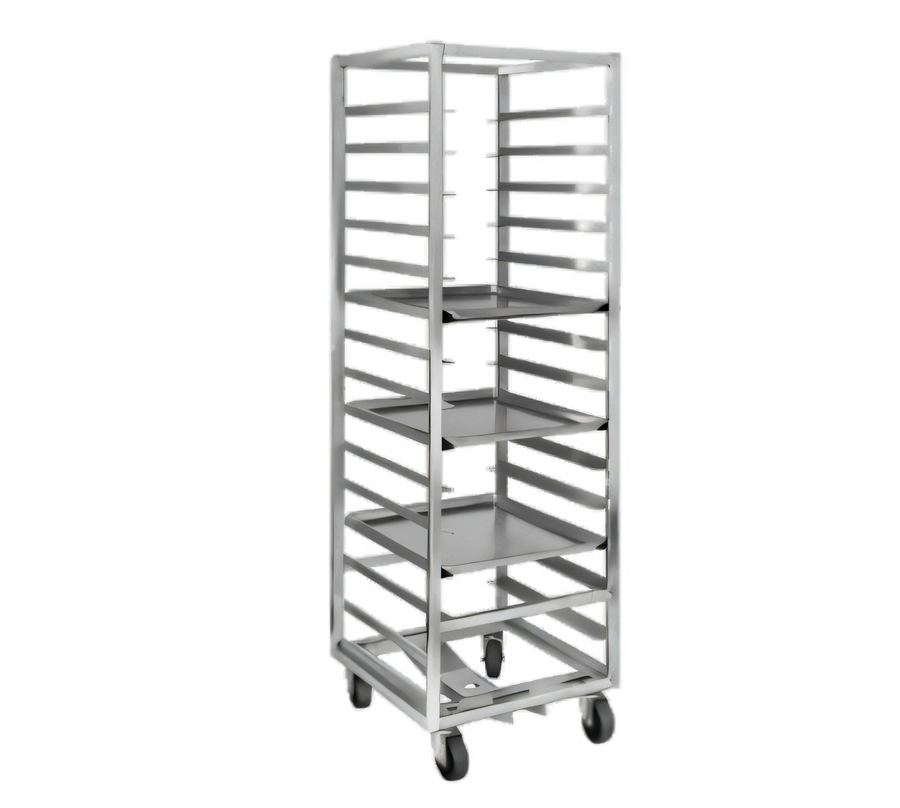

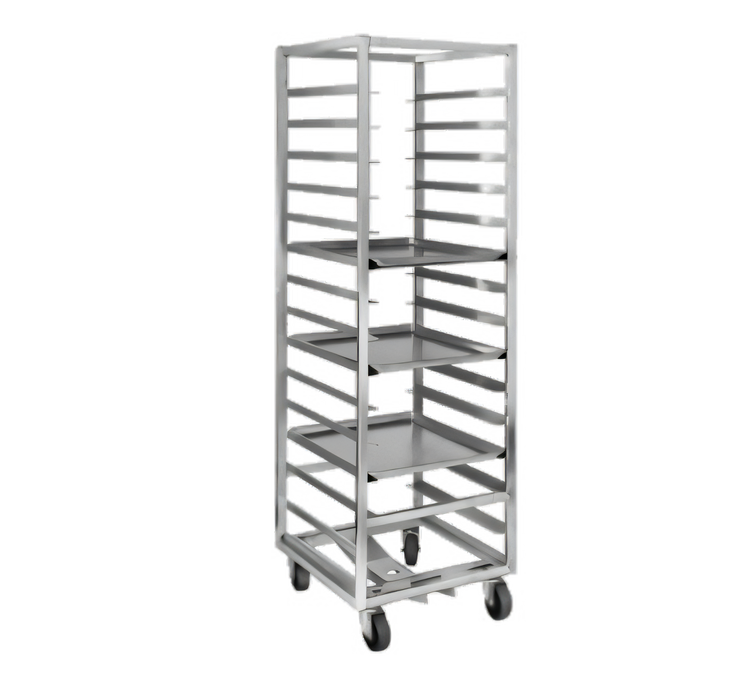

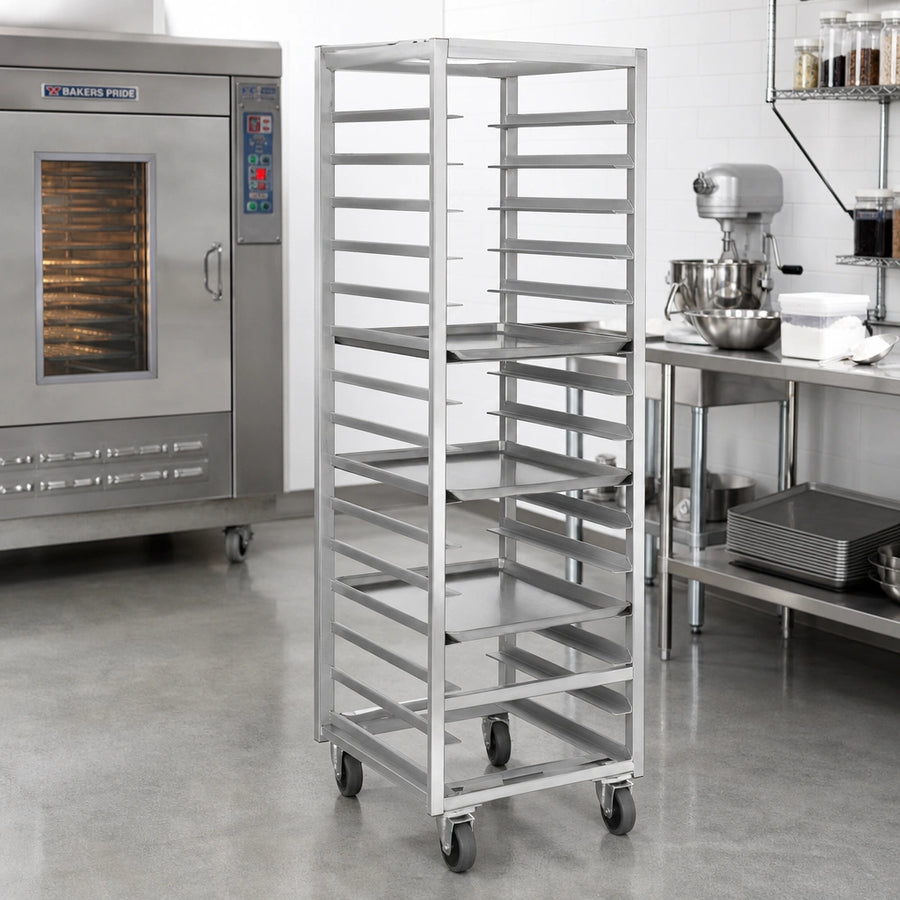

Channel Stainless-Steel End-Load Oven Rack – 20 Pan, 3" Spacing
Model 401S-OR • NSF Listed • Made in the USABuilt for the punishing temperatures of commercial bake, cook-chill, and retherm operations, Channel Manufacturing’s single-section oven rack delivers rock-solid 304 stainless-steel durability, smooth maneuverability, and the capacity you need to keep production moving. Fully assembled and ready to roll straight into the oven or blast chiller, it holds up to twenty full-size sheet pans—or forty half-size pans—on 3 inch centers.
Highlights

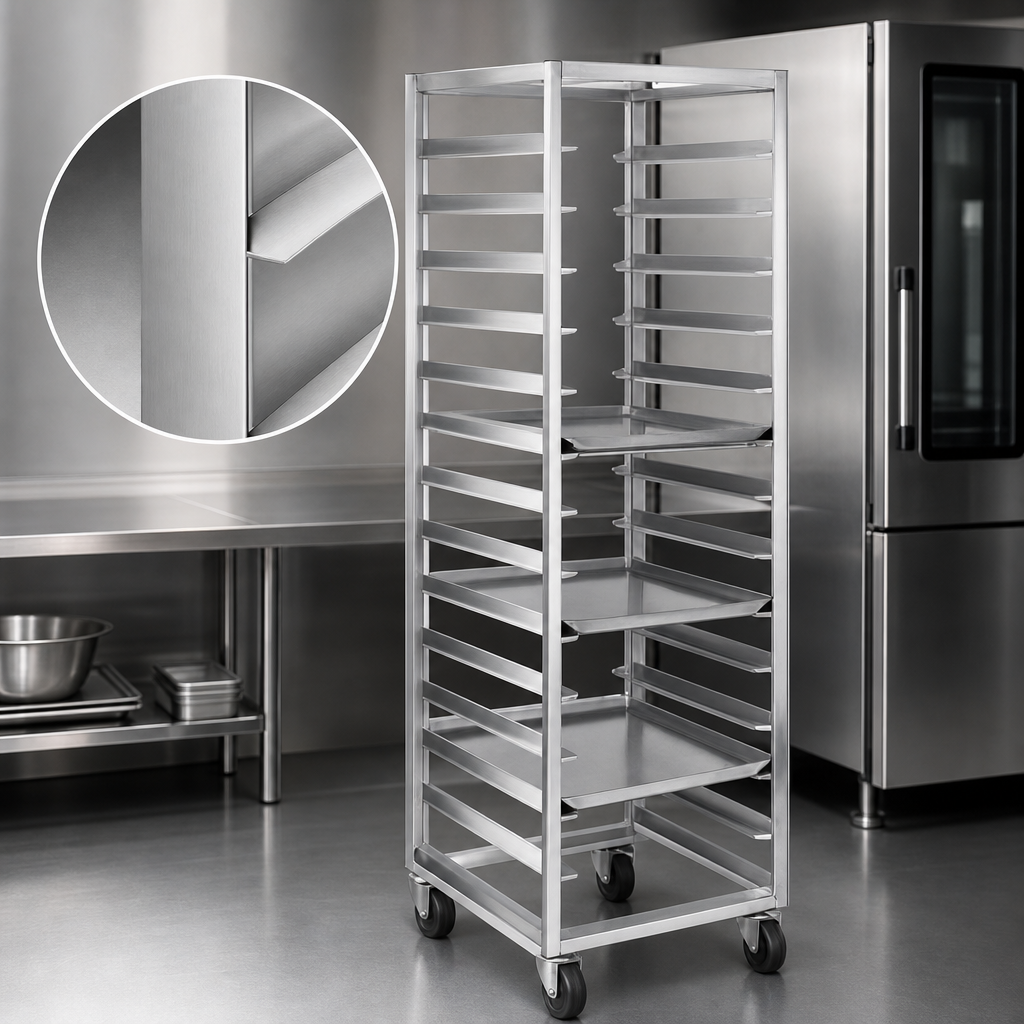

- 18-gauge, 304-series stainless-steel frame & angle slides – corrosion-proof and oven-safe.

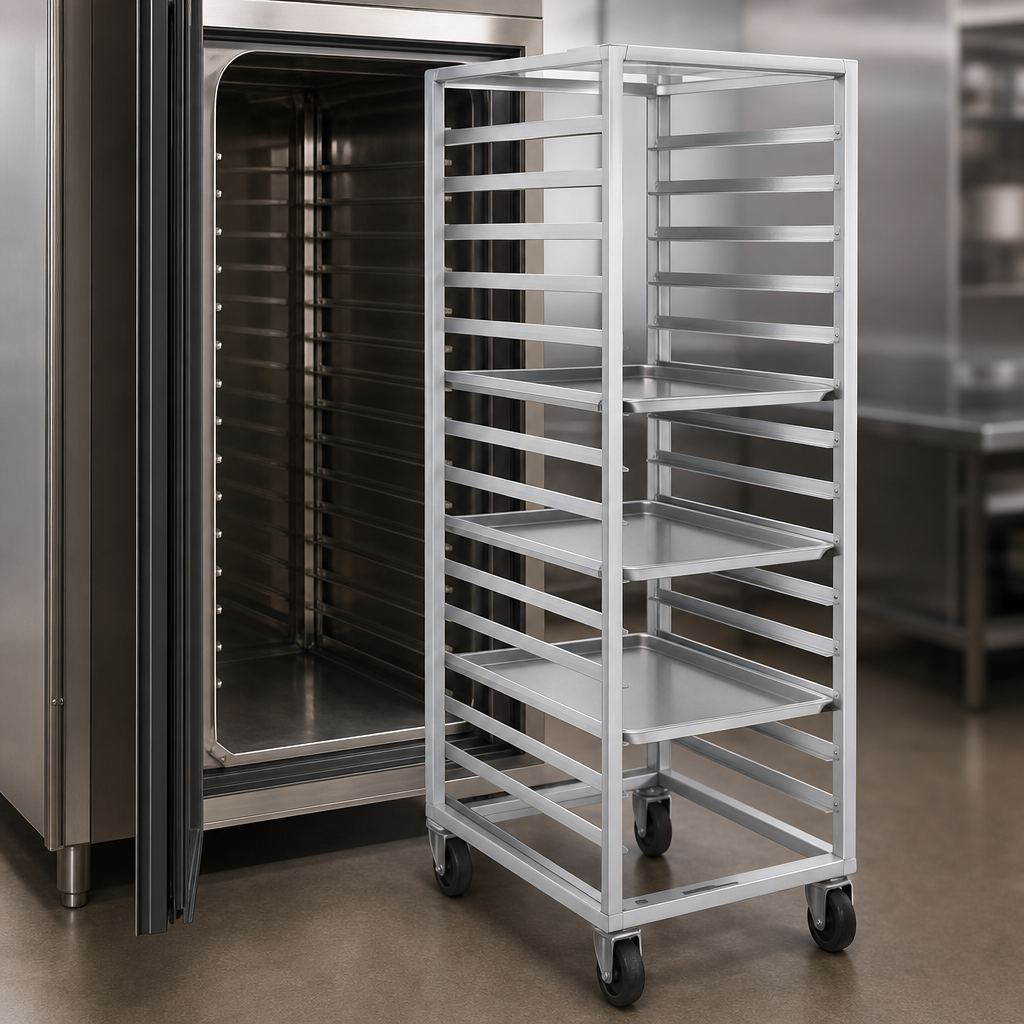

- End-load configuration for quick front loading & unloading.
- (20) 18" × 26" pans or (40) 13" × 18" half-pans (2 per shelf) on 3" slide spacing.
- 4" all-swivel phenolic plate casters (model CPS54H) with Zerk fittings: • 475 °F continuous • 575 °F intermittent • to –45 °F for blast chilling.
- Non-marking wheels; casters bolt on for easy service.
- Delivered fully assembled; CAD drawing provided for customer approval.
- NSF listed & backed by a 5-year limited warranty.
Technical Specs
| Overall capacity | 20 full-size pans (18" × 26") • 40 half-size pans (13" × 18") |
|---|---|
| Slide spacing | 3" centers (angle slides) |
| Unit dimensions (H × W × D) | 69.75" × 20.5" × 26" |
| Construction | 18-ga 304 stainless steel |
| Load orientation | End / front load |
| Casters | (4) 4" swivel phenolic plate, high-temp, w/ Zerk grease fittings |
| Item weight | 68 lb (rack only) |
| Shipping weight | ≈118 lb (includes 50 lb pallet) |
| Certifications | NSF • Made in USA |
| Warranty | 5-year limited manufacturer’s warranty |
Popular Options (sold separately)
- /011 Caster brakes
- /CC Card clip
- /009 Aluminum pan stop • /010 Stainless-steel pan stop • /PG Gravity pan stop
- Two- or four-point lifter kits (“B” or “C” lift) – end or side placement
Base model ships without lifting devices or pan stops.
