Channel Manufacturing  |  SKU: 400S  |  UPC: 835384001301

Channel Manufacturing 400S Pan Racks

$1,223.36
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Pan Racks Racks & Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

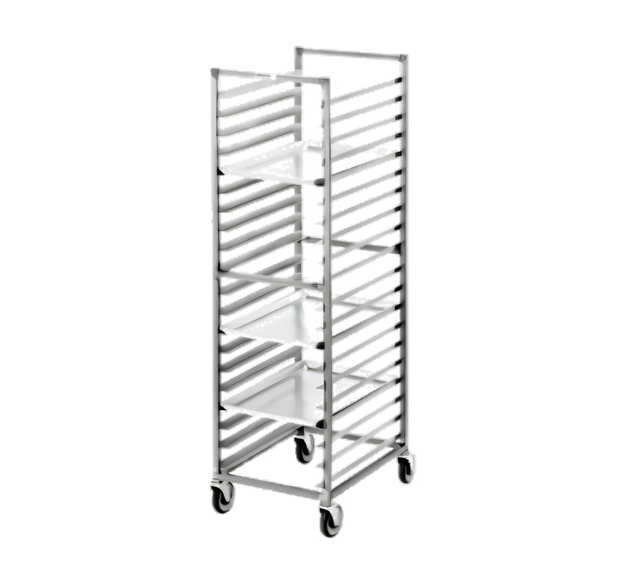

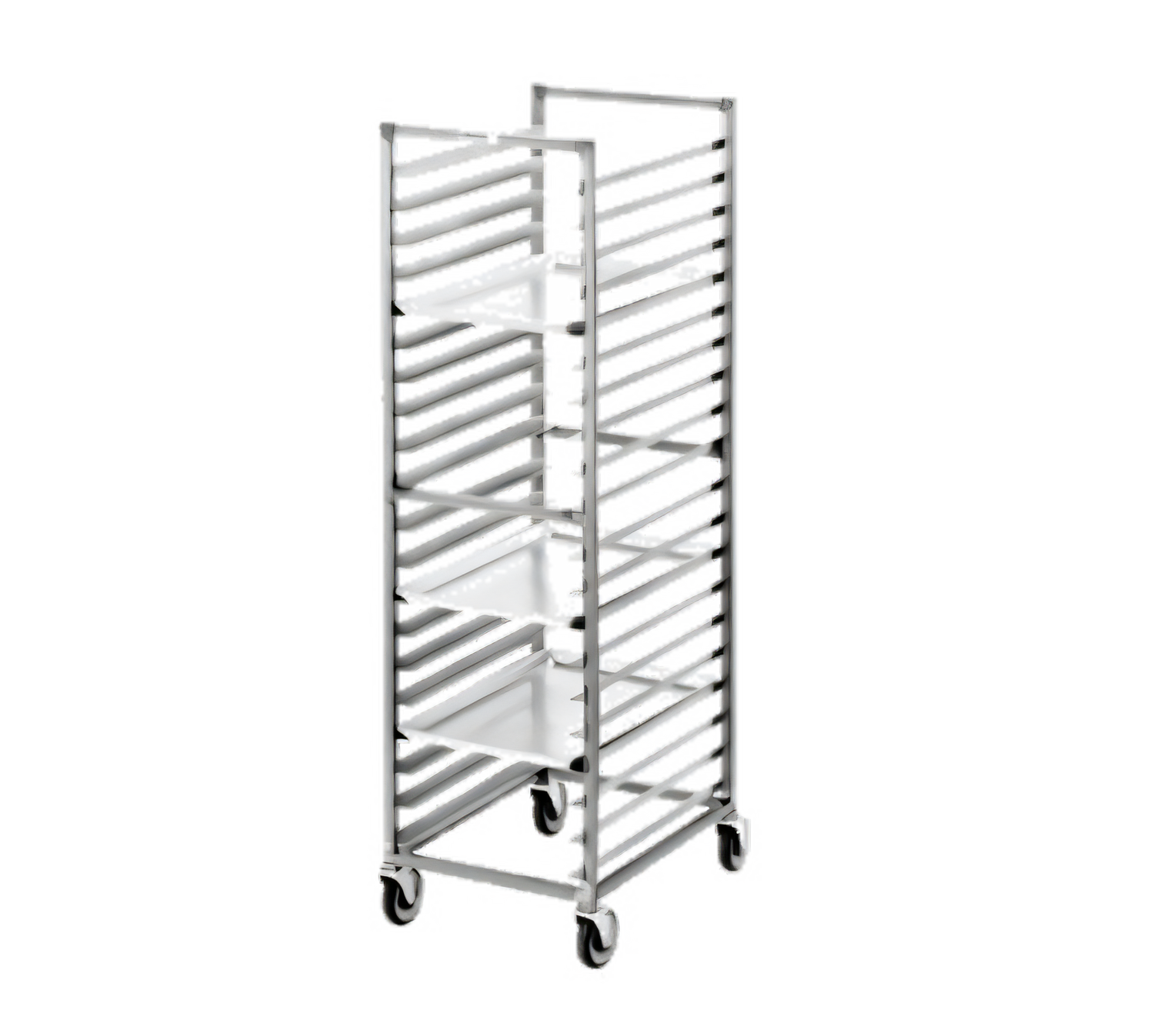

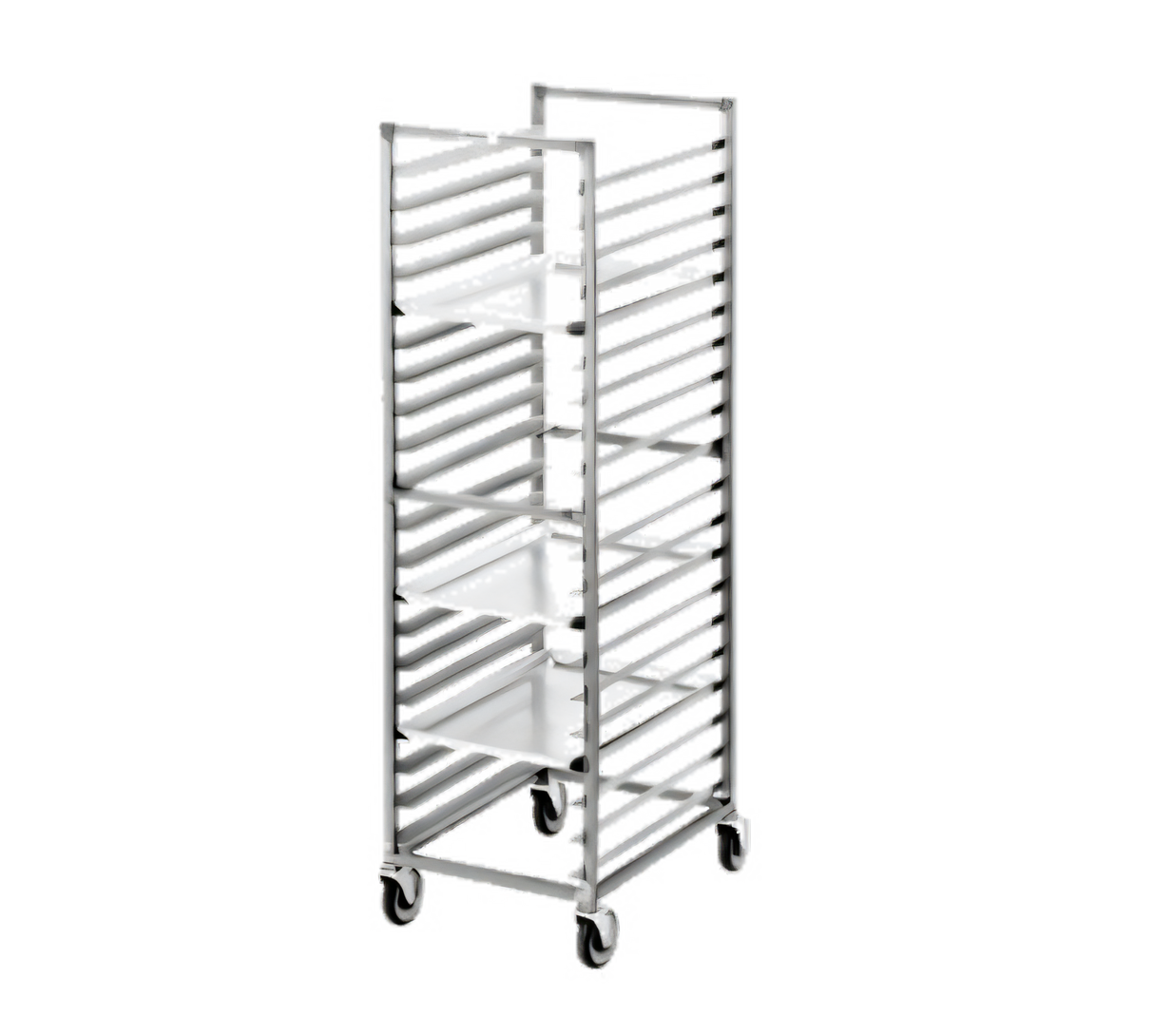

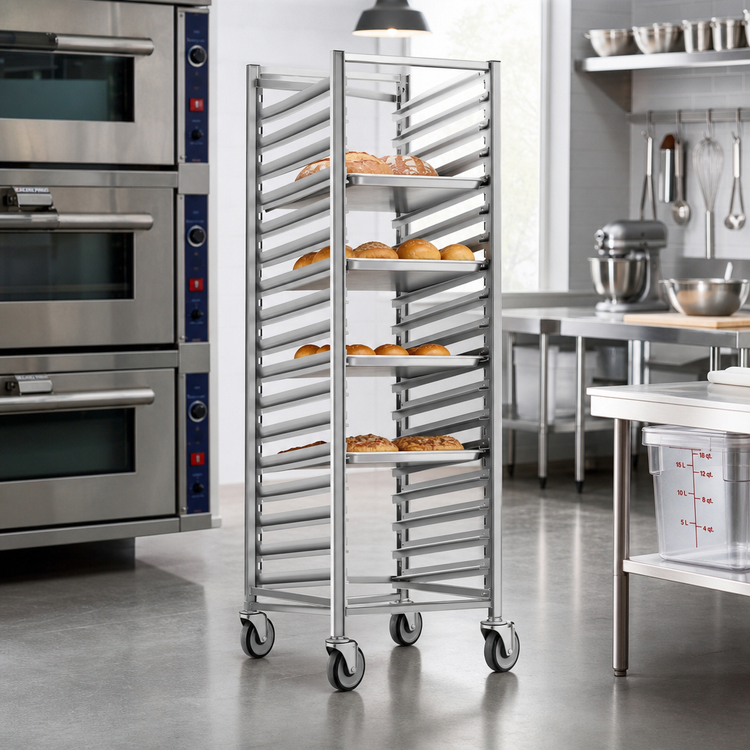

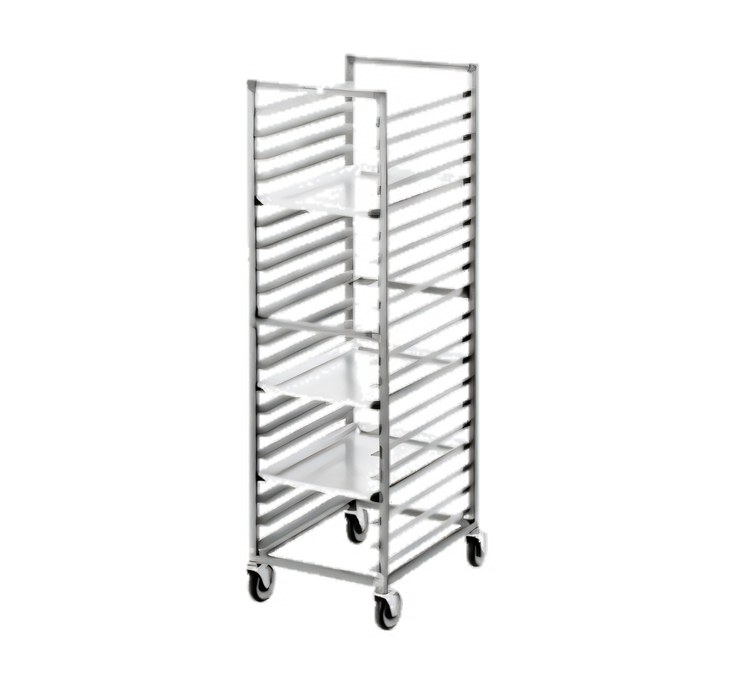

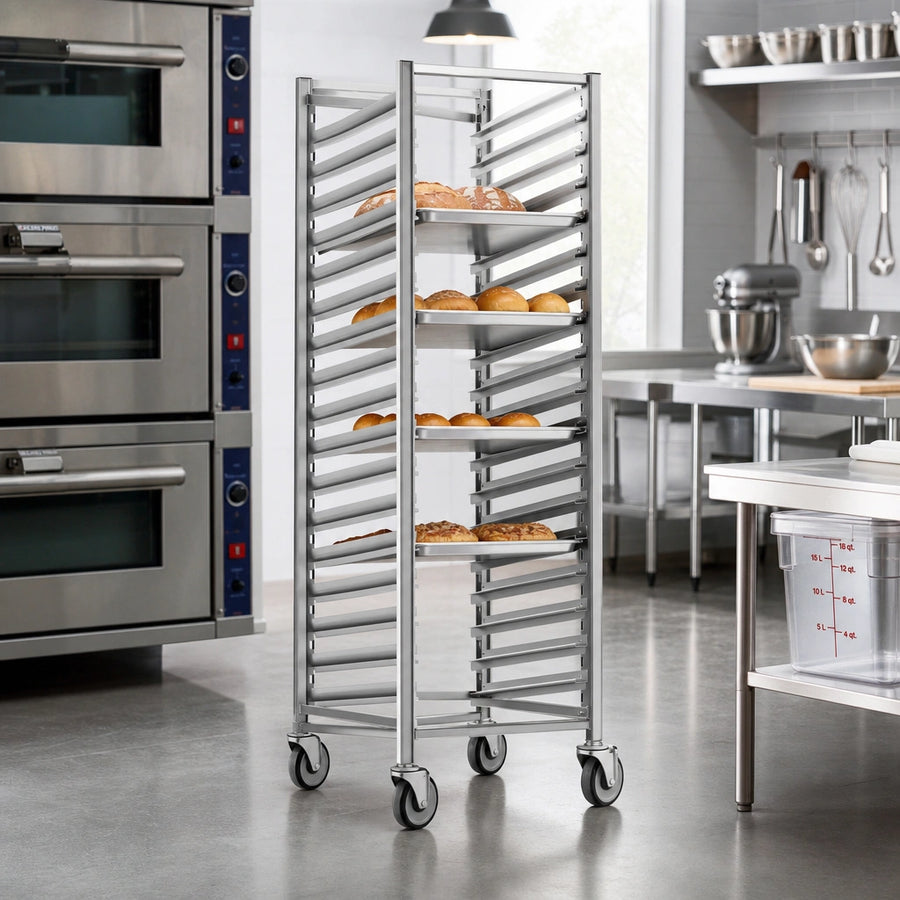

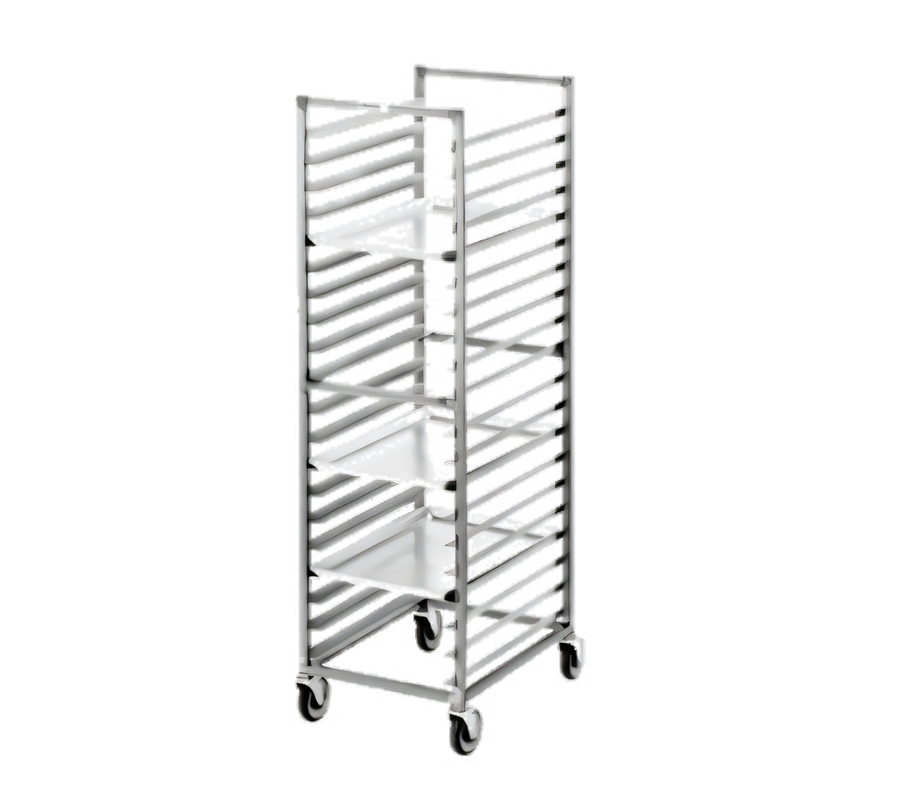

Channel CSS45PU Stainless Steel Bun Pan Rack

30 Full-Size Pan / 60 Half-Size Pan Capacity  |  End-Load  |  2" Spacing

Keep high-volume bakeries and commercial kitchens running smoothly with Channel Manufacturing’s all-welded Stainless Series rack. Built from heavy-gauge type 304 stainless steel and shipped fully assembled, the CSS45PU is engineered for years of corrosion-free, NSF-certified performance.

Key Features

  • 18 ga type 304 stainless steel construction—ideal for moist or chemically cleaned environments.

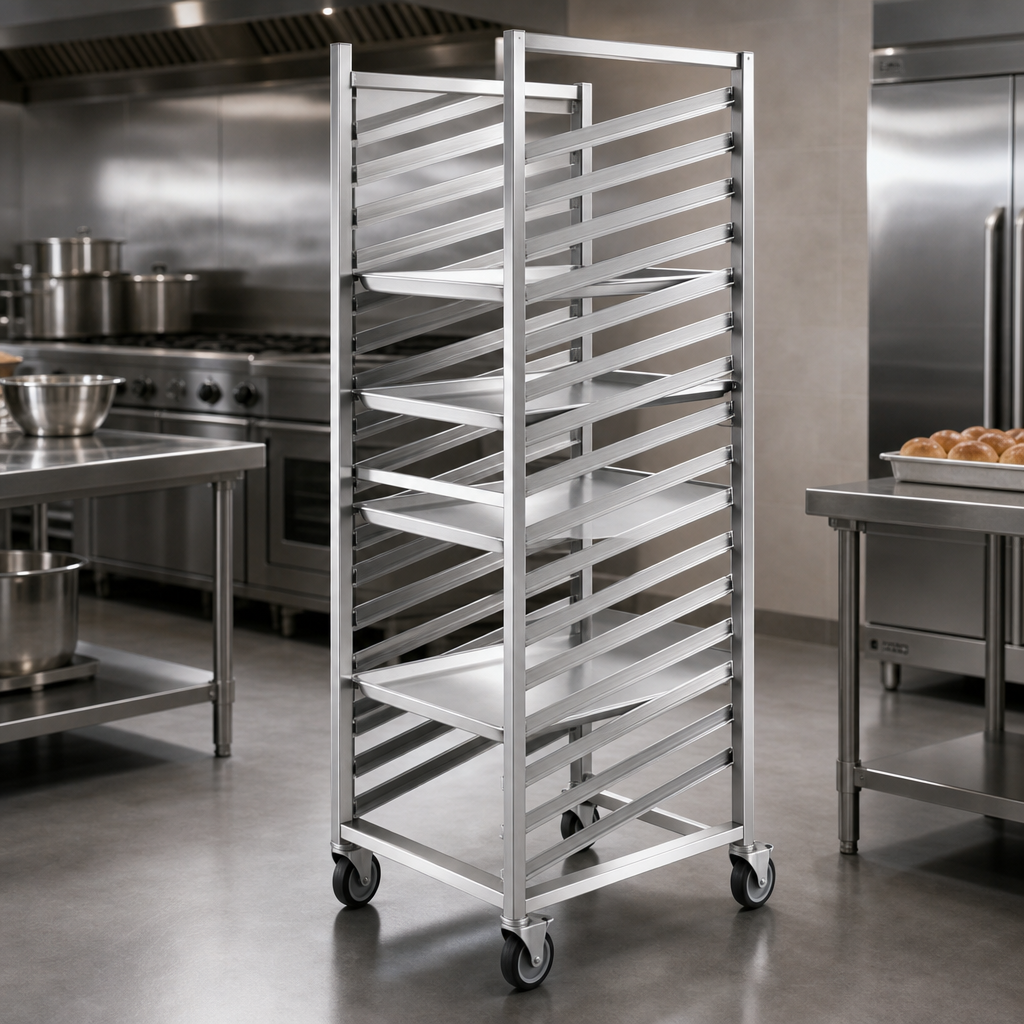

  • All-welded one-piece frame arrives ready to use—no nuts & bolts to loosen over time.
  • 2" slide spacing holds up to 30 full-size 18" × 26" bun pans or 60 half-size 13" × 18" pans (2 per ledge).
  • End-load design simplifies loading while saving valuable aisle space.
  • 1" × 1-1/2" stainless angle slides are continuously heli-arc welded for maximum strength.
  • (4) 5" all-swivel, non-marking stem casters provide smooth, quiet mobility; heavy-duty and braking upgrades available.
  • NSF listed for food-contact safety and sanitation.
  • Proudly made in the USA.

Popular Upgrades (sold separately)

  • /011 Caster brakes (pair)
  • /022 Corner bumpers (2) or /024 (4)
  • /PB Perimeter bumpers (4)
  • /CC Card clip for easy product ID
  • /BA Solid bottom shelf

Specifications

Model CSS45PU
Series / Type Stainless Series – All-Welded Bun Pan Rack
Pan Orientation End Load (Front Load)
Capacity 30 × 18" × 26" full-size pans
60 × 13" × 18" half-size pans (2 per ledge)
Slide Spacing 2" center-to-center
Overall Dimensions 70.25" H × 20.5" W × 26" D
Material 18 ga type 304 stainless steel
Casters (4) 5" swivel stem, non-marking TPE
Item Weight 75 lb
Certifications NSF, Made in USA
Note: Shipping weight is approximately 125 lb (includes an estimated 50 lb pallet). If lift-gate service or inside delivery is required, please specify at checkout.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

70.25in

Width

20.5in

Depth

26.0in

Shipping Weight

75.0lbs

Height

67" - 72"

Pan Capacity

26 - 30

Sides

open sides

Ships

assembled / welded

Centers

2 to 2-1/2" centers

Construction

stainless steel

Top

open top

Loading

end loading

Specifications

Bun Pan Rack, All-Welded, Stainless Series, 20.5"W x 26"D x 70.25"H, Stainless Steel Construction, End Load, 2" Angle Spacing, (30) 18" x 26" or (60) 13" x 18" pans (2 per shelf), 5" Swivel Stem Casters model # CSS45PU, Made in USA, NSF, 75lbs. (ITEM WEIGHT ONLY), weight does not include 50 lbs. for pallet weight
