Channel Manufacturing  |  SKU: 400S-OR  |  UPC: 835384001318

Channel Manufacturing 400S-OR Specialty Ovens

$1,490.78
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page
Related Searches
Ovens Specialty Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

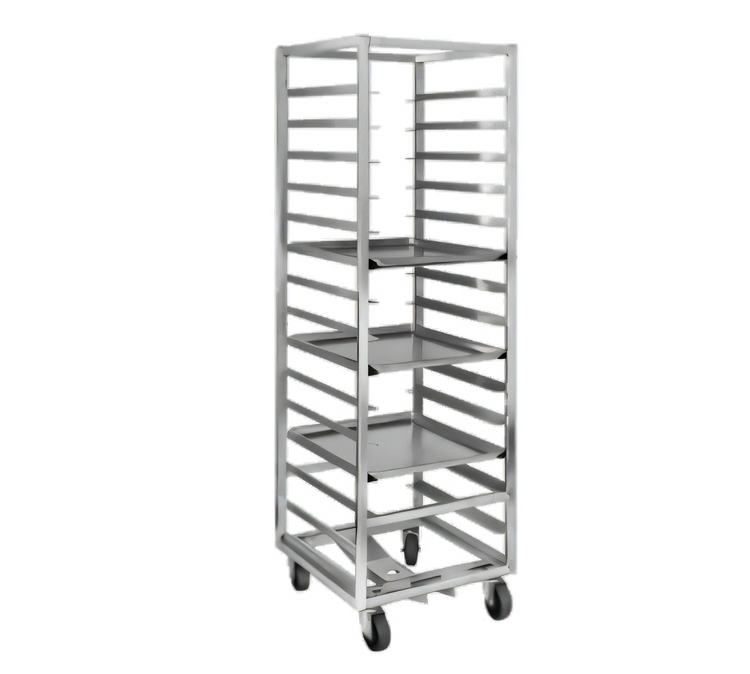

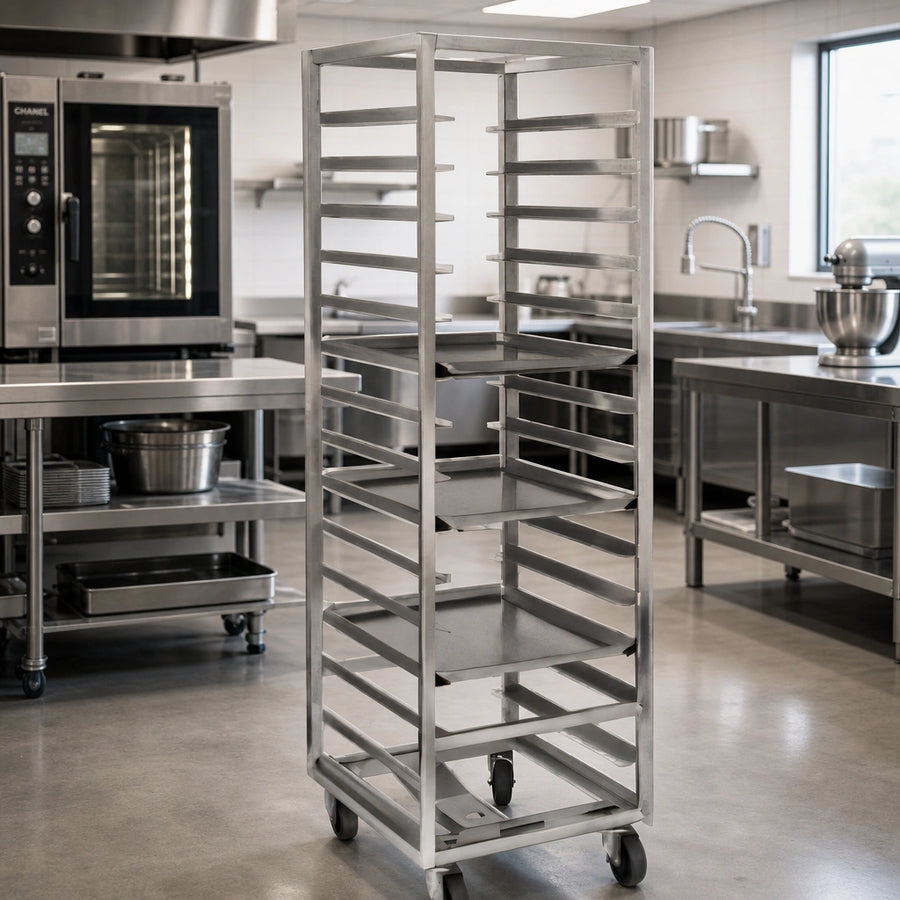

Channel Stainless Steel Oven Rack – Single Section, End Load

Model 400S-OR | Caster Set CPS54H

Built for punishing oven cycles, rapid-chill environments and everything in between, this Channel Manufacturing rack offers rock-solid stainless-steel construction and high-temp mobility in a compact, single-section footprint.

Why You’ll Love It

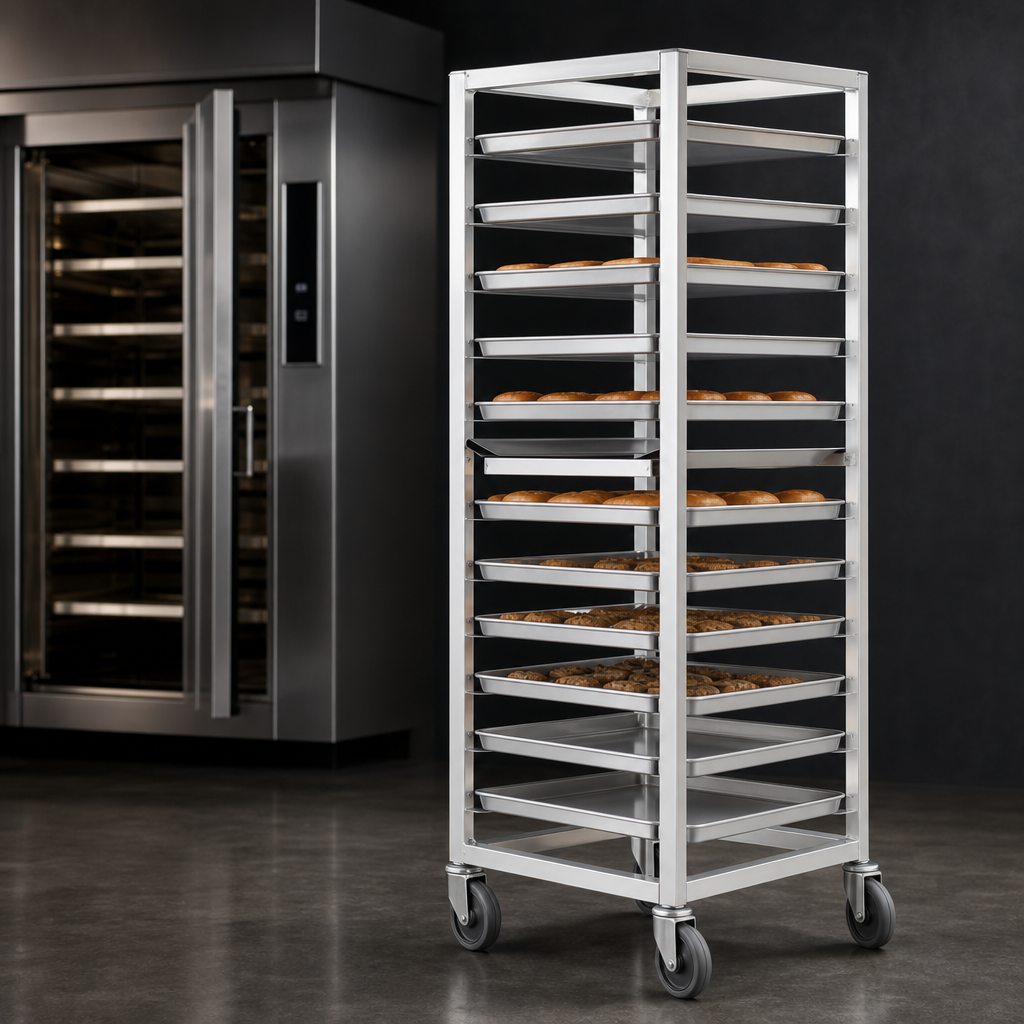

  • Holds (30) 18 × 26" full-size bun pans or (60) 13 × 18" half pans—two per slide.
  • 2" slide spacing maximizes capacity while allowing even airflow for uniform baking.

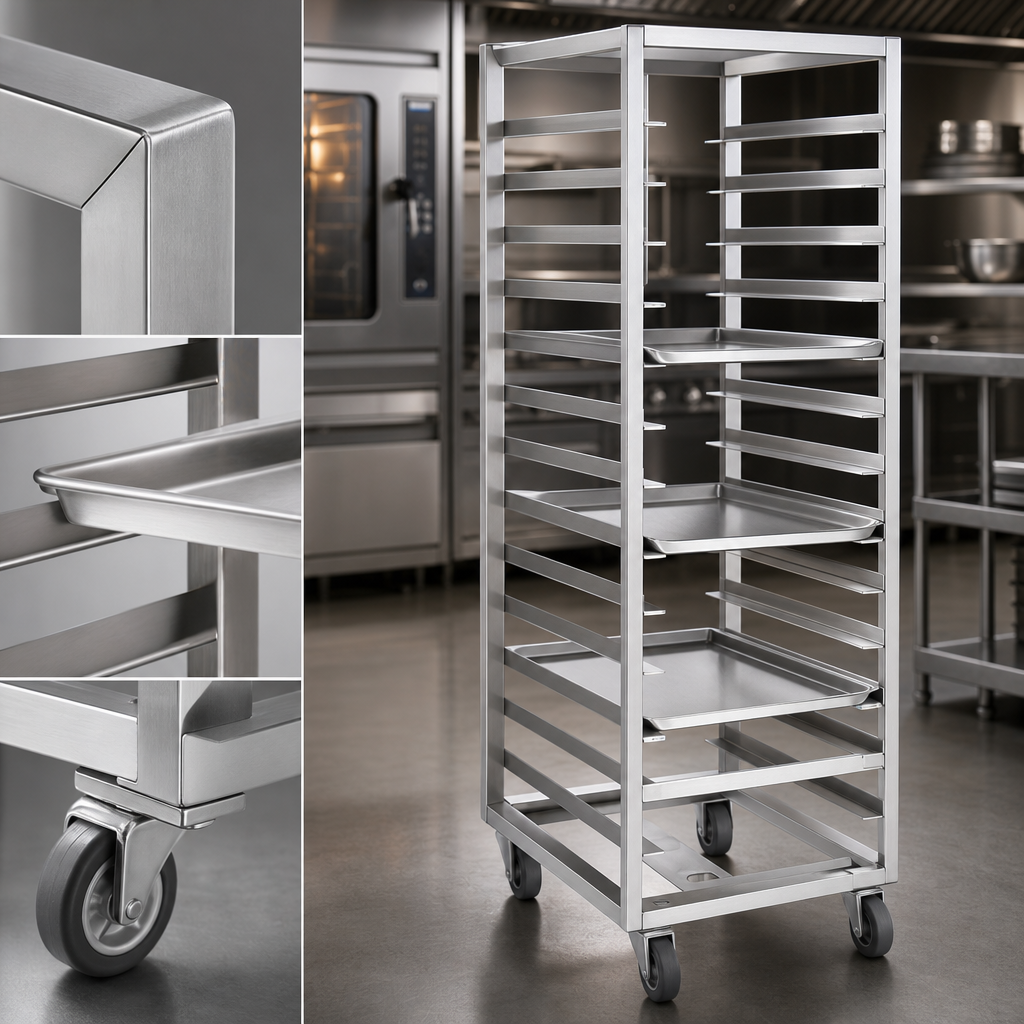

  • All-welded 18 ga. 304 stainless-steel frame resists rust, corrosion and aggressive detergents.
  • 4" swivel phenolic plate casters (Model CPS54H) with Zerk grease fittings: • 475 °F continuous • 575 °F intermittent • –45 °F blast-chill rated.
  • Front (end) load orientation fits standard commercial ovens and proofers.
  • Ships fully assembled, NSF listed and proudly made in the USA.
  • Includes 5-year limited manufacturer’s warranty and CAD drawing for pre-install approval.
Technical Specifications
Series / Model Stainless Series / 400S-OR
Orientation Single section, front (end) load
Slide Type & Spacing Angle slides, 2" on center
Pan Capacity (30) full-size 18 × 26" pans  |  (60) half-size 13 × 18" pans
Overall Dimensions 69.75" H × 20.5" W × 26" D
Construction 18 ga. 304 stainless steel, all-welded
Casters (4) 4" high-temp swivel phenolic plate casters with grease fittings
Item Weight 77 lb (rack only)
Certifications NSF, Made in USA
Perfect For
  • Commercial bakeries & pastry kitchens
  • High-volume restaurants & hotels
  • Catering and banquet operations
  • Institutional & commissary food-service
Important: Base model ships without lifting devices or pan-stop accessories. Contact us for custom configurations. Shipping weight does not include the additional 50 lb pallet weight.

Need dimensional verification? Request the free CAD drawing to ensure a perfect fit in your kitchen layout.

Features & Specs

Manufacturer

Channel Manufacturing

Certifications

NSF, Made in USA

Height

69.75in

Width

20.5in

Depth

26.0in

Shipping Weight

77.0lbs

Loading

end

Pan Capacity

30 - 69

Construction

stainless steel

Style

no lift

Rack Size

single

Specifications

Oven Rack, Single Section, Stainless Series, 20.5"W x 26"D x 69.75"H, Stainless Steel Construction, End Load, 2" Angle Spacing, (30) 18" x 26" or (60) 13" x 18" pans (2 per shelf), 4" Swivel High Temp Phenolic Plate Casters w/ Zerk grease fitting model # CPS54H, Made in USA, NSF, 77lbs. (ITEM WEIGHT ONLY), CAD drawing will be supplied for approval, base oven rack model excludes lifting devices and pan stops, weight does not include 50 lbs. for pallet weight,
