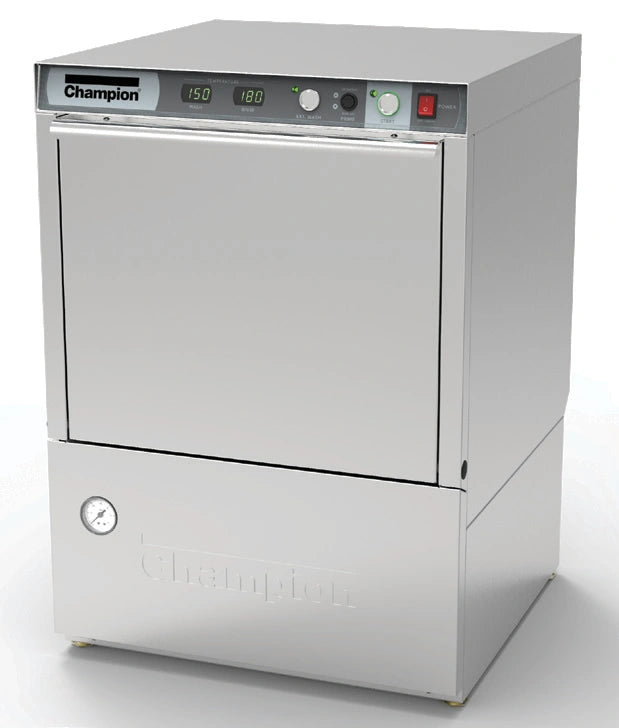

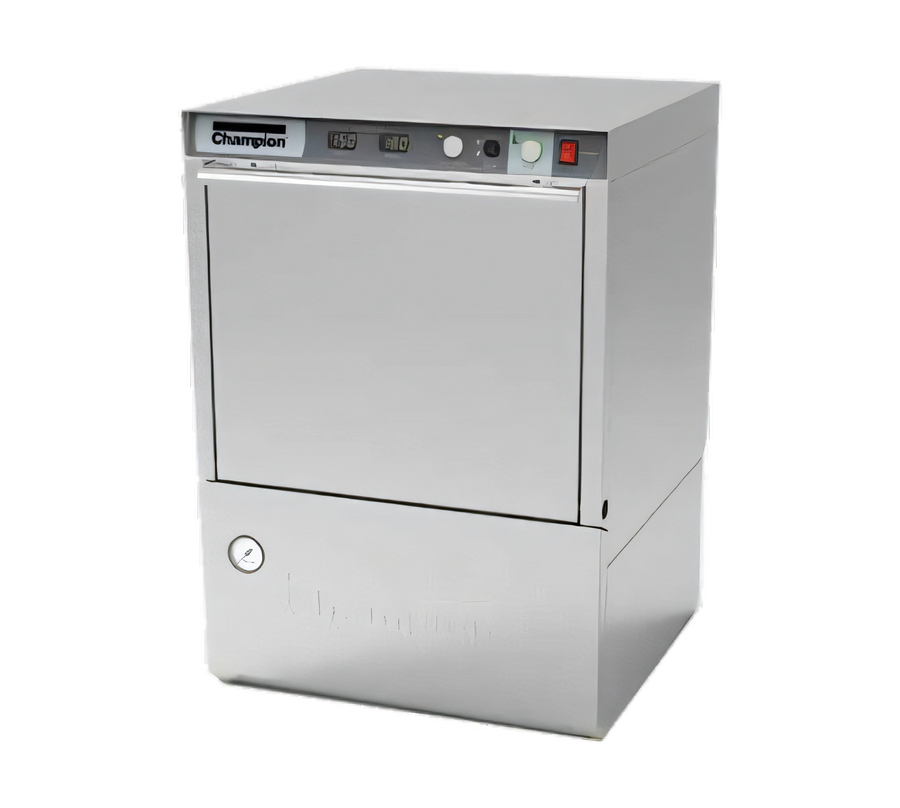

Champion UH230B Undercounter High-Temperature Dishwasher with Built-In Booster, 20" x 20" Racks
Champion UH230B Undercounter High-Temperature Dishwasher with Built-In Booster, 20" x 20" Racks
40 Racks/Hour, 90-Second Cycle, Multi-Power Convertible
A compact high-temp undercounter dishwasher that delivers fast 40-rack-per-hour performance, soft-start protection, and flexible multi-power installation.
- High-temperature sanitizing dishwasher with a built-in electric booster for 180°F final rinse water.
- Fast 90-second cycles and 40 racks per hour help keep dish flow moving.
- StemsSure soft start helps protect glassware and dinnerware from chipping and breaking.
- Multi-Power design supports 208-240V service and easy field conversion between single- and three-phase power.
- 316 stainless steel tank, stainless steel panels, and quiet double-wall construction support durability and a quieter kitchen.
- Includes detergent and rinse aid pumps, pumped drain, automatic drain cycle, and standard 20" x 20" racks.
Overall Dimensions:
24.0"W x 25.0"D x 33.75"HProduct Weight:
215.0 lbStemsSure Soft Start
Soft-start wash action helps protect glasses and dishes from chipping and breaking.

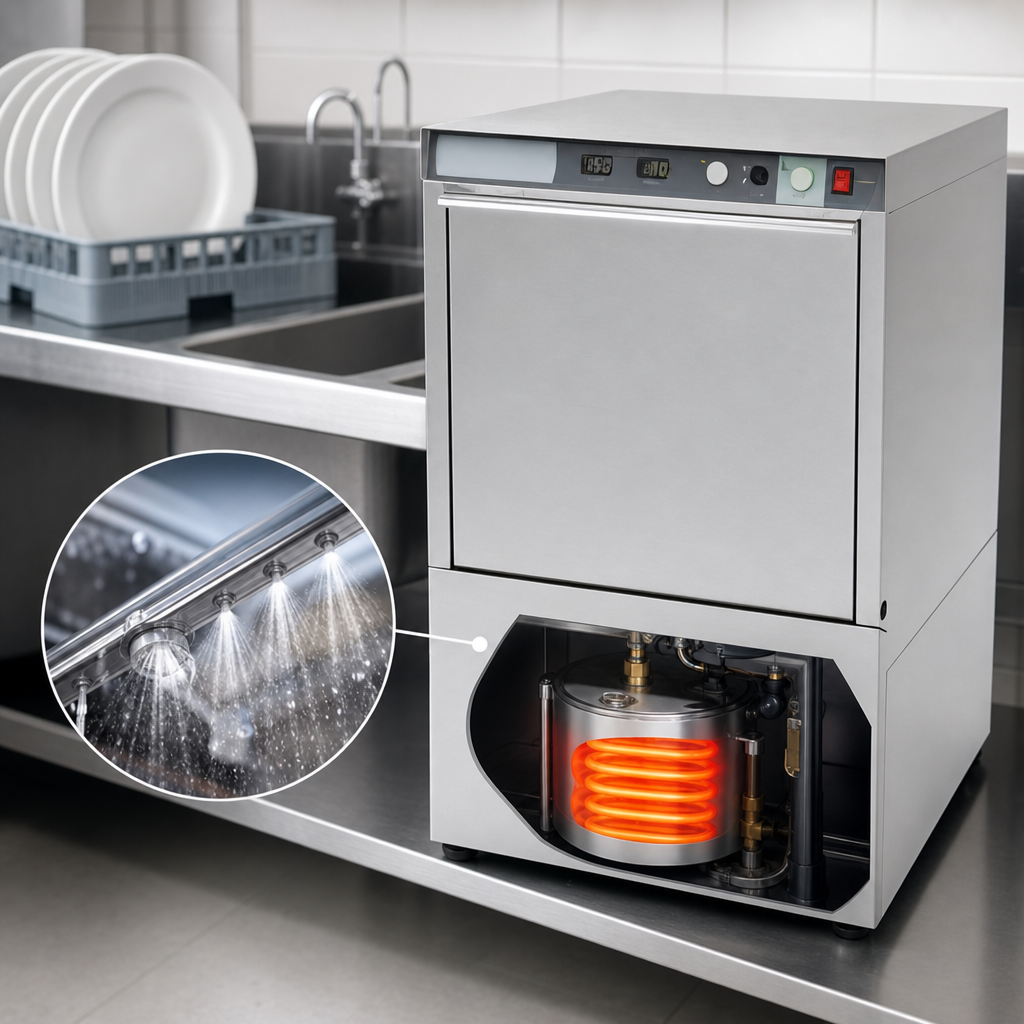

Built-In Electric Booster
Delivers 180°F/82°C final rinse water for high-temperature sanitizing.
Rinse Sentry
Extends cycle time to ensure the final rinse reaches 180°F/82°C.
Shear Energy
Reduces energy requirements while maximizing performance.
Multi-Power Conversion
Allows infield conversion to 208-240V and single- or three-phase power.
316 Stainless Steel Tank
Corrosion-resistant tank construction designed for long service life.
Quiet Double-Wall Construction
Helps lower operating noise in the dish area.
Detergent And Rinse Aid Pumps
Built-in chemical pumps simplify daily operation.
Pumped Drain And Automatic Drain Cycle
Supports flexible installation and convenient end-of-cycle drainage.
Advanced Digital Temperature Monitoring And Safety
Monitors temperatures and includes automatic tank fill, low-water tank heat protection, and a door safety switch.
Top-Mounted Controls With Prime Switch
Slide-out top-mounted controls keep key functions accessible.
Standard 20" x 20" Rack Package
Uses standard 20" x 20" racks and includes one peg rack and one flat rack.
Certifications & Compliance
Warranty & Protection
1-year parts and labor
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
