Key specifications

Amps
16 Amps
Phase
1-Phase
Dimensions
30.25"W × 34.13"D × 66.0"H
Type
Door-Type Dishwasher
Style
Universal
Installation Type
Floor Model
Spec sheet
Champion SKU: DL-2000

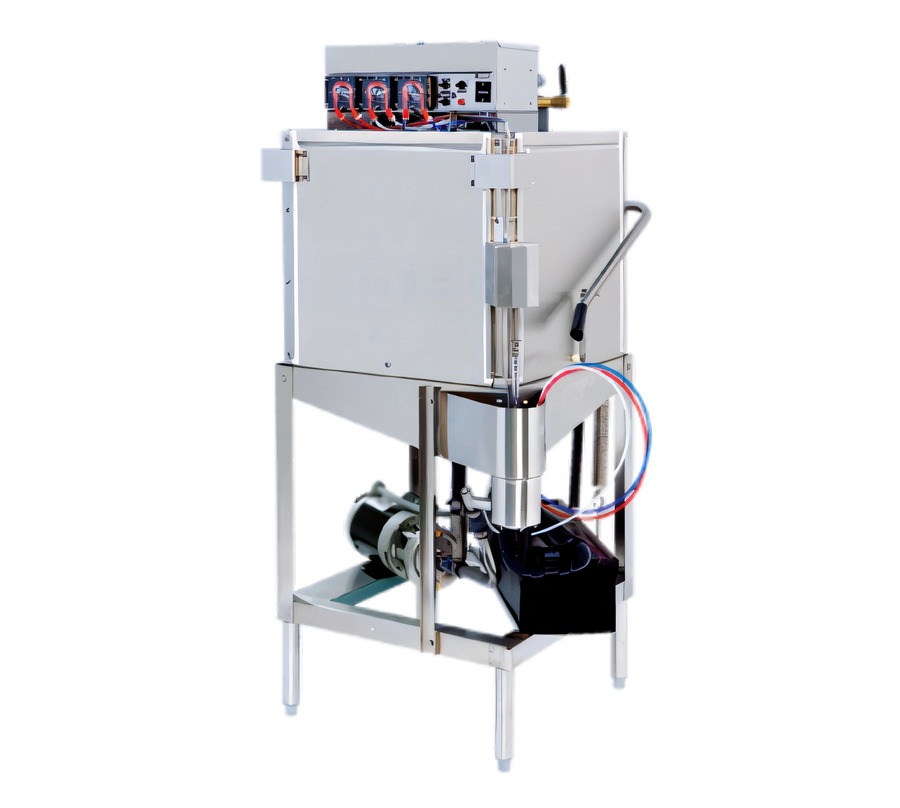

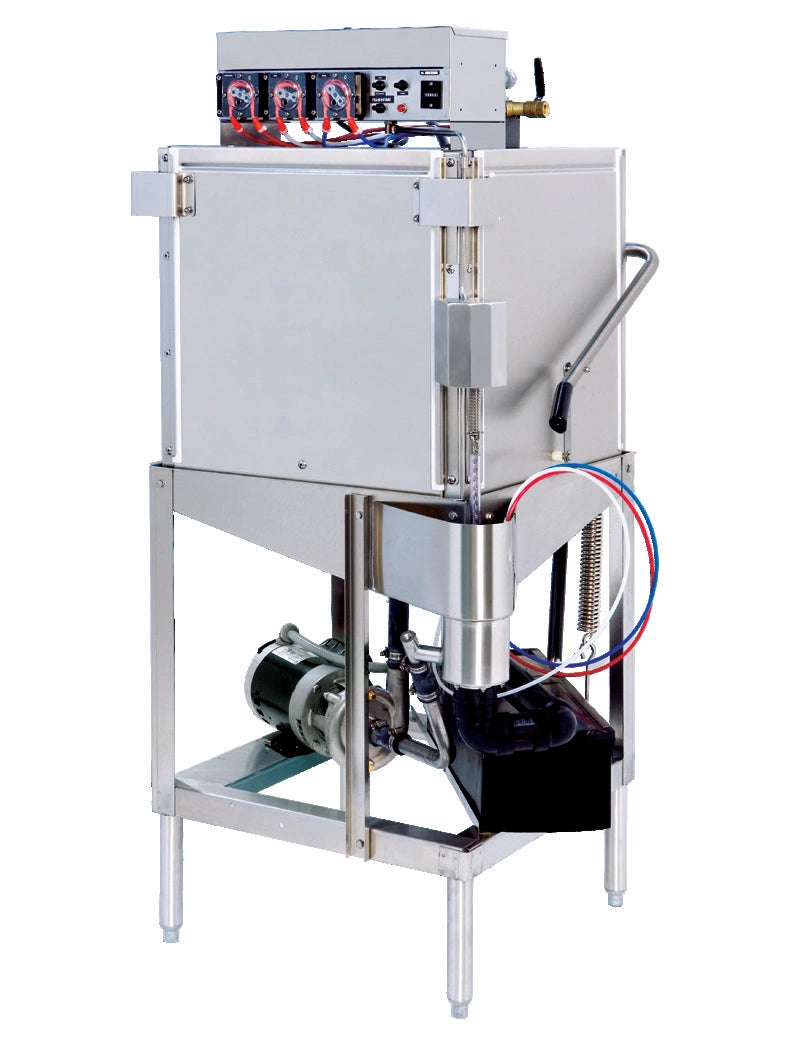

Champion DL-2000 Universal Door Dishwasher, 40 Racks/Hour

$9,240.18
/each
Estimated to ship in 31–34 business days Free Shipping
Included: Champion warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $855/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Door-Type Dishwasher
Style Universal
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Capacity 40 Racks/Hour; 160 Covers/Hour
Configuration Straight-Through/Corner
Temperature Type Low Temperature
Sanitizing Method Chemical
Rack Configuration Single
Controls Top Mounted
Door Opening 17 Inches
Cycle Time 90 Seconds
Motor Horsepower 1 HP
Pump Capacity 52 Gal/197 LPM
Water Consumption 1.01 US Gallons/Cycle
Rack Size 19-3/4 x 19-3/4 Inches
Voltage 115 Volts
Amps 16 Amps
Required Breaker 20 Amps
Hertz 60 Hz
Phase 1-Phase
Water Inlet 1/2 Inch
Drain Size 2 Inch IPS
Required Water Temperature 120°F / 49°C
Recommended Water Temperature 140°F / 60°C

Description

Champion DL-2000 is a low-temperature chemical door-type dishwasher with a universal straight-through/corner configuration.

  • Processes up to 40 racks or 160 covers per hour.
  • Top-mounted controls include built-in chemical pumps and a deliming system.
  • Features auto start/stop, a self-draining pump, a scrap tray drain, and a 3-door lift.
  • Stainless steel construction with a 1 HP motor.
  • Operates on 115 Volts, 60 Hz, single phase power.

Overall Dimensions:

30.25"W x 34.13"D x 66.0"H

Product Weight:

218.0 lb

Universal Configuration

Supports straight-through and corner configurations.

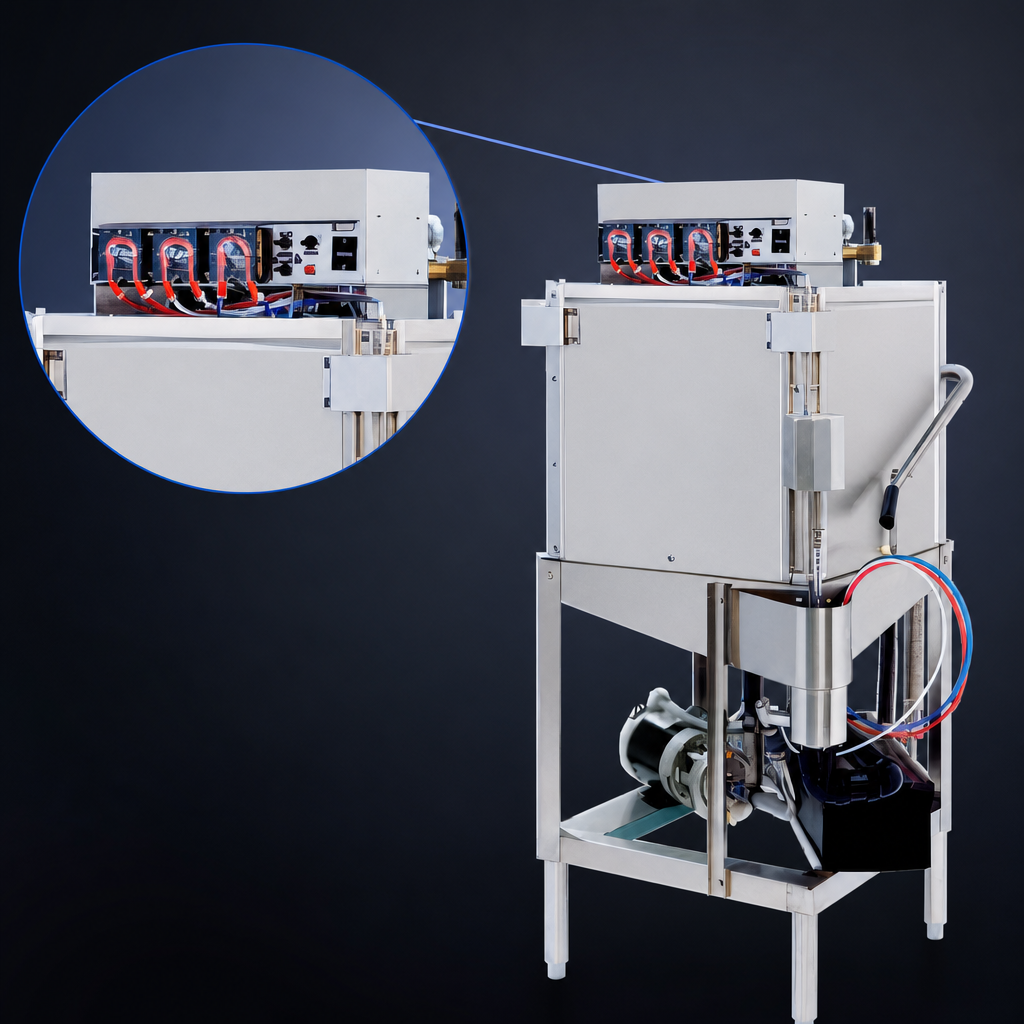

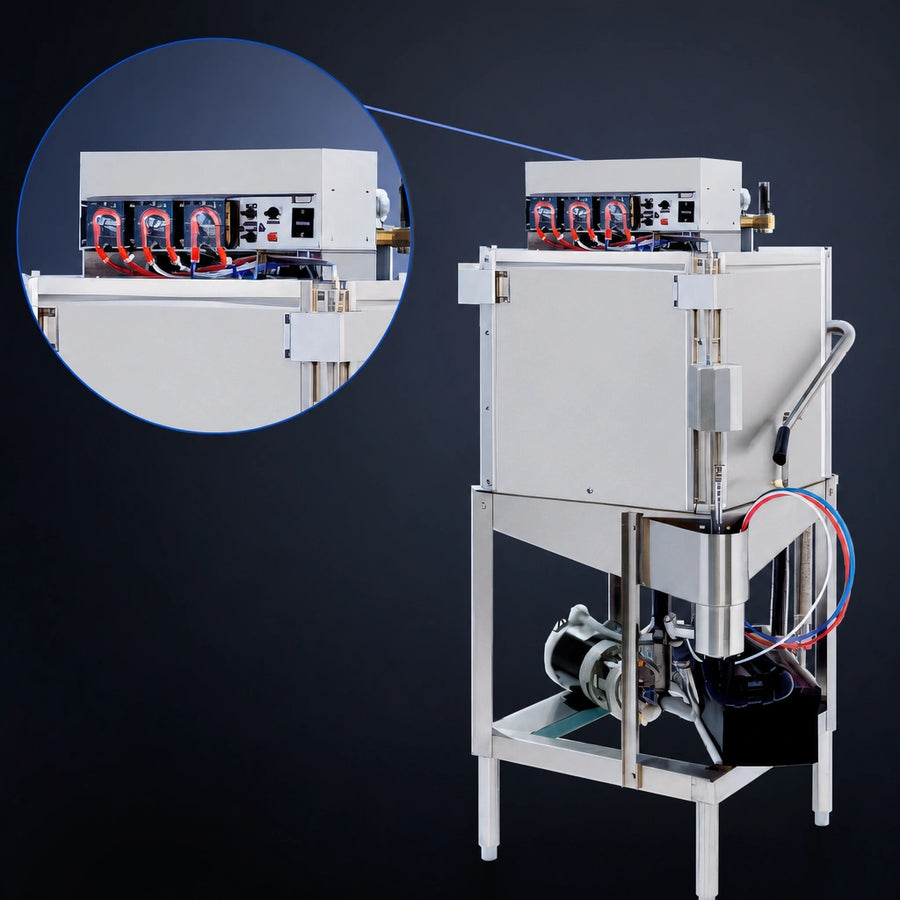

Top-Mounted Controls

Controls are mounted on top of the dishwasher.

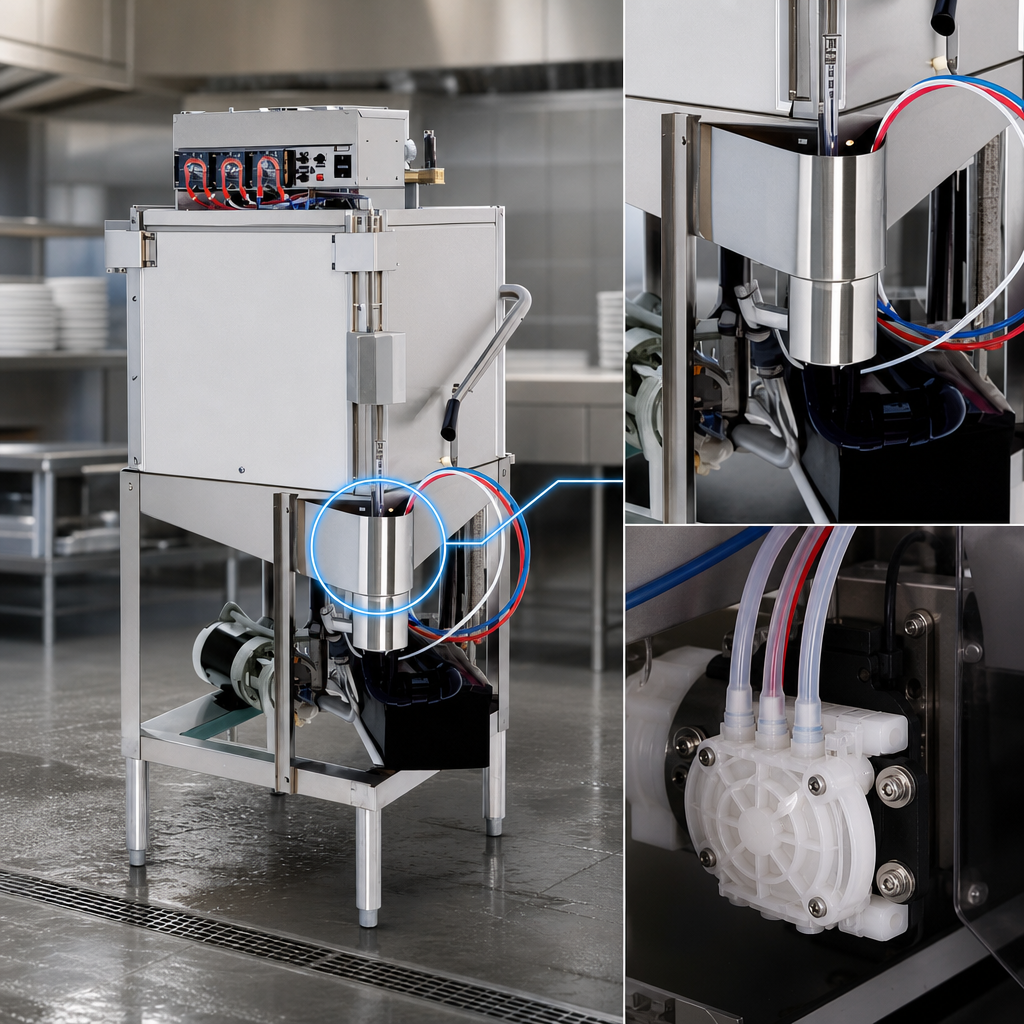

Built-In Chemical Pumps

Chemical pumps are integrated into the control system.

Deliming System

Built-in system for deliming.

Auto Start/Stop

Automatically starts and stops operation.

Scrap Tray Drain

Integrated scrap tray drain.

Self-Draining Pump

Features a self-draining pump.

Stainless Steel Construction

Constructed of stainless steel.

3-Door Lift

Includes a 3-door lift.

Frequently Asked Questions

It processes up to 40 racks or 160 covers per hour.
Yes. Its universal configuration supports both straight-through and corner layouts.
It uses 115 Volts at 60 Hz and 1-Phase, with a 16 Amp draw and a 20 Amp breaker required.
Yes. The top-mounted controls include built-in chemical pumps and a deliming system.
The total cycle time is 90 seconds.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.

Need help deciding?

Our specialist can help you confirm dimensions, building requirements, and other important details before you buy. We usually reply within 1 hour.

or call (888) 307-5030
