Champion Genesis DH6000 VHR Ventless Heat Recovery High-Temperature Door-Type Dishwasher with Built-In Booster
Champion Genesis DH6000 VHR Ventless Heat Recovery High-Temperature Door-Type Dishwasher with Built-In Booster
Field Convertible Straight-Through or Corner, Single-Point Electrical Connection
A ventless, high-temperature door dishwasher built for flexible installation, fast sanitizing, and simplified operation in busy commercial kitchens.
- Ventless heat recovery design helps reduce venting requirements and supports easier installation.
- Built-in electric booster heater delivers high-temperature sanitizing with a 180°F final rinse.
- Rated for up to 40 racks per hour with 0.73 gallons per rack.
- Field convertible for front load, corner installation, or pass-through use.
- Field convertible electrical setup allows on-site conversion from three-phase to single-phase incoming power.
- Touchscreen HMI controls, onboard diagnostics, and Rinse Sentry help improve workflow and uptime.
Overall Dimensions:
34.13"W x 31.63"D x 68.0"HProduct Weight:

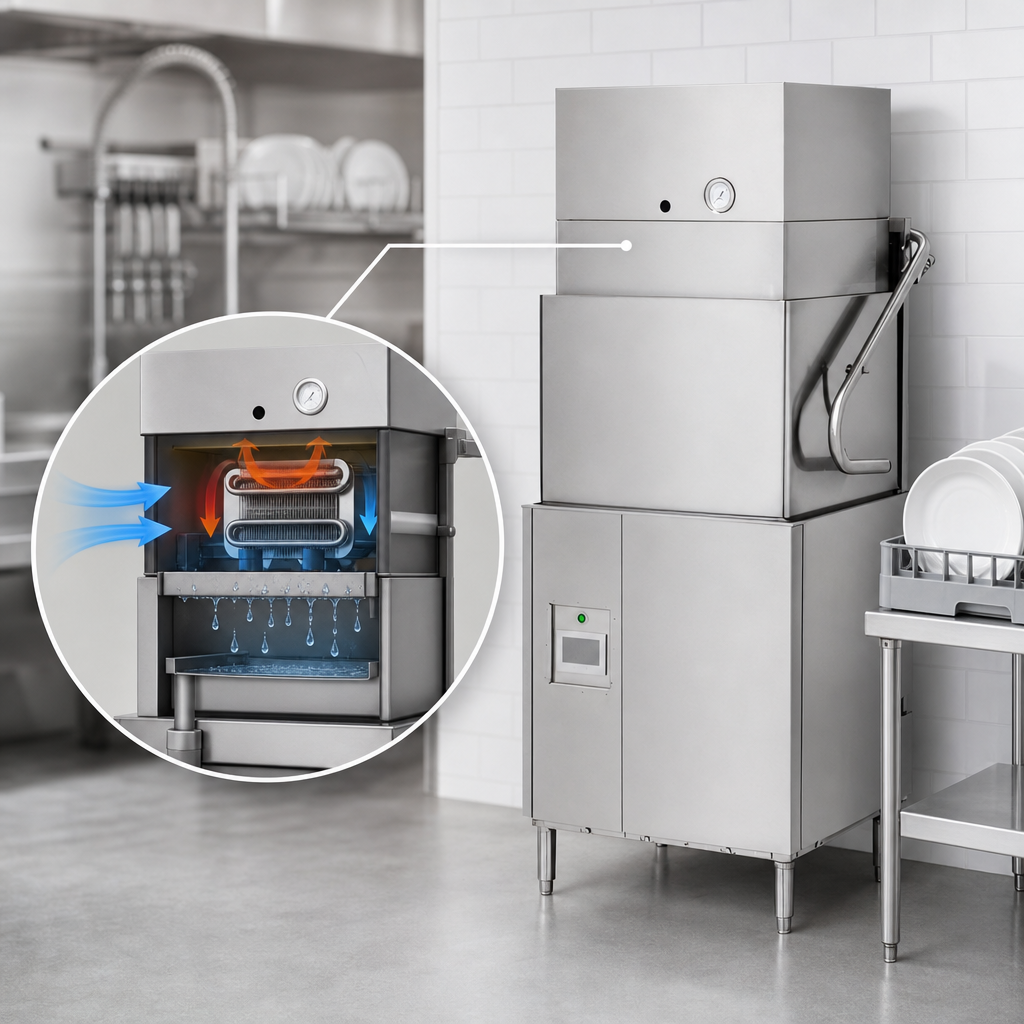

350.0 lbVentless Heat Recovery System
Uses heat recovery and condensate removal to support operation without a traditional exhaust hood.

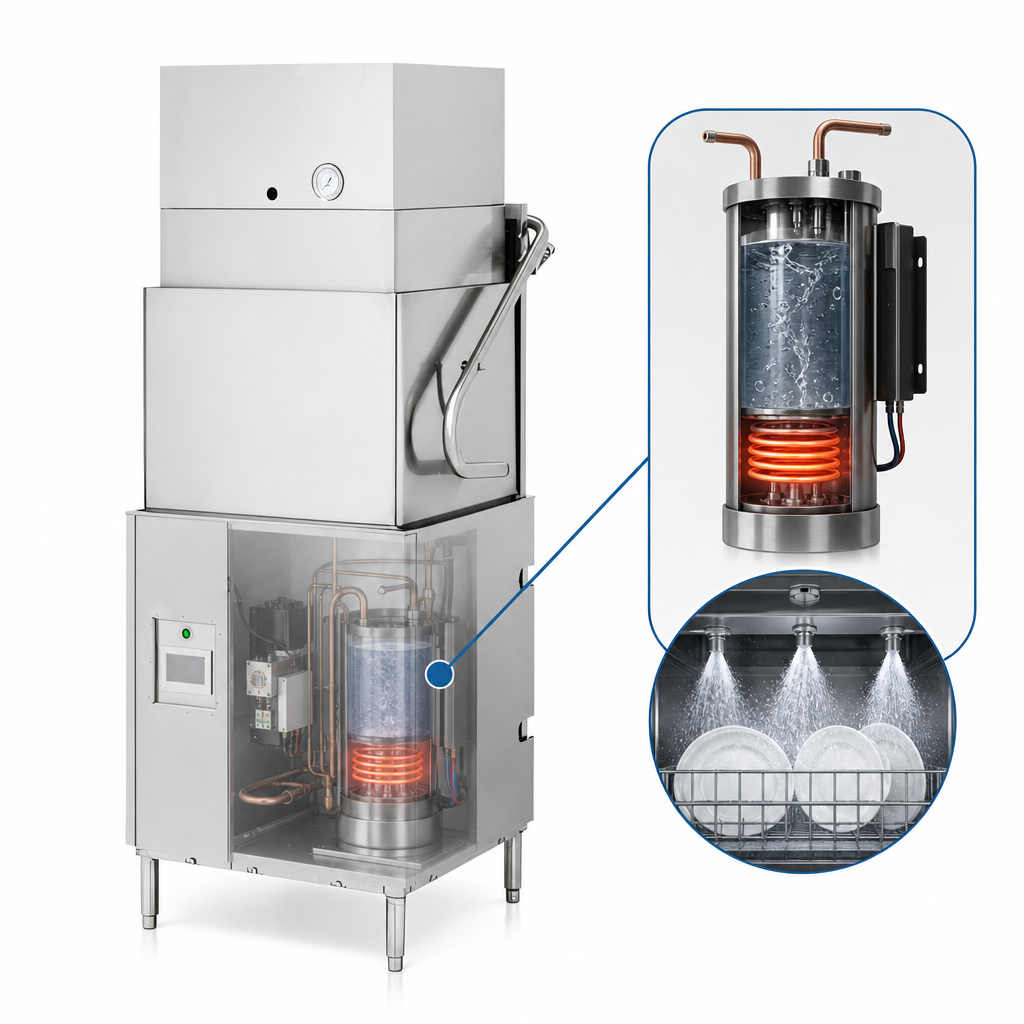

Built-In Electric Booster Heater
Provides high-temperature sanitizing performance and a 180°F final rinse.
Field Convertible Installation
Can be configured for front load, corner installation, or pass-through operation.
Field Convertible Electrical
Can be converted on site from three-phase to single-phase incoming power.
Touchscreen HMI Controls
Lighted bottom-mounted controls provide user-friendly operation, alerts, and cleaning guidance.
On-Board Diagnostics
Helps quickly identify machine faults for faster service and less downtime.
Rinse Sentry
Extends the wash cycle until the booster reaches the proper sanitizing temperature before rinsing.
High-Capacity Wash System
Delivers up to 40 racks per hour at 0.73 gallons per rack with selectable 1, 2, 4, and 6 minute cycles.
Heavy-Duty Utility Features
Includes a 2 HP self-draining pump and motor, automatic drain valve, automatic tank fill, detergent/chemical connections, mounted water PRV, and side panels.
Certifications & Compliance
Warranty & Protection
1-year parts and labor
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
