Key specifications

Phase
1-Phase / 3-Phase
Dimensions
34.13"W × 31.63"D × 68.0"H
Type
Door-Type Dishwasher
Style
High Temperature
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Champion SKU: DH-6000

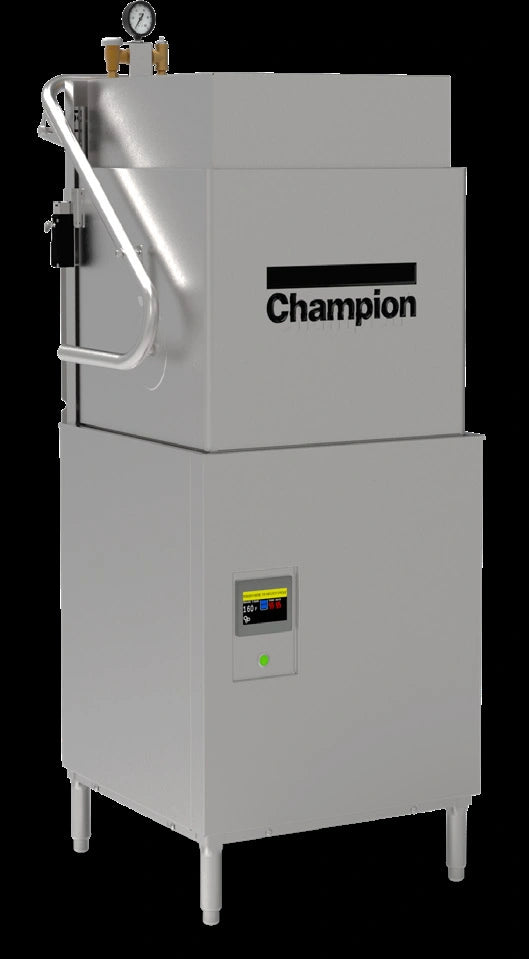

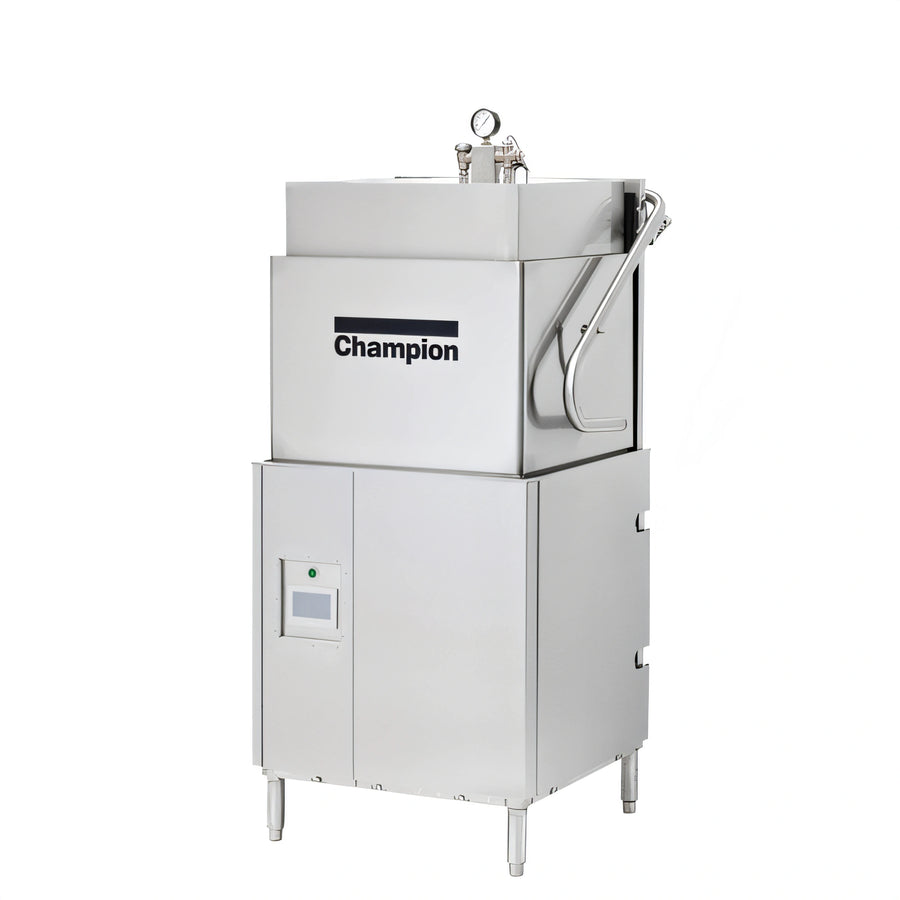

Champion Genesis DH-6000 60-Rack/Hour Door-Type Dishwasher

$13,822.03
/each
Estimated to ship in 41–44 business days Free Shipping
Electrical
Drain type
Booster
Included: Champion warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,279/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Door-Type Dishwasher
Style High Temperature
Installation Type Floor Model
Material Stainless Steel
Layout Straight-Through/Corner
Capacity 60 Racks/Hour
Wash Tank Capacity 10 Gallons
Water Consumption 0.73 Gallons/Rack
Maximum Water Consumption 39 Gallons/Hour
Cycle Times 1, 2, 4, and 6 Minutes
Tank Heat Electric
Wash Temperature 150°F
Rinse Temperature 180°F
Pump Motor 2 HP
Controls Bottom-Mounted HMI
Electrical Configuration Field Convertible
Voltage 208/480 Volts
Hertz 60 Hz
Phase 1-Phase / 3-Phase
Hot Water Connection 3/4 in NPT
Incoming Water Temperature 110-140°F
Drain Connection 1 in NPT
Energy Efficiency ENERGY STAR Certified
Included Racks 1 Flat Rack; 1 Peg Rack
Side Panels Included

Description

The Champion Genesis DH-6000 is a high-temperature door-type dishwasher with a capacity of 60 racks per hour and a straight-through or corner layout.

It features electric tank heat, auto start, pot-and-pan mode, four selectable cycle times, auto-fill, detergent and chemical connections, bottom-mounted HMI controls, and stainless steel construction.

  • 2 HP self-draining pump with interchangeable upper and lower spray arms
  • Automatic drain valve and side panels included
  • Includes one flat rack and one peg rack
  • NSF, cULus, and ENERGY STAR certified

Overall Dimensions:

34.13"W x 31.63"D x 68.0"H

Product Weight:

450.0 lb

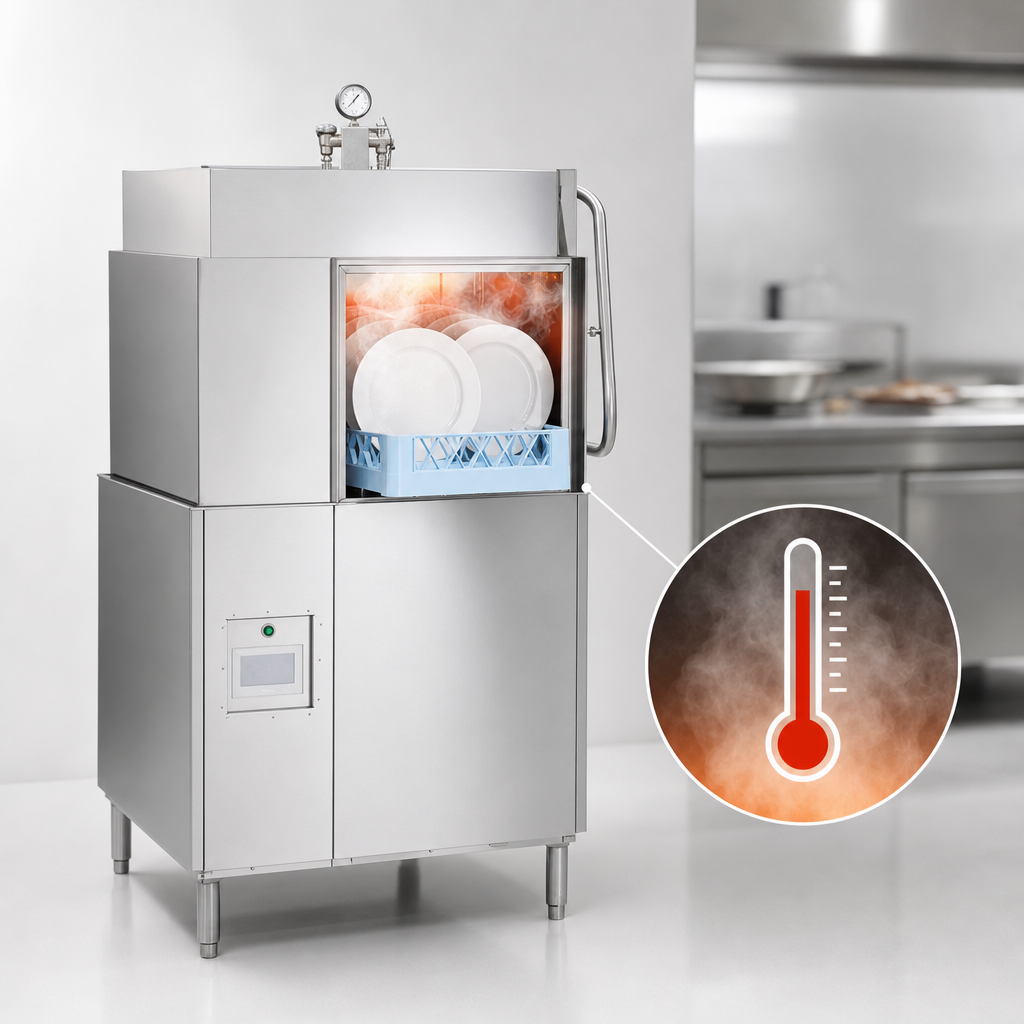

High-Temperature Sanitizing

Electric tank heat supports high-temperature sanitizing, with a documented 150°F wash temperature and 180°F rinse temperature.

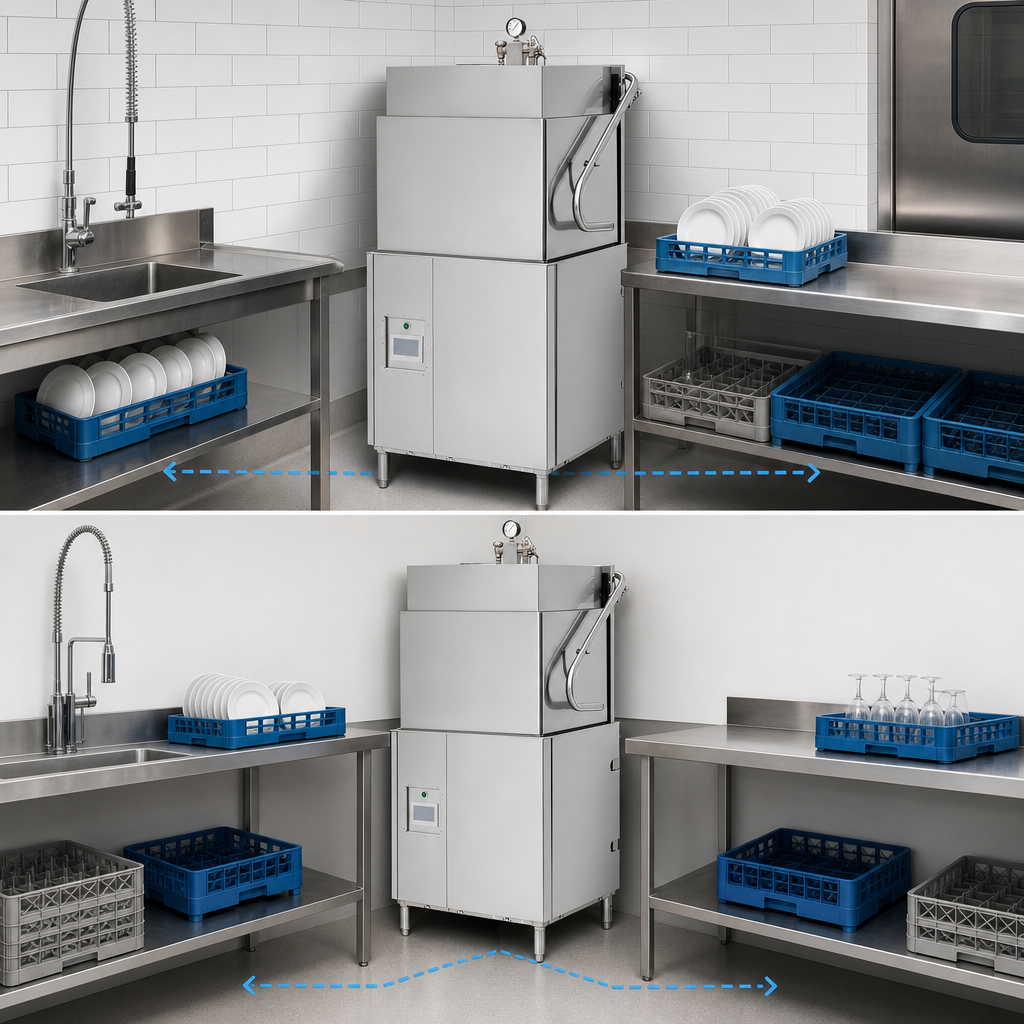

Universal Layout

Configured for straight-through or corner operation.

Selectable Cycles

Offers 1-, 2-, 4-, and 6-minute cycle times.

Automatic Operation

Auto start begins the selected wash cycle when the door closes, and auto-fill is included.

Wash System

Includes a 2 HP self-draining pump, interchangeable upper and lower spray arms, and an automatic drain valve.

HMI Controls

Bottom-mounted HMI controls are included.

Included Racks

Includes one flat rack and one peg rack.

Energy Efficiency

ENERGY STAR certified.

Frequently Asked Questions

The DH-6000 has an NSF-rated capacity of 60 racks per hour.
Yes. It supports straight-through or corner operation.
It uses electric tank heat for high-temperature sanitizing.
The selectable cycle times are 1, 2, 4, and 6 minutes.
The dishwasher includes one flat rack and one peg rack.
The product measures 34.13 inches wide, 31.63 inches deep, and 68.0 inches high, with a listed weight of 450 pounds.
