Key specifications
- Type
- Dishwasher Thermometer
- Material
- Polycarbonate
- Color
- Black
- Display
- Digital
- Temperature Range
- 32°F to 194°F (0°C to 90°C)
- Operating Range
- 32°F to 203°F (0°C to 95°C), ≤90% RH
Spec sheet

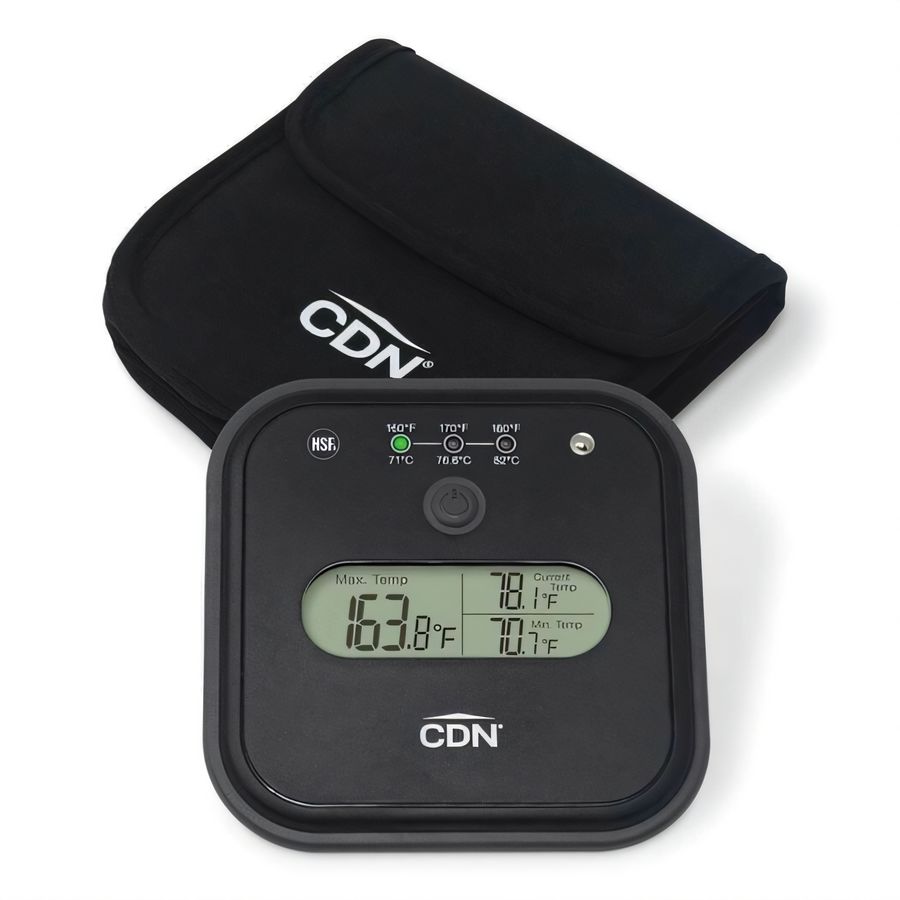

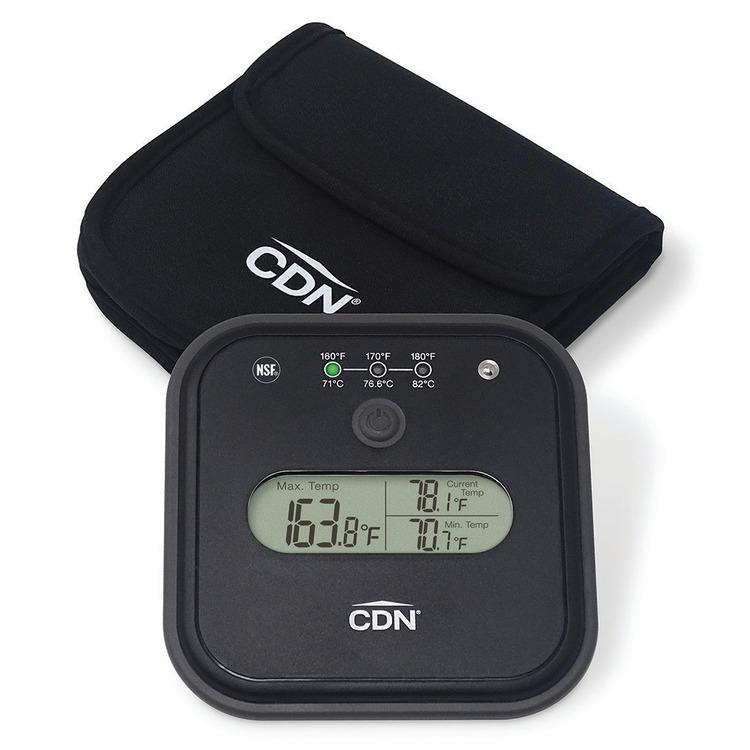

CDN DW2 Digital Dishwasher Thermometer with Color LED Max-Temperature Indicators, 32°F to 194°F, IP66 Waterproof Case of 96
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
CDN DW2 measures plate surface temperatures during commercial dishwasher cycles from 32°F to 194°F (0°C to 90°C). It provides a typical 1-second response and accuracy of ±0.9°F (±0.5°C) from 149.9°F to 194°F (65.5°C to 90°C).
Color LED indicators show the maximum temperature range reached during each cycle. The thermometer recalls the last maximum temperature and alert LED in standby, and includes an IP66 case, storage case, and two CR2032 lithium batteries.
- Green: ≥160°F (71°C) to <170°F (76.6°C)
- Yellow: ≥170°F (76.6°C) to <180°F (82°C)
- Red: ≥180°F (82°C)
Overall Dimensions:
6.1"W x 1.4"D x 10.4"HProduct Weight:
0.57 lbDishwasher Cycle Temperature Measurement
Measures plate surface temperatures during commercial dishwasher cycles.
Color LED Maximum-Temperature Indicators
Green, yellow, and red LEDs indicate the maximum temperature range reached.
Last Maximum Temperature Recall
Recalls the last maximum temperature and alert LED when in standby.
IP66 Protection
The case is protected from powerful water jets and completely protected against dust.
Extra-Big Digits and Triple Display
Provides an extra-big digit display with triple display functionality.
Auto-Off
Turns off after 5 minutes when idle and the temperature is below 122°F (50°C).
Fast Response
Typical response time is 1 second.
Included Storage Case and Batteries
Includes a storage case and two CR2032 lithium batteries.
