Description

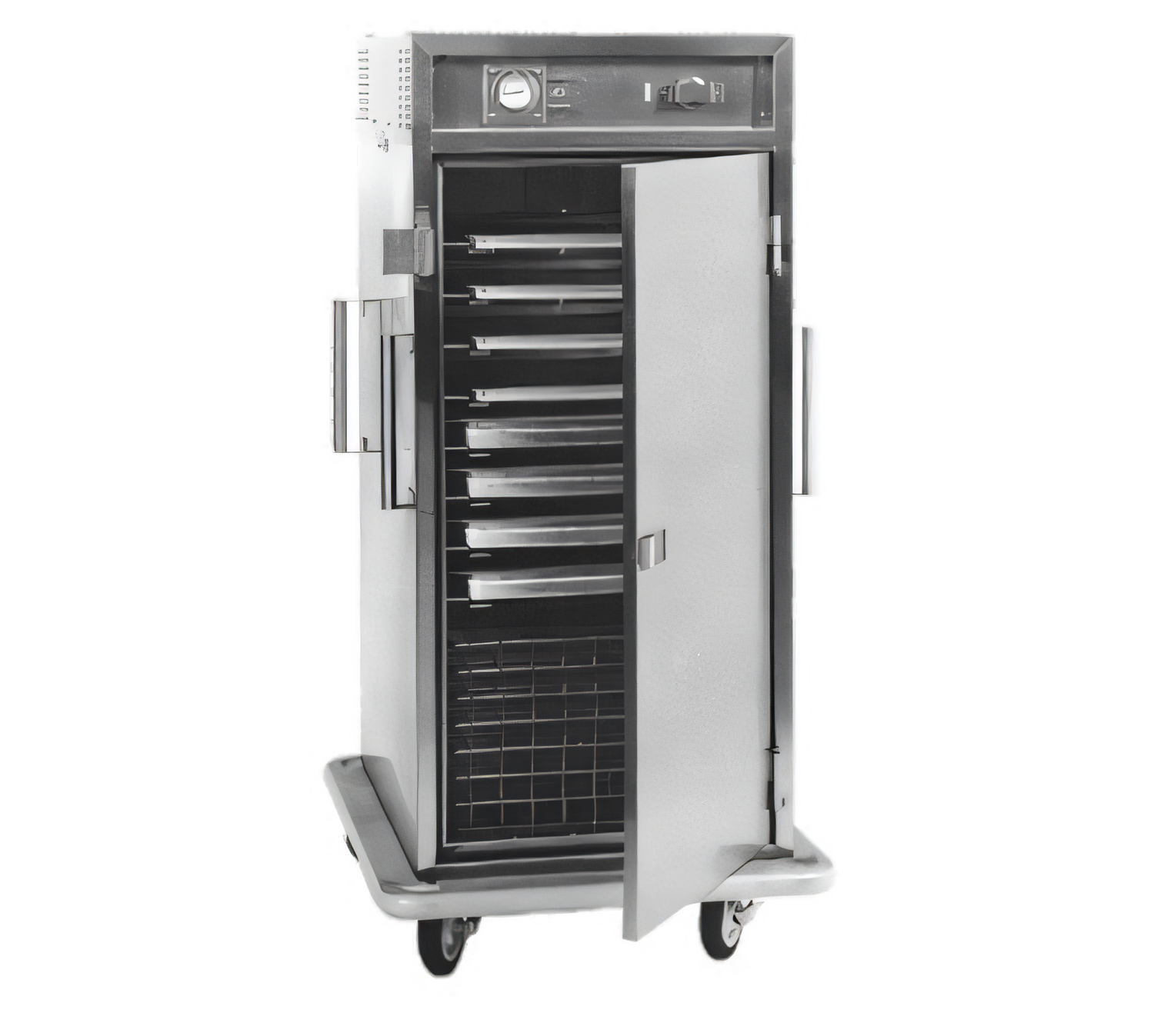

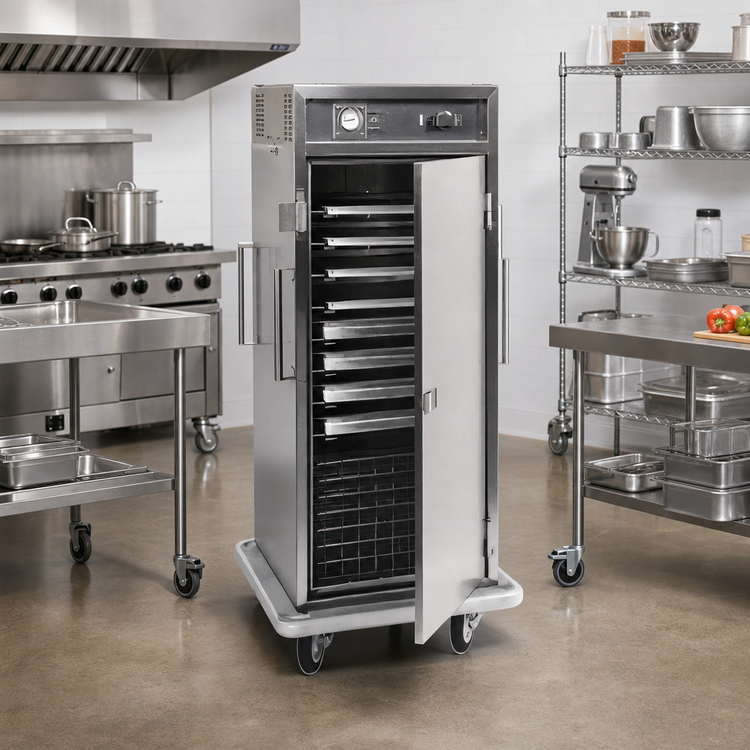

Carter-Hoffmann ST1820 Heated Satellite Transport Cart

Full-height • 12-tray / 24-pan capacity • 120 V, 1500 W

Get perfectly held food from kitchen to serving line—every time. The ST1820 couples Carter-Hoffmann’s legendary stainless construction with a lift-off convection heater that blankets every rack in steady, even warmth.

Key performance features

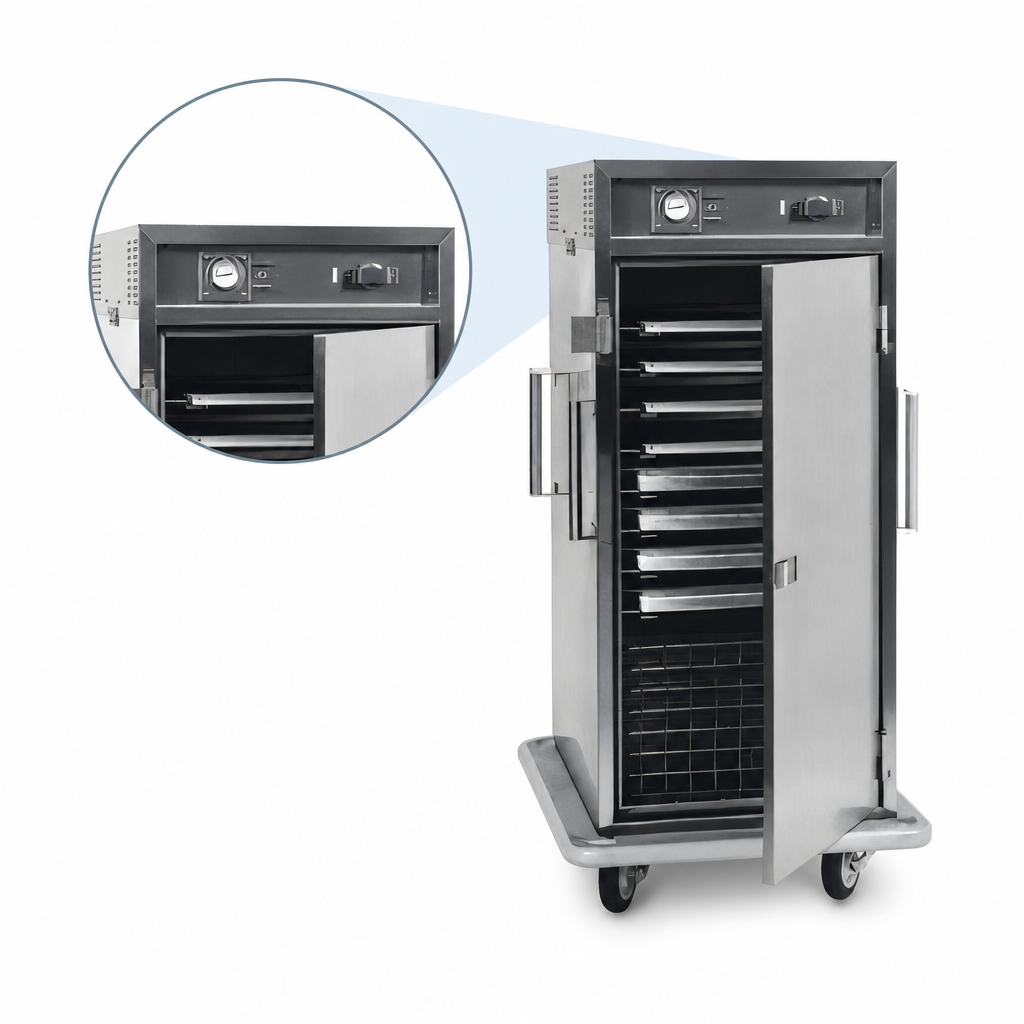

  • Removable, top-mounted convection heater—pre-heats to 160 °F (71 °C) in ≈ 25 min; holds up to 200 °F (93 °C).
  • Full-range thermostat, on/off toggle & dial thermometer, each protected by welded security guards.

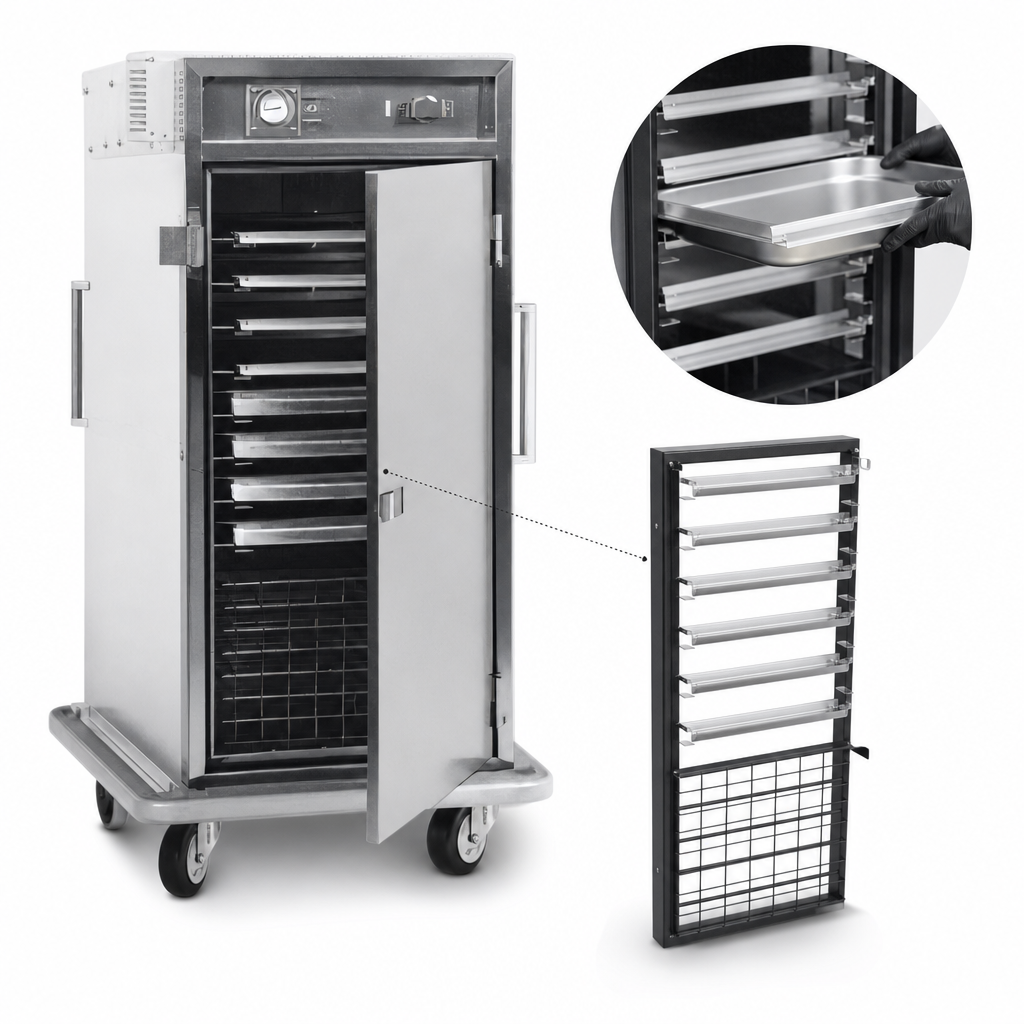

  • Universal slides on 1.75" (44 mm) centers lock in place; standard 3.5" spacing fits:
    • (12) 18" × 26" sheet trays or
    • (24) 12" × 20" steam-table pans (GN 1/1 & 2/1 compatible)
  • All-welded, double-wall stainless body with 1" fiberglass insulation for maximum heat retention.
  • Heavy-duty push handles (5 total) mounted to sides and back with reinforced plates.
  • 6" all-swivel polyurethane balloon casters in wheel-ahead layout; two casters lock for secure parking.
  • Recessed, double-panel door with high-temp silicone gasket & flush slide latch—no snag points during transport.
  • Wrap-around non-marking vinyl bumper guards walls, door frames & the cart itself.
Specification snapshot
Pan / Tray Capacity (12) 18" × 26" trays | (24) 12" × 20" pans
Interior working height 45 ¾" (1162 mm)
Overall size (H × W × D) 64" × 31 ½" × 38" (1626 × 800 × 965 mm)
Temperature range Ambient to 200 °F (93 °C)
Electrical 120 V, 1 Ph, 60 Hz, 1500 W, 12.5 A, 10 ft cord, NEMA 5-15P
Casters (4) 6" all-swivel polyurethane (2 w/ brakes)
Construction All-welded stainless steel, double-wall, 1" insulation
Shipping weight 432 lb (196 kg)
Certifications cULus, UL EPH Listed, NSF
Warranty 1-year parts & labor
Perfect for
  • Banquet & catering operations
  • Hotels, convention centers & stadiums
  • Hospitals, senior living & institutional kitchens
  • Satellite re-therm or holding stations away from the main kitchen
Installation note
Clearance required: Maintain ≥ 2" from any combustible surface and 36" in front of the door. Unit must be placed on a solid, level floor.

Looking for a half-height model? See Carter-Hoffmann ST188.
Specifications subject to change without notice.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Certifications

UL EPH

Height

64.0in

Width

31.5in

Depth

38.0in

Shipping Weight

440.0lbs

Door Type

solid

Size

1 compartment

Section

1 section

Door Style

full door(s)

Height

61" - 66"

Slide Centers

removable on 3-1/2"

Full Size Sheet Pan Capacity

(12) 18" x 26" pans

Heater

top mounted

Full Size Hotel Pan Capacity

(24) 12" x 20" pans

Exterior Finish

all stainless steel exterior

Insulation

insulated

Specifications

Satellite Transport Cart, heavy duty, mobile, heated, full-height, insulated, top-mounted heater assembly, removable universal slides, holds (12) 18"x26" trays or (24) 12"x 20" pans, slides on 3-1/2"centers, stainless steel construction, 6"swivel casters, UL EPH
