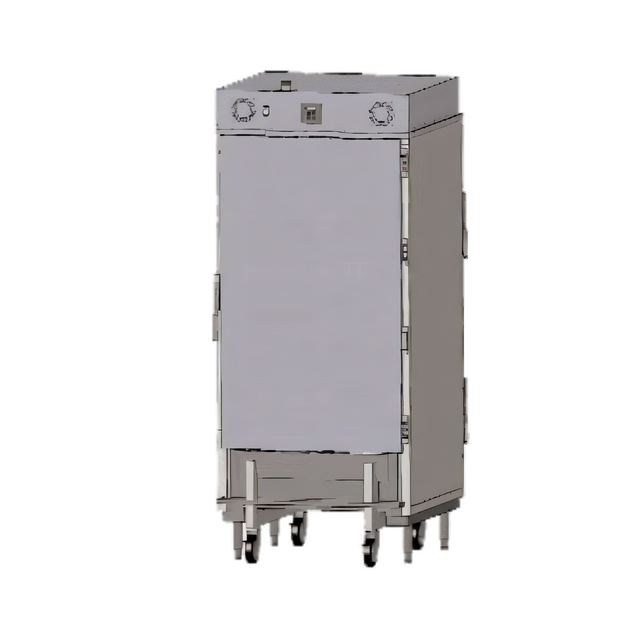

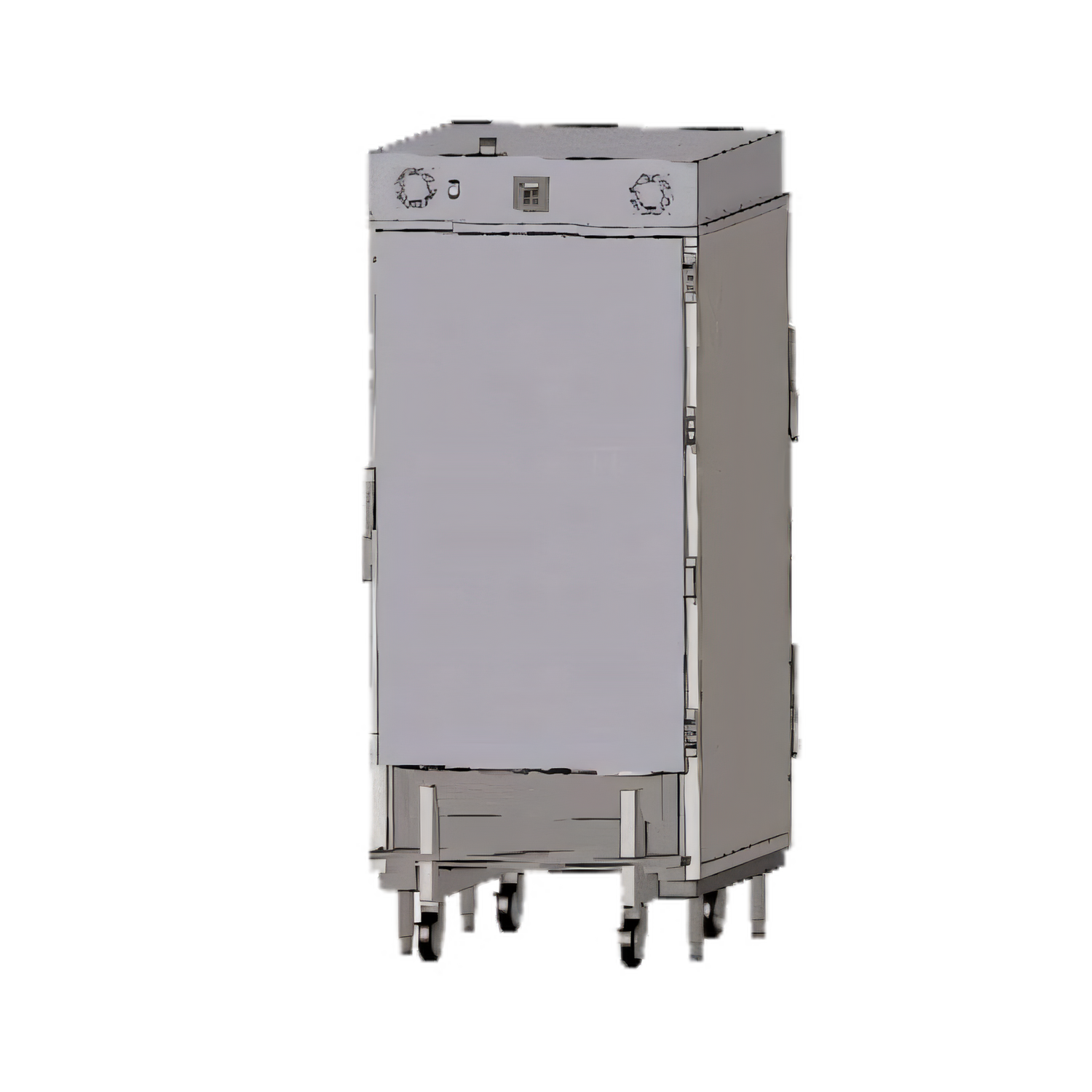

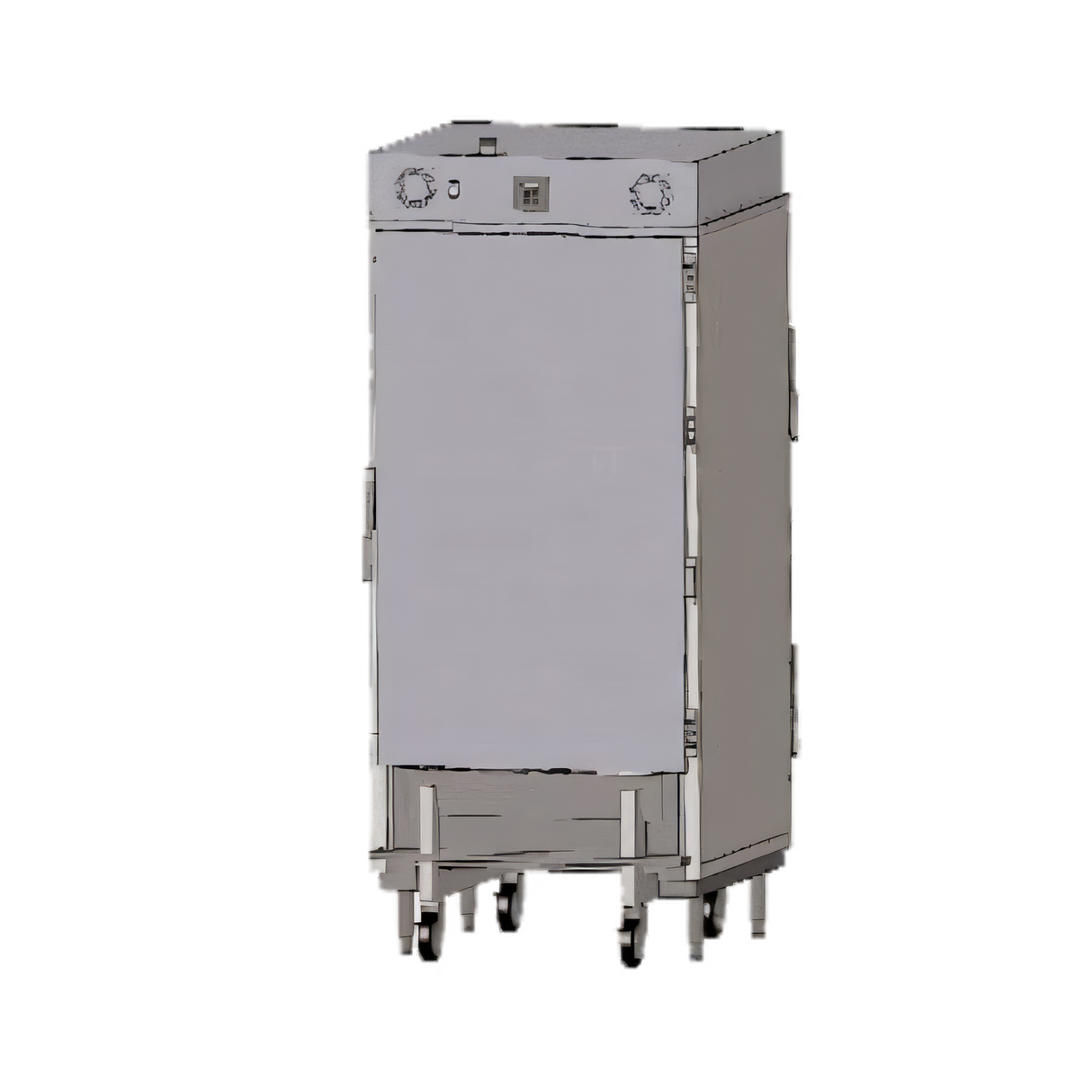

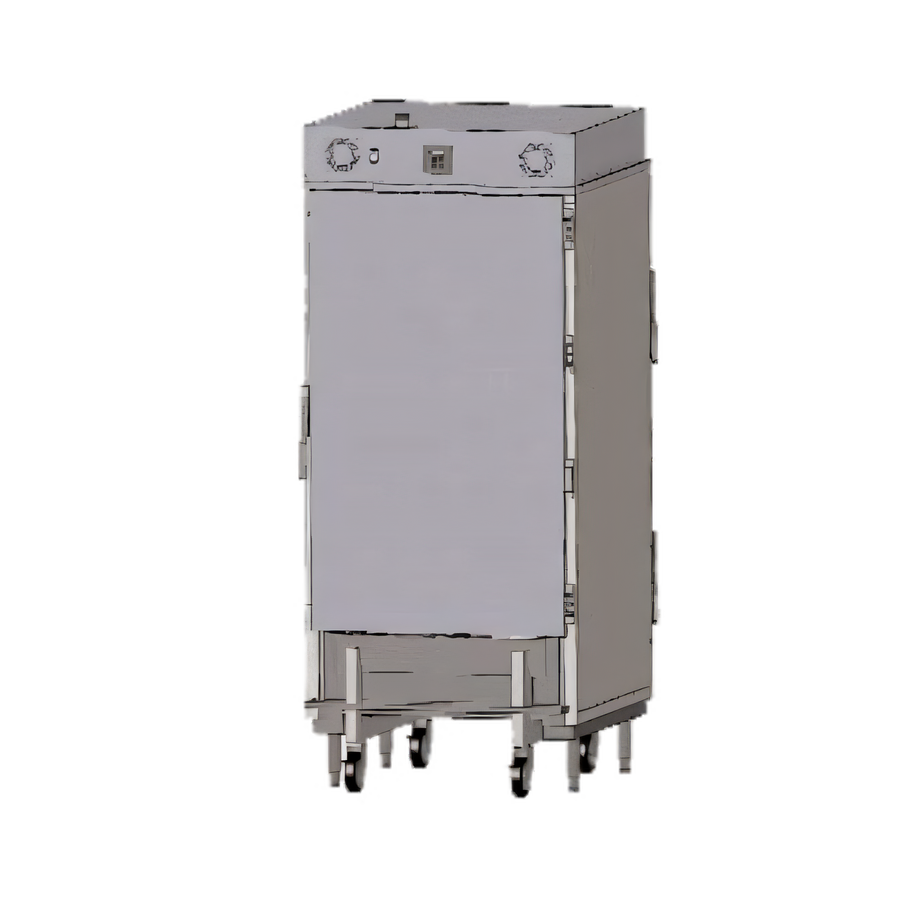

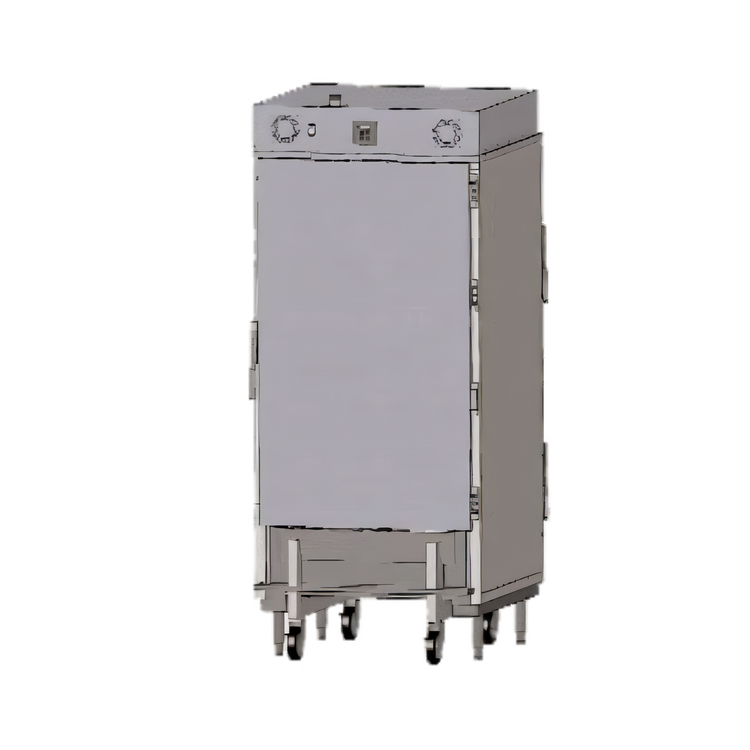

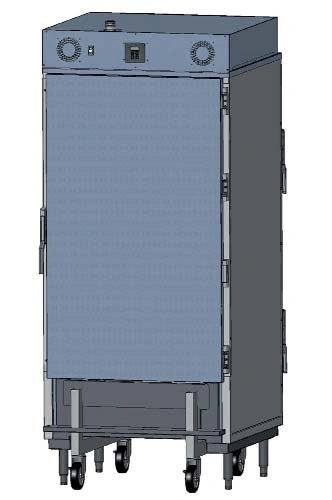

RTB202M Roll-In Heated Holding Cabinet
Compatible with Eloma, Blodgett TC-14/10/20 & Houno C202 oven racksKeep large batch production hot, safe and perfectly ready to serve. Carter-Hoffmann’s RTB202M combines powerful convection heat with rugged, all-welded stainless-steel construction to give you years of worry-free holding for a full roll-in rack—no pan shuffling required.
Key features

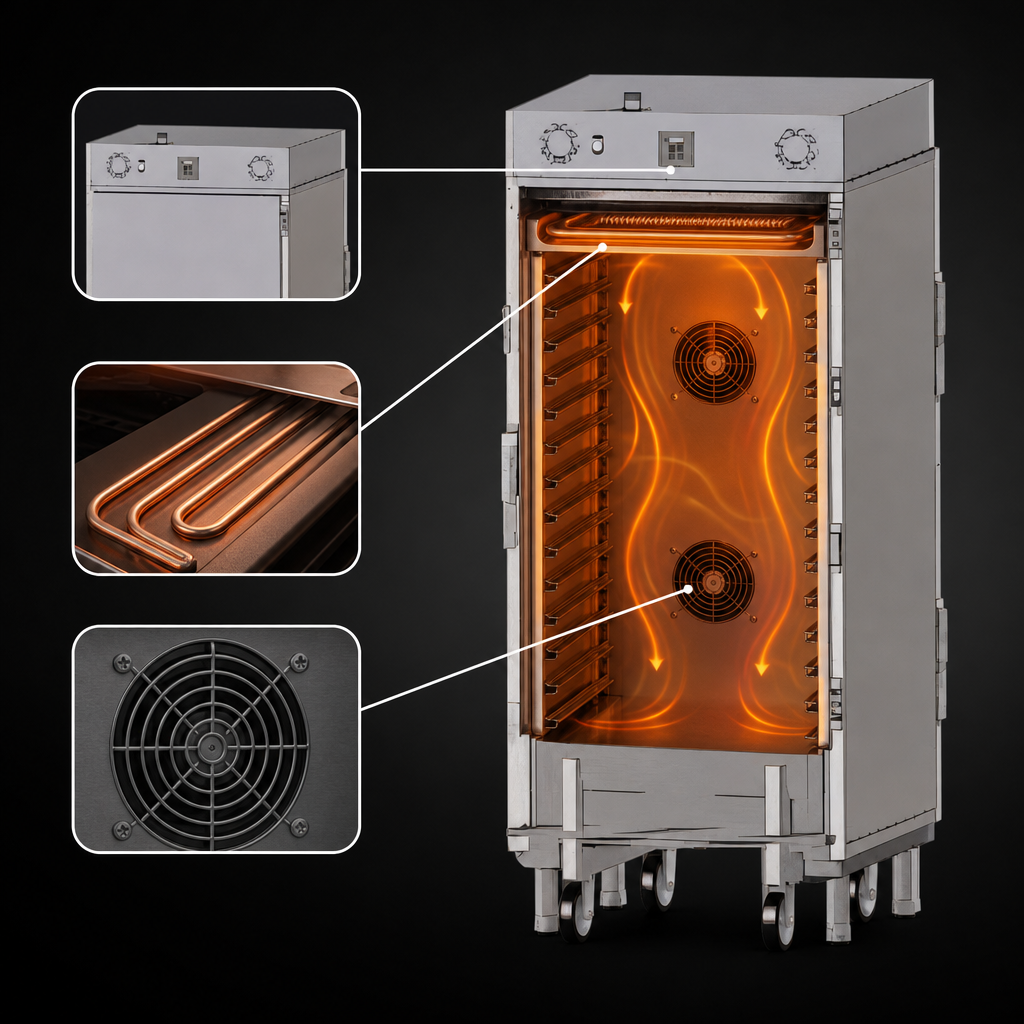

- Convection blower system with precision dual heat ducts delivers even temperatures cabinet-wide.
- Lift-off, top-mounted heater simplifies service access and keeps electronics away from spills.
- Solid-state electronic controller with digital display, on/off switch and low-temp alarm for tight control up to 200 °F (94 °C).
- Full 2 in (51 mm) high-density fiberglass insulation in walls, top and base maximises efficiency.
- Gasket-less Dutch doors with magnetic catch & self-closing, adjustable hinges for one-hand operation.
- All-welded 20-ga. stainless interior/exterior and 14-ga. base frame built for heavy institutional use.
- 5 in (127 mm) heavy-duty casters — two rigid, two swivel with brakes — roll smoothly then lock securely in place.

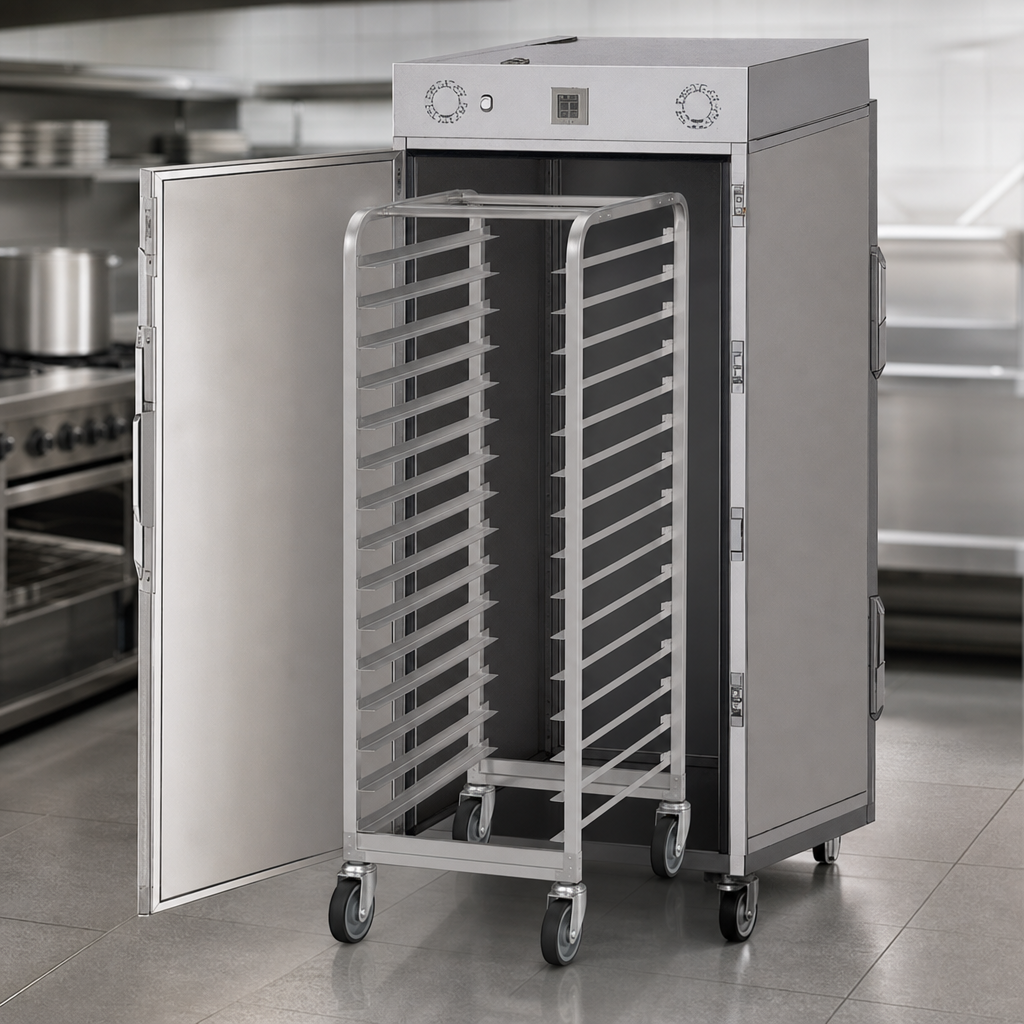

- Roll-in design speeds loading/unloading; simply wheel in the rack, remove the handle and close the door.
At-a-glance specifications
| Capacity | One full-size roll-in rack (rack supplied by Eloma, Blodgett or Houno) |
|---|---|
| Inside working space (H × D × W) | 60 in × 32 in × 29 in (1524 × 813 × 737 mm) |
| Overall dimensions (H × D × W) | 84 in × 37.75 in × 35.5 in (2134 × 959 × 914 mm) Depth with rack: 38.25 in (972 mm) |
| Electrical | 208 V, 60 Hz, 1-phase, 3 kW, 16 A, NEMA 6-20P |
| Performance | Preheats to 160 °F (71 °C) in ≈20 min; adjustable to 200 °F (94 °C) |
| Construction | 20-ga. stainless interior/exterior, 14-ga. perimeter base frame |
| Shipping weight | ≈450 lb (204 kg) |
Most jurisdictions do not require a ventilation hood for this cabinet; always verify with local codes.
