Carter-Hoffmann (Middleby) RTB201M Heated Cabinets & Holding Shelves
Carter-Hoffmann (Middleby) RTB201M Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Carter-Hoffmann (Middleby) RTB201M Heated Cabinets & Holding Sh...
Description

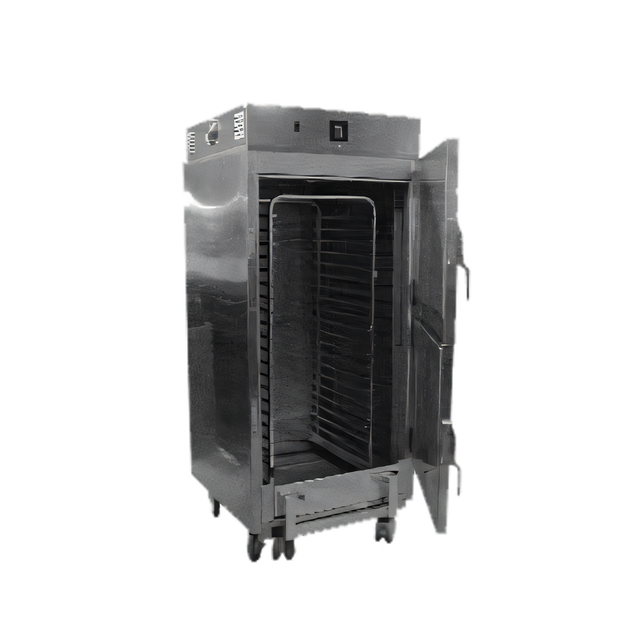

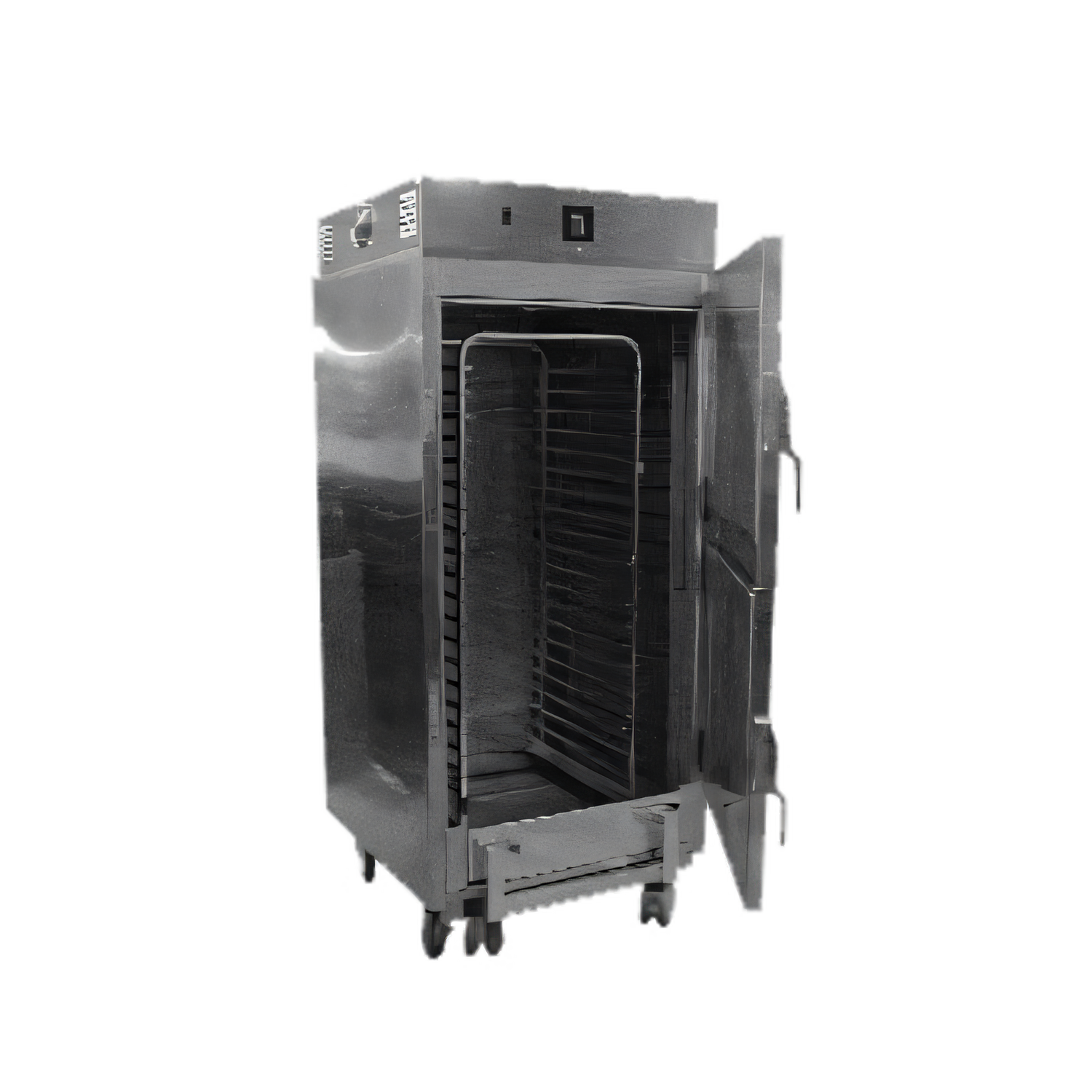

RTB201 Mobile Heated Holding Cabinet

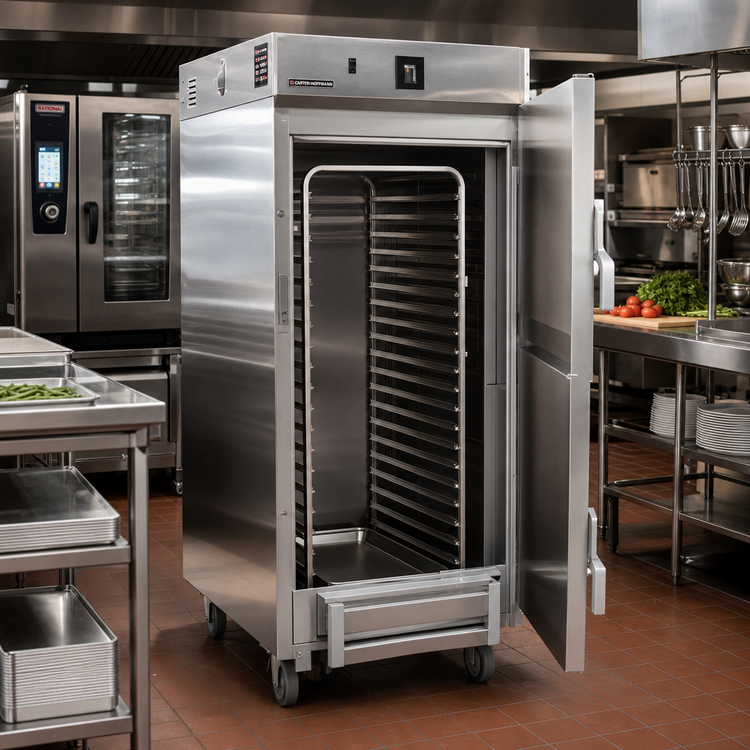

Roll-in compatible with Rational™ CombiMaster®, SelfCooking Center® & Electrolux 202 oven racksTake product straight from the combi to the serving line—no pans to transfer and no temperature drop. The Carter-Hoffmann RTB201 keeps an entire roll-in rack of cooked food hot, safe and ready, giving you the speed of combi cooking with the flexibility of remote holding.
Why Operators Love It

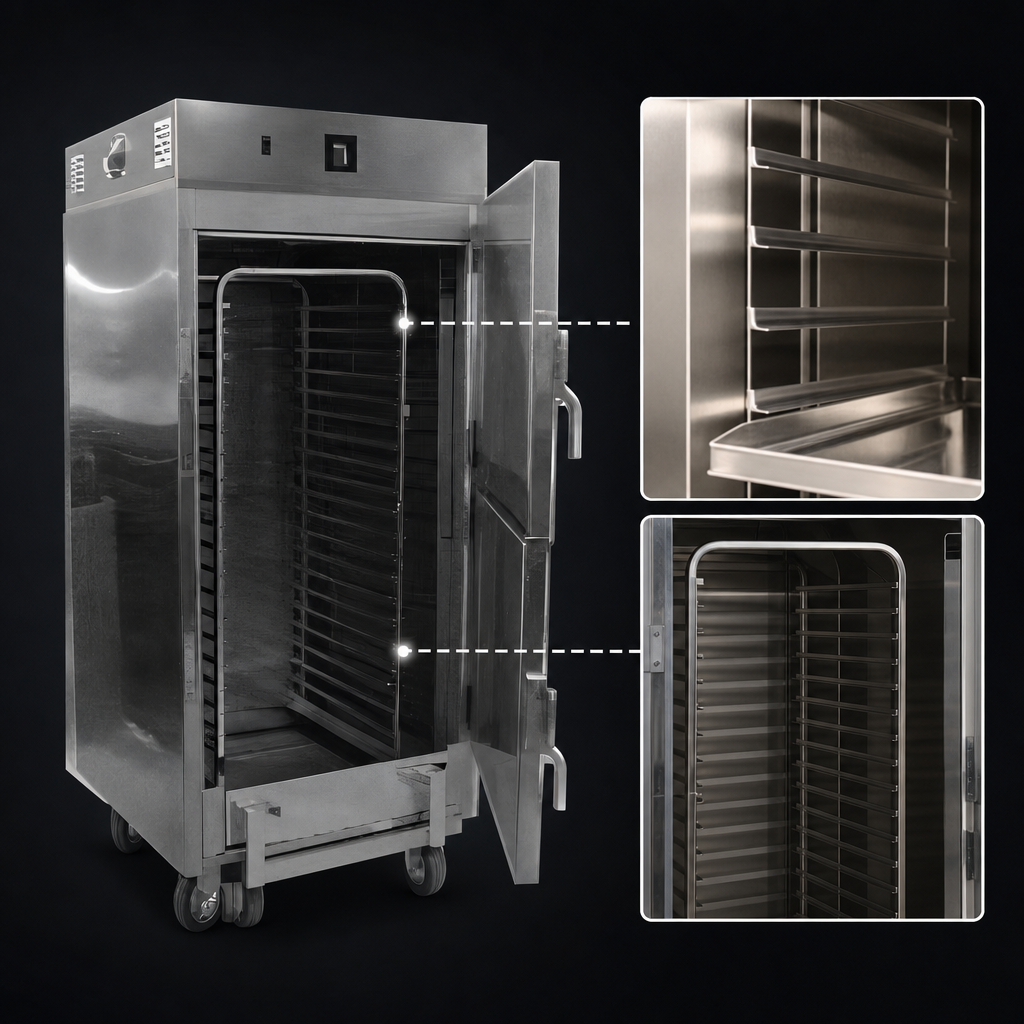

- Direct roll-in fit for Rational 201/202 & Electrolux 20-21 racks (rack sold separately)

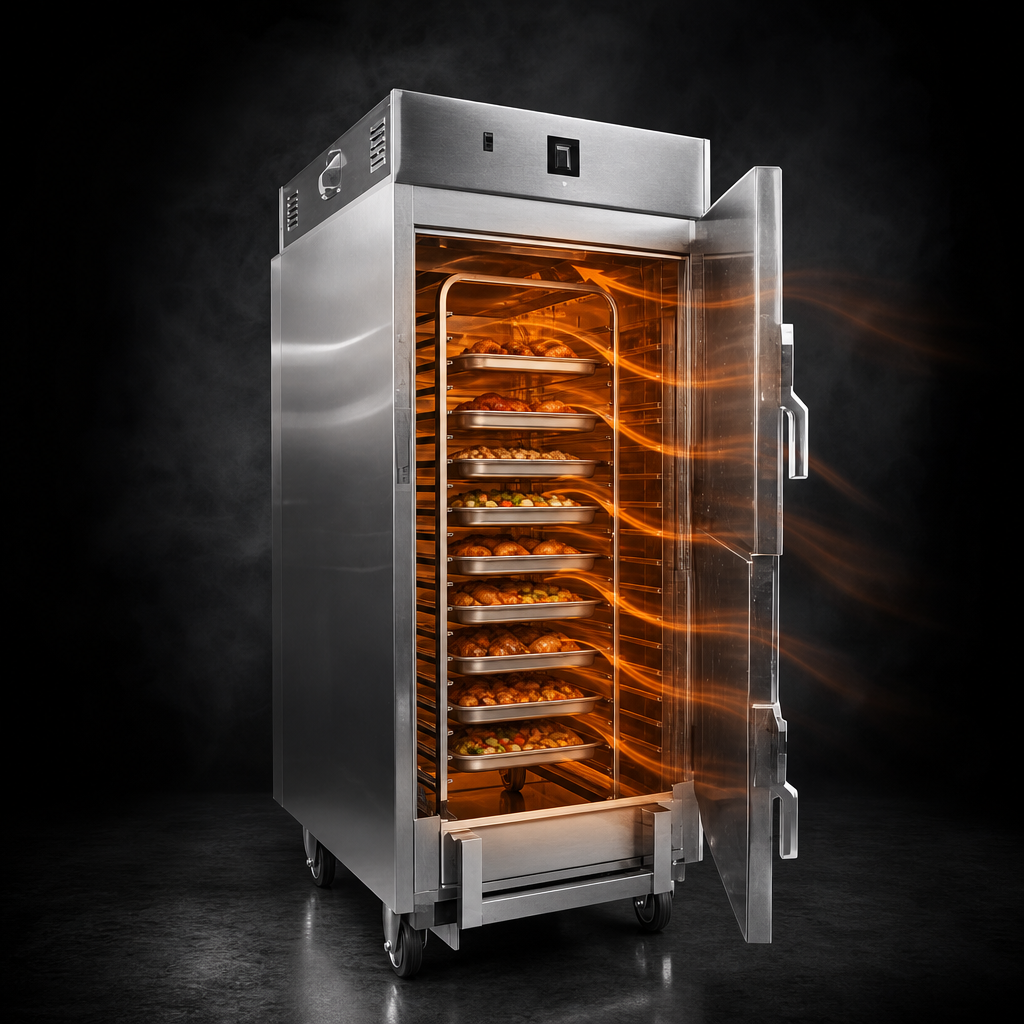

- High-performance convection blower with precision dual heat ducts for even cabinet temperatures
- Solid-state digital controller with bright read-out, on/off rocker and low-temperature alarm
- 200 °F (94 °C) maximum holding temperature – preheats to 160 °F (71 °C) in ≈20 minutes
- Lift-off, top-mounted heater uses long-life Inconel-sheathed elements for quick service access
- Full 2" high-density fiberglass insulation minimizes heat loss and energy use
- Gasket-free Dutch doors with ergonomic Easy-Grip handles, magnetic latches & field-reversible hinges
- All-welded 20-gauge stainless steel interior & exterior on a 14-gauge base frame – NSF/ANSI 4 listed
- 5" heavy-duty casters (2 swivel with brakes, 2 rigid) for smooth, stable mobility
- Certified cULus & UL EPH for electrical and sanitation peace of mind
Plug-and-Play Electrical
208 V • 60 Hz • 1-phase • 3,000 W • 16 A | Supplied with NEMA 6-20P cordset
Specifications
| Capacity | 1 roll-in oven rack (not included) |
|---|---|
| Interior (H × D × W) | 60" × 32" × 29" (1524 × 813 × 737 mm) |
| Overall (H × D × W) | 82.25" × 36.25" × 36" (2089 × 921 × 914 mm) |
| Depth with Rack Handle | 38.25" (972 mm) |
| Ship Weight | ≈ 450 lb (204 kg) |
| Construction | 20-ga stainless steel cabinet & doors, 14-ga base frame |
Simple 3-Step Workflow
- Roll the hot rack directly from the combi oven into the RTB201.
- Remove the rack handle and close the magnetic Dutch doors.
- The blower system circulates heated air evenly, holding food safely until service.
Pass-through doors, stationary leg base and other factory options are available. Local codes may require a vent hood—always verify with your authority having jurisdiction.
