Carter-Hoffmann PH2S 2-Silo Convection Plate & Base Heater
Mobile self-leveling dispenser • 150 plates or 120 bases • 208 V, 1-phaseServe every guest on pre-heated china or insulated bases—without slowing down production. The Carter-Hoffmann PH2S uses a high-velocity convection system and self-leveling elevators to keep up to 150 plates (or 120 bases) at the ideal temperature and always within easy reach.
Key Advantages
- Two independent, self-leveling silos—75 plates or 60 bases each (7"–10.25" Ø)
- Factory-configured for plates; field-convertible to bases in minutes
- Plate / Base / Off toggle switch with factory-preset temps (Plate 230 °F, Base 325 °F)

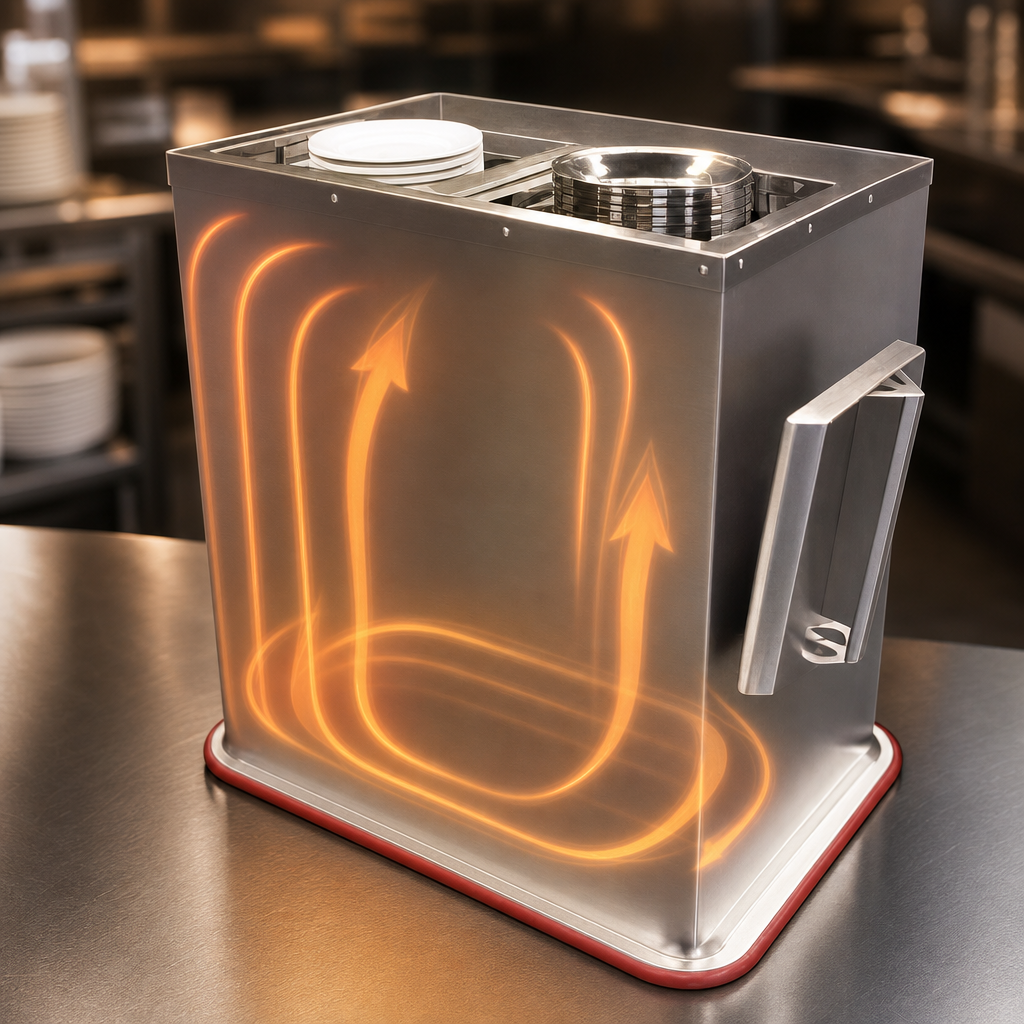

- High-velocity blower and thermostatic control for fast, even heat circulation
- All-stainless, fully welded cabinet with wrap-around exterior panel for maximum rigidity
- Removable, gasket-free silo lids hang on side hooks—no lost parts, fewer burn risks
- Heavy-duty 12-gauge base frame and 3.5" all-swivel casters (2 with brakes) for smooth transport
- Full cabinet insulation retains heat and keeps exterior surfaces cooler to the touch
- 10 ft cord pre-wired with NEMA 6-20P plug; cULus & UL EPH Classified
Perfect For
- Banquet & convention centers
- Hotels & resorts
- Healthcare tray lines
- Catering operations
Technical Specifications
| Model | PH2S |
|---|---|
| Capacity | 150 plates (75 per silo) OR 120 bases (60 per silo) |
| Plate/Base Size Range | 7"–10.25" Ø (178–260 mm) |
| Overall Dimensions | 45"H × 23"D × 35-1/4"W (1143 × 584 × 895 mm) |
| Electrical | 208 V / 60 Hz / 1-phase • 3230 W • 15.4 A |
| Plug | NEMA 6-20P (10-ft, 3-wire cord included) |
| Heating Temperatures | Plate 230 °F (110 °C) / Base 325 °F (162 °C) |
| Construction | 18-ga stainless steel exterior, insulated; 12-ga stainless base frame |
| Casters | 3.5" all-swivel (2 braking), offset wheel-ahead pattern |
| Shipping Weight | Approx. 295 lb (134 kg) |
| Certifications | cULus • UL EPH Classified |
Capacity is approximate and varies with plate/base thickness. Spring tension can be adjusted to match your dinnerware weight.
