Carter-Hoffmann (Middleby)  |  SKU: PH1840

Carter-Hoffmann (Middleby) PH1840 Heated Cabinets & Holding Shelves

$11,329.45
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Middleby financial flyer Owner's manual
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

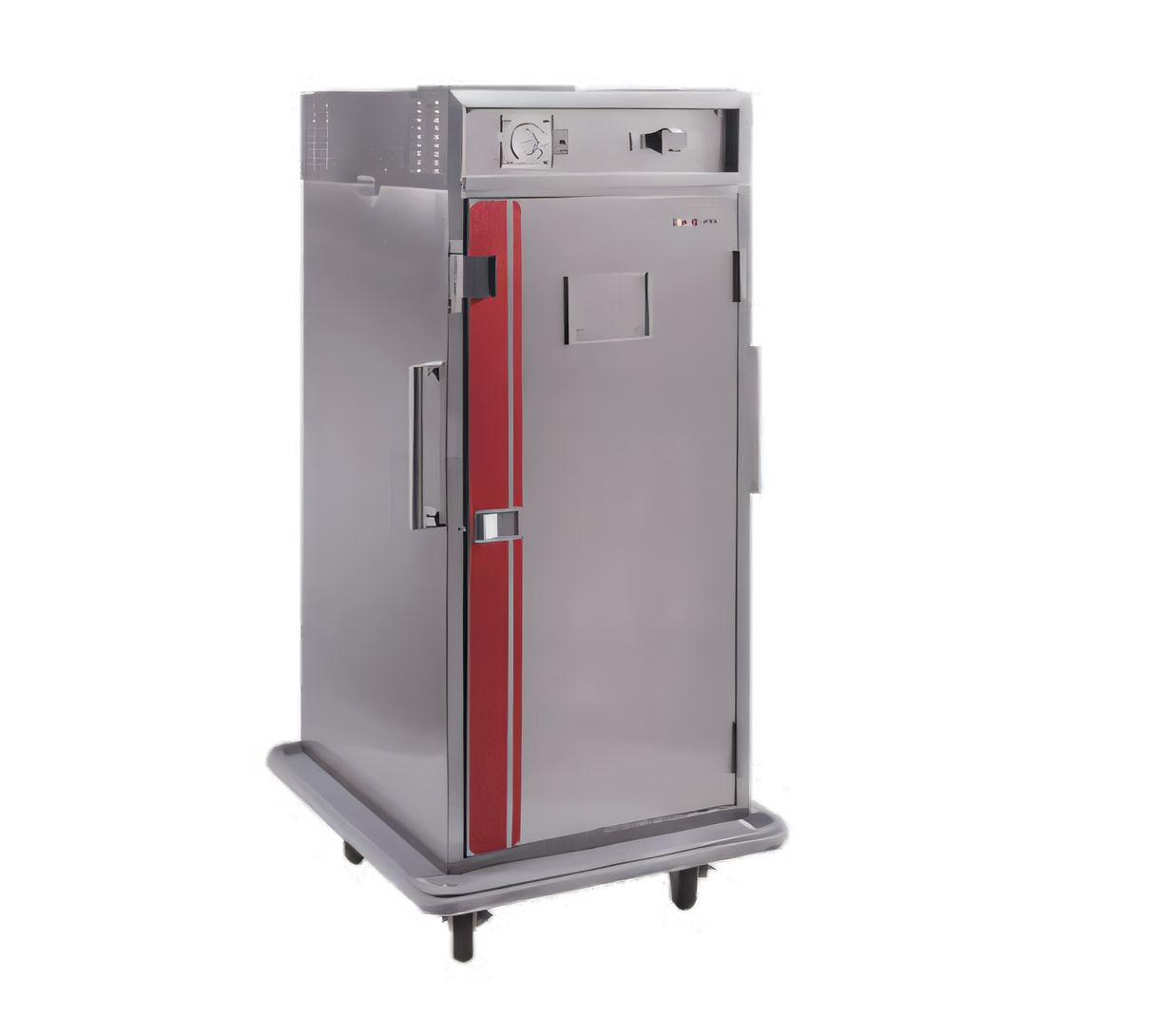

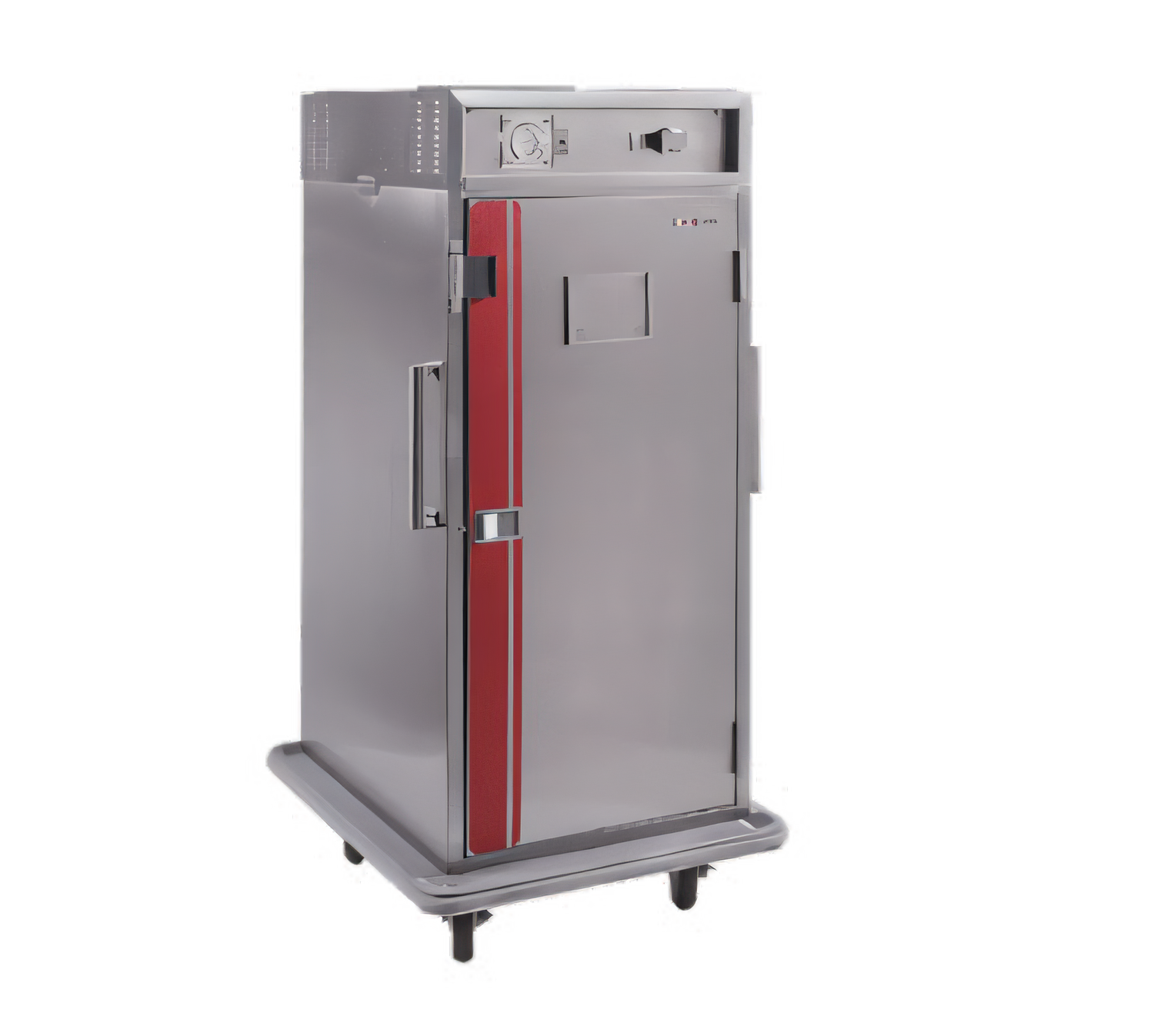

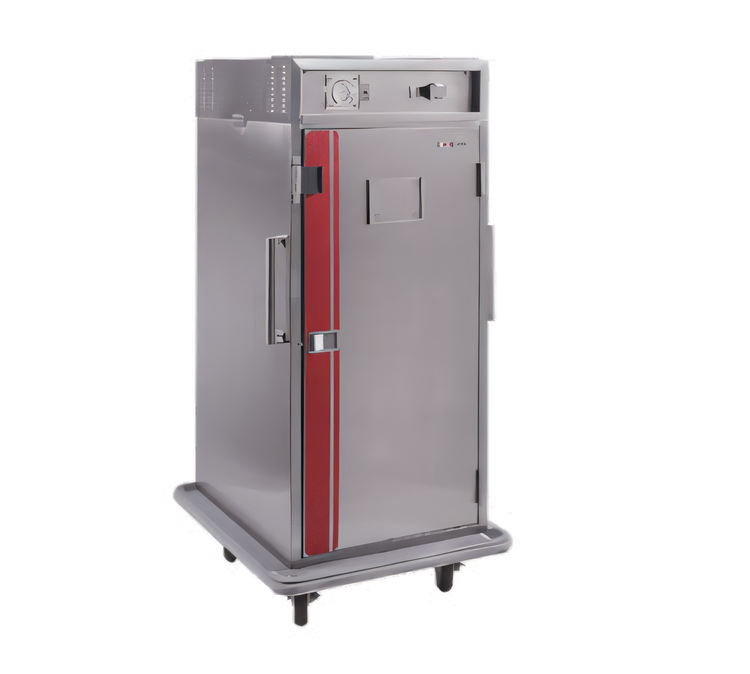

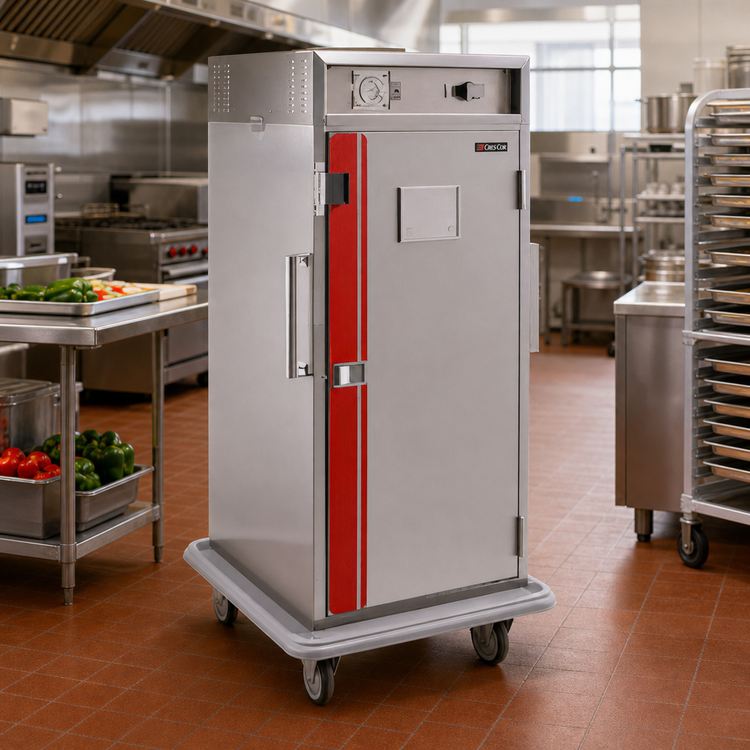

Carter-Hoffmann Heavy-Duty Heated Transport Cabinet

32 × 12" × 20" or 16 × 18" × 26" Pan Capacity | Correctional-Grade Construction

Engineered for the extreme demands of correctional, healthcare and high-volume foodservice operations, this mobile cabinet maintains safe serving temperatures while protecting both product and personnel. All-welded stainless steel, tamper-resistant hardware and a lockable flush door make it the rugged choice for secure transport of hot meals.

Why you’ll love it

  • High pan capacity – universal slides hold up to 32 steam table pans (12"×20") or 16 sheet pans (18"×26").
  • Even, fast heat – top-mounted forced-air heating system reaches 160 °F (71 °C) in about 25 minutes; adjustable to 200 °F (93 °C).
  • Correctional safeguards – recessed controls with security guards, tamper-resistant fasteners and prison-grade transport latch.
  • Adjustable spacing – slides are factory-set at 3 ½" (89  mm) and can be repositioned every 1 ¾" (44  mm) to suit your menu.

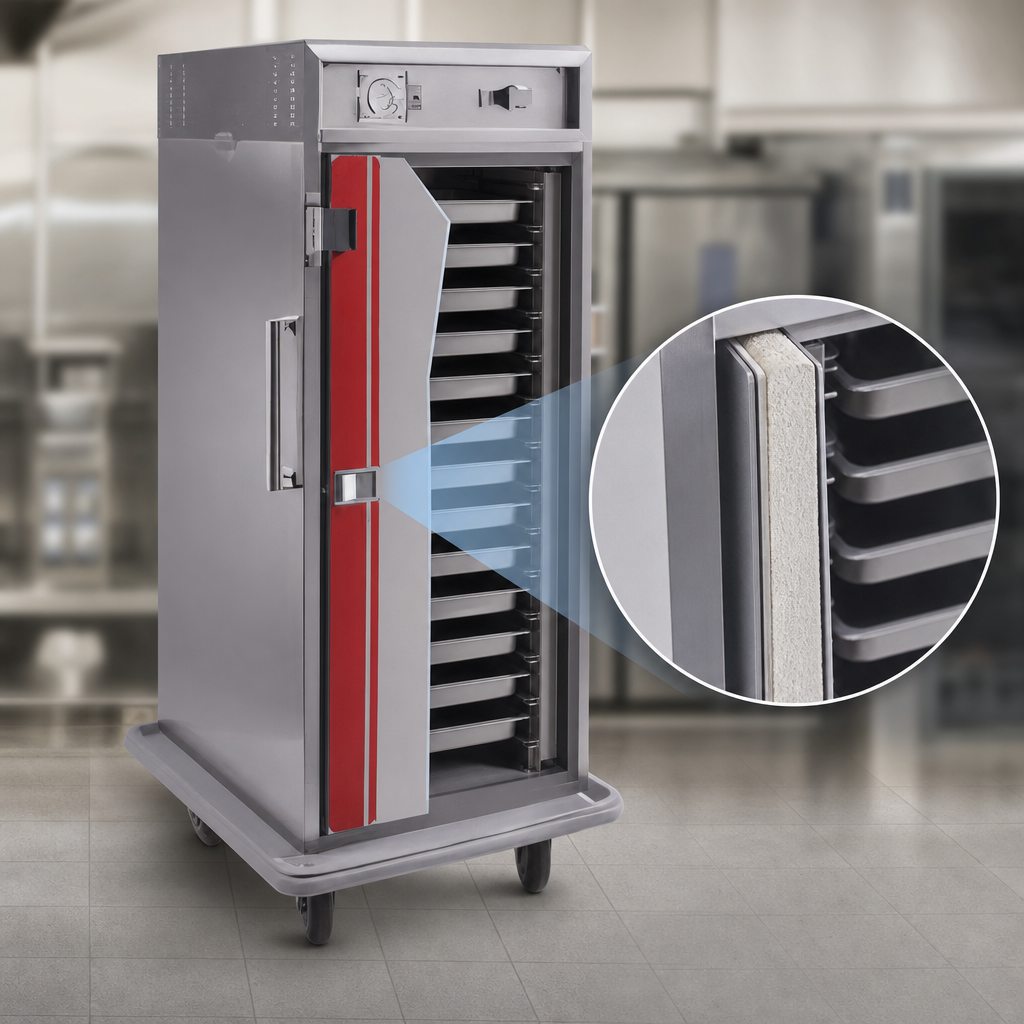

  • Built to last – double-wall, 1" fiberglass-insulated, stainless-steel construction resists dents, corrosion and heat loss.

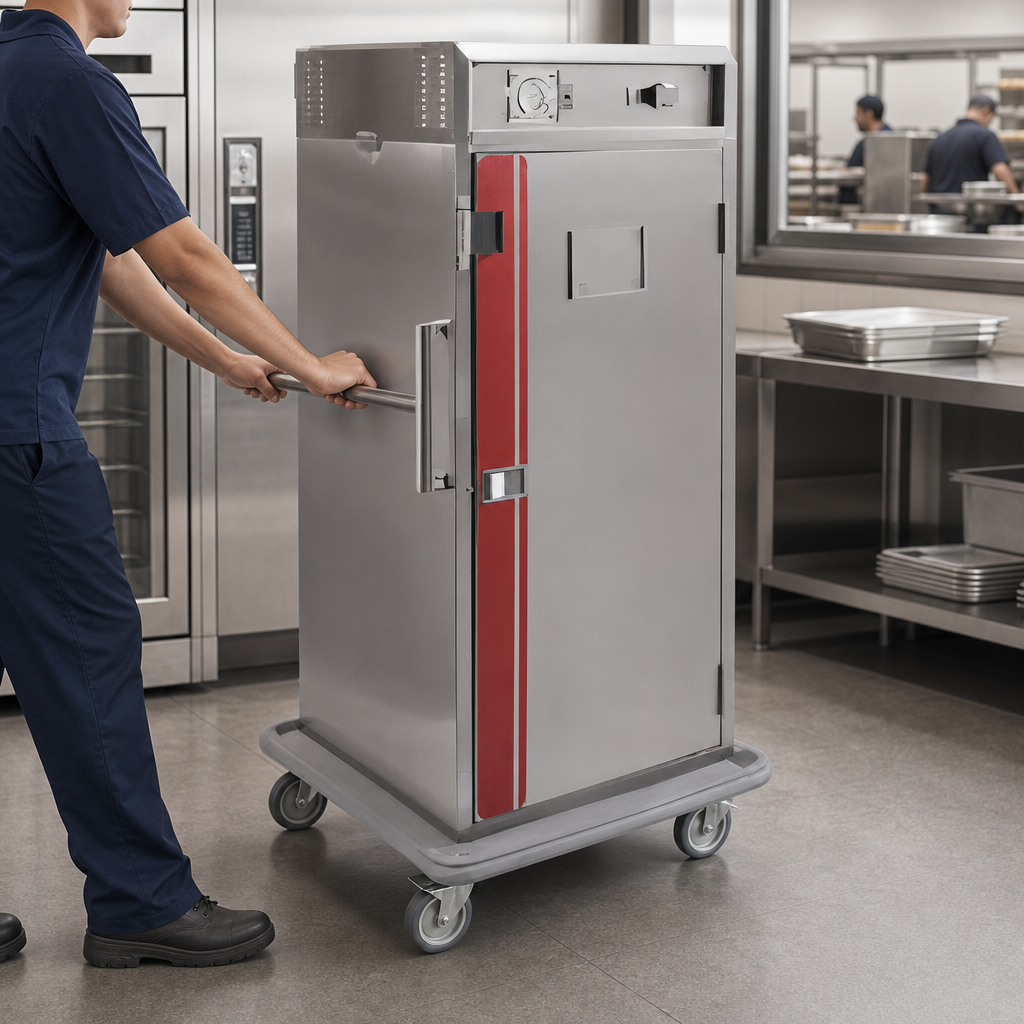

  • Smooth, safe transport – wrap-around non-marking bumper and 6" all-swivel polyurethane casters (2 locking) in a wheel-ahead pattern.
  • Tool-free maintenance – heater module lifts off for easy cleaning or service.

Technical specifications

Pan capacity (32) 12" × 20" steam table pans
(16) 18" × 26" full-size sheet pans
Slide spacing 3 ½" standard; adjustable on 1 ¾" centers
Temperature range Ambient to 200 °F (93 °C)
Pre-heat time To 160 °F (71 °C) in approx. 25 minutes (empty cabinet)
Heat system 1,500 W top-mounted forced-air convection module with thermostat, on/off toggle & dial thermometer
Construction All-welded, double-wall stainless steel with 1" fiberglass insulation
Door / latch Recessed, double-panel flush door with lockable transport latch & silicone gasket
Mobility (4) 6" all-swivel polyurethane casters, two with brakes  |  full-perimeter vinyl bumper
Electrical 120 V, 1-phase, 12.5 A  |  NEMA 5-15P, 10 ft (3 m) cord
Certifications cULus Listed  |  UL EPH Classified (Sanitation)
Warranty 1-year parts & labor

Perfect for

  • Correctional and detention facilities
  • Military and government kitchens
  • Hospitals, nursing homes & long-term care
  • School districts and universities
  • Off-site catering or commissary operations
Installation clearance: Maintain at least 2" (51 mm) from combustible walls and 36" (915 mm) in front of the door for safe operation.

Need flexible financing? Ask about Middleby Equipment Financing to turn this purchase into convenient monthly payments.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Certifications

UL EPH

Height

75.88in

Width

31.5in

Depth

38.0in

Shipping Weight

500.0lbs

Size

1 compartment

Full Size Hotel Pan Capacity

(30) 12" x 20" pans

Full Size Sheet Pan Capacity

(15) 18" x 26" pans

Exterior Finish

all stainless steel exterior

Slide Centers

adjustable on 1-3/4"

Door Type

solid

Door Style

full door(s)

Section

1 section

Height

73" - 78"

Insulation

insulated

Heater

top mounted

Specifications

Heated Cabinet, HD correctional features, mobile, insulated, top mounted forced air heat system, universal slides hold (32) 12"x20" or (16) 18"x26" pans, 3-1/2" spacing, slides adjustable 1-3/4" increments, stainless steel construction, flush dr, wrap-around bumper, 6" swivel casters, cUL, UL EPH
