Carter-Hoffmann (Middleby)  |  SKU: PH1835

Carter-Hoffmann (Middleby) PH1835 Heated Cabinets & Holding Shelves

$7,420.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Brochure Terms & conditions
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Carter-Hoffmann PH1815 Mobile Heated Transport Cart

24 × 12" × 20" or 12 × 18" × 26" Pan Capacity • Top-Mounted Blower Heat • 120 V Plug-in

Move from kitchen to service with total confidence. Engineered for high-volume catering, banquets, healthcare and more, the PH1815 keeps food hot, fresh and safe while withstanding the bumps and bruises of everyday transport.

Key advantages

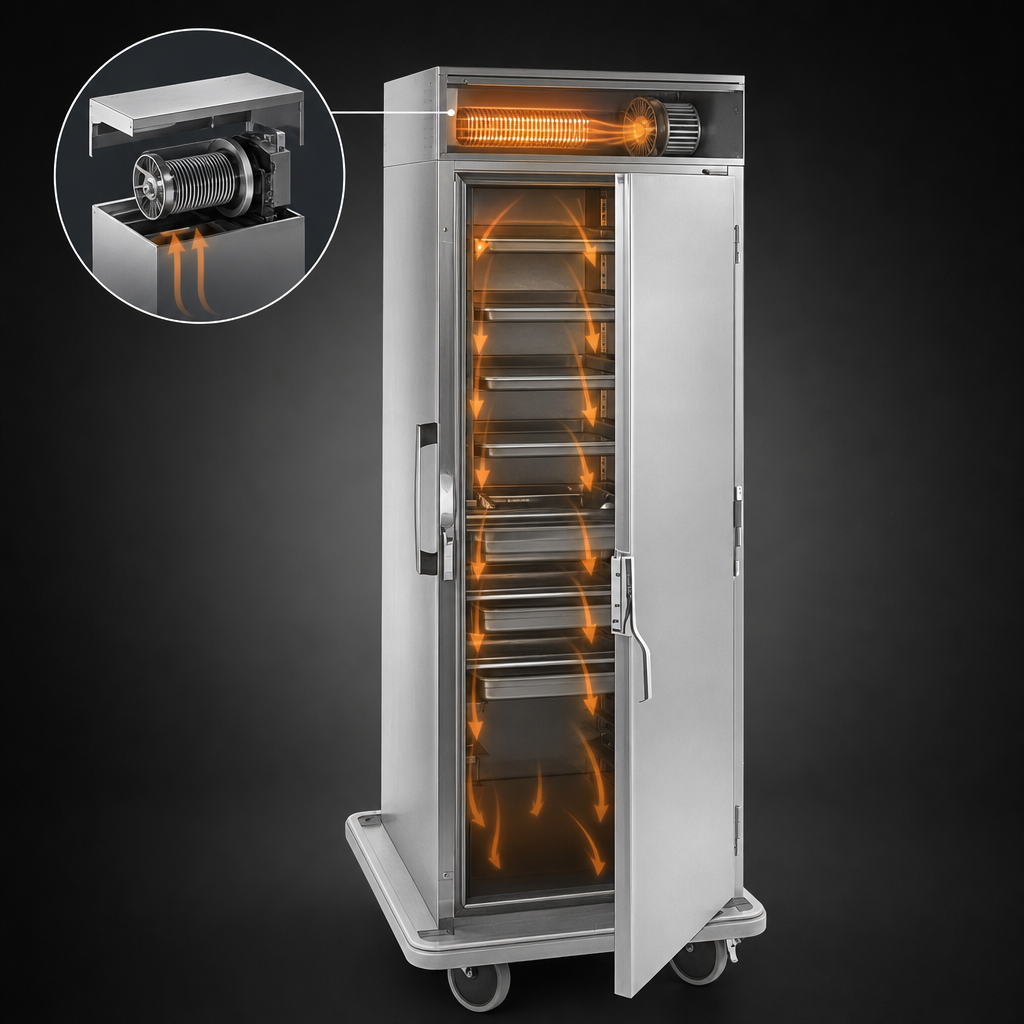

  • Top-mounted forced-air heating system distributes even heat up to 200 °F (93 °C).
  • Reaches 160 °F (71 °C) in about 25 minutes—perfect for quick turn-arounds between services.
  • Universal tray slides accept both sheet pans and steam-table pans—no adapters needed.
  • Slides adjust on 1-3⁄4" centers; standard 3-1⁄2" spacing maximizes 24-pan capacity.
  • All-welded, double-wall stainless steel cabinet resists twisting, denting and corrosion.
  • Full-perimeter wrap-around vinyl bumper and “wheel-ahead” 6" casters protect walls and doorways.
  • Side-mounted aluminum push handles and flush transport latch for safe, ergonomic maneuvering.

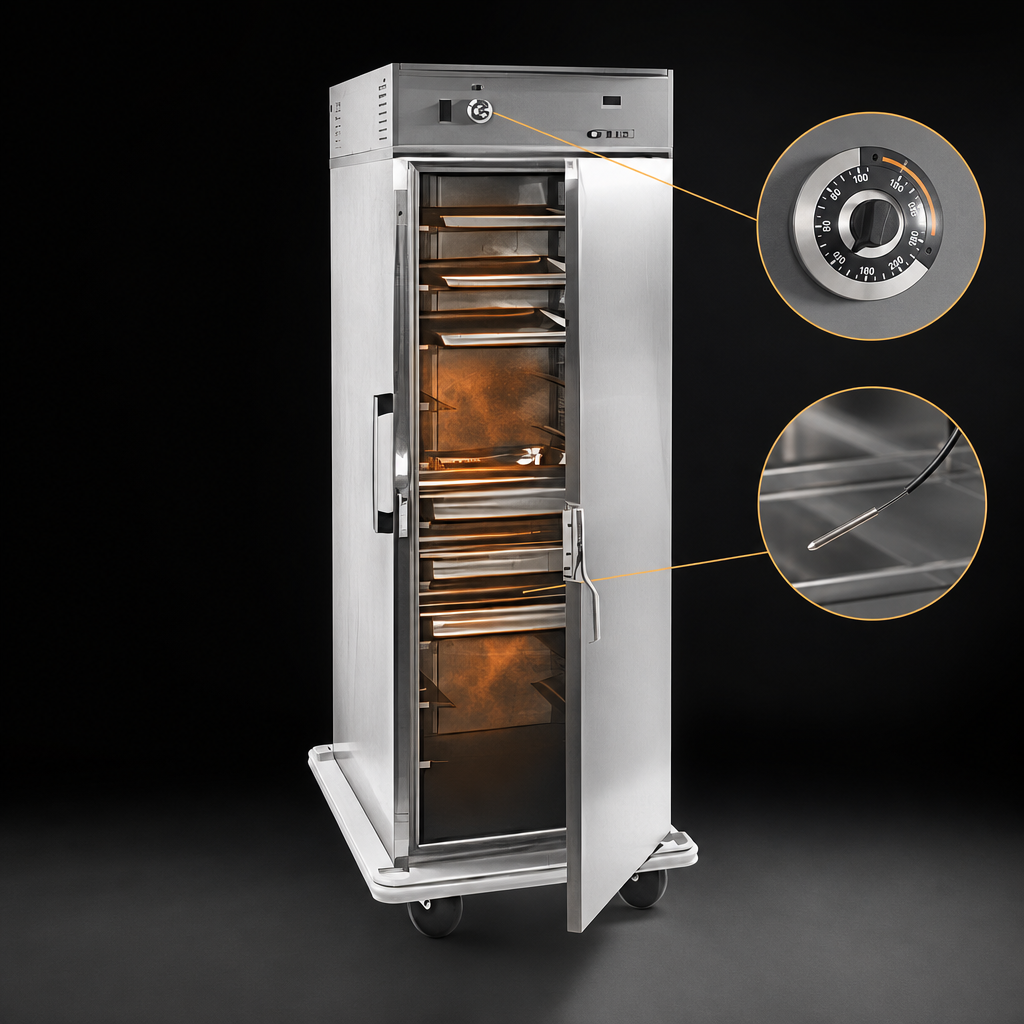

  • Dial thermostat with remote-bulb thermometer for quick, accurate temperature checks.
  • cULus and UL EPH listed—meets both electrical and sanitation standards.
Technical specifications
Model PH1815
Pan capacity 12 × 18" × 26" sheet pans
24 × 12" × 20" steam-table pans
Slide spacing 3-1⁄2" standard, adjustable in 1-3⁄4" increments
Temperature range Ambient to 200 °F (93 °C)
Interior working height 45 3⁄4" (1162 mm)
Overall dimensions (H × W × D) 61 1⁄2" × 31 1⁄2" × 38" (1562 × 800 × 965 mm)
Electrical 120 V / 60 Hz / 1 Ph / 1500 W / 13 A
NEMA 5-15P, 10 ft (3 m) cord
Casters (4) 6" swivel polyurethane, offset “wheel-ahead” pattern (2 with brakes)
Construction All-welded stainless steel, double-wall insulation, removable heater module
Certifications cULus, UL EPH
Warranty 1 year parts & labor
Installation clearance: Maintain at least 2" (51 mm) from any wall or combustible surface and 36" (914 mm) in front of the door for full swing.

Custom options available: menu card holders, alternate casters, marine or correctional packages and more. Contact us for details.

Features & Specs

Manufacturer

Carter-Hoffmann (Middleby)

Certifications

UL EPH

Height

75.25in

Width

31.5in

Depth

38.0in

Shipping Weight

532.0lbs

Size

1 compartment

Full Size Hotel Pan Capacity

(30) 12" x 20" pans

Full Size Sheet Pan Capacity

(15) 18" x 26" pans

Exterior Finish

all stainless steel exterior

Slide Centers

adjustable on 1-3/4"

Door Type

solid

Door Style

full door(s)

Section

1 section

Height

73" - 78"

Insulation

insulated

Heater

top mounted

Specifications

Heated Cabinet, mobile, insulated, top mount forced-air heat system, universal slides hold (24) 12"x20" or (12) 18"x26" pans, 3-1/2" spacing, slides adjustable in 1-3/4" increments, stainless steel construction, wrap-around bumper, 6" swivel casters, cUL, UL EPH
